GaAs INTEGRATED CIRCUIT
PG2176T5N
50
TERMINATION TYPE HIGH POWER SPDT SWITCH FOR WiMAX
DESCRIPTION
The
PG2176T5N is a GaAs MMIC 50
termination type high power SPDT (Single Pole Double Throw) switch
which was developed for WiMAX. This device can operate frequency from 2.3 to 5.85 GHz, having the low insertion
loss and high isolation.
This device is housed in a 6-pin plastic TSON (Thin Small Out-line Non-leaded) package. And this package is
able to high-density surface mounting.
FEATURES
• Control voltage
• Low insertion loss
: V
cont (H)
= 2.5 to 5.0 V (3.0 V TYP.)
: V
cont (L)
=
0.3
to 0.3 V (0 V TYP.)
: L
ins
1 = 0.45 dB TYP. @ f = 2.3 to 2.7 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: L
ins
2 = 0.55 dB TYP. @ f = 3.3 to 3.8 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: L
ins
3 = 0.70 dB TYP. @ f = 4.9 to 5.85 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
• High isolation
: ISL1 = 27 dB TYP. @ f = 2.3 to 2.7 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: ISL2 = 24 dB TYP. @ f = 3.3 to 3.8 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: ISL3 = 21 dB TYP. @ f = 4.9 to 5.85 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
• Handling power
: P
in (1 dB)
= +37.0 dBm TYP. @ f = 2.3 to 2.7 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: P
in (1 dB)
= +37.0 dBm TYP. @ f = 3.3 to 3.8 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: P
in (1 dB)
= +37.0 dBm TYP. @ f = 4.9 to 5.85 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
• High-density surface mounting : 6-pin plastic TSON package (1.5
1.5
0.37 mm)
APPLICATION
• WiMAX and wireless LAN (IEEE802.11a/b/g/n)
ORDERING INFORMATION
Part Number
Order Number
Package
6-pin plastic TSON
(Pb-Free)
Marking
G4Y
Supplying Form
Embossed tape 8 mm wide
Pin 1, 6 face the perforation side of the tape
Qty 3 kpcs/reel
PG2176T5N-E2
PG2176T5N-E2-A
Remark
To order evaluation samples, contact your nearby sales office.
Part number for sample order:
PG2176T5N-A
Caution
:
Observe precautions when handling because these devices are sensitive to electrostatic discharge
Document No. PG10677EJ03V0DS (3rd edition)
Date Published February 2008 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PG2176T5N
PIN CONNECTIONS AND INTERNAL BLOCK DIAGRAM
Pin No.
1
2
3
4
5
6
Pin Name
V
cont
1
INPUT
V
cont
2
OUTPUT2
GND
OUTPUT1
Remark
Exposed pad : GND
TRUTH TABLE
V
cont
1
High
Low
V
cont
2
Low
High
INPUTOUTPUT1
ON
OFF
INPUTOUTPUT2
OFF
ON
ABSOLUTE MAXIMUM RATINGS (T
A
= +25C, unless otherwise specified)
Parameter
Switch Control Voltage
Input Power (ON Port, peak)
Input Power (ON Port, average)
Input Power (OFF Port)
Power Dissipation (average)
Operating Ambient Temperature
Storage Temperature
Symbol
V
cont
P
in
P
in
P
in (OFF)
P
D
T
A
T
stg
Ratings
6.0
to +6.0
+38
+28
+20
150
45
to +85
55
to +150
Note
Unit
V
dBm
dBm
dBm
mW
C
C
Note
½V
cont
1
V
cont
2½
6.0 V
RECOMMENDED OPERATING RANGE (T
A
= +25C, unless otherwise specified)
Parameter
Operating Frequency
Symbol
f
opt
1
f
opt
2
f
opt
3
Switch Control Voltage (H)
Switch Control Voltage (L)
V
cont (H)
V
cont (L)
MIN.
2.3
3.3
4.90
+2.5
0.3
TYP.
+3.0
0
MAX.
2.7
3.8
5.85
+5.0
+0.3
Unit
GHz
GHz
GHz
V
V
2
Data Sheet PG10677EJ03V0DS
PG2176T5N
ELECTRICAL CHARACTERISTICS
(T
A
= +25C, V
cont (H)
= 3.0 V, V
cont
specified)
Parameter
Insertion Loss 1
Insertion Loss 2
Insertion Loss 3
Isolation 1 (INPUTOFF Port)
Isolation 2 (INPUTOFF Port)
Isolation 3 (INPUTOFF Port)
Isolation 4 (OUTPUT1OUTPUT2)
Isolation 5 (OUTPUT1OUTPUT2)
Isolation 6 (OUTPUT1OUTPUT2)
Input Return Loss 1
Input Return Loss 2
Input Return Loss 3
Output Return Loss 1
Output Return Loss 2
Output Return Loss 3
Unused Port Return Loss 1
Unused Port Return Loss 2
Unused Port Return Loss 3
1 dB Loss Compression
Input Power
Note
(L)
= 0 V, DC blocking capacitors = 8 pF, unless otherwise
Symbol
L
ins
1
L
ins
2
L
ins
3
ISL1
ISL2
ISL3
ISL4
ISL5
ISL6
RL
in
1
RL
in
2
RL
in
3
RL
out
1
RL
out
2
RL
out
3
URL1
URL2
URL3
P
in (1 dB)
Test Conditions
f = 2.3 to 2.7 GHz
f = 3.3 to 3.8 GHz
f = 4.9 to 5.85 GHz
f = 2.3 to 2.7 GHz
f = 3.3 to 3.8 GHz
f = 4.9 to 5.85 GHz
f = 2.3 to 2.7 GHz
f = 3.3 to 3.8 GHz
f = 4.9 to 5.85 GHz
f = 2.3 to 2.7 GHz
f = 3.3 to 3.8 GHz
f = 4.9 to 5.85 GHz
f = 2.3 to 2.7 GHz
f = 3.3 to 3.8 GHz
f = 4.9 to 5.85 GHz
f = 2.3 to 2.7 GHz
f = 3.3 to 3.8 GHz
f = 4.9 to 5.85 GHz
f = 2.3 to 2.7 GHz
f = 3.3 to 3.8 GHz
f = 4.9 to 5.85 GHz
MIN.
24
21
18
22
20
17
10
10
10
10
10
10
10
10
10
+35.0
+35.0
+35.0
TYP.
0.45
0.55
0.70
27
24
21
25
23
20
15
15
15
15
15
15
15
15
15
+37.0
+37.0
+37.0
16
100
MAX.
0.70
0.80
0.95
30
250
Unit
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
Switch Control Current
Switch Control Speed
I
cont
t
SW
RF None
50% CTL to 90/10% RF
A
ns
Note
P
in (1 dB)
is measured the input power level when the insertion loss increases more 1 dB than that of linear
range.
Data Sheet PG10677EJ03V0DS
3
PG2176T5N
EVALUATION CIRCUIT
The application circuits and their parameters are for reference only and are not intended for use in actual design-ins.
4
Data Sheet PG10677EJ03V0DS
PG2176T5N
<R>

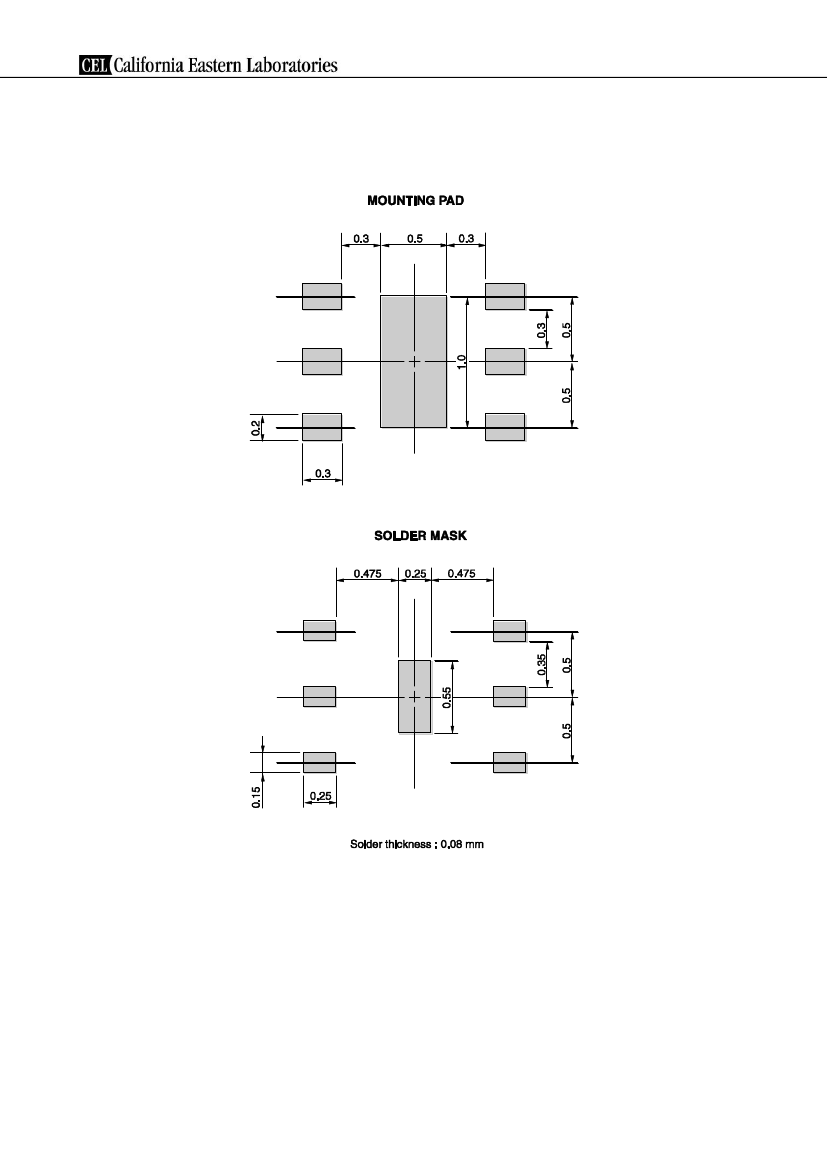

MOUNTING PAD AND SOLDER MASK LAYOUT DIMENSIONS
6-PIN PLASTIC TSON (UNIT: mm)
Remark
The mounting pad and solder mask layouts in this document are for reference only.
Data Sheet PG10677EJ03V0DS
5
