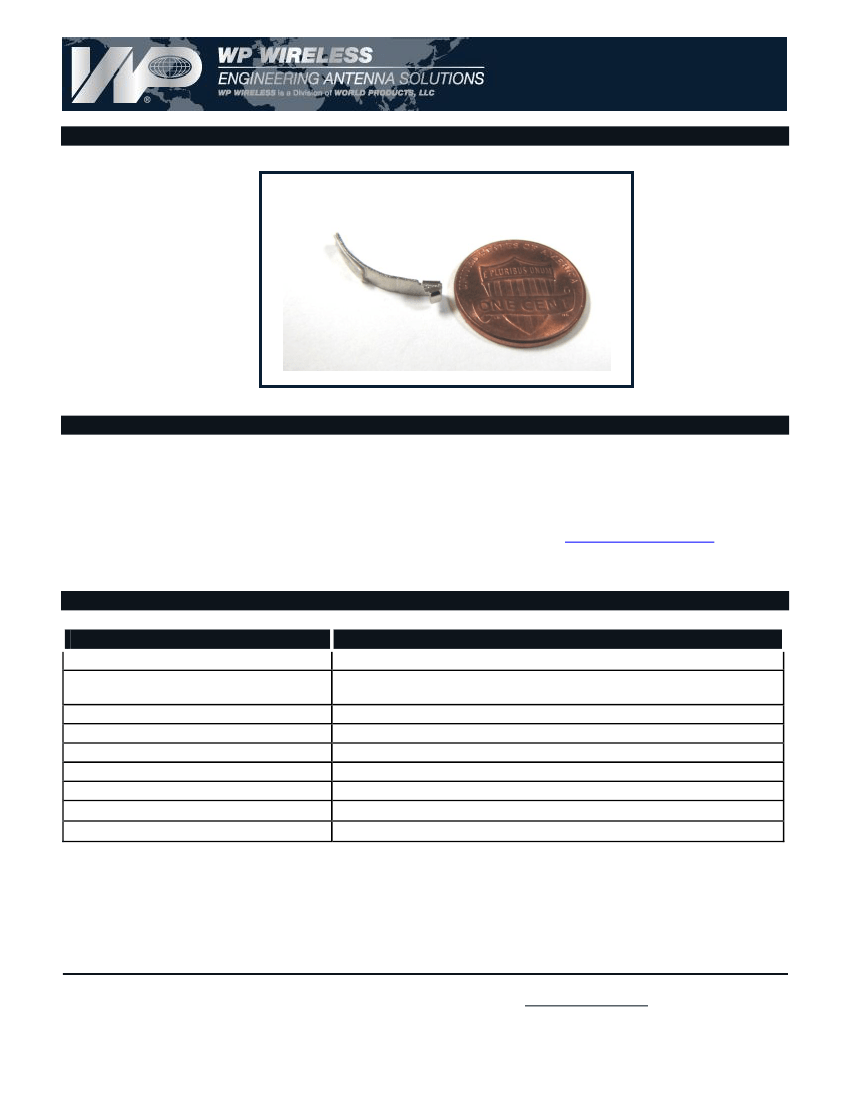

WPANT10028-C1A
2.4 GHz Wi-Fi Embedded Antenna
Picture of the Part
Application
WPANT10028-C1A is a 2.4 GHz Wi-Fi on board Stamped Metal Antenna. Broad bandwidth, excellent efficiency and
ease of integration make this an ideal choice for applications where performance is very important.
WP Wireless can assist your engineers to optimize mounting positions for these antennas in your specific application
and can further assist to trouble shoot system integration issues such as TRP/TIS and FCC requirements. WP
Wireless specializes in developing customized Antenna solutions. Please contact
sales@wp-wireless.com
with your
specific application requirements.
Electrical Properties
Parameter
Operating Frequency
Recommended Impedance of the
customer Radio Module[]
VSWR - Typical*
Peak Gain [dBi] (Typical) *
Efficiency [%] (Typical) *
Polarization
Pattern
Accepted Power [W] (Max) *
Minimum Ground plane size required
Antenna Performance
2.4 – 2.5 GHz
50Ω
<2:1
2 – 2.5 dBi
65 – 70%
Linear
Near Omni Directional
2 Watts
40 – 50mm
*Note:
These performance metrics were recorded with the Antenna installed on the client’s device.
WP Wireless
— A Division of World Products LLC. ||
19656 Eighth Street East
||
Sonoma, CA, 95476, USA
[O]: +1-707-996-5201
||
[F]: +1-707-996-3380
||
[E]: sales@wp-wireless.com
||
[W]: www.wp-wireless.com
Rev: 1.0
Created on: June 20
th
2012
Created by: MKS
Approved By: BP
Page 1 of 5
WPANT10028-C1A
2.4 GHz Wi-Fi Embedded Antenna
Mechanical / Environmental Properties
Item
Antenna Dimensions
Antenna Color
Operating / Storage Temperature
Environmental
Hazardous Materials
Value
18mm X 3mm X 0.38mm (L X H X T)
Metallic Silver
-40 C to +90 C
Meets standards for UL 94V-0
RoHS compliant
o
o

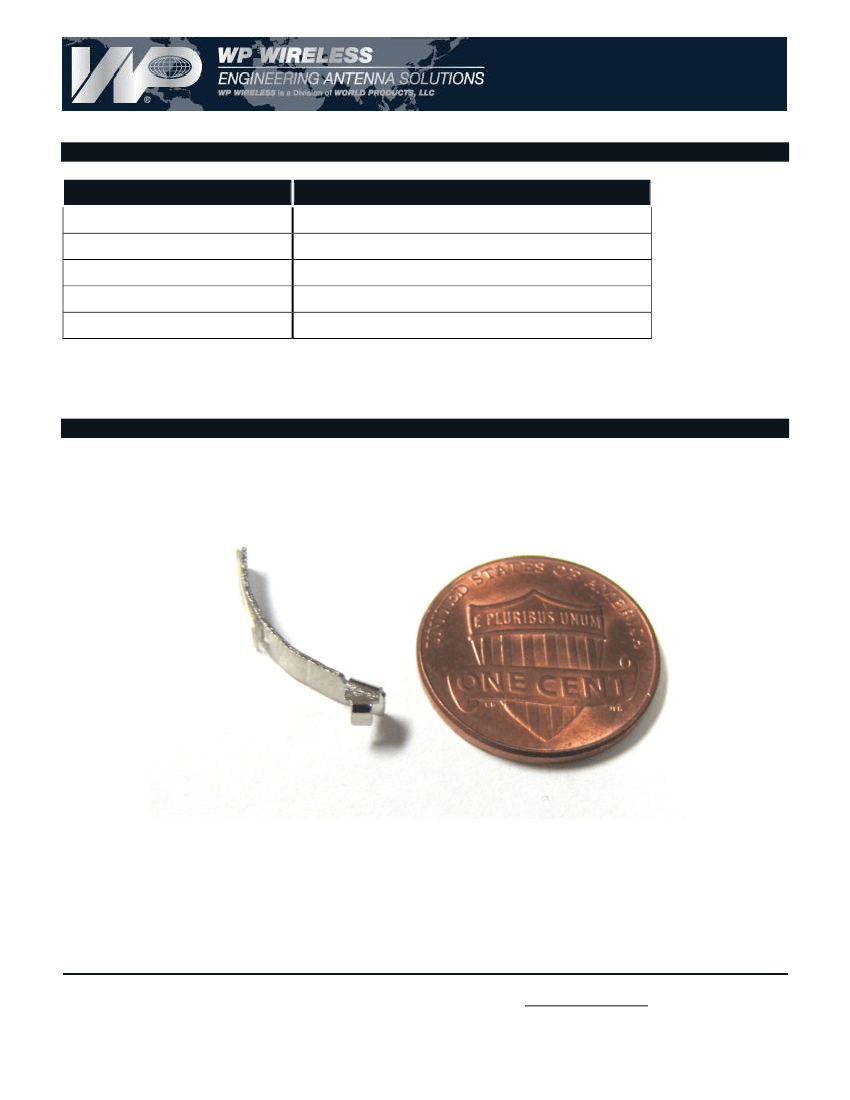

Picture of the Antenna
WP Wireless
— A Division of World Products LLC. ||
19656 Eighth Street East
||
Sonoma, CA, 95476, USA
[O]: +1-707-996-5201
||
[F]: +1-707-996-3380
||
[E]: sales@wp-wireless.com
||
[W]: www.wp-wireless.com
Rev: 1.0
Created on: June 20
th
2012
Created by: MKS
Approved By: BP
Page 2 of 5
WPANT10028-C1A
2.4 GHz Wi-Fi Embedded Antenna

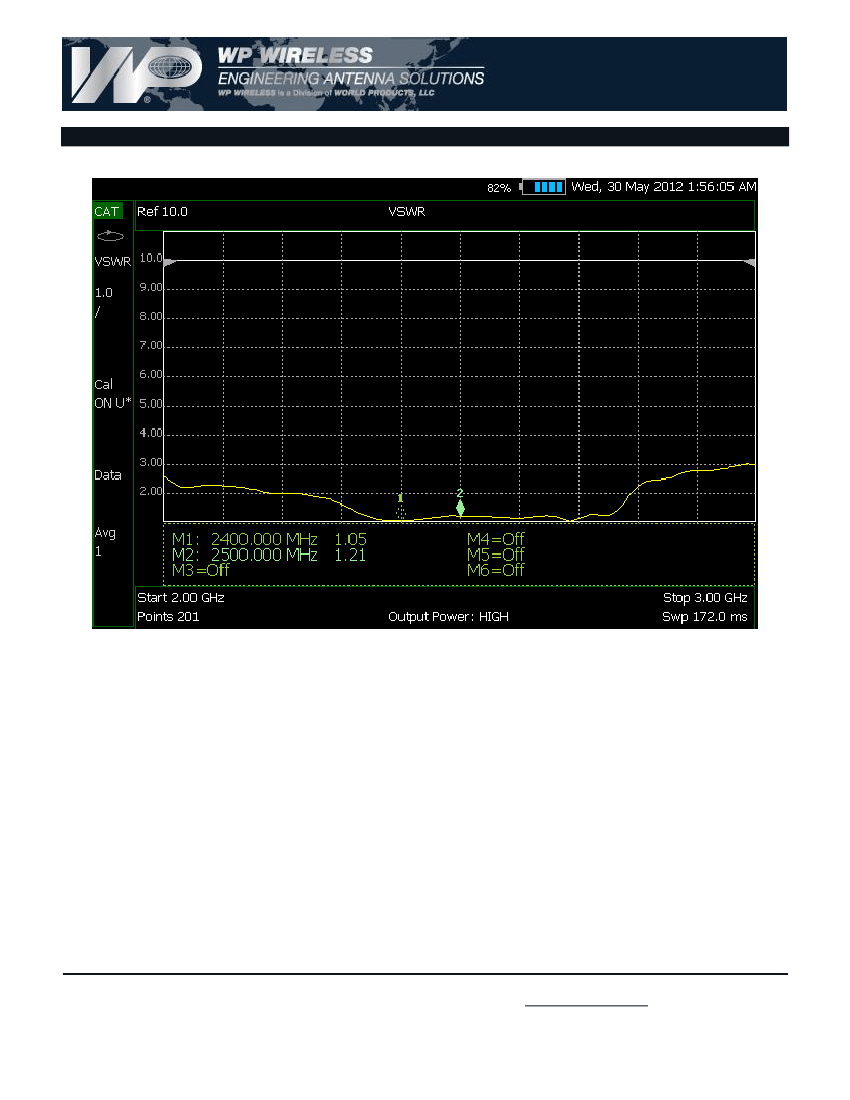

VSWR of the Antenna
WP Wireless
— A Division of World Products LLC. ||
19656 Eighth Street East
||
Sonoma, CA, 95476, USA
[O]: +1-707-996-5201
||
[F]: +1-707-996-3380
||
[E]: sales@wp-wireless.com
||
[W]: www.wp-wireless.com
Rev: 1.0
Created on: June 20
th
2012
Created by: MKS
Approved By: BP
Page 3 of 5
WPANT10028-C1A
2.4 GHz Wi-Fi Embedded Antenna

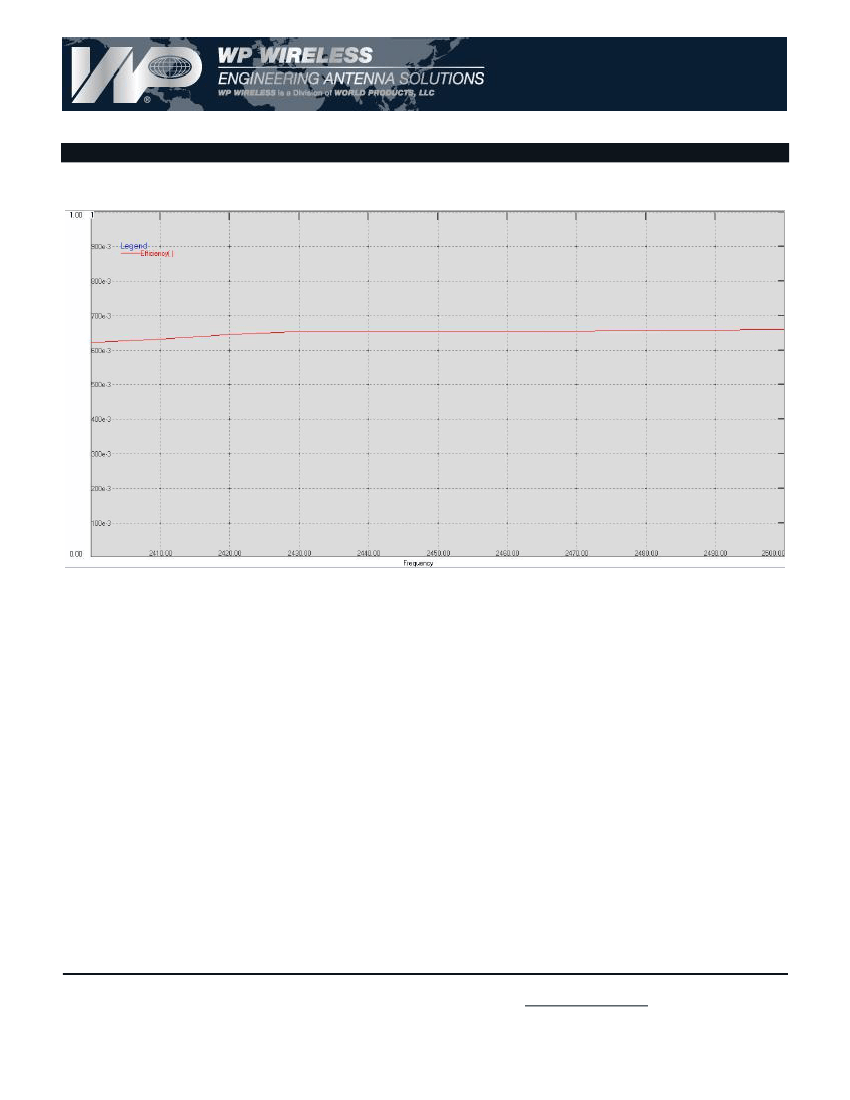

Efficiency of the Antenna in %
