Data sheet
SAIL-M12GM12G-4-4.0V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

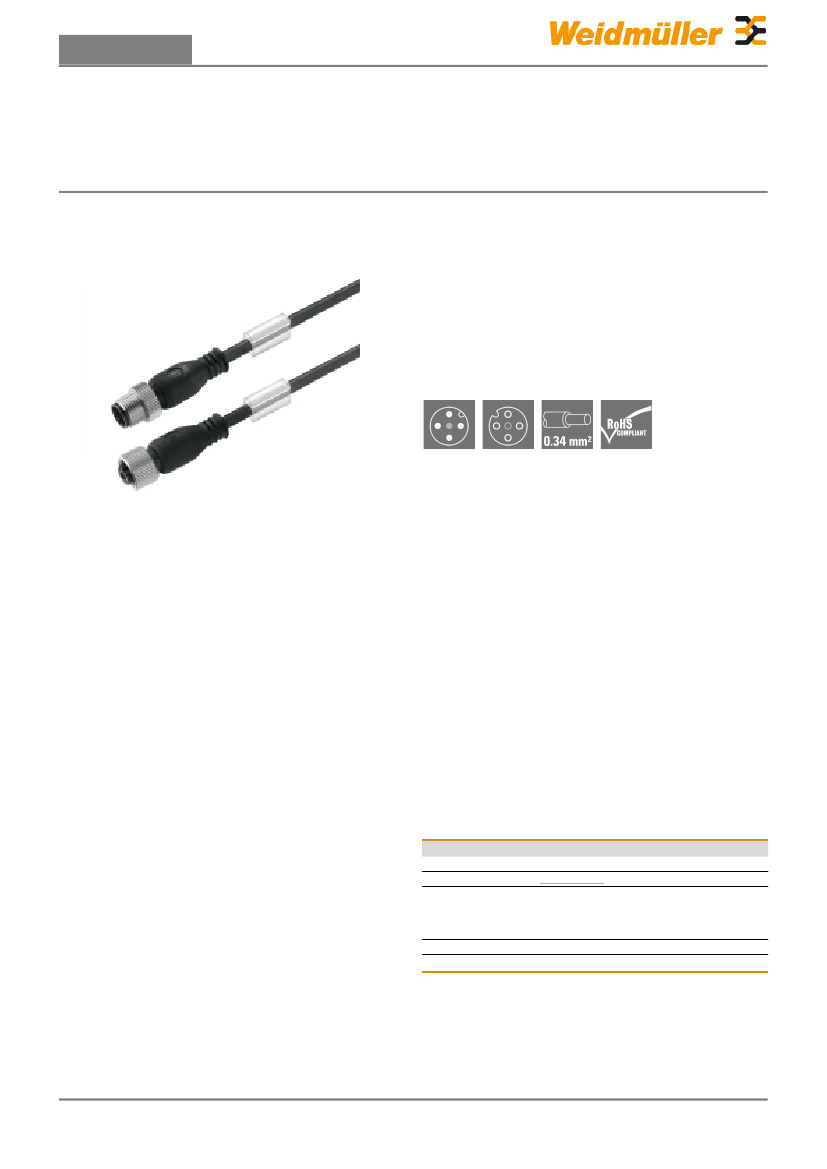

Sensor/actuator cables are used for wiring sensors and
actuators and for transmitting data or power in various
applications. The moulded cable offers connected and
tested connection of the plug-in connector to the cable
ex-works. The cables may be exposed to a wide range of
conditions, such as humidity, dust, heat, cold, shock or
vibration.
Our developers have focused specifically on this issue and
designed a host of different M8 and M12 sensor-actuator
cables so you are bound to find the solution you need for
your application.
Is there something you have not managed to find or you
feel needs explanation? Talk to us!
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
SAIL-M12GM12G-4-4.0V
1925310400
Sensor/actuator line, Connecting line, M12 /
M12, Number of poles : 4, 4 m, pin, straight -
socket, straight, Shielded: No, LED: No, Sheath
material: PVC, Halogen: Yes
4032248907953
1 pc(s).
Creation date May 14, 2019 10:46:51 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
1
Data sheet
SAIL-M12GM12G-4-4.0V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
193 g
Dimensions and weights
Net weight
Environmental Product Compliance
REACH SVHC
Lead 7439-92-1
Technical specifications for cable
Number of poles
Outside diameter
Shielded
Colour coding
Sheathing colour
Temperature range, moving
Outer cladding in accordance with UL
AWM style
Torsion resistance
Hybrid cable
Configurable cable length
4
5.3 ± 0.2 mm
No
brown, white, blue, black
black
-5...80 °C
2464 (80 °C / 300 V)
0 °/m
No
No
Core cross-section
Cable length
Insulation
Sheath material
Halogen
Temperature range, stationary
Suitable for cable carriers
Resistant to welding beads
Irradiation crosslinked
0.34 mm²
4m
PVC
PVC
Yes
-30...80 °C
No
No
No
General technical data
Version
pin, straight - socket,
straight
PUR
A
Gold-plated
250 V
Connection thread
Threaded ring material
Protection degree
LED
Rated current
Temperature range of housing
Plugging cycles
jumpered
M12 / M12
Diecast zinc
IP65, IP66, IP67, IP68,
when screwed in
No
4A
-25…+85 °C
≥ 100
No
Housing main material
Coding
Contact surface
Rated voltage
Insulation strength
Tightening torque
Pollution severity
10
8
Ω
M12: 0.8 - 1.2 Nm
3
Standards
Connector standard
IEC 61076-2-101
Certificate no. (cULus)
E307231
Classifications
ETIM 3.0
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
EC000830
EC000830
27-06-91-90
27-06-91-90
27-06-03-11
ETIM 4.0
ETIM 6.0
eClass 7.1
eClass 9.0
EC000830
EC001855
27-06-91-90
27-06-03-11
Approvals
Approvals
ROHS
Conform
Creation date May 14, 2019 10:46:51 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
2
Data sheet
SAIL-M12GM12G-4-4.0V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
FL FIELDWIRING EN
Downloads
Brochure/Catalogue
Creation date May 14, 2019 10:46:51 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
3
Data sheet
SAIL-M12GM12G-4-4.0V
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

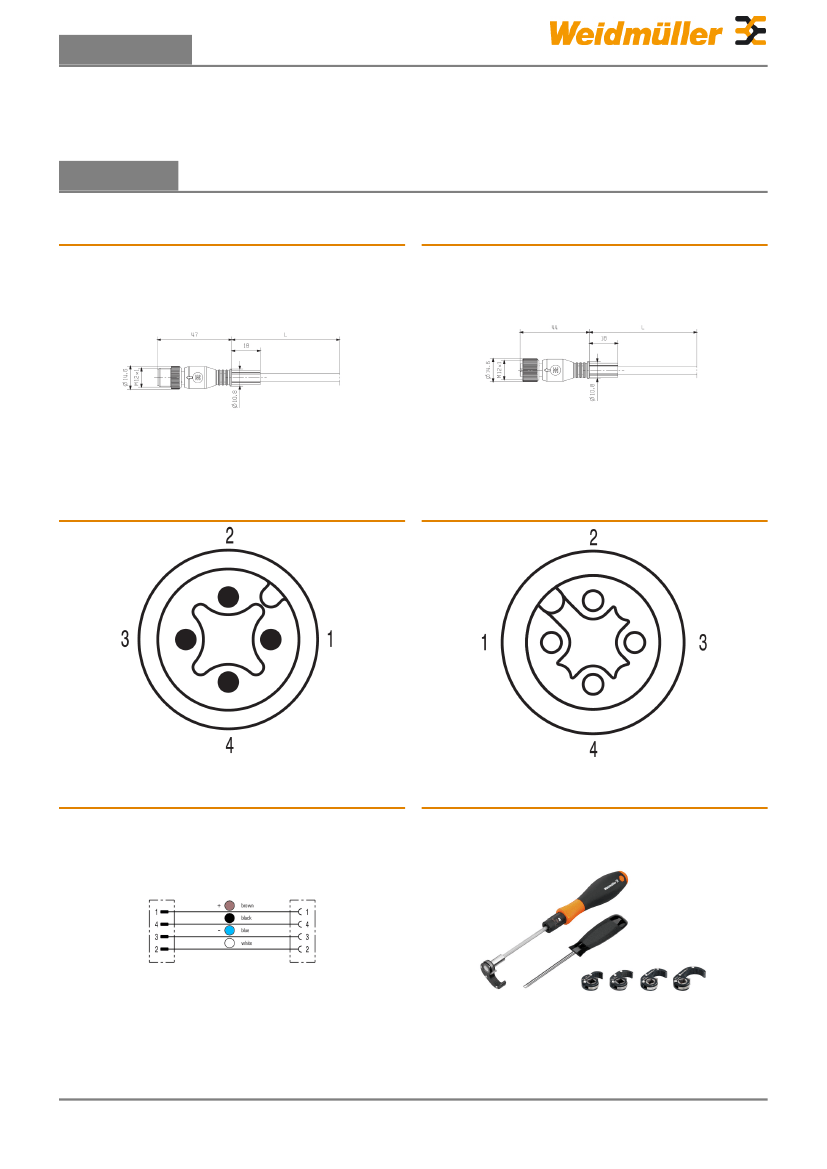

Drawings
Dimensioned drawing
Dimensioned drawing
Pole scheme
Male, straight
Pole scheme
Straight socket
Male
Wiring diagram
Socket
The ideal tool: Screwty
® with torque function
Creation date May 14, 2019 10:46:51 AM CEST
Light, securely screwed-in round plug-in
connectors. Screwty set DM / VPE: 1 / Order No.:
1920000000 Adapters: M12, M12 F, M8, M8 F
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
4
