Preliminary
Datasheet
RJK5026DPP-E0
500V - 6A - MOS FET
High Speed Power Switching
Features
Low on-resistance
R
DS(on)
= 1.35
typ. (at I
D
= 3 A, V
GS
= 10 V, Ta = 25C)
Low leakage current
High speed switching
R07DS0608EJ0100
Rev.1.00
Jun 21, 2012
Outline
RENESAS Package code: PRSS0003AG-A
(Package name: TO-220FP)
D
G
1. Gate
2. Drain
3. Source
1
2 3
S
Absolute Maximum Ratings
(Ta = 25°C)
Item
Drain to source voltage
Gate to source voltage
Drain current
Drain peak current
Body-drain diode reverse drain current
Body-drain diode reverse drain peak current
Avalanche current
Avalanche energy
Channel dissipation
Channel to case thermal impedance
Channel temperature
Storage temperature
Notes: 1.
2.
3.
4.
PW
10
s,
duty cycle
1%
Value at Tc = 25C
STch = 25C, Tch
150C
Limited by maximum safe operation area
Symbol
V
DSS
V
GSS
I
DNote4
I
D (pulse)Note1
I
DR
I
DR (pulse)Note1
I
APNote3
E
ARNote3
Pch
ch-c
Tch
Tstg
Note2
Ratings
500
30
6
18
6
18
4
0.88
28.5
4.38
150
–55 to +150
Unit
V
V
A
A
A
A
A
mJ
W
C/W
C
C
R07DS0608EJ0100 Rev.1.00
Jun 21, 2012
Page 1 of 6
RJK5026DPP-E0
Preliminary
Electrical Characteristics
(Ta = 25°C)
Item
Drain to source breakdown voltage
Zero gate voltage drain current
Gate to source leak current
Gate to source cutoff voltage
Static drain to source on state
resistance
Input capacitance
Output capacitance
Reverse transfer capacitance
Turn-on delay time
Rise time
Turn-off delay time
Fall time
Total gate charge
Gate to source charge
Gate to drain charge
Body-drain diode forward voltage
Body-drain diode reverse recovery time
Notes: 5. Pulse test
Symbol
V
(BR)DSS
I
DSS
I
GSS
V
GS(off)
R
DS(on)
Ciss
Coss
Crss
t
d(on)
t
r
t
d(off)
t
f
Qg
Qgs
Qgd
V
DF
t
rr
Min
500
—
—
3.0
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ
—
—
—
—
1.35
440
52
7
26
19
50
14
14
2.5
6.9
0.95
230
Max
—
1
±0.1
4.5
1.70
—
—
—
—
—
—
—
—
—
—
1.50
—
Unit
V
A
A
V
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
ns
Test conditions
I
D
= 10 mA, V
GS
= 0
V
DS
= 500 V, V
GS
= 0
V
GS
=
30
V, V
DS
= 0
V
DS
= 10 V, I
D
= 1 mA
I
D
= 3 A, V
GS
= 10 V
Note5
V
DS
= 25 V
V
GS
= 0
f = 1 MHz
I
D
= 3 A
V
GS
= 10 V
R
L
= 83.3
Rg = 10
V
DD
= 400 V
V
GS
= 10 V
I
D
= 6 A
I
F
= 6 A, V
GS
= 0
Note5
I
F
= 6 A, V
GS
= 0
di
F
/dt = 100 A/s
R07DS0608EJ0100 Rev.1.00
Jun 21, 2012
Page 2 of 6
RJK5026DPP-E0
Preliminary

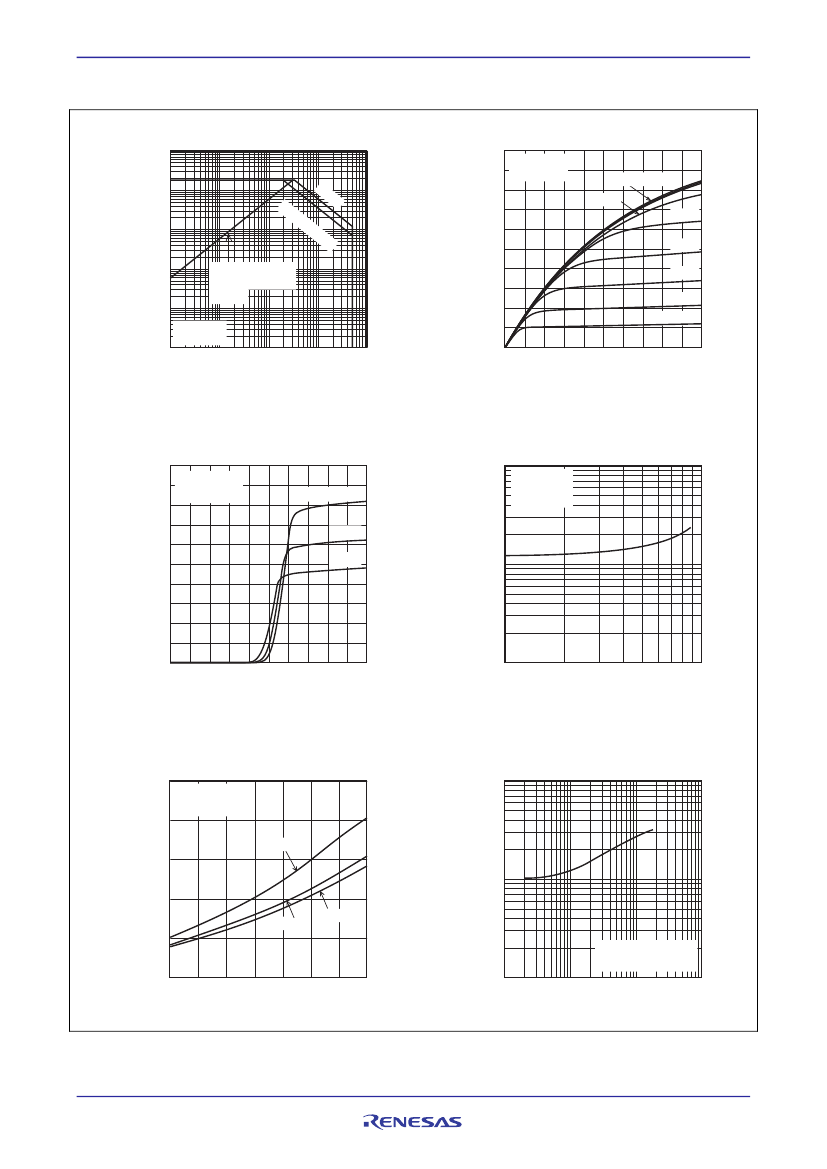

Main Characteristics
Maximum Safe Operation Area
100
10
Typical Output Characteristics
10
Ta = 25°C
Pulse Test
7 V, 8 V, 10 V
6V
Drain Current I
D
(A)
PW
Drain Current I
D
(A)
10
=
10
μ
s
8
5.8 V
6
1
0
μ
s
5.6 V
4
0.1
Operation in this
area is limited by
R
DS(on)
Ta = 25°C
1 shot
1
10
100
1000
5.4 V
5.2 V
V
GS
= 5 V
0.01
2
0.001
0.1
0
0
4
8
12
16
20
Drain to Source Voltage V
DS
(V)
Drain to Source Voltage V
DS
(V)
Static Drain to Source on State Resistance
vs. Drain Current (Typical)
Drain to Source on State Resistance
R
DS(on)
(Ω)
10
V
GS
= 10 V
Ta = 25°C
Pulse Test
Typical Transfer Characteristics
10
V
DS
= 10 V
Pulse Test
Drain Current I
D
(A)
8
Tc =
−25
°C
25 °C
6
75 °C
4
1
2
0
0.1
1
2
5
10
0
2
4
6
8
10
Gate to Source Voltage V
GS
(V)
Static Drain to Source on State Resistance
vs. Temperature (Typical)
V
GS
= 10 V
Pulse Test
4
I
D
= 6 A
3
Drain Current I
D
(A)
Static Drain to Source on State Resistance
R
DS(on)
(Ω)
Body-Drain Diode Reverse
Recovery Time (Typical)
1000
Reverse Recovery Time trr (ns)
5
100
2
3A
1
1.5 A
di / dt = 100 A /
μs
V
GS
= 0, Ta = 25°C
10
0.1
1
10
100
0
-25
0
25
50
75
100 125 150
Case Temperature Tc (°C)
Reverse Drain Current I
DR
(A)
R07DS0608EJ0100 Rev.1.00
Jun 21, 2012
Page 3 of 6
RJK5026DPP-E0
Typical
Capacitance vs.
Drain to Source Voltage
Drain to Source Voltage V
DS
(V)
1000
Ciss
Preliminary
Dynamic
Input
Characteristics (Typical)
I
D
=
6 A
Ta =
25
°C
V
DD
= 400
V
250 V
100 V
V
GS
600
12
100
Coss
10
Crss
V
GS
=
0
f
=
1 MHz
50
Ta =
25°C
100
150
200
250
400
V
DS
8
200
V
DD
= 400
V
250 V
100 V
4
8
12
16
4
1
0
0
20
0
Drain to Source Voltage V
DS
(V)
Gate Charge
Qg
(nC)
10
Gate to Source Cutoff Voltage V
GS(off)
(V)
Reverse Drain Current vs.
Source to Drain Voltage (Typical)
Reverse Drain Current
I
DR
(A)
V
GS
=
0 V
Ta =
25
°C
Pulse
Test
Gate to Source Cutoff Voltage
vs. Case
Temperature
(Typical)
5
V
DS
=
10 V
8
4
I
D
=
10 mA
1 mA
0.1 mA
2
6
3
4
2
0
0
0.4
0.8
1.2
1.6
2.0
1
0
-25
0
25
50
75
100 125 150
Source to Drain Voltage V
SD
(V)
Case
Temperature
Tc
(°C)
R07DS0608EJ0100 Rev.1.00
Jun 21, 2012
Page 4 of 6
Gate to Source Voltage V
GS
(V)
800
16
Capacitance C (pF)
RJK5026DPP-E0
Normalized Transient Thermal Impedance
vs. Pulse Width
Normalized Transient Thermal Impedance
γ
s (t)
10
Tc =
25°C
Preliminary
1
D
=
1
0.5
0.2
0
.1
0
.0
5
0.1
0
.
02
0.01
1shot pulse
θ
ch
–
c(t)
=
γ
s (t)
•
θ
ch
–
c
θ
ch
–
c
= 4.38°C/W, Tc =
25°C
P
DM
PW
T
1m
10 m
100 m
1
10
100
1000
D
=
PW
T
0.01
10
μ
100
μ
Pulse Width
PW (s)
Switching
Time Test
Circuit
Vin Monitor
D.U.T.
R
L
10
Ω
Vin
10 V
V
DD
=
250 V
Vin
Vout
10%
10%
Vout
Monitor
Waveform
90%
10%
90%
td(on)
tr
90%
td(off)
tf
R07DS0608EJ0100 Rev.1.00
Jun 21, 2012
Page 5 of 6
