RSM2-14-SG-SMT-P-KT-10-T/R datasheet, PDF

Datasheet> All Categories > The connector> The connector> RSM2-14-SG-SMT-P-KT-10-T/R

RSM2-14-SG-SMT-P-KT-10-T/R: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

RSM2-14-SG-SMT-P-KT-10-T/R Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

RSM2-14-SG-SMT-P-KT-10-T/R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Adam Tech
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.295 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
maximum insertion force	1.668 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	RSM
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.3086 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
Evacuation force-minimum value	.556 N

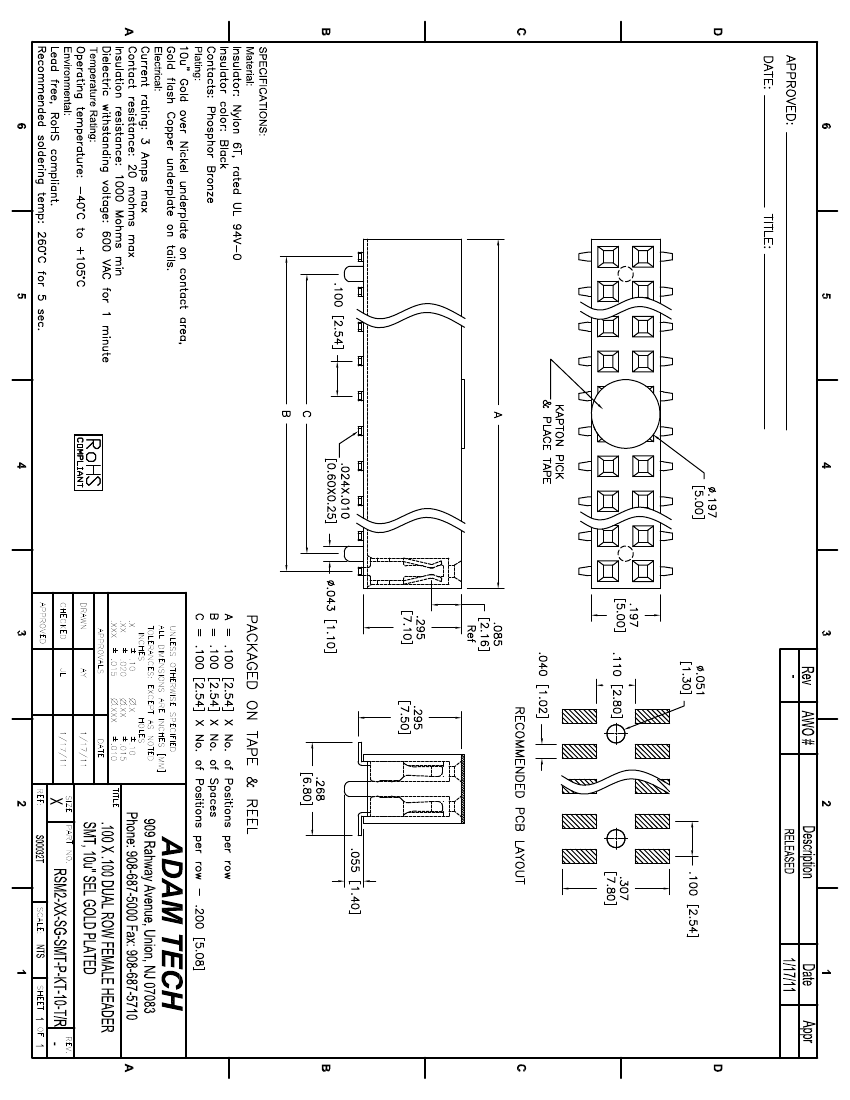

Preview

Download Datasheet

View All

RSM2-14-SG-SMT-P-KT-10-T/R Related Products

	RSM2-14-SG-SMT-P-KT-10-T/R	RSM2-02-SG-SMT-P-KT-10-T/R	RSM2-78-SG-SMT-P-KT-10-T/R
Description	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 2 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 78 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Maker	Adam Tech	Adam Tech	Adam Tech
Reach Compliance Code	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.197 inch	0.197 inch	0.197 inch
subject depth	0.295 inch	0.295 inch	0.295 inch
body length	0.7 inch	0.1 inch	3.9 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V
maximum insertion force	1.668 N	1.668 N	1.668 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON
JESD-609 code	e4	e4	e4
Manufacturer's serial number	RSM	RSM	RSM
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.3086 mm	5.3086 mm	5.3086 mm
Plating thickness	10u inch	10u inch	10u inch
Rated current (signal)	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	14	2	78
Evacuation force-minimum value	.556 N	.556 N	.556 N
Plug contact pitch	0.1 inch	-	0.1 inch
Terminal pitch	2.54 mm	-	2.54 mm
