564-1-D12-0-NSX-RS1

Description
Board Connector, 16 Contact(s), Female, Straight, Solder Terminal, Locking
CategoryThe connector    The connector
File Size862KB,1 Pages
ManufacturerMPE-Garry GmbH
Download Datasheet Parametric View All

564-1-D12-0-NSX-RS1 Overview

Board Connector, 16 Contact(s), Female, Straight, Solder Terminal, Locking

564-1-D12-0-NSX-RS1 Parametric

Parameter NameAttribute value
MakerMPE-Garry GmbH
Reach Compliance Codecompliant
body width0.157 inch
subject depth0.25 inch
body length1.344 inch
Connector typeBOARD CONNECTOR
Contact arrangementS12P4
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact styleSQ PIN-SKT
Dielectric withstand voltage700VAC V
insulator materialTHERMOPLASTIC
Manufacturer's serial number564
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.09 inch
Termination typeSOLDER
Total number of contacts16

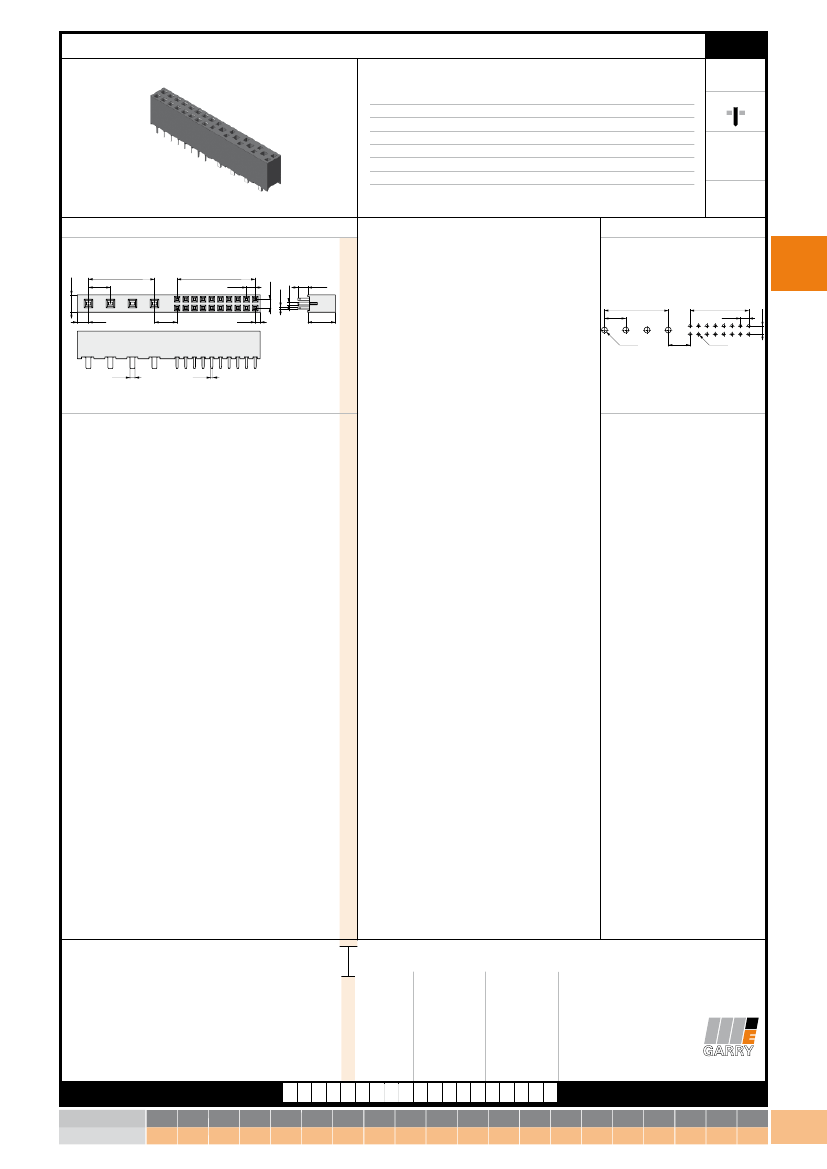

Female Header for Power and Signal Applications 2,00 / 5,08 mm
Rated current
8,2 A with additional signal contact
Rated voltage
250 V
RMS
/ V
DC
for power contact
Withstand voltage
500 V
RMS
for one minute
Material contact
Phosphor bronze
Material insulator
High temp. thermoplast UL94V-0
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
All dimensions in mm.
Series
564
termination
mating pin
size
max.
pincount
2,00/5,08
pitch
MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de
0,50
1,14
Variation
(n
power
-1) x 5,08
5,08
(n
signal
/2-1) x 2,00
2,00
PCB Layout
004/024
Product
group
2,00
0,50
0,65
2,29
4
3,99
2,54
5,22
1,15
6,35
1
ø1,35
5,22
ø0,60
1,14
0,50
No. of contacts *
(A02,... - D24)
Plating contact (T,F,S)
Cap:
0 = Without cap
Cap (0,1)
Variation
* No. of contacts:
Plating:
A## = 1 power contact
T = Sn
B## = 2 power contacts
F = Au
C## = 3 power contacts
S = Sel. Au
D## = 4 power contacts
## = 02 ... 24 signal contacts
(e.g.: A02 = 1 power and 2 signal contacts)
1 = With cap
www.mpe-connector.de
Order code:
Mating series
see page
3-59
564-1-???-0-N?X-RS?
567
2,00
(n
power
-1) x 5,08
5,08
(n
signal
/2-1) x 2,00
2,00
4-47
