DTA124EE / DTA124EUA / DTA124ECA /
DTA124ESA
Elektronische Bauelemente
PNP Digital Transistors (Built-in Resistors)
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors
with complete isolation to allow positive biasing
of the input. They also have the advantage of
almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for
operation, making device design easy.
DTA124EE (SOT-523)
DTA124EUA (SOT-323)
EQUIVALENT CIRCUIT
Addreviated symbol:15
DTA124ESA (TO-92S)
Addreviated symbol:15
DTA124ECA (SOT-23)
Addreviated symbol:15
ABSOLUTE MAXIMUM RATINGS at (T
A
= 25°C unless otherwise noted)
Parameter
Supply Voltage
Input Voltage
Output Current
Power dissipation
Junction & Storage temperature
Symbol
E
V
CC
V
IN
I
O
I
C(MAX)
P
D
T
J
, T
STG
150
Limits (DTA124E□)
UA
-50
-40 ~ 10
-30
-100
200
150, -55~150
300
CA
SA
Unit
V
V
mA
mW
℃
ELECTRICAL CHARACTERISTICS at (T
A
= 25°C unless otherwise noted)
Parameter
Input Voltage
Output Voltage
Input Current
Output Current
DC Current Gain
Input Resistance
Resistance ratio
Transition frequency
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/ R
1
f
T
Min.
-
-3
-
-
-
56
15.4
0.8
-
Typ.
-
-
-
-
-
-
22
1
250
Max.
-0.5
-
-0.3
-0.36
-0.5
-
28.6
1.2
-
Unit
V
V
mA
A
KΩ
Test Conditions
V
CC
= -5V, I
O
= -100A
V
O
= -0.2V, I
O
= -5mA
I
O
/I
I
= -10mA / -0.5mA
V
I
= -5V
V
CC
= -50V, V
I
=0
V
O
= -5V, I
O
= -5mA
MHz
V
O
= -10V, I
O
= -5mA,
f= 100MHz
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
11-Aug-2010 Rev. A
Page 1 of 2
DTA124EE / DTA124EUA / DTA124ECA /
DTA124ESA
Elektronische Bauelemente
PNP Digital Transistors (Built-in Resistors)

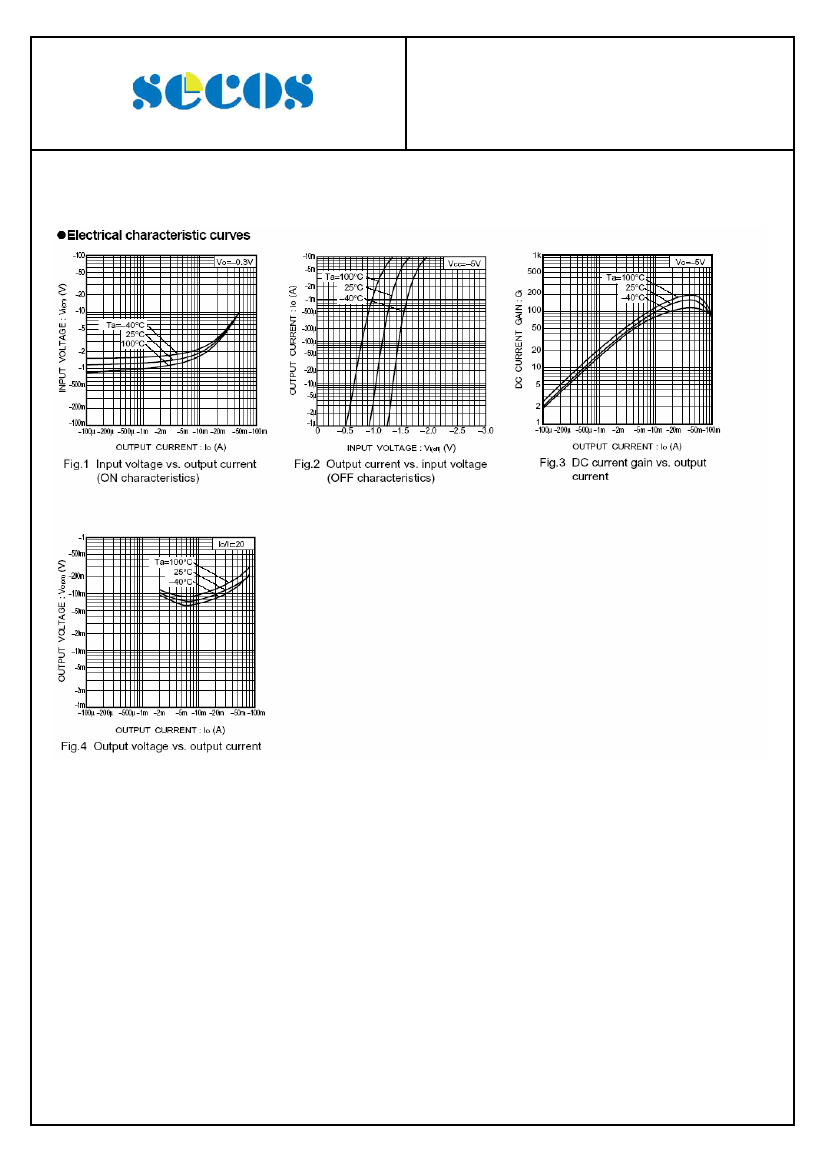

CHARACTERISTIC CURVES
