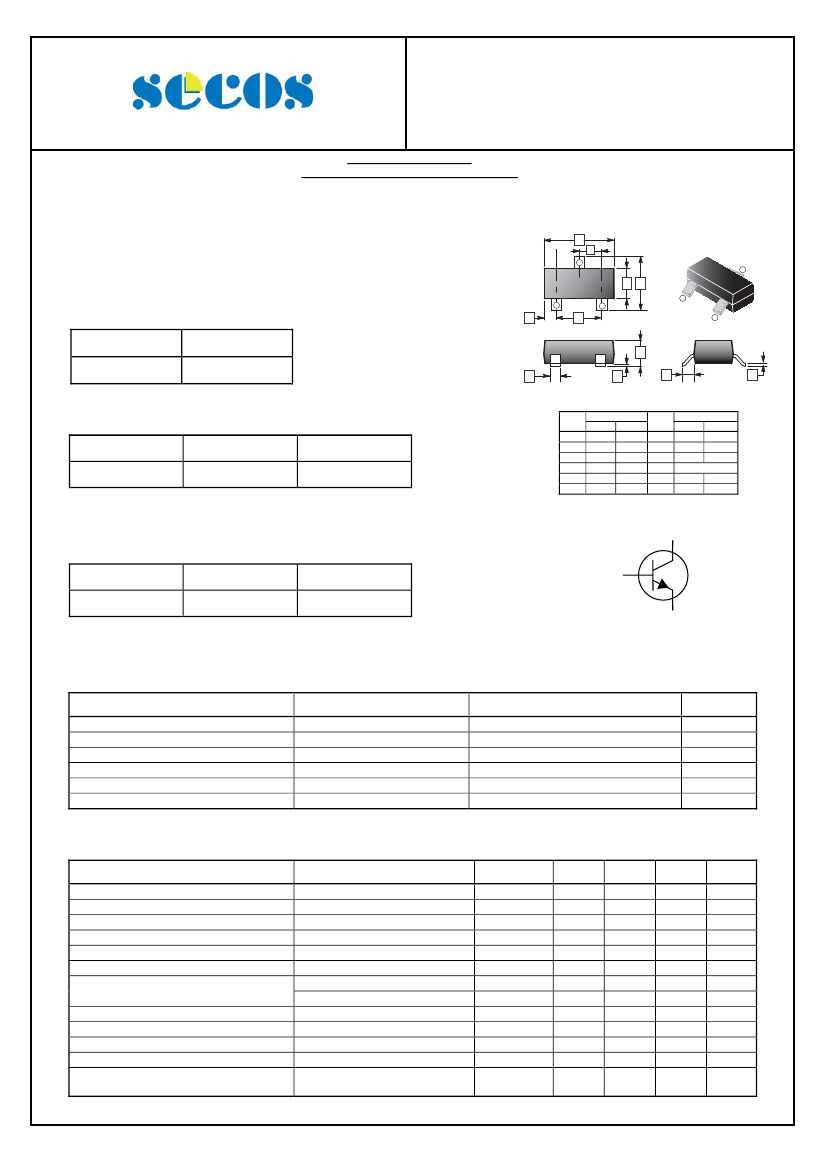

C945
Elektronische Bauelemente
60V, 0.15A, 200mW
NPN Plastic Encapsulate Transistor
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
SOT-23
A
3
3
Excellent hFE Linearity
Low noise
Complementary to A733
1
L
Top View
2
C B
1
2
MARKING
Product
C945
Marking Code
CR
K
E
D
F
G
H
J
PACKAGE INFORMATION
Package
SOT-23
MPQ
3K
LeaderSize
7’ inch
REF.
A
B
C
D
E
F
Millimeter
Min.
Max.
2.70
3.04
2.10
2.80
1.20
1.60
0.89
1.40
1.78
2.04
0.30
0.50
REF.
G
H
J
K
L
Millimeter
Min.
Max.
-
0.18
0.40
0.60
0.08
0.20
0.6 REF.
0.85
1.15
Collector
CLASSIFICATION OF h
FE(1)
Product-Rank
Range
C945-L
130-200
C945-H
200-400
Base
Emitter
MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified)
PARAMETER
Collector - Base Voltage
Collector - Emitter Voltage
Emitter - Base Voltage
Collector Current - Continuous
Collector Power Dissipation
Junction, Storage Temperature
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J
, T
STG
RATINGS
60
50
5
150
200
150, -55~150
UNIT
V
V
V
mA
mW
℃
ELECTRICAL CHARACTERISTICS
(at T
A
= 25°C unless otherwise specified)
PARAMETER
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-Off Current
Collector Cut-Off Current
Emitter Cut-Off Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Transition frequency
Collector output capacitance
Noise figure
http://www.SeCoSGmbH.com/
TEST CONDITIONS
I
C
=100µA, I
E
=0
I
C
= 1mA, I
B
=0
I
E
= 0.1µA, I
C
=0
V
CB
= 60V, I
E
=0
V
CE
= 55V, R =10mΩ
V
EB
= 5V, I
C
=0
V
CE
= 6V, I
C
= 1mA
V
CE
= 6V, I
C
= 0.1mA
I
C
= 100mA, I
B
= 10mA
I
C
= 100mA, I
B
= 10mA
V
CE
= 6V, I
C
= 10mA, f=30MHz
V
CB
= 10V, I
E
=0, f=1MHz
V
CE
=6V, I
C
=0.1mA,
R
g
=10kΩ, f=1kMHz
SYMBOL
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
CER
I
EBO
h
FE(1)
h
FE(2)
V
CE(sat)
V
BE(sat)
f
T
C
ob
NF
MIN.
60
50
5
-
-
-
130
40
-
-
150
-
-
TYP.
-
-
-
-
-
-
-
-
-
-
-
-
4
MAX.
-
-
-
0.1
0.1
0.1
400
-
0.3
1
-
3.0
10
UNIT
V
V
V
µA
µA
µA
V
V
MHz
pF
dB
Any changes of specification will not be informed individually.
17-Dec-2010 Rev. A
Page 1 of 2
C945
Elektronische Bauelemente
60V, 0.15A, 200mW
NPN Plastic Encapsulate Transistor

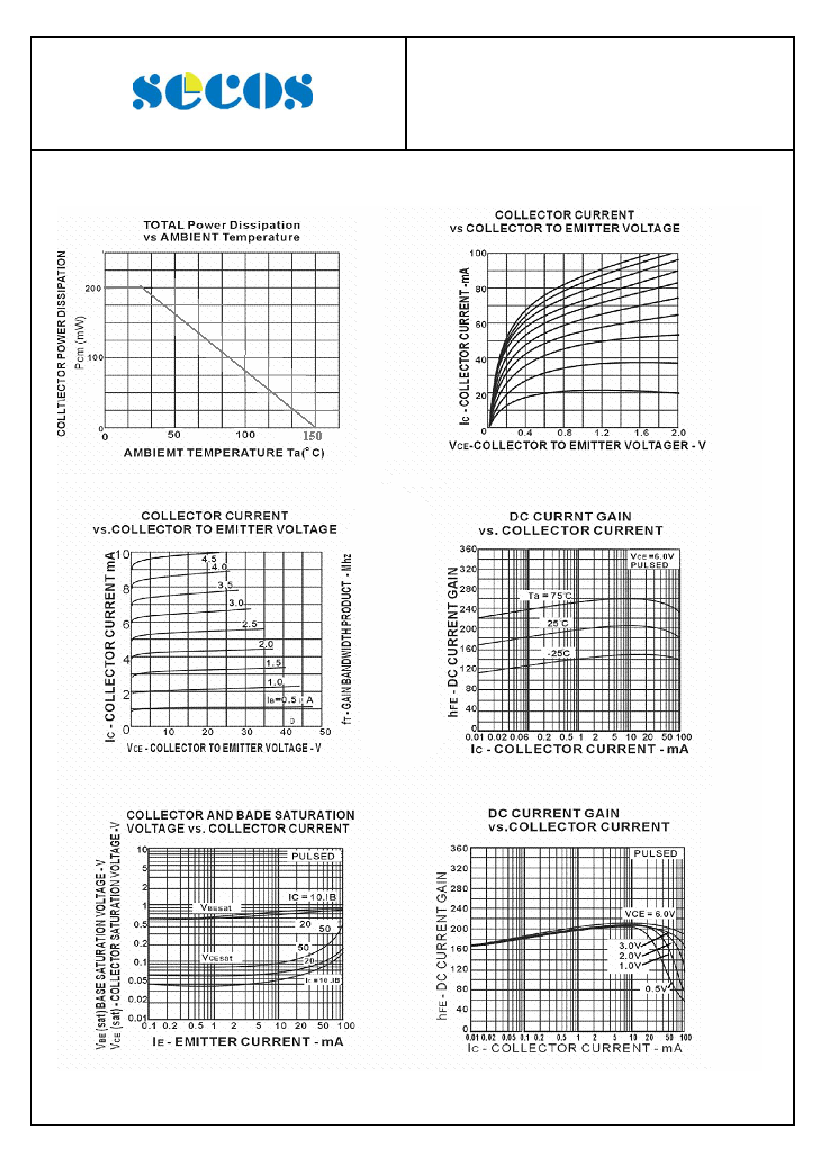

CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
17-Dec-2010 Rev. A
Page 2 of 2
