300904101562JE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 300904101562JE

300904101562JE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.0056uF, Surface Mount, 0402, CHIP; CategoryPassive components capacitor; File Size372KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

300904101562JE Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.0056uF, Surface Mount, 0402, CHIP

300904101562JE Parametric

Parameter Name	Attribute value
Maker	AVX
package instruction	, 0402
Reach Compliance Code	compliant
capacitance	0.0056 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	TAPE & REEL AVAILABLE UPON REQUEST
dielectric materials	CERAMIC
high	0.61 mm
length	1.15 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	WAFFLE PACK
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
Guideline	ESCC3009/041
size code	0402
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WRAPAROUND
width	0.61 mm

300904101562JE Preview

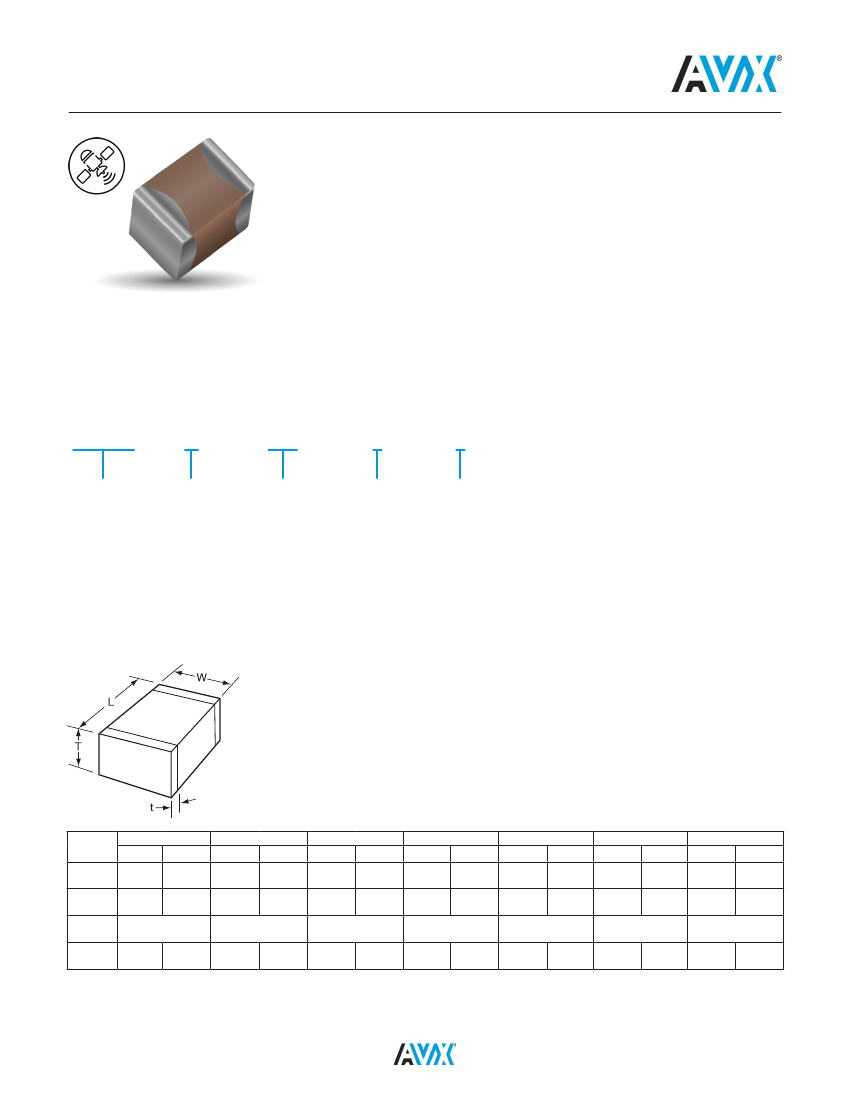

Space Level BME X7R MLCC

ESCC QPL 3009/041 Approved

The AVX Space , 3009041, BME ( Base Metal Electrode) X7R surface mount MLCC QPL

approved since 2015.

The technology utilizes the leading edge technology in MLCC construction and processing.

This technology delivers high reliability with a superior capacitance voltage capability

compared values in the smaller case sizes not only reduces the amount of board space

used but also the weight of components. The surface mount components also incorporate

Flexiterm

, which greatly improves the resistance to the mechanical stress experienced

by MLCCs either during assembly or during the product life time. Flexiterm

technology

provides greater protection against board flexure and promotes an open circuit failure mode

under PCB bend testing.

BENEFITS

• Space BME enables customers to down size MLCCs and save PCB space.

• The Space BME range provides a high CV range 16 – 100 volts, 2.2 n F – 22 u F

• The range comes with Flexiterm

termination which protection against board flexure either during assembly or product lifetime.

HOW TO ORDER

3009041

Detailed Spec

3009041

Component

Variant

01 (0402)

02 (0603)

03 (0805)

04 (1206)

05 (1210)

06 (1812)

07 (2220)

226

Capacitance

Code

2 significant digits

+ number of zeros

e.g.

103 = 10nF

225 = 2.2μF

226 = 22μF

Capacitance

Tolerance

J = 5%

K = 10%

M = 20%

Voltage

X = 16V

A = 25V

C = 50V

E = 100V

Please note all parts are terminated with a minimum 10% Pb plating. Parts packed in waffles as standard, tape and reel available upon request.

Lot Validation Testing (LVT) can be ordered separately, LVT Groups 3, 2b, 2a, 1.

DIMENSIONS

mm (inches)

Size

(L)

Length

(W)

Width

(T)

Thickness

(t)

terminal

0402

Min.

Max.

0.90

1.15

(0.035)

(0.045)

0.41

0.61

(0.016)

(0.024)

0.61 Max.

(0.024)

0.1

0.40

(0.004)

(0.015)

0603

Min.

Max.

1.45

1.75

(0.057)

(0.069)

0.65

0.95

(0.026)

(0.037)

1.00 Max.

(0.039)

0.20

0.50

(0.008)

(0.020)

0805

Min.

Max.

1.80

2.20

(0.071)

(0.087)

1.05

1.45

(0.041)

(0.057)

1.52 Max.

(0.060)

0.25

0.75

(0.010)

(0.030)

1206

Min.

Max.

3.00

3.40

(0.118)

(0.134)

1.40

1.80

(0.055)

(0.071)

1.80 Max.

(0.071)

0.25

0.75

(0.010)

(0.030)

1210

Min.

Max.

3.00

3.40

(0.118)

(0.124)

2.30

2.70

(0.091)

(0.106)

2.80 Max.

(0.110)

0.25

0.75

(0.010)

(0.030)

1812

Min.

Max.

4.20

4.80

0.165)

(0.189)

3.00

3.40

(0.118)

(0.124)

2.80 Max.

(0.110)

0.25

0.95

(0.010)

(0.037)

2220

Min.

Max.

5.3

6.1

(0.208)

(0.24)

4.60

5.41

(0.18)

(0.213)

2.80 Max.

(0.110)

0.25

1.03

(0.009)

(0.041)

020519

Space Level BME X7R MLCC

ESCC QPL 3009/041 Approved

PREFERRED SIZES ARE SHADED

Case Sizes

0402

0603

0805

1206

1210

1812

2220

Code

Value 16/25V 50V 100V 16/25V 50V 100V 16/25V 50V 100V 16/25V 50V 100V 16/25V 50V 100V 16/25V 50V 100V 16/25V 50V 100V

222 2.2 (nF)

272

2.7

332

3.3

392

3.9

472

4.7

562

5.6

682

6.8

822

8.2

103

123

153

183

223

273

333

393

473

563

683

823

104

100

124

120

154

150

184

180

224

220

274

334

394

474

564

684

824

105

125

155

185

225

275

335

395

475

565

685

825

106

126

156

186

226

270

330

390

470

560

680

820

1 (μF)

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

031819

Space Level BME X7R MLCC

ESCC QPL 3009/041 Approved

ELECTRICAL MEASUREMENTS AT ROOM TEMPERATURE

The measurements shall be performed at Tamb = +22 ±3°C.

Charateristics

Capacitance

(Note 1)

Symbol

Test Method

and Conditions

ESCC No. 3009

For U

= 50V, 100V:

For U

= 16V, 25V:

ESCC No. 3009

For Cn ≤ 10000pF:

For Cn > 10000pF:

ESCC No. 3009

Tolerance

(± %)

All

Limits

Min.

0.95C

0.9C

0.8C

–

100

1000

2.5U

Max.

1.05C

1.1C

1.2C

250 x 10

-4

300 x 10

-4

–

Unit

Tangent of Loss Angle

tgδ

–

GΩ

GΩ nF

Insulation Resistance

Voltage Proof

All

NOTE:

1. 300 max for 16 volt and 25 volt rated components

ELECTRICAL MEASUREMENTS AT HIGH AND LOW TEMPERATURE

Charateristics

Insulation Resistance

Symbol

Test Method and Conditions

(Note 1)

ESCC No. 3009

For Cn ≤ 10000pF:

For Cn > 10000pF:

ESCC No. 3009

amb

= -55 ±2°C, +20 ±2°C, +125 ±2°C

(Note 2 and 3)

For VT = no voltage applied:

Limits

Min.

100

1000

Max.

–

Unit

GΩ

GΩ nF

-15

+15

Temperature

Characteristic

NOTE:

1. Single Sample, Inspection Level S3, AQL = 2.5%

2. If 1 failure out of 5 parts, then test 100%. 1.0% rejects maximum allowed in case of 100% testing.

3. X7R dielectric: Delta C/C at U

is typically -10% to -70% dependant on capacitance value. (See curves on next page)

LVT 3009041 TEST DETAIL

L V T Group

Test Number

LVT 3009041 Test Detail, Parametric Data Recorded

Solderability

PCB Mounting, Capacitance Temperature Characteristics

and Robustness of Termination

PCB Mounting, Life testing for 1000 hours, 2 x RV @ 125ºC

PCB Mounting, Rapid Change of Temperature ,

Steady state humidity testing, (1.5 Volts DC @ 85ºC / 85% Hum)

1000 hours, external visual inspection

Min No. Of

Pcs for Test

050218

Space Level BME X7R MLCC

ESCC QPL 3009/041 Approved

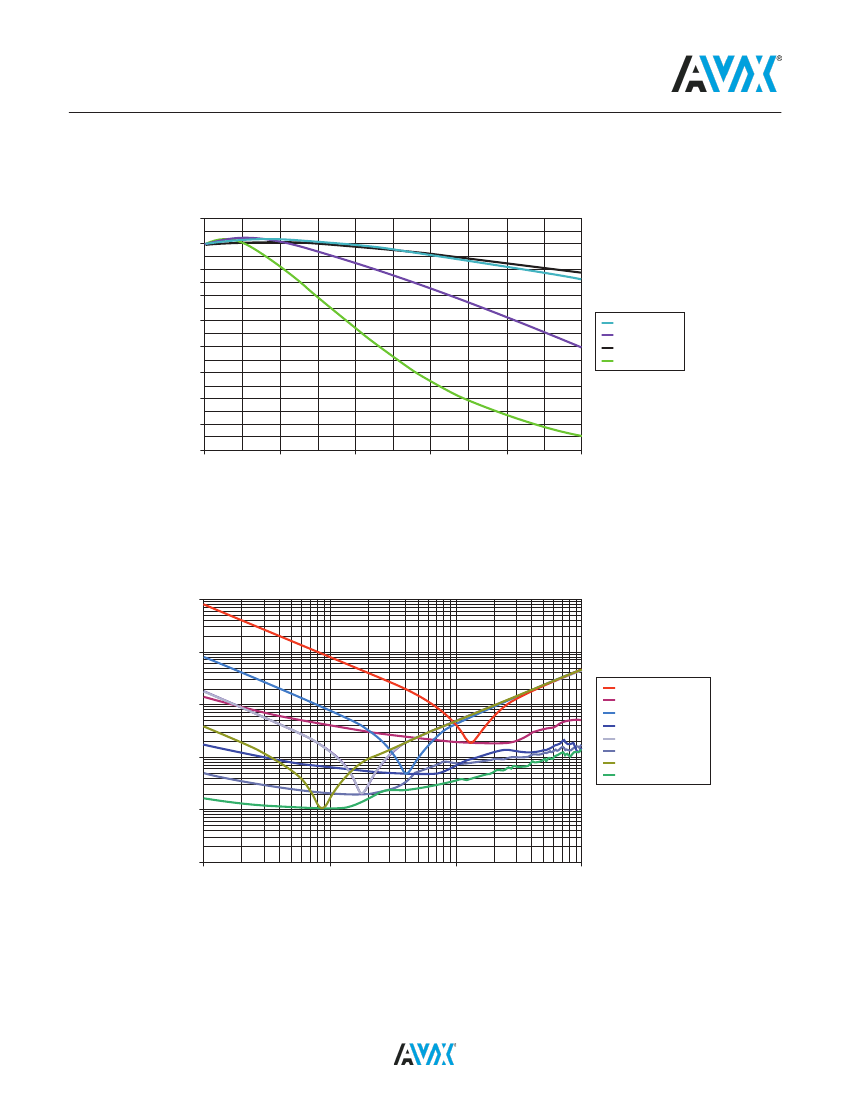

TYPICAL ELECTRICAL CHARACTERISTICS FOR ESCC BME SURFACE MOUNT

CAPACITANCE TEMPERATURE CHARACTERISTICS FOR 0805 STYLE (WITH DC BIAS)

Typical Cap. Change vs DC Bias for 0805 style

-10

Cap. Change (%)

-20

-30

-40

-50

-60

-70

-80

DC Bias (Vdc)

08055C 223

08055C 104

08051C 222

08055C 474

IMPEDANCE WITH ESR CHARACTERISTICS FOR 0805 CAPACITANCE RANGE

100

Z & ESR Curves

08051C 222 Imp

08051C 222 ESR

08051C 223 Imp

08051C 223 ESR

08055C 104 Imp

08055C 104 ESR

08055C 474 Imp

08055C 474 ESR

(0hms)

0.1

0.01

0.001

Freq (MHz)

100

1000

required AVX will produce a data sheet for each part number with the following information:

a) Impedance/ESR Frequency Sweep

b) Capacitance Change with Temperature form -55ºC to +125ºC

c) Capacitance Change with DC Voltage up to the rated voltage of the component

d) Temperature Change with AC Current applied for higher capacitance values.

050218

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
