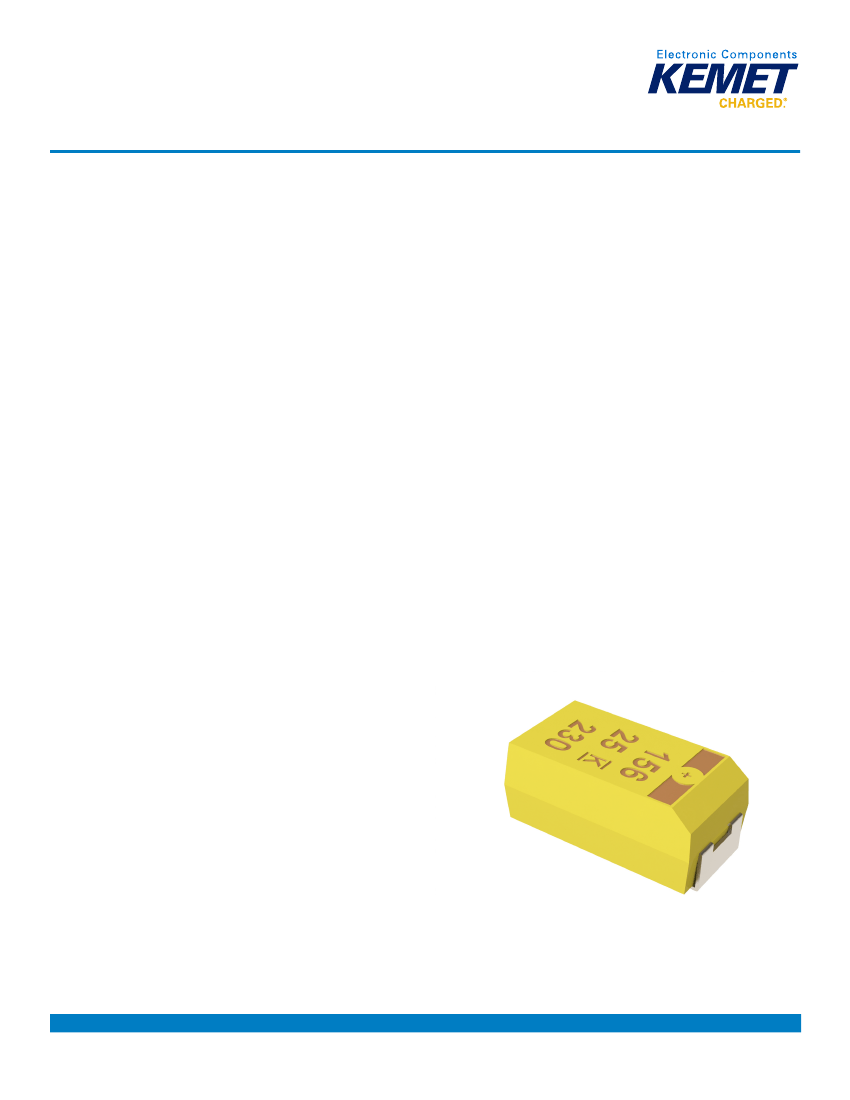

Tantalum Surface Mount Capacitors – High Reliability
T493 Series Commercial Off-The-Shelf (COTS)
MnO
2
(CWR11 Style)
Overview
The KEMET T493 Series is designed for the Commercial
Off-The-Shelf (COTS) requirements of military and aerospace
applications. This series is a surface mount product
offering various lead-frame plating options, Weibull grading
options, surge current testing, F-Tech (an improved anode
manufacturing process) and Simulated Breakdown Voltage
(SBDV) screening options to improve long term reliability.
Standard, low, and ultra-low ESR options are available. All lots
of this series are conditioned with MIL–PRF–55365 Group A
testing. This series is also approved for DLA Drawing 07016
(please see part number list specific to this drawing).
KEMET’s F-Tech eliminates hidden defects in the dielectric
which continue to grow in the field, causing capacitor failures.
Based on the fundamental understanding of degradation
mechanisms in tantalum and niobium capacitors, F-Tech
incorporates multiple process methodologies. Some minimize
the oxygen and carbon content in the anodes which become
contaminants and can lead to the crystallization of the anodic
oxide dielectric. This process methodology reduces the
contaminants, improving quality of the dielectric. An additional
technology provides a stronger mechanical connection
point between the tantalum lead wire and tantalum anode,
enhancing robustness and product reliability. The benefit of
F-Tech is illustrated by a 2,000 hour, 85°C, 1.32 X rated voltage
accelerated life test. F-Tech parts see no degradation while
standard tantalum's have 1.5 orders of magnitude degradation in
leakage current. F-Tech is currently available for the T493 Series
(select D and X case capacitance values in 20 V and higher rated
voltage). Please contact KEMET for details on ordering other part
types with these capabilities.
KEMET’s patented Simulated Breakdown Screening (SBDS) is
a nondestructive testing technique that simulates the breakdown
voltage (BDV) of a capacitor without damage to its dielectric or
to the general population of capacitors. This screening identifies
hidden defects in the dielectric, providing the highest level of
dielectric testing. SBDS is based on the simulation of breakdown
voltage (BDV), the ultimate test of the dielectric in a capacitor.
Low BDV indicates defects in the dielectric, and therefore, a higher
probability of failure in the field. High BDV indicates a stronger
dielectric and high-reliability performance in the field.
This new screening method allows KEMET to identify the
breakdown voltage of each individual capacitor and provide only
the strongest capacitors from each lot.
SBDS is currently available on select part types in the T493 and
T497 Series. Please contact KEMET for details on ordering other
part types with these capabilities.
KEMET offers these technologies per the following options:
• F-Tech only
• SBDS only
• Combination of both F-Tech and SBDS for the ultimate protection
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2007_T493 • 4/22/2016
1
Tantalum Surface Mount Capacitors – High Reliability
T493 Series Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)
Benefits
• F-Tech and Simulated Breakdown Voltage (SBDS) screening
options available
• Taped and reeled per EIA 481
• Symmetrical, compliant terminations
• Laser-marked case
• 100% surge current test available on all case sizes
• Termination options B, C, H, K, T, N & M
•
•
•
•
•
•
Weibull failure options B and C
Voltage rating of 4 – 63 VDC
Operating temperature range of −55˚C to +125˚C
Capacitance values of 0.1 μF to 470 μF
All parts tested per Group A of MIL–PRF–55365
Approved for DLA Drawing 07016 applications*
* Defense Logistics Agency (DLA), previously identified as DSCC
Applications
Typical applications include decoupling and filtering in military and aerospace applications.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET K-SIM is
designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
Ordering Information
T
Capacitor
Class
T=
Tantalum
493
Series
Military
COTS
D
Case
Size
A, B,
C, D,
E, X
227
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of
zeros.
K
J = ±5%
K = ±10%
M = ±20%
006
004 = 4
006 = 6.3
010 = 10
016 = 16
020 = 20
025 = 25
035 = 35
050 = 50
063 = 63
C
Failure Rate/
Design
A = N/A
B = 0.1%/1,000
hours
C = 0.01%/1,000
hours
H
Termination Finish
C = Hot solder dipped
H = Standard solder
coated (SnPb 5% Pb
minimum)
B = Gold plated
K = Solder fused
T = 100% Tin
N = Non-magnetic
100% Tin (Sn)
M = Non-magnetic
(SnPb)
61
Surge
61 = None
62 = 10 Cycles after
Weibull, 25ºC
63 = 10 cycles after
Weibull, −55ºC and
85ºC after Weibull
64 = 10 cycles
before Weibull,−55°
and +85°C
20
ESR
10 = ESR –
Standard
20 = ESR –
Low
30 = ESR –
Ultra low
Capacitance Rated Voltage
Tolerance
(VDC)
For detailed part number offerings, please refer to: Table 1A – COTS, Table 1B – DLA Drawing 07016
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2007_T493 • 4/22/2016
2
Tantalum Surface Mount Capacitors – High Reliability
T493 Series Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)
Ordering Information – DLA Drawing 07016
07016-
Drawing Number
001
Dash Number
See Part Number
Table
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
B
Reliability Grade
B = 0.1%/1,000 hours
C = 0.01%/1,000 hours
H
Termination Finish
C = Hot solder dipped
H = Standard solder coated
(SnPb 5% Pb minimum)
B = Gold plated
A
Surge
A = + 25ºC after Weibull
B = −55ºC and +85ºC after
Weibull
C = −55ºC and + 85ºC before
Weibull
Z or no option= No test
required
For detailed part number offerings, please refer to: Table 1A – COTS, Table 1B – DLA Drawing 07016
Ordering Information – F-Tech & Simulated Breakdown Screening (SBDS)
T
493
D
Case
Size
226
Capacitance
Code (pF)
K
J = ±5%
K = ±10%
M = ±20%
020
020 = 20
025 = 25
035 = 35
050 = 50
063 = 63
C
A = N/A
B=
0.1%/1,000
hours
C=
0.01%/1,000
hours
H
Termination Finish
C = Hot solder dipped
H = Standard solder
coated (SnPb 5% Pb
minimum)
B = Gold plated K =
Solder fused
K = Solder fused
T = 100% Tin
N = Non-magnetic
100% Tin (Sn)
M = Non-magnetic
(SnPb)
61
Surge
61 = None
62 = 10 Cycles
after Weibull, 25ºC
63 = 10 cycles after
Weibull, −55ºC and
85ºC after Weibull
64 = 10 cycles
before Weibull,
−55° and +85°C
20
Screening/ESR
11 = F-Tech +
SBDS *
12 = SBDS
13 = F-Tech *
21 = Low ESR + 11
22= Low ESR + 12
23 = Low ESR + 13
31= Ultra Low ESR
+ 11
32 = Ultra Low ESR
+ 12
33 = Ultra Low ESR
+ 13
Capacitor
Series
Class
Capacitance Rated Voltage Failure Rate/
Tolerance
(VDC)
Design
T=
Military A, B, First two digits
Tantalum COTS C, D,
represent
E, X
significant
figures. Third
digit specifies
number of
zeros.
* Select "C", "D" and "X" case sizes in 20 V and higher rated voltage
For detailed part number offerings, please refer to: Table 1A – COTS, Table 1B – DLA Drawing 07016
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.1 – 470 μF at 120 Hz/25°C
J Tolerance (5%), K Tolerance (10%), M Tolerance (20%)
4 – 63 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2007_T493 • 4/22/2016
3
Tantalum Surface Mount Capacitors – High Reliability
T493 Series Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)
Qualification
Test
Endurance
Condition
Δ C/C
85°C at rated voltage, 2,000 hours
125°C at 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted,
−55°C to 125°C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +125°C, +25°C
+25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
−55°C
±10%
IL
N/A
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±15%
1.5 x IL
12 x IL
Storage Life
125°C at 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
Mechanical Shock/Vibration
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
*IL = Initial limit
Certification
MIL–PRF–55365/8
DLA Drawing 07016
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2007_T493 • 4/22/2016
4
Tantalum Surface Mount Capacitors – High Reliability
T493 Series Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)
Electrical Characteristics

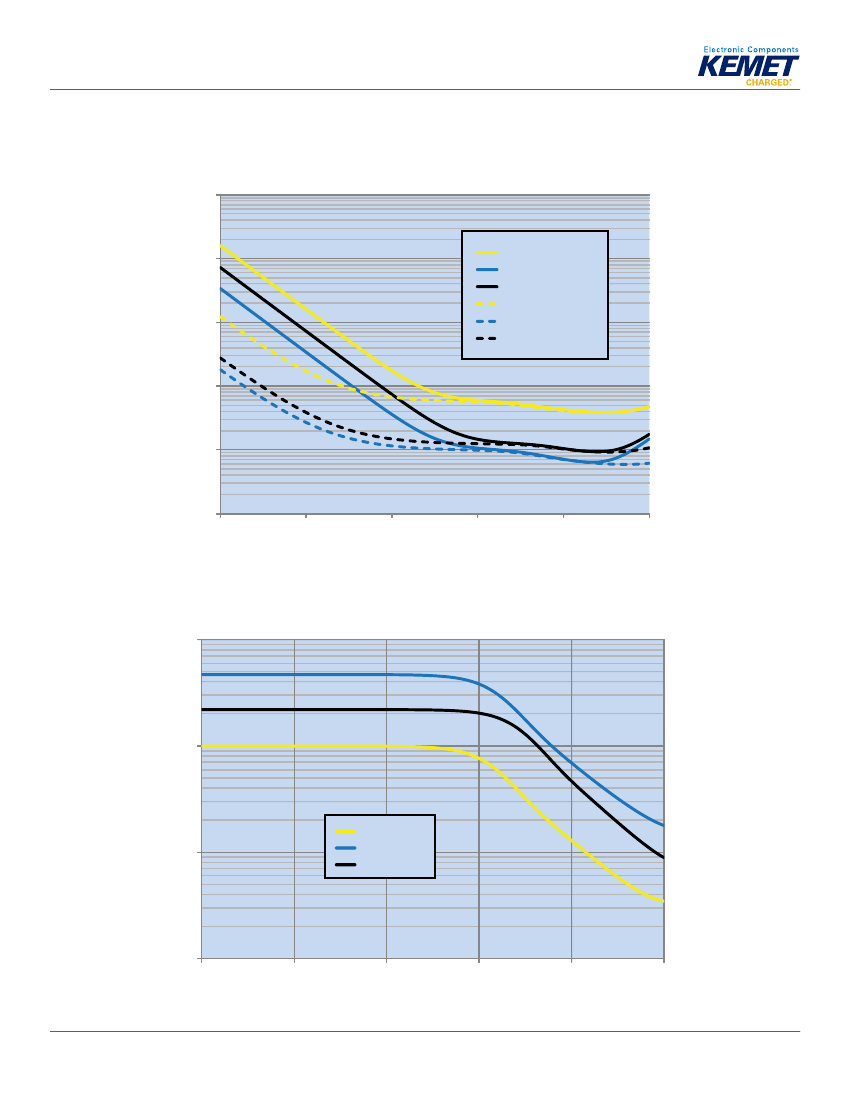

ESR vs. Frequency
1000
100
Impedance, ESR (Ohms)
10
T493B106/020_IMP
T493E476/035_IMP
T493X226/035_IMP
T493B106/020_ESR
T493E476/035_ESR
T493X226/035_ESR
1
0.1
0.01
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Capacitance vs. Frequency
100
Capacitance (µF)
10
1
T493B106/020
T493E476/035
T493X226/035
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2007_T493 • 4/22/2016
5
