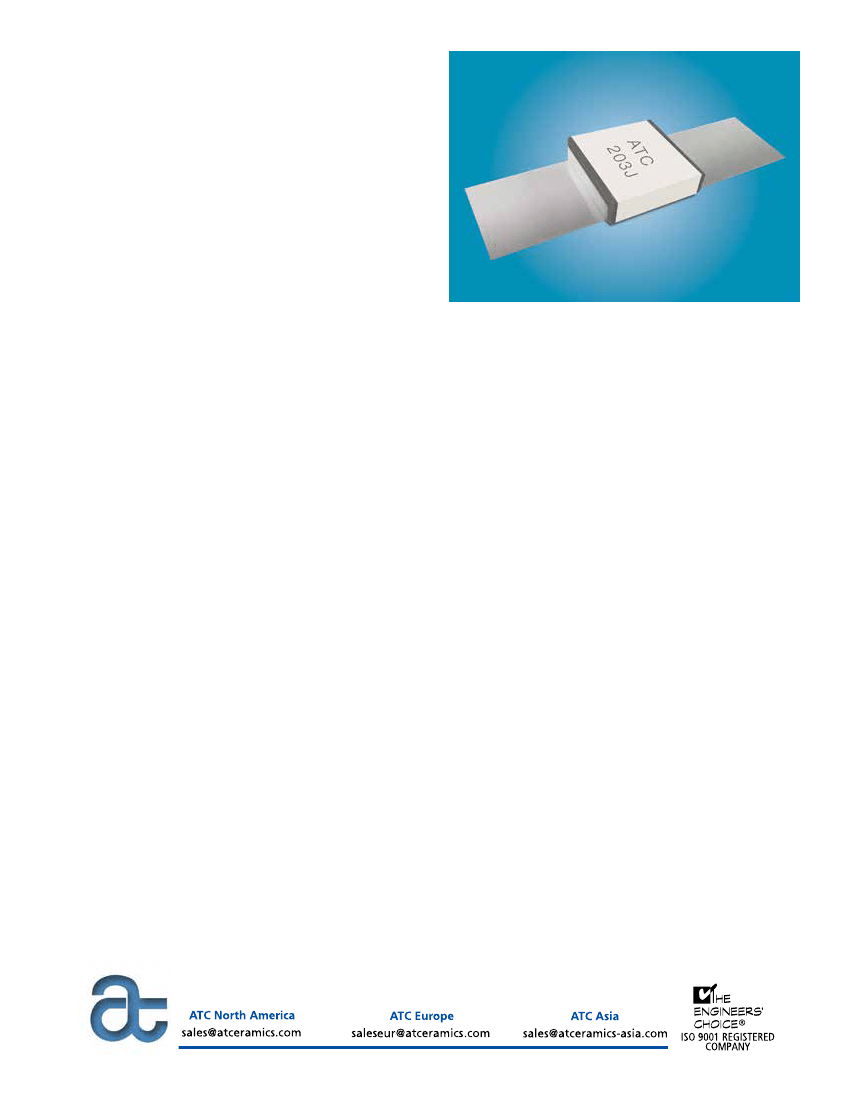

ATC 800 H Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
LIFE TEST:
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C
TERMINATION STYLE:
See Mechanical Configurations, page 2
TERMINAL STRENGTH:
Terminations for chips withstand a pull of 12
lbs. min., 20 lbs. typical, for 5 seconds in direction perpendicular
to the termination surface of the capacitor. Test per MIL-STD-202,
method 211.
MIL-STD-202, Method 108, for 2000 hours, at 125°C
at rated voltage.
American
Technical
Ceramics
ATC # 001-1144 Rev. H, 5/18
THE ENGINEERS’ CHOICE
®
ww w. atce ra mics. com
ATC 800 H Capacitance Values
CAP.
CODE
101
111
121
131
151
161
181
201
221
241
271
301
331
361
391
431
471
511
CAP.
(pF)
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
TOL.
RATED WVDC
CAP.
CODE
561
621
681
751
821
911
102
112
122
132
152
162
182
202
222
242
272
302
CAP.
(pF)
560
620
680
750
820
910
1000
1100
1200
1300
1500
1600
1800
2000
2200
2400
2700
3000
TOL.
RATED WVDC
CAP.
CODE
332
392
472
512
562
622
682
752
822
912
103
113
123
133
153
163
183
203
CAP.
(pF)
3300
3900
4700
5100
5600
6200
6800
7500
8200
9100
10000
11000
12000
13000
15000
16000
18000
20000
TOL.
RATED WVDC
8000
5000
G, J, K
G, J, K
G, J, K
3000
5000
3000
2000
SPECIAL VALUES, TOLERANCES AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
ATC PART NUMBER CODE
ATC800 H 22 1 J MN 8000
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
CAPACITANCE TOLERANCE
J
G
K
Code
±5% ±10%
±2%
Tol.
Packaging
C - ATC Matrix Tray (Standard)
I - Special Packaging
(Consult Factory)
Laser Marking
WVDC
Termination Code
X C
The above part number refers to a 800 H Series (case size H) 220 pF capacitor, J tolerance (±5%), 8000 WVDC,
with MN Non-Magnetic termination (Microstrip Termination), laser marking and plastic Matrix Tray packaging.
ATC 800 H Non-Magnetic Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
CASE SIZE
TERM. & TYPECASE SIZE
CODE
& TYPE
H
800 H
MN
Microstrip
WL
L
OUTLINES
W/T IS A
TERMINATION SURFACE
TL
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
LL = .750 (19.05) min.
WL = .660 ±.010 (16.764 ±.254)
TL = .010 ±.001 (.254 ±.025)
Leads are Attached with
High Temperature Solder
LL
W
T
.735
.750
+.060 -.010
+.020 -.010 .220 (5.59)
(18.67
(19.05
max.
+1.524
+.508 -.254)
-.254)
High Purity Silver Leads
N/A.
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
ATC accepts orders for our parts using designations with or without the “ATC” prefix. Both
methods of defining the part number are equivalent, i.e., part numbers referenced with the
“ATC” prefix are interchangeable to parts referenced without the “ATC” prefix. Customers are
free to use either in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
2
w w w.a t c e r am ic s .c om

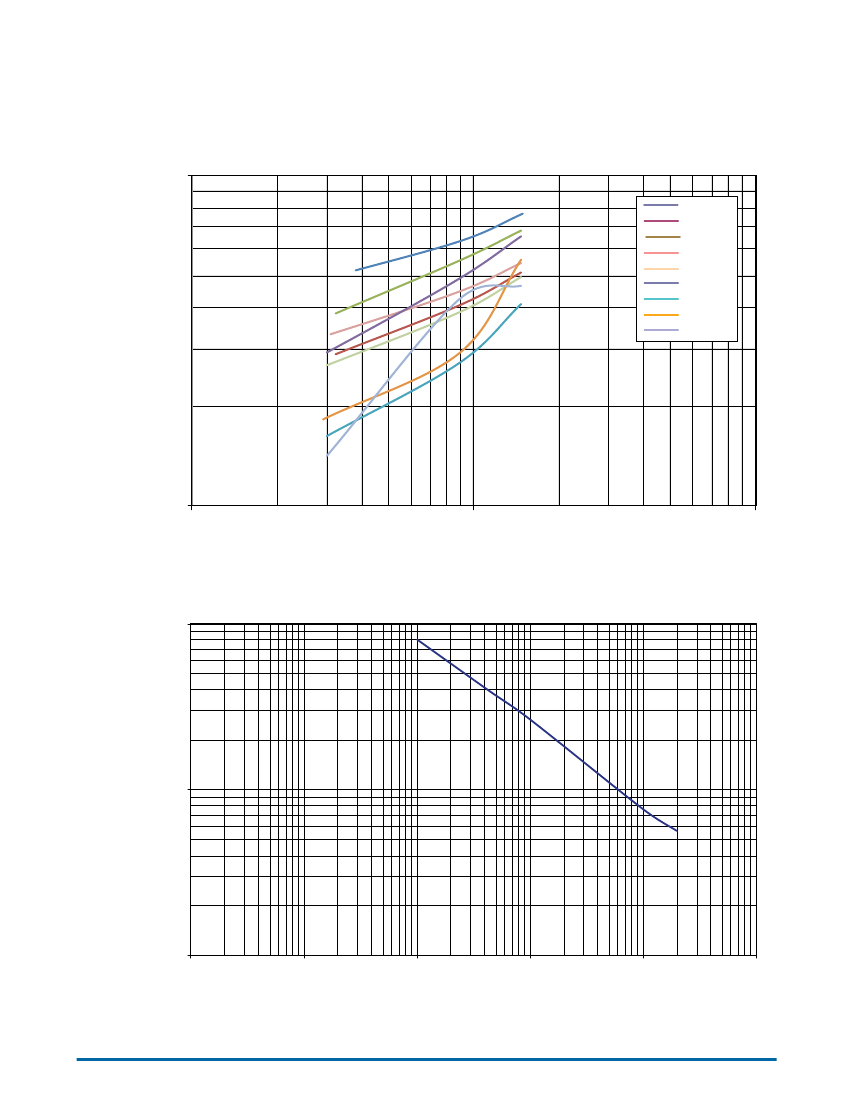

ATC 800 H Performance Data
0.100
800 H ESR vs. Frequency
100 pF
390 pF
470 pF
1000 pF
2200 pF
3300 pF
5100 pF
6200 pF
20,000 pF
ESR (Ohms)
ESR (MilliOhms)
0.010
10
100
1000
Frequency (MHz)
1000
800 H FPR vs. Capacitance
Typical
Frequency (MHz)
100
Typical
10
1
10
100
1000
10000
100000
Capacitance (pF)
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
3
w w w.at c e r a mic s .c o m
ATC 800 H Performance Data
100
800 H Current vs Capacitance
The current rating is based on a 65
o
C mounting
surface with a device thermal resistance of 8.6 °CW.
A power dissipation of 7 W will result in a case
temperature of 125 °C.
RMS Current (Amps)
2 MHz
10
10 MHz
30 MHz
ESR (MilliOhms)
1
100
1000
10000
Capacitance (pF)
1
0.8
0.6
0.4
TCC= 0 ±30 PPM/C
800 H Capacitance Change vs. Temperature
% Change in Capacitance
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
-55
-35
-15
5
25
45
65
85
105
125
Temperature (Degrees C)
