DIP Type
Rectifier Diodes
TS6B01G ~ TS6B07G
TS4B (TSB)
■
Features
●
Ideal for printed circuit board
●
Reliable low cost construction
●
Surge overload rating to 150 amperes peak
.176(4.37)
.156(3.96)
Diodes
.118(3.0)X45
0
.996(25.3)
.972(24.7)
.602(15.3)
.579(14.7)
.147(3.7)
.130(3.3)
.134(3.4)
.122(3.1)
.068(1.73)
.060(1.52)
.043(1.1)
.035(0.9)
.709(18)
.669(17)
.303(7.7)
.287(7.3)
.087(2.2)
.071(1.8)
.030(0.75)
.022(0.55)
Dimensions in inches and (millimeters)
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Repetitive Peak Reverse Voltage
RMS Voltage
Maximum DC Blocking Voltage
Forward Voltage @ 6A
Averaged Forward Current.
Peak Forward Surge Current @ 8.3ms
Maximum DC Reverse Current Ta=25℃
Ta=125℃
Junction Temperature
Storage Temperature
Symbol
V
RRM
V
RMS
V
DC
V
F
I
FAV
I
FSM
I
R
Tj
Tstg
TS6B TS6B TS6B TS6B TS6B TS6B TS6B
01G
02G
03G
04G
05G
06G
07G
50
35
50
100
70
100
200
140
200
400
280
400
1.1
6
150
5
500
150
-55 to 150
A
μA
600
420
600
800
560
800
1000
700
1000
V
Unit
℃
www.kexin.com.cn
1
DIP Type
Rectifier Diodes
TS6B01G ~ TS6B07G
■

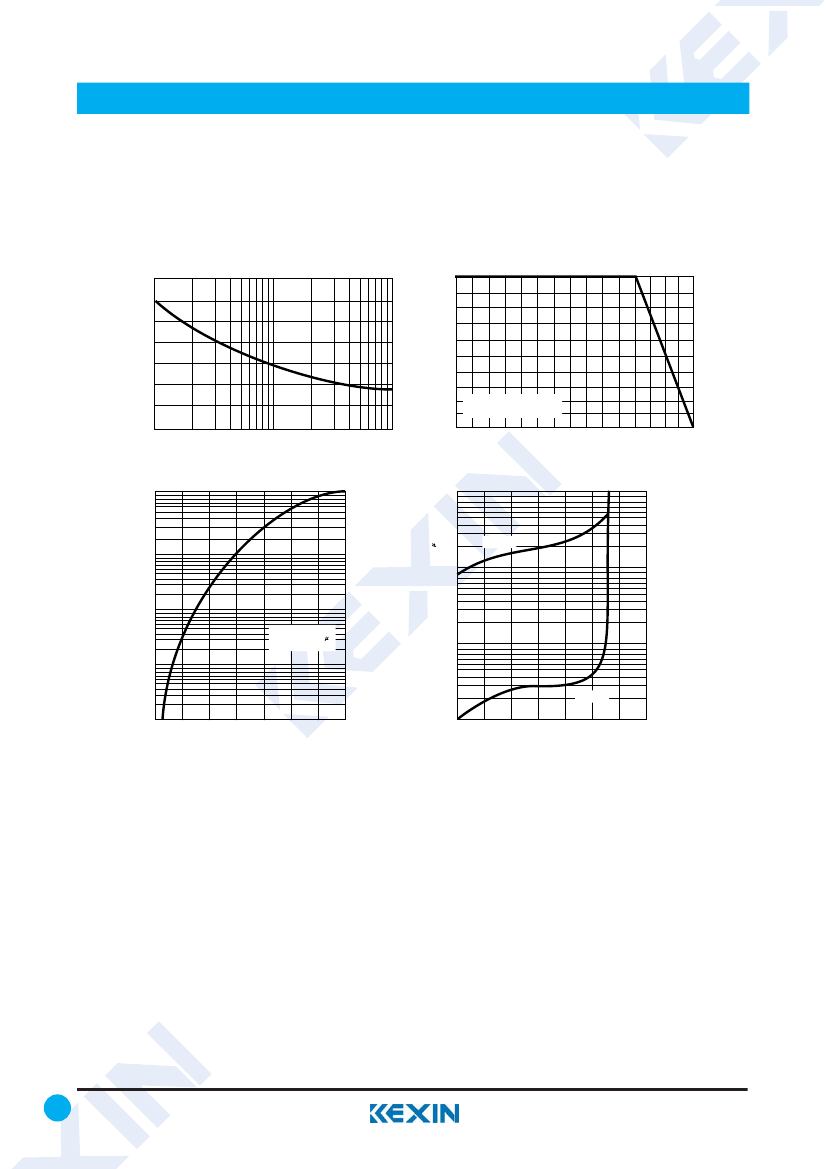

Typical Characterisitics
FIG.1- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT PER BRIDGE ELEMENT
AVERAGE FORWARD CURRENT. (A)
Diodes
175
6
FIG.2- MAXIMUM FORWARD CURRENT DERATING
CURVE
PEAK FORWARD SURGE CURRENT. (A)
150
125
100
75
50
25
4
3
2
MOUNTED ON 4x4 INCH
COPPER PC BOARD
0.5" (12.7mm) LEAD LENGTH
0
10
CASE TEMPERATURE. ( C)
o
1
0
1
2
5
10
20
50
100
100
150
NUMBER OF CYCLES AT 60Hz
FIG.3- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER BRIDGE ELEMENT
100
FIG.4- TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
100
INSTANTANEOUS FORWARD CURRENT. (A)
INSTANTANEOUS REVERSE CURRENT. ( A)
Tj=100
0
C
10
10
1.0
Tj=25
o
C
Pulse Width=300 s
1% Duty Cycle
0.1
1.0
Tj=25
0
C
0.01
.6
0.1
.8
1.0
1.2
1.4
1.6
1.8
2.0
0
20
40
60
80
100
120
140
FORWARD VOLTAGE. (V)
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
2
www.kexin.com.cn
