SM34N681M102AM

Description
Ceramic Capacitor, Multilayer, Ceramic, 1000V, 20% +Tol, 20% -Tol, C0G, -/+30ppm/Cel TC, 0.00068uF, 9040,
CategoryPassive components    capacitor
File Size2MB,12 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Download Datasheet Parametric View All

SM34N681M102AM Overview

Ceramic Capacitor, Multilayer, Ceramic, 1000V, 20% +Tol, 20% -Tol, C0G, -/+30ppm/Cel TC, 0.00068uF, 9040,

SM34N681M102AM Parametric

Parameter NameAttribute value
MakerKEMET
package instruction, 9040
Reach Compliance Codecompliant
capacitance0.00068 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high5.59 mm
length22.9 mm
Manufacturer's serial numberSM
multi-layerYes
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTray
positive tolerance20%
Rated (DC) voltage (URdc)1000 V
GuidelineMIL-PRF-49467
seriesSM(C0G)
size code9040
Temperature characteristic codeC0G
Temperature Coefficient-/+30ppm/Cel ppm/°C
width10.2 mm

SM34N681M102AM Preview

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, C0G Dielectric,
500 – 10,000 VDC (Industrial Grade)
Overview

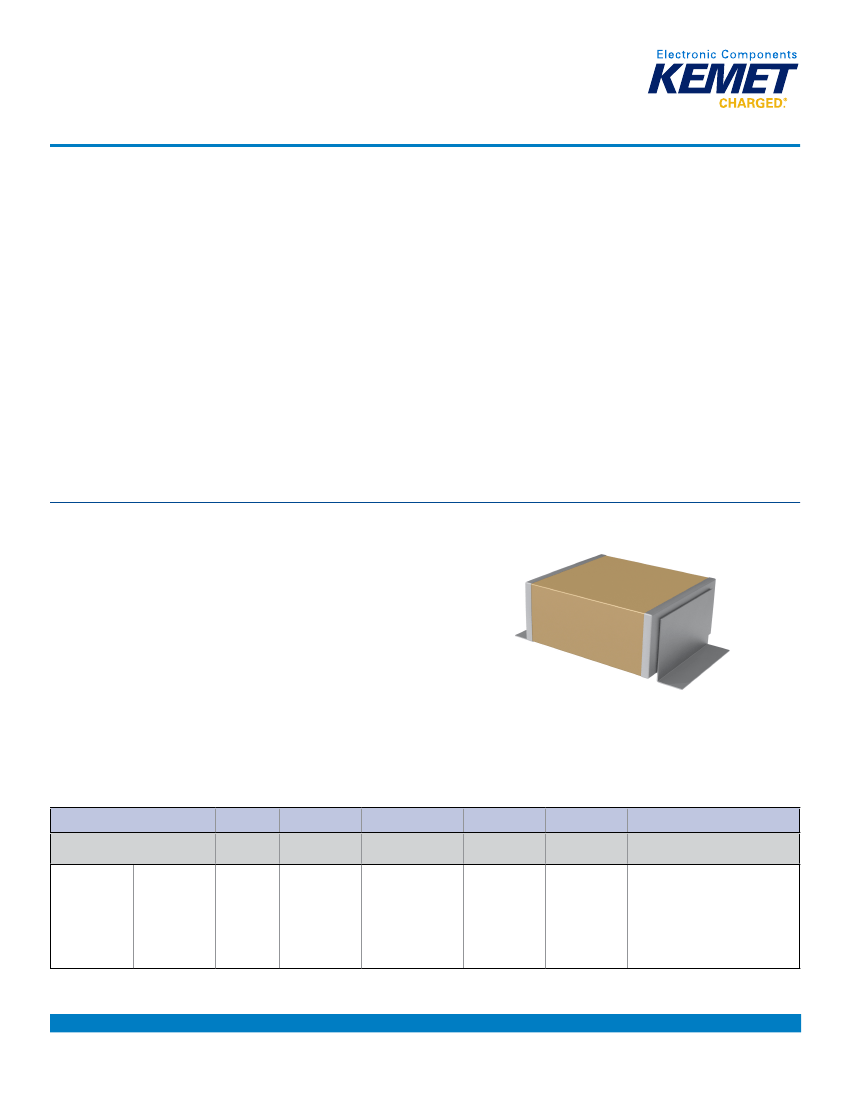

KPS HV (KEMET Power Solutions, High Voltage), Large
Case (≥ 1515), SM Series capacitors in C0G dielectric are
designed to meet robust performance standards required in
higher reliability industrial applications. Utilizing lead-frame
technology, SM Series devices isolate the multilayer ceramic
chip component from the printed circuit board providing
advanced mechanical and thermal stress performance.
Isolation of the chip component also addresses concerns for
audible, microphonic noise that may occur when a bias voltage
is applied. Although this technology does not eliminate the
potential for mechanical damage that may propagate during
extreme environmental and handling conditions, it does
demonstrate superior performance over non-isolating systems.
Available in both formed "L" and "J" lead configurations, SM
Series devices offer up to 10 mm of board flex capability and
exhibit lower ESR, ESL and higher current discharge capability
when compared to other dielectric solutions.
Combined with the stability of an C0G dielectric, KEMET’s High
Voltage SM Series devices exhibit no change in capacitance with
respect to time and voltage and boasts a negligible change in
capacitance with reference to ambient temperature. Capacitance
change is limited to ±30 ppm/ºC from -55°C to +125°C.
KEMET's Industrial Grade products offer additional screening
options for higher reliability applications. Both Group A and Group
B testing/inspection options per MIL–PRF–49467 are available for
the SM Series.
Benefits
-55°C to +125°C operating temperature range
Large Case Sizes (≥ 1515)
Formed “L” or “J” leadframe configurations.
Group A and B screening per MIL–PRF–49467 available
Reliable and robust leadframe termination system
DC voltage ratings of 500 V, 1 KV, 2 KV, 3 KV, 4 KV, 5 KV,
7.5 KV, and 10 KV
• Capacitance offerings ranging from 10 pF up to 0.39 μF
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
SM20
Style/Size
SM20
SM21
SM22
SM23
SM24
SM25
SM26
1
2
N
Dielectric
SM30
SM31
SM33
SM34
SM35
SM36
N = C0G
472
Capacitance
Code (pF)
2 Significant
Digits +
Number of
Zeros
J
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
P = +100%, -0%
Z = +80%, -20%
501
Voltage
501 = 500 V
102 = 1,000 V
202 = 2,000 V
302 = 3,000 V
402 = 4,000 V
502 = 5,000 V
B
Lead
Configuration
1
A = Formed "L"
B = Formed "J"
M
Testing/
Inspection Option
2
Blank = None
M = Group A per MIL–PRF–49467
Standard lead configuration is formed "J". If the appropriate character is excluded from the ordering code, the assumed lead configuration will be formed "J".
Group B testing/inspection option per MIL–PRF–49467 is available upon request. Please contact KEMET for ordering details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1032_C0G_KPS_HIVOLT_SMD • 4/30/2014
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, C0G Dielectric, 500 – 10,000 VDC (Industrial Grade)
Dimensions – Inches (Millimeters)
FORMED LEAD (L)
Top View
Profile View
Top View
Profile View
T
FORMED LEAD (J)
(L)
A W
(L)
(J)
A W
(J)
T
LL
L
.030 ±.010
(.76 ±.25)
LL
L
.030 ±.010
(.76 ±.25)
Style/
Size
SM20
SM21
SM22
SM23
SM24
SM25
SM26
SM30
SM31
SM33
SM34
SM35
SM36
L
Length
0.150 ± 0.015 (3.81 ± 0.38)
0.200 ± 0.020 (5.08 ± 0.51)
0.250 ± 0.020 (6.35 ± 0.51)
0.350 ± 0.030 (8.89 ± 0.76)
0.450 ± 0.030 (11.43 ± 0.76)
0.550 ± 0.030 (14.00 ± 0.76)
0.650 ± 0.030 (16.50 ± 0.76)
0.300 ± 0.030 (7.62 ± 0.76)
0.400 ± 0.030 (10.20 ± 0.76)
0.700 ± 0.030 (17.08 ± 0.76)
0.900 ± 0.030 (22.90 ± 0.76)
1.100 ± 0.030 (27.90 ± 0.76)
1.350 ± 0.030 (33.00 ± 0.76)
W
Width
0.150 ± 0.015 (3.81 ± 0.38)
0.200 ± 0.020 (5.08 ± 0.51)
0.200 ± 0.020 (5.08 ± 0.51)
0.300 ± 0.030 (7.62 ± 0.76)
0.400 ± 0.030 (10.20 ± 0.76)
0.500 ± 0.030 (12.70 ± 0.76)
0.600 ± 0.030 (15.20 ± 0.76)
0.150 ± 0.015 (3.81 ± 0.38)
0.200 ± 0.020 (5.08 ± 0.51)
0.300 ± 0.030 (7.62 ± 0.76)
0.400 ± 0.030 (10.20 ± 0.76)
0.500 ± 0.030 (12.70 ± 0.76)
0.600 ± 0.030 (15.20 ± 0.76)
T
Thickness
Maximum
0.130 (3.30)
0.180 (4.57)
A
Lead Width
Maximum
0.100 (2.54)
0.200 (5.08)
0.300 (7.62)
0.400 (10.20)
0.500 (12.70)
0.100 (2.54)
0.200 (5.08)
0.300 (7.62)
0.400 (10.2)
0.500 (12.7)
LL
Lead Length
(Formed "L")
LL
Lead Length
(Formed "J")
0.040 ±0.010
(1.02 ±0.25)
0.220 (5.59)
0.140 (3.55)
0.130 (3.30)
0.180 (4.57)
0.220 (5.59)
0.100 ±0.020
(2.54 ±0.51)
0.100 ±0.020
(2.54 ±0.51)
Benefits cont'd
• Advanced protection against thermal and mechanical stress
• Provides up to 10 mm of board flex capability
• Reduces audible, microphonic noise
• Low ESR and ESL
• Non-polar device, minimizing installation concerns
• Silver plated copper alloy leadframe termination system
Applications
Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubber circuits, output filters), high
voltage coupling and DC blocking, voltage multiplier circuits, DC/DC converters and coupling capacitors in Ćuk converters, noise
reduction (piezoelectric/mechanical), circuits with a direct battery or power source connection, critical and safety relevant circuits
without (integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Markets
include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom equipment, industrial and medical equipment/control
and Military.
