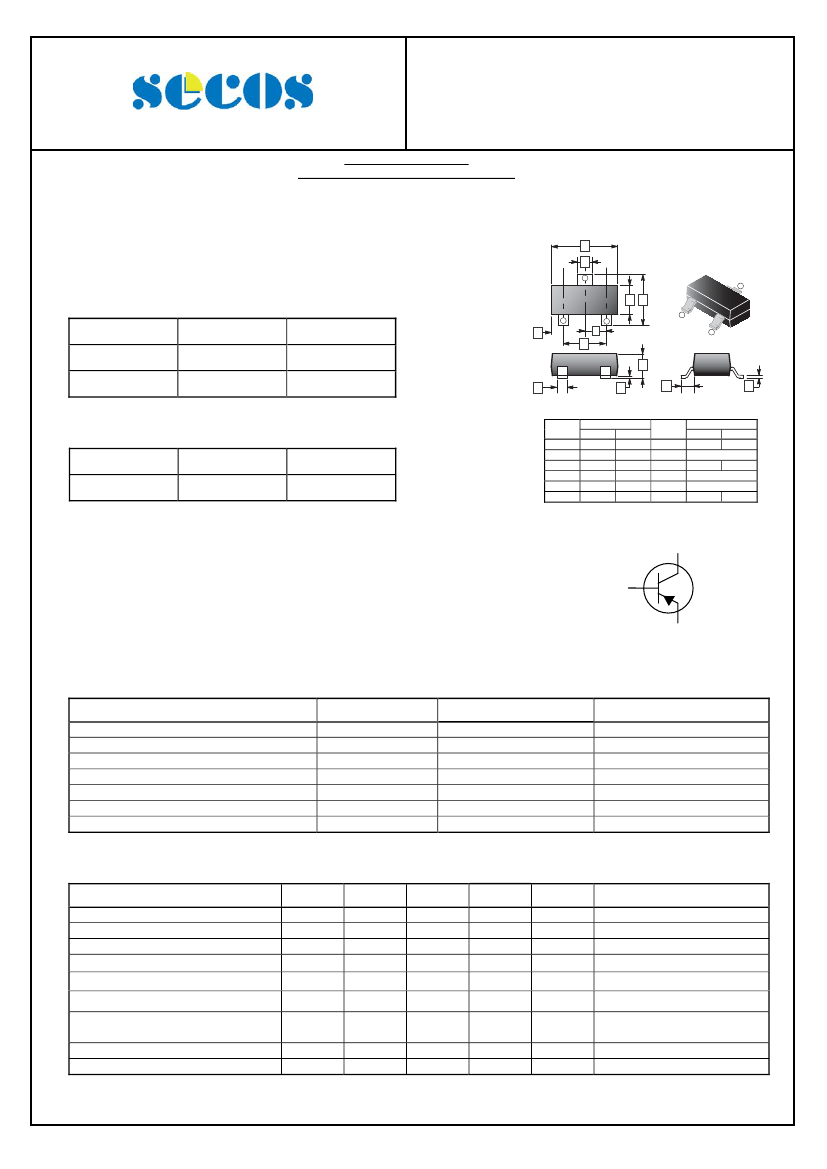

2SA1832

Elektronische Bauelemente

-0.15A , -50V

PNP Silicon Plastic Encapsulated Transistor

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES



High Voltage and High Current



Excellent h

FE

Linearity



Complementary to 2SC4738

A

M

3

SOT-523

3

CLASSIFICATION OF h

FE

Product-Rank

Range

Marking

2SA1832-Y

120~240

SY

2SA1832-GR

200~400

SG

F

K

Top View

1

2

C B

1

2

L

E

D

G

H

J

PACKAGE INFORMATION

Package

SOT-523

MPQ

3K

LeaderSize

7’ inch

REF.

A

B

C

D

E

F

Millimeter

Min.

Max.

1.5

1.7

1.45

1.75

0.75

0.85

0.7

0.9

1.1

0.15

0.25

REF.

G

H

J

K

L

M

Millimeter

Min.

Max.

-

0.1

0.55 REF.

0.1

0.2

-

0.5 TYP.

0.25

0.325

Collector





Base



Emitter

ABSOLUTE MAXIMUM RATINGS

(T

A

= 25°C unless otherwise noted)

Parameter

Collector to Base Voltage

Collector to Emitter Voltage

Emitter to Base Voltage

Collector Current - Continuous

Collector Power Dissipation

Thermal Resistance Junction to Ambient

Junction and Storage Temperature

Symbol

V

CBO

V

CEO

V

EBO

I

C

P

C

R

θJA

T

J

, T

STG

Ratings

-50

-5

-150

100

125

-55~125

Unit

V

mA

mW

°C

/ W

°C

ELECTRICAL CHARACTERISTICS

(T

A

= 25°C unless otherwise noted)

Parameter

Collector to Base Breakdown Voltage

Collector to Emitter Breakdown

Emitter to Base Breakdown Voltage

Collector Cut - off Current

Emitter Cut - off Current

DC Current Gain

Collector to Emitter

Saturation Voltage

Transition Frequency

Collector Output Capacitance

Symbol

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

I

CBO

I

EBO

h

FE

V

CE(sat)

f

T

C

ob

Min.

-50

-5

-

120

-

80

-

Typ.

-

4

Max.

-

-100

400

-0.3

-

7

Unit

V

nA

Test Conditions

I

C

= -100A, I

E

=0

I

C

= -1mA, I

B

=0

I

E

= -100A, I

C

=0

V

CB

= -50V, I

E

=0

V

EB

= -5V, I

C

=0

V

CE

= -6V, I

C

= -2mA

V

MHz

pF

I

C

= -100mA, I

B

= -10mA

V

CE

= -10V, I

C

= -1mA

V

CB

= -10V, I

E

=0, f=1MHz

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

25-Jan-2011 Rev. A

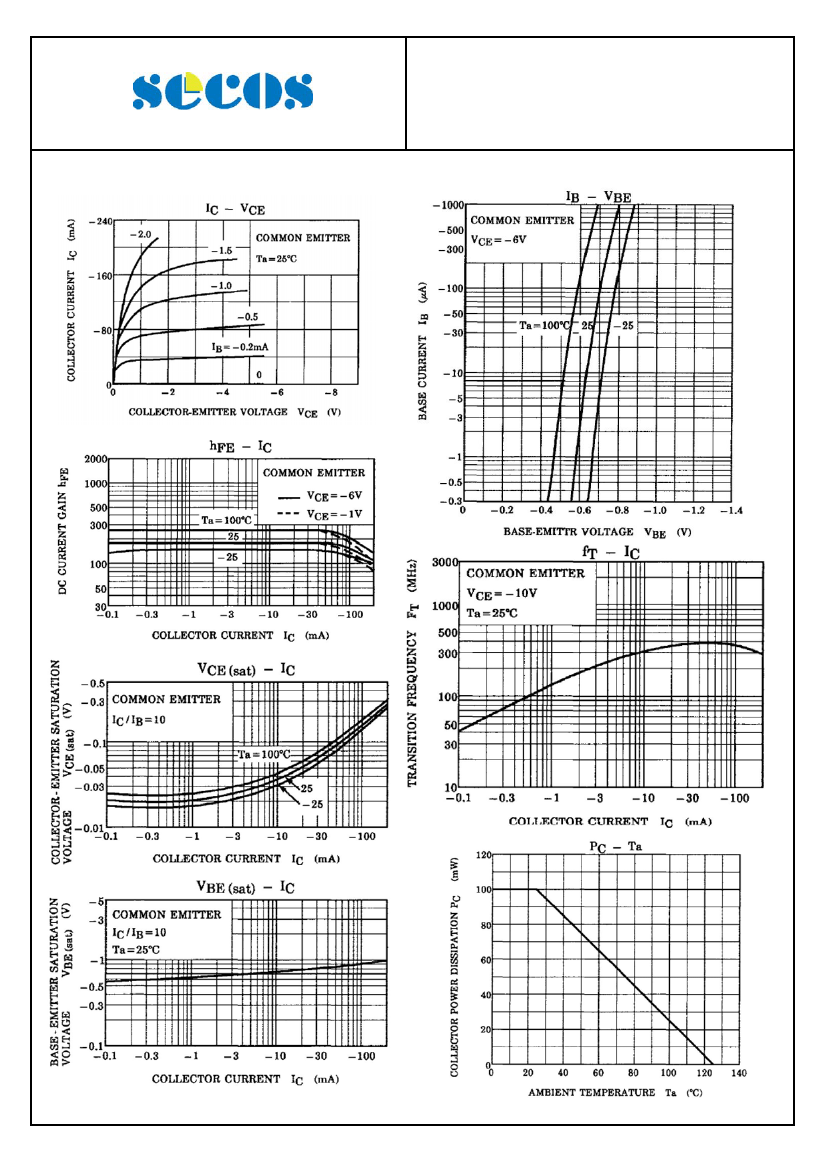

Page 1 of 2
