AK-SATA-015-R Overview

Serial ATA (SATA) Connection Cable - 0.15 Meter

Preview

Download Datasheet

View All

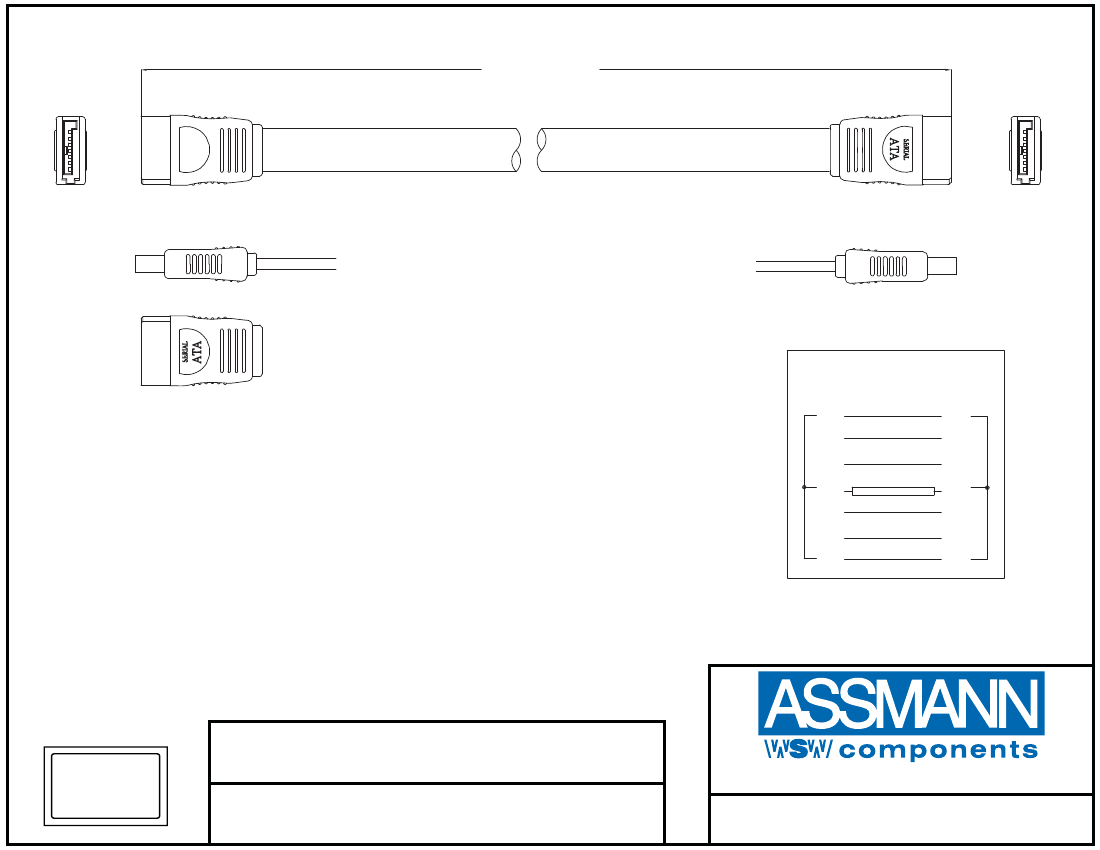

150MM±10MM

Pin 1

Pin 7

Pin 1

Pin Assignment

Material:

• Cable: UL2725 [26AWG(1/0.404)*2+D(1/0.32)*2+AL]*2F

- OD 2.2*7.8MM

- Jacket Red (RD-16#)

• P1 & P2 Connectors: Serial ATA 7-pin/Female Crimp Type

- Pin 15”

- Insulator Black

• Jacket: PVC 45P, Black

• Unplug/Plug cycles is 50 times

Electrical:

• 100% Open, Short, MisWire Test

• Contact Resistance: 1 Min.

• Insulation Resistance: 10M Min.

• Hi-Pot 300V DC/0.1 Sec

GND

Unit: MM±0.25MM

ITEM NO.

RoHS

Compliant

TITLE

AK-SATA-015-R

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

THIS DRAWING IS UNPUBLISHED

All International Rights Reserved

Serial ATA (SATA) Connection Cable - 0.15 Meter
