AM2931-110

Description
S-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS
CategoryDiscrete semiconductor    The transistor
File Size54KB,4 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Download Datasheet Parametric View All

AM2931-110 Overview

S-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS

AM2931-110 Parametric

Parameter NameAttribute value
package instructionFLANGE MOUNT, R-CDFM-F2
Contacts2
Reach Compliance Codeunknow
Other featuresHIGH RELIABILITY
Shell connectionBASE
Maximum collector current (IC)12 A
ConfigurationSINGLE
Minimum DC current gain (hFE)30
highest frequency bandS BAND
JESD-30 codeR-CDFM-F2
Number of components1
Number of terminals2
Maximum operating temperature250 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Maximum power dissipation(Abs)375 W
Minimum power gain (Gp)6.2 dB
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1
AM2931-110
RF & MICROWAVE TRANSISTORS
S-BAND RADAR APPLICATIONS
.
.
.
.
.
.
.
.
REFRACTORY/GOLD METALLIZATION
EMITTER SITE BALLASTED
3:1 VSWR CAPABILITY
LOW THERMAL RESISTANCE
INPUT/OUTPUT MATCHING
OVERLAY GEOMETRY
METAL/CERAMIC HERMETIC PACKAGE
P
OUT
=
105 W MIN. WITH 6.2 dB GAIN
.400 x .500 2L SFL (S138)
hermetically sealed
ORDER CODE
AM2931-110
BRANDING
2931-110
DESCRIPTION
The AM2931-110 is a high power silicon bipolar
NPN transistor specifically designed for S-Band
radar pulsed output and driver applications.
This device is capable of operation over a wide
range of pulse widths, duty cycles and tempera-
tures and can withstand a 3:1 output VSWR. Low
RF thermal resistance, refractory/gold metalliza-
tion, and computerized automatic wire bonding
techniques ensure high reliability and product con-
sistency (including phase characteristics).
The AM2931-110 is supplied in the BIGPAC™ Her-
metic M etal/Ceramic package with i nternal
Input/Output matching circuitry, and is intended
for military and other high reliability applications.
ABSOLUTE MAXIMUM RATINGS
(T
case
=
25
°
C)
Symbol
Parameter
PIN CONNECTION
1. Collector
2. Base
3. Emitter
4. Base
Value
Unit
P
DISS
I
C
V
CC
T
J
T
STG
Power Dissipation*
Device Current*
(T
C
100°C)
375
12
48
250
65 to +200
W
A
V
°
C
°
C
Collector-Supply Voltage*
Junction Temperature (Pulsed RF Operation)
Storage Temperature
THERMAL DATA
R
TH(j-c)
Junction-Case Thermal Resistance*
0.40
°C/W
*Applies only to rated RF amplifier operation
August 1992

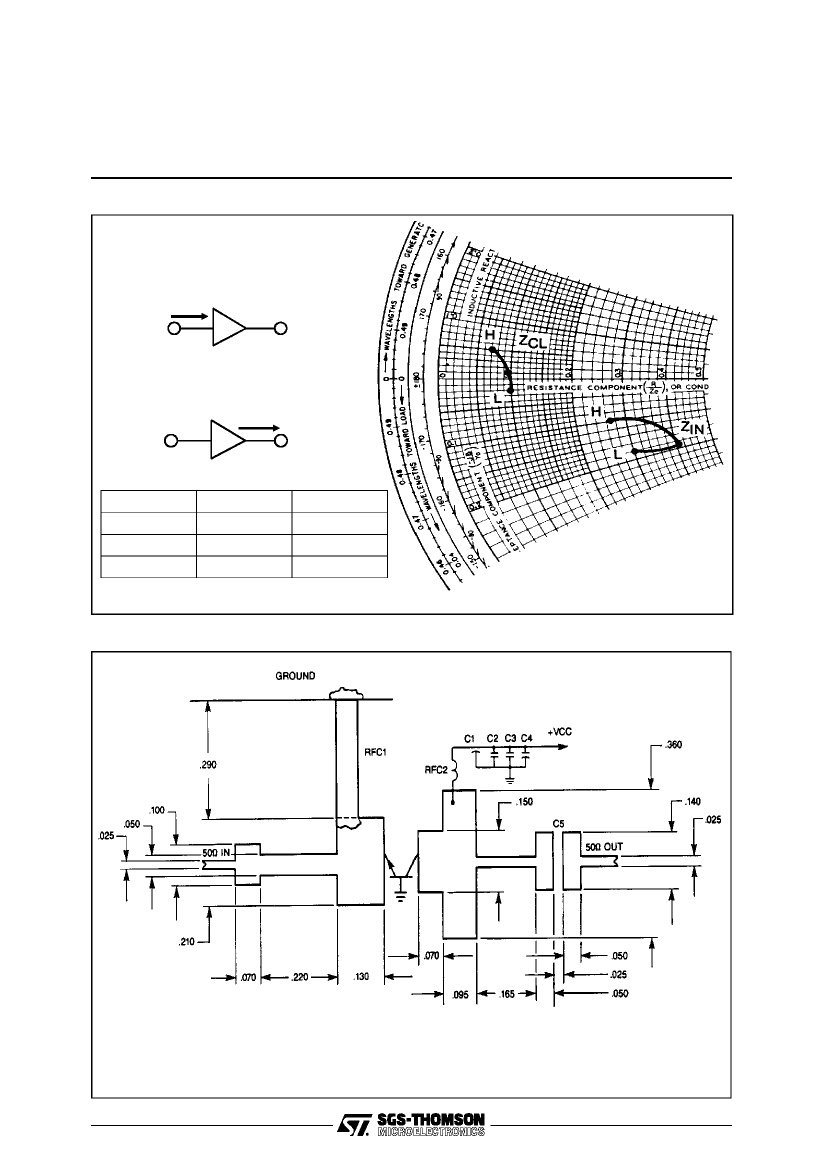

1/4
