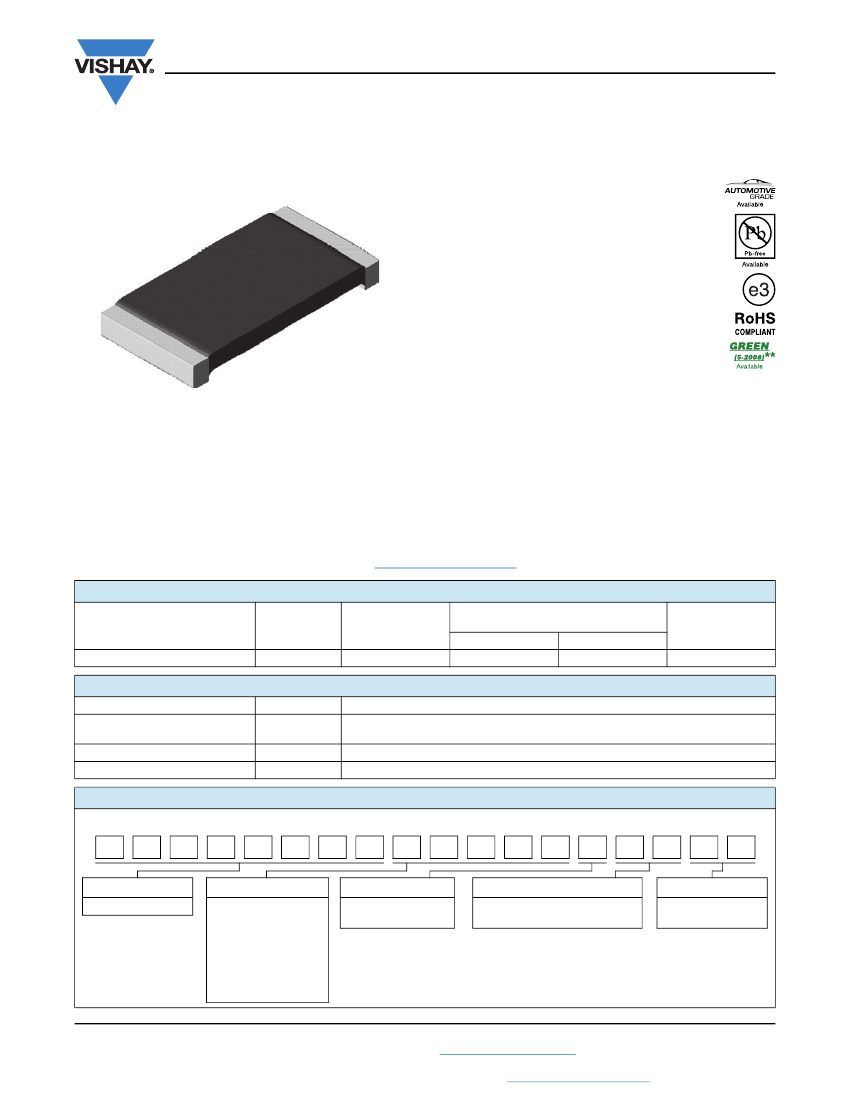

WSLP2512
www.vishay.com
Vishay Dale
Power Metal Strip
®
Resistors, Very High Power (3 W)
Low Value (down to 0.0005
),
Surface Mount
FEATURES
• Very high power to foot print size ratio (3 W in
2512 package)
• Ideal for all types of current sensing and pulse
applications including switching and linear
power supplies, instruments, power amplifiers
and shunts
• Proprietary processing technique produces
extremely low resistance values (down to
0.0005
)
• All welded construction
• Solid metal nickel-chrome or manganese-copper
alloy resistive element with low TCR (< 20 ppm/°C
over temperature range of 20 °C to 60 °C)
• Very low inductance 0.5 nH to 5 nH
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 μV/°C)
• Compliant to RoHS Directive 2002/95/EC
• AEC-Q200 qualified available
(1)
Note
(1)
Flame retardance test may not be applicable to some resistor
technologies.
Note
**
Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
WSLP2512
SIZE
2512
POWER RATING
P
70 °C
W
3.0
RESISTANCE VALUE RANGE
TOL. ± 0.5 %
0.003 to 0.01
TOL. ± 1.0 %
0.0005 to 0.01
WEIGHT
(typical)
g/1000 pieces
63.6
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature coefficient
Operating temperature range
Maximum workin voltage
UNIT
ppm/°C
°C
V
RESISTOR CHARACTERISTICS
± 275 for 1 m to 2.9 m, ± 150 for 3 m to 4.9 m
± 110 for 5 m to 9.9 m, ± 75 for 10 m
- 65 to + 170
(P x
R)
1/2
GLOBAL PART NUMBER INFORMATION
GLOBAL PART NUMBERING EXAMPLE: WSLP25125L000FEA
W
S
L
P
2
5
1
2
5
L
0
0
0
F
E
A
SPECIAL
Reserved for
future specials
GLOBAL MODEL
WSLP2512
RESISTANCE VALUE
L
= m*
R
= Decimal
L5000
= 0.0005
5L000
= 0.005
R0100
= 0.01
* Use “L” for resistance
values < 0.01
TOLERANCE CODE
D
= ± 0.5 %
F
= ± 1.0 %
PACKAGING CODE
EA
= Lead (Pb)-free, tape/reel
EK
= Lead (Pb)-free, bulk
Revision: 09-Nov-11
Document Number: 30182
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSLP2512
www.vishay.com
DIMENSIONS
H
l
W
T
L
a
b
Vishay Dale
MODEL
RESISTANCE
RANGE
()
0.0005 to 0.00099
0.001 to 0.0049
DIMENSIONS
in inches (millimeters)
L
W
H
T
0.107 ± 0.010
(2.72 ± 0.254)
0.250 ± 0.010
(6.35 ± 0.254)
0.125 ± 0.010
(3.18 ± 0.254)
0.025 ± 0.010
(0.635 ± 0.254)
0.087 ± 0.010
(2.21 ± 0.254)
0.047 ± 0.010
(1.19 ± 0.254)
0.030 ± 0.010
(0.762 ± 0.254)
SOLDER PAD DIMENSIONS
in inches (millimeters)
a
0.120
(3.05)
0.083
(2.11)
0.065
(1.65)
0.145
(3.68)
b
l
0.050
(1.27)
0.125
(3.18)
0.160
(4.06)
WSLP2512
0.005 to 0.0069
0.006 to 0.01
DERATING
Rated Power in %
120
100
80
60
40
20
0
- 65 - 50
- 25
0
25
50
75
100
125
150
170
Derating
PERFORMANCE
TEST
Thermal shock
Low temperature operation
High temperature exposure
Bias humidity
Mechanical shock
Vibration
Load life
Resistance to solder heat
Moisture resistance
- 65 °C for 45 min
1000 h at + 170 °C
+ 85 °C, 85 % RH, 10 % bias, 1000 h
100
g’s
for 6 ms, 5 pulses
70 Ambient Temperature in °C
CONDITIONS OF TEST
- 55 °C to + 150 °C, 1000 cycles, 15 min at each extreme
TEST LIMITS
± (0.5 % + 0.0005
) R
± (0.5 % + 0.0005
) R
± (1.0 % + 0.0005
) R
± (0.5 % + 0.0005
) R
± (0.5 % + 0.0005
) R
± (0.5 % + 0.0005
) R
± (1.0 % + 0.0005
) R
± (0.5 % + 0.0005
) R
± (0.5 % + 0.0005
) R
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at 70 °C, 1.5 h “ON”, 0.5 h “OFF”
+ 260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7b not required
PACKAGING
MODEL
WSLP2512
Note
• Embossed Carrier Tape per EIA-481.
Revision: 09-Nov-11
Document Number: 30182
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
REEL
TAPE WIDTH
12 mm/embossed plastic
DIAMETER
178 mm/7"
PIECES/REEL
2000
CODE
EA
