DN-93501-U-Y

Description
Cat5e Unshielded Keystone Jack
File Size90KB,1 Pages
ManufacturerASSMANN
Websitehttps://www.assmann.com/en/about-assmann/
Download Datasheet View All

DN-93501-U-Y Overview

Cat5e Unshielded Keystone Jack

1
2
3
4
5
6
7
A
Material:
1 RJ45 Jack Housing: ABS, UL94V-0
- with optional color
2. Jack Bracket Set: PBT, UL94V-0
3. RJ45 Jack Contact Material & Finished
- Phosphor Bronze
- Contact area: Min. 3MM 50 Micro-inch Gold
plated over Nickel plated
4. IDC Housing: PC, 94V-2
5. IDC Terminal material & finished:
- Phosphor Bronze w/Min. 50 Micro-inch Tin plated
- Suitable for 23-24AWG stranded & solid wire
6. IDC CAP: PC, UL94V-2
Electrical:
• Wiring: T568A & T568B
• Insertion Force: 900 GM for 8 contacts
• Retention Strength: 7.7Kg between Jack & Plug
• Operating Temperature: -10°C ~ +60°C
• Durability: Jack: 750 cycles Plug-Jack mating and
unmating test, Insertion cycles at 20 cycles/
minute max. Contact resistance test per 100
cycles.
• The Cat.5e transmission performance is in compliance
with the ANSI/TIA/EIA 568 B.2 standard
Unit: MM±0.1MM
Scale
1:1
Drawn
Approved
12.20.11
Name
Chappell
Item No.
TOLERANCE
X.X
X.XX
X.XXX
±0.40
±0.25
±0.15
±3°
A
B
B
C
C
D
D
E
E
F
F
G

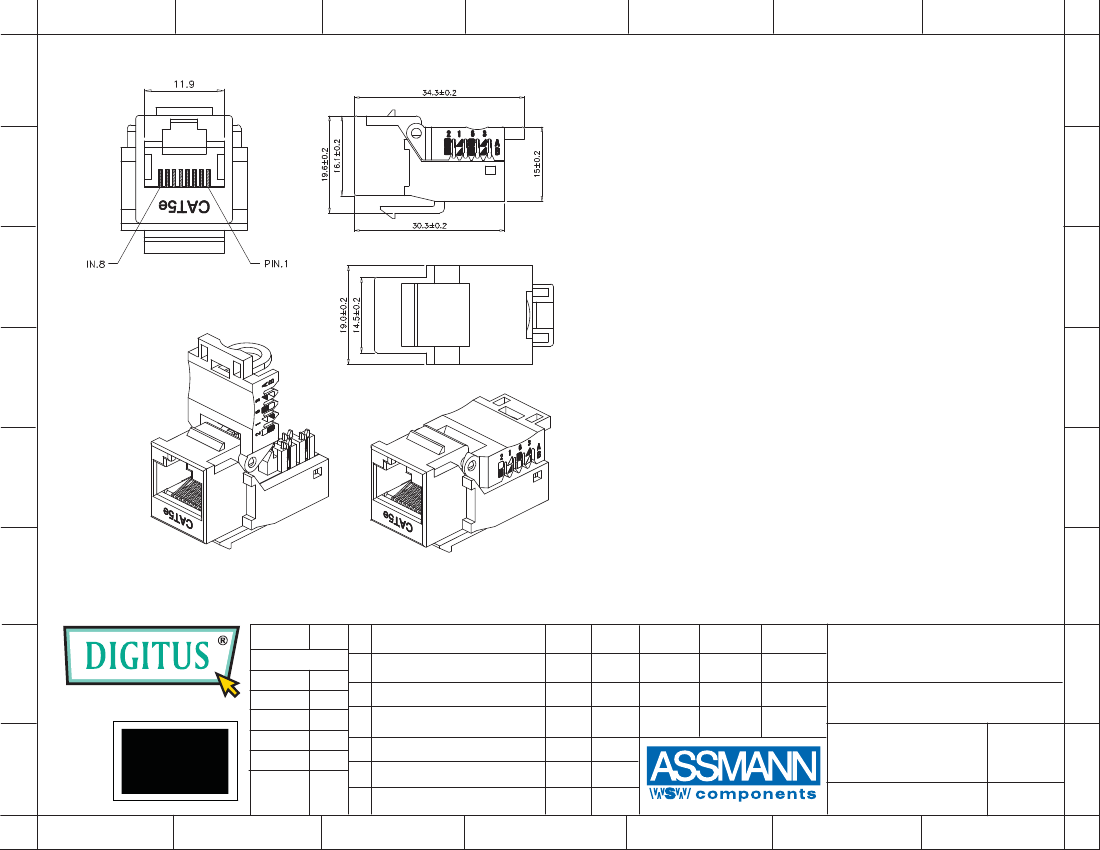

DN-93501-U/Y
Title
Cat5e Unshielded Keystone Jack -
90° Tool Free Type, Yellow
Drawing No.
G
H
RoHS
Complaint
1
2
Angle
rev00
Sheet
H
Modification
Date
Name
Replace
3
4
5
6
7
