BH5M29-46SBBOR-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> BH5M29-46SBBOR-U

BH5M29-46SBBOR-U: DescriptionBoard Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BH5M29-46SBBOR-U Overview

Board Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

BH5M29-46SBBOR-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.169 inch
subject depth	0.112 inch
body length	0.965 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	BH5M
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.5974 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	46

BH5M29-46SBBOR-U Preview

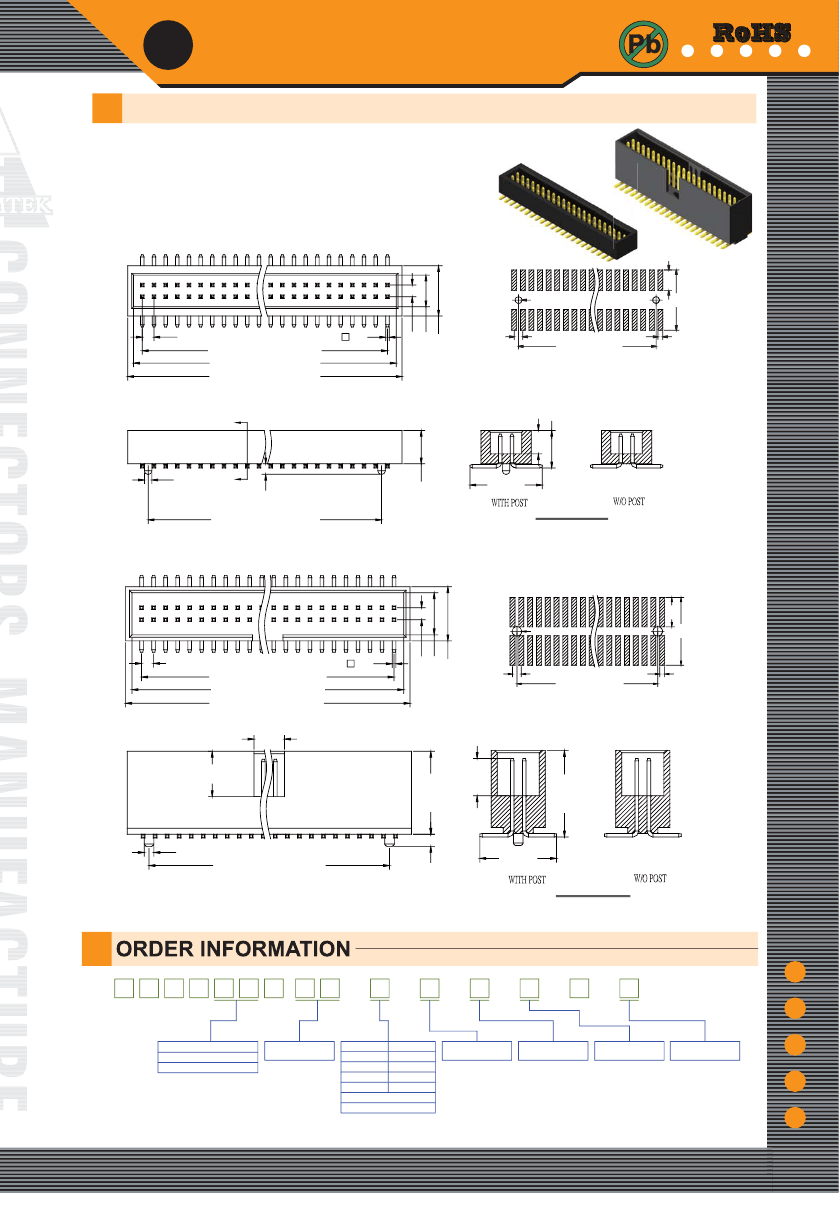

ox Header 1.0mm

Box Header 1.0mm H=2.85/6.90mm SMT Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min

Contact Resistance:30mΩ Max

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

H 5

M X

Insulator Height

29:Insulator Height H=2.85mm

69:Insulator Height H=6.90mm

No. of contacts

(10~60)

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black insulator

O:W/O Peg

P:With Peg

T:Tube

R:Tape & Reel

U:RoHS + Nylon 6T

T:Tin Plated

TE:Tin 200u"

Standard Recommended

www.amtek-co.com.tw

2-10

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
