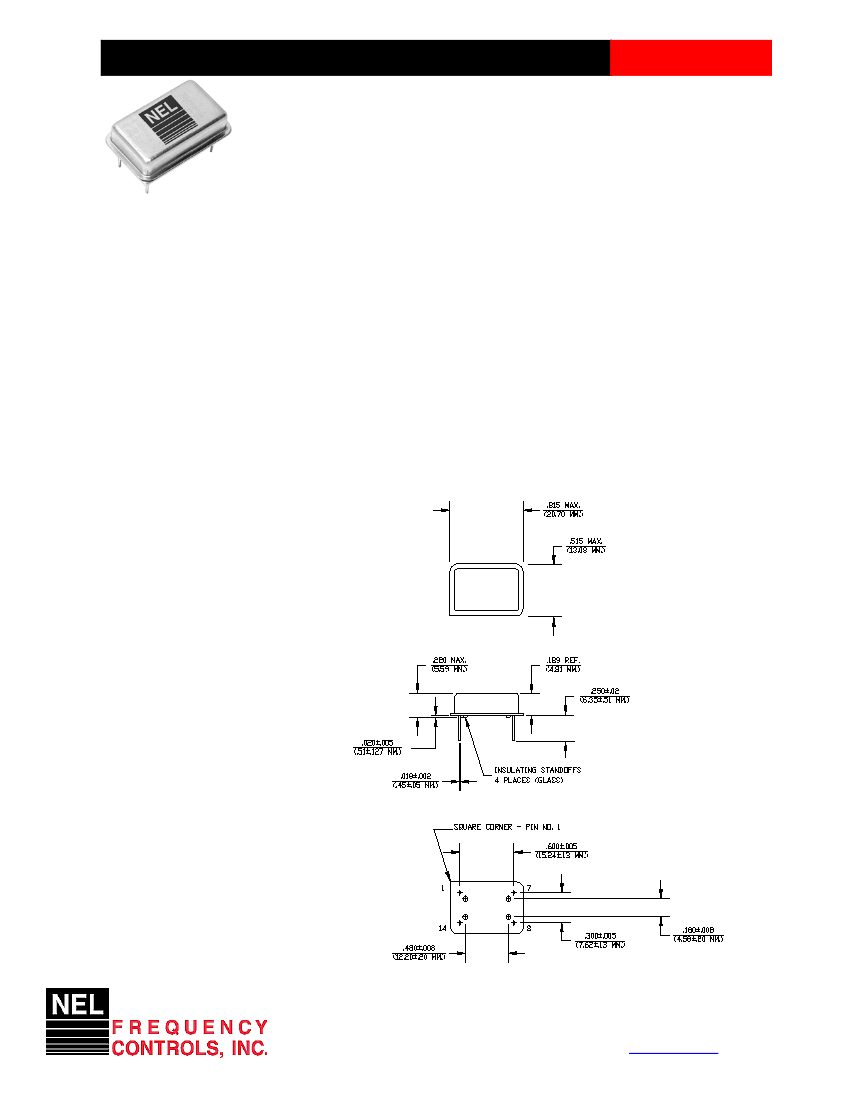

CRYSTAL CLOCK OSCILLATORS
TTL
Data Sheet 9225B
Rev. W
HS-160 Series
Description
The
HS-160 Series
of quartz crystal oscillators are general purpose TTL oscillators. All units are resistance
welded in an all metal package, offering RFI shielding, and are designed to survive standard wave soldering
operations without damage. Insulated standoffs to enhance board cleaning are standard.
Features
• Wide frequency range–0.5MHz to 85.0MHz
• User specified tolerance available
• Will withstand vapor phase temperatures of 253°C
for 4 minutes maximum
• Space-saving alternative to discrete component
oscillators
• High shock resistance, to 3000g
• All metal, resistance weld, hermetically sealed
package
• Low Jitter
• High Q Crystal actively tuned oscillator circuit
• Power supply decoupling internal
• No internal PLL avoids cascading PLL problems
• High frequencies due to proprietary design
• Gold plated leads - Solder dipped leads available
upon request
• Low power consumption
• RoHS Compliant, Lead Free Construction
(unless solder dipped leads are supplied)
• COTS/Dual use
Electrical Connection
Pin
1
7
8
14
Connection
N.C.
Grd & Case
Output
V
CC
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
HS-160 Series
TTL
Continued
Data Sheet 9225B
Rev. W
Operating Conditions and Output Characteristics
Electrical Characteristics
Parameter
Frequency
Duty Cycle
Logic 0
Logic 1
Rise & Fall Time
Jitter, RMS
(2)
Frequency Stability
(1)
Symbol
-----
-----
V
OL
V
OH
tr,tf
-----
dF/F
Conditions
-----
@ V
CC
/2
@ 16mA
@ 0.4mA
@ 0.4 to 2.4V
<40MHz
40MHz or greater
<40MHz OT & >40MHz
<40MHz Fund
Overall conditions including:
voltage, calibration, temp.,
10 yr aging, shock, vibration
Min
0.5MHz
40/60%
-----
2.4V
-----
-----
-----
-----
-100ppm
Typical
-----
-----
-----
-----
-----
-----
-----
-----
-----
Max
85.0MHz
60/40%
0.4V
-----
8.0 ns
5.0 ns
5 psec
8 psec
+100ppm
General Characteristics
Parameter
Supply Voltage
Supply Current
Output current
Operating temperature
Storage temperature
Power Dissipation
Lead temperature
Load
Start-up Time
Symbol
V
CC
I
CC
I
O
T
A
T
S
P
D
T
L
-----
t
s
Conditions
-----
No Load
-----
-----
-----
-----
Soldering, 10 sec.
-----
<20MHz
20MHz or greater
Min
4.75V
0.0 mA
0.0 mA
0°C
-55°C
-----
-----
-----
-----
-----
Typical
5.0V
-----
-----
-----
-----
-----
-----
-----
-----
-----
Max
5.25V
50 mA
±25.0 mA
70°C
125°C
263 mW
300°C
10 TTL gate
2 ms
10 ms
Environmental and Mechanical Characteristics
Mechanical Shock
Thermal Shock
Vibration
Soldering Condition
Hermetic Seal
Per MIL-STD-202, Method 213, Condition E
Per MIL-STD-883, Method 1011, Condition A
0.060" double amplitude 10 Hz to 55 Hz, 35g’s 55Hz to 2000 Hz
300°C for 10 seconds
Leak rate less than 1 x 10
-8
atm.cc/sec of helium
Footnotes:
1) Standard frequency stability (±20,±25,±50ppm & others available)
2) Jitter performance is frequency dependent. Please contact factory for full characterization.
RMS jitter bandwidth of 12kHz to 20MHz.
Test Load:
Creating a Part Number
HS - X16X - FREQ
Package Code
HS Leaded 4 pin (14 pin)
SM Leaded 4 pin (14 pin) SMD
Gull Wing
Input Voltage
Code Specification
A
3.3V
5V
Tolerance/Performance
0 ±100ppm 0-70°C
1 ±50ppm 0-70°C
7 ±25ppm 0-70°C
9 Customer Specific
A ±20ppm 0-70°C
B ±50ppm -40 to +85°C
C ±100ppm -40 to +85°C
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
