5432-2-12-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5432-2-12-1

5432-2-12-1: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Kinked Leads Terminal, Plug; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5432-2-12-1 Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Kinked Leads Terminal, Plug

5432-2-12-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.228 inch
subject depth	0.197 inch
body length	0.679 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5432
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	12
Evacuation force-minimum value	.973 N

Preview

Download Datasheet

View All

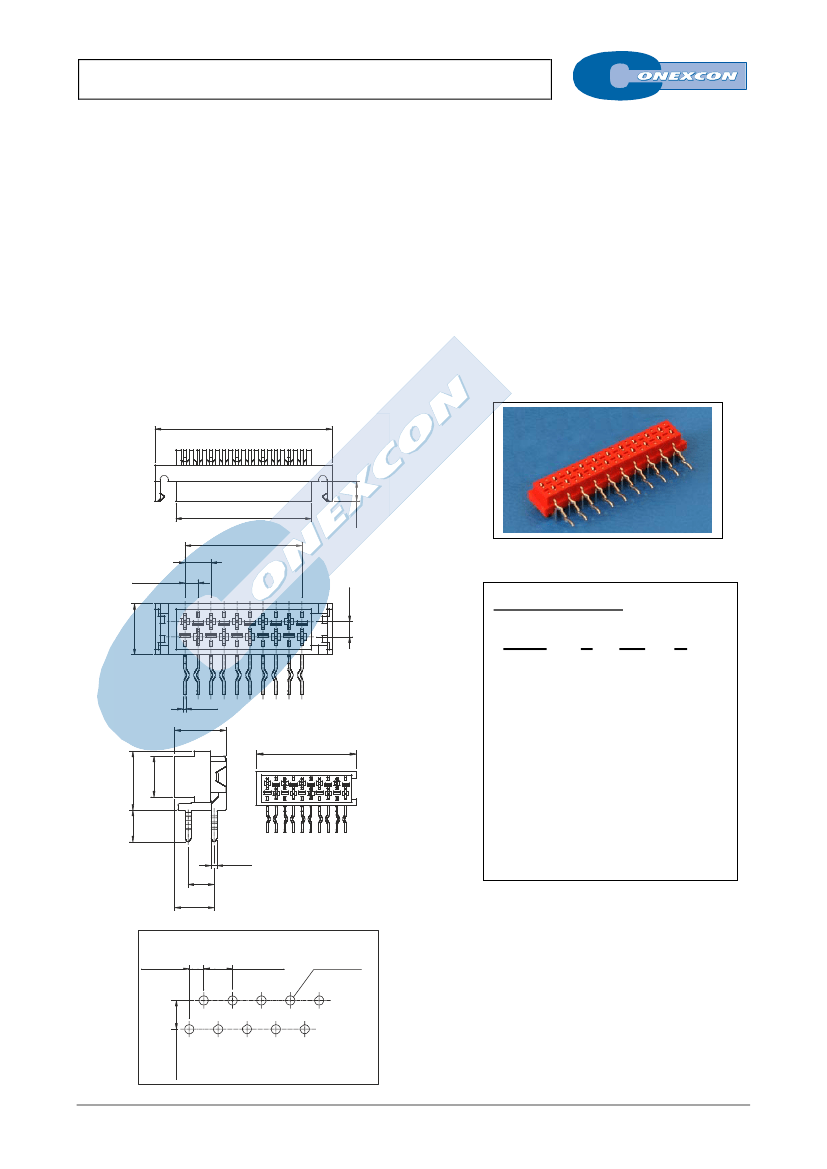

D/ ROW SIDE ENTRY PCB FEMALE CONNEC.

5432 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 4 through 26 circuits

Mates with 2.54 mm PCB connectors 5427, 5428,

5429 and 5430 series

Allows connections cable to PCB and PCB to PCB

With/Without latch



Voltage rating: < 250V

Current rating: < 1.50 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT + 15% GF UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features

Pin retention force to insulator: > 0.50 Kgf

Mating force: < 0.50 Kgf per contact

Un-mating force: > 0.10 Kgf per contact

Durability: 25 Cycles

Dimension Information

B± 0.30

A± 0.1

2.54

.100

1.27 ± 0.05

.050 ± .002

1.50

.059

1.90

C± 0.2

.075

Ordering Information:

.197

5.0

5432 -

T-

XX-

0.25

.010

5.00

.197

D ± 0.30

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

5.80

.228

4.00

.157

3. (XX) Number of circuits

Available in 4 through 26 circuits

3.1

.122

4. (S) Latch Type

Without Latch

0.56

.022

2.54

.100

3.85

.152



S =

Without latch

S =

With latch

Dimensions:

= 1.27 x (XX-1)

= 1.27 x (XX)+4.60

= 1.27 x (XX)+0.53

= 1.27 x (XX)+2.00

(XX) = Number of circuits

RECOMMENDED HOLE PATTERN

1.27 ± 0.05

.050 ± .002

2.54 ± 0.05

.100 ± .002

1.00 ± 0.10

.039 ± .004

A-XX

2.54 ± 0.05

.100 ± .002

FULL LINE CATALOGUE
