A-2004-1-4-LP-R

Description
CONN MOD JACK R/A 6P6C
CategoryThe connector    The connector
File Size55KB,1 Pages
ManufacturerASSMANN
Websitehttps://www.assmann.com/en/about-assmann/
Download Datasheet Parametric View All

A-2004-1-4-LP-R Overview

CONN MOD JACK R/A 6P6C

A-2004-1-4-LP-R Parametric

Parameter NameAttribute value
MakerASSMANN
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsSPLIT BOARD LOCK
body width0.461 inch
subject depth0.709 inch
body length0.519 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
Contact resistance20 mΩ
Contact styleTELCOM, MODULAR
Dielectric withstand voltage1400VAC V
Durability500 Cycles
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number2004
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
Plating thickness6u inch
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.128 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts6
18.00
7.85
8.89
Material:
• Housing: PBT Glass Filled (UL 94V-0)
• Soldering Temperature: 235°C
• Color: Black
• Spring Wire: 0.45MM Dia. Phosphor Bronze Gold
Plating over Nickel
• Temperature Range: -40°C ~ +85°C
• Durability: 500 Mating cycles Min.
Electrical:
• Insulation Resistance: 500M Min.
• Contact Resistance: 20M Max.
• Rating Current: 1.5A Max.
• Rating Voltage: 120V AC
• Dielectric Voltage: 1,000V RMS 60 Sec. Min.
8.89
PCB Layout
(Top View)
= Assmann logo
ITEM NO.
RoHS
Compliant
TITLE

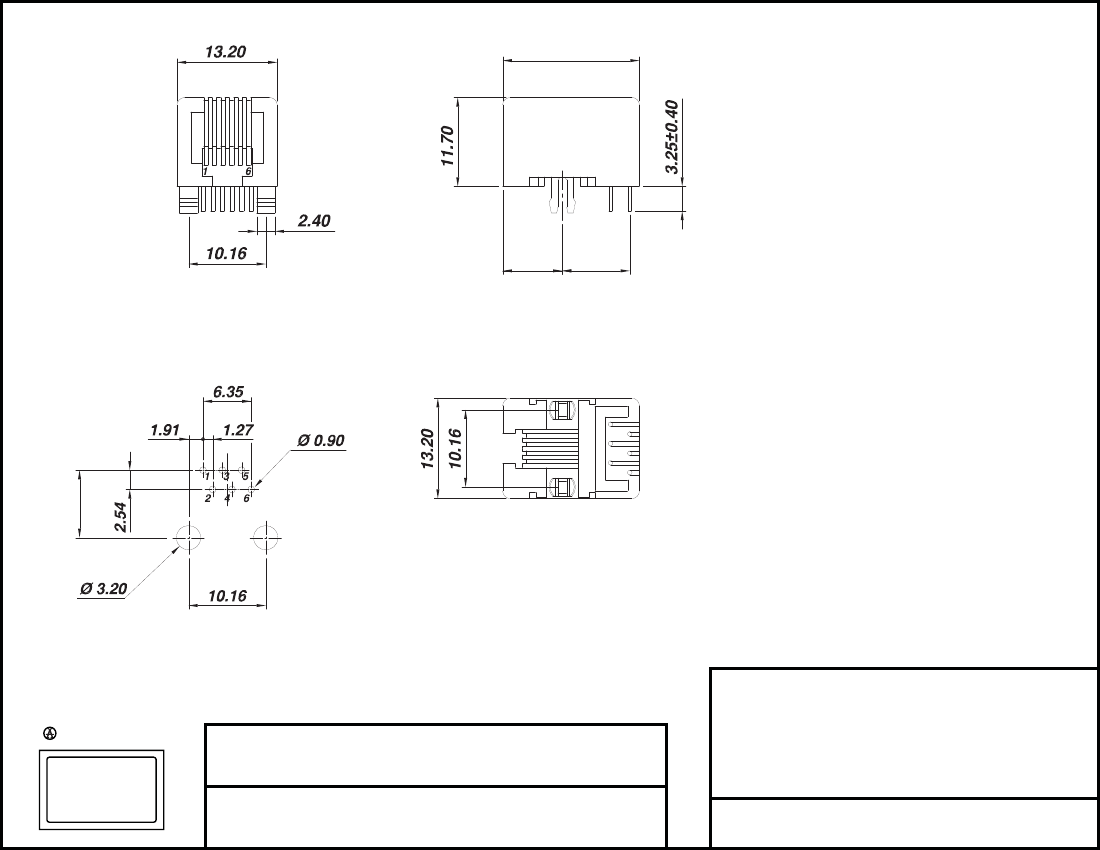

Very Low Profile Side Entry PCB Jack
6P6C, 90° w/o Flange, 6—” Gold Plating
A-2004-1-4-LP-R
1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283
Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com
THIS DRAWING IS UNPUBLISHED
©Copyright 2010 by Assmann Electronic Components
All International Rights Reserved
Electronics, Inc.
ASSMANN
