MY82 / MY82C
Triple-Balanced Mixer
Rev. V2
Features
•
•
•
•
LO & RF 2 TO 18 GHz
IF 0.03 TO 5 GHz
LO DRIVE +13 dBm (NOMINAL)
WIDE BANDWIDTH

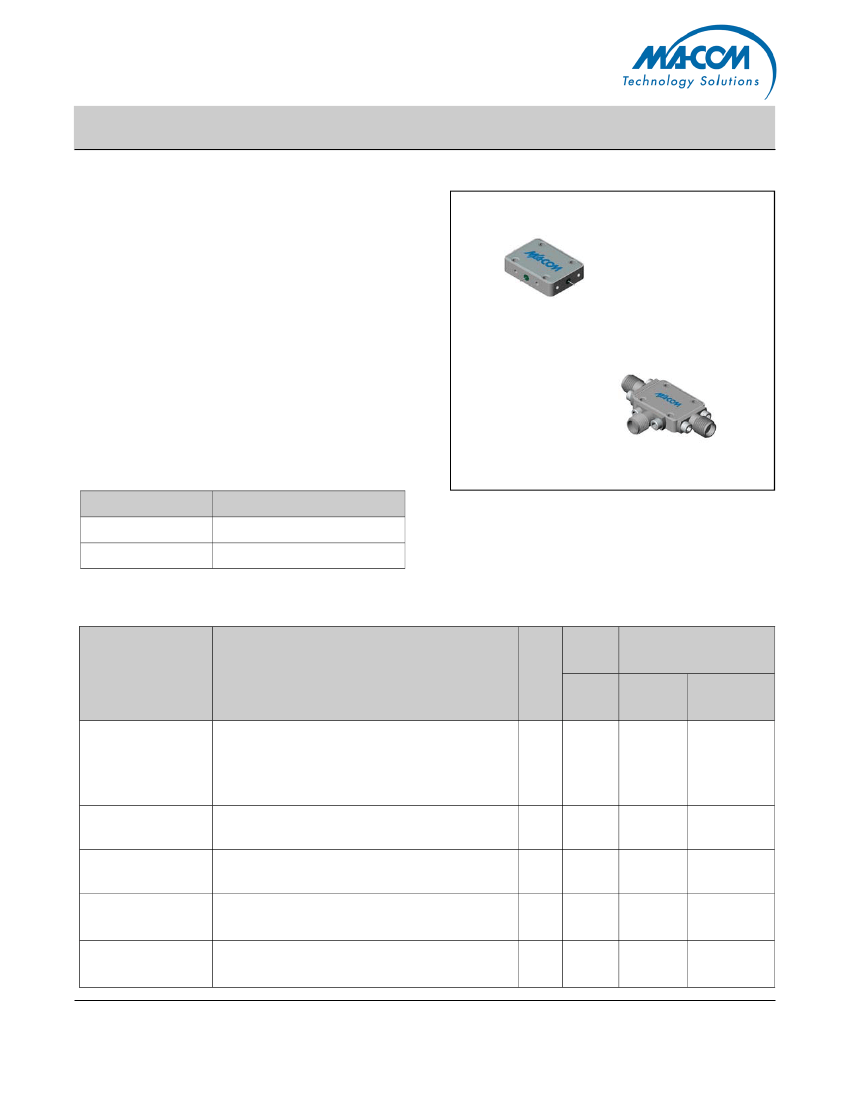

Product Image
Description
MY82 is a triple balanced mixer, designed for use in military,
commercial and test equipment applications. The design utilizes
Schottky ring quad diodes and broadband soft dielectric baluns to
attain excellent performance. The use of high temperature solder
assembly processes used internally makes it ideal for use in
manual, semi-automated assembly. Environmental screening
available to MIL-STD-883, MIL-STD-202 or MIL-DTL-28837,
consult factory.
Ordering Information
Part Number
MY82
MY82C
Package
Versapac
SMA Connectorized
Electrical Specifications: Z
0
= 50Ω Lo = +13 dBm (Downconverter Application only)
Typical
Parameter
Test Conditions
Units
+25ºC
-54º to +85ºC
Guaranteed
SSB Conversion Loss
(max) & SSB Noise Fig-
ure (max)
fR = 2 to 18 GHz, fL = 2 to 18 GHz, fI = 0.03 to 2 GHz
fR = 2 to 18 GHz, fL = 2 to 18 GHz, fI = 2 to 5 GHz
dB
dB
7.5
8.0
9.0
10.5
9.5
11.0
Isolation, L to R (min)
fL = 2 to 3 GHz
fL = 3 to 18 GHz
fL = 2 to 18 GHz
dB
dB
dB
20
30
30
16
18
20
14
16
18
Isolation, L to I (min)
1 dB Conversion Comp.
fL = +13 dBm
dBm
+6
Input IP3
1
fR1 = 6 GHz at –3 dBm, fR2 = 6.01 GHz at –3 dBm, fL = 8 GHz at +13 dBm
fR1 = 15 GHz at –3 dBm, fR2 = 15.01 GHz at –3 dBm, fL =18 GHz at +13 dBm
dBm
dBm
+18
+19
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MY82 / MY82C
Triple-Balanced Mixer
Rev. V2
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Peak Input Power
Peak Input Current

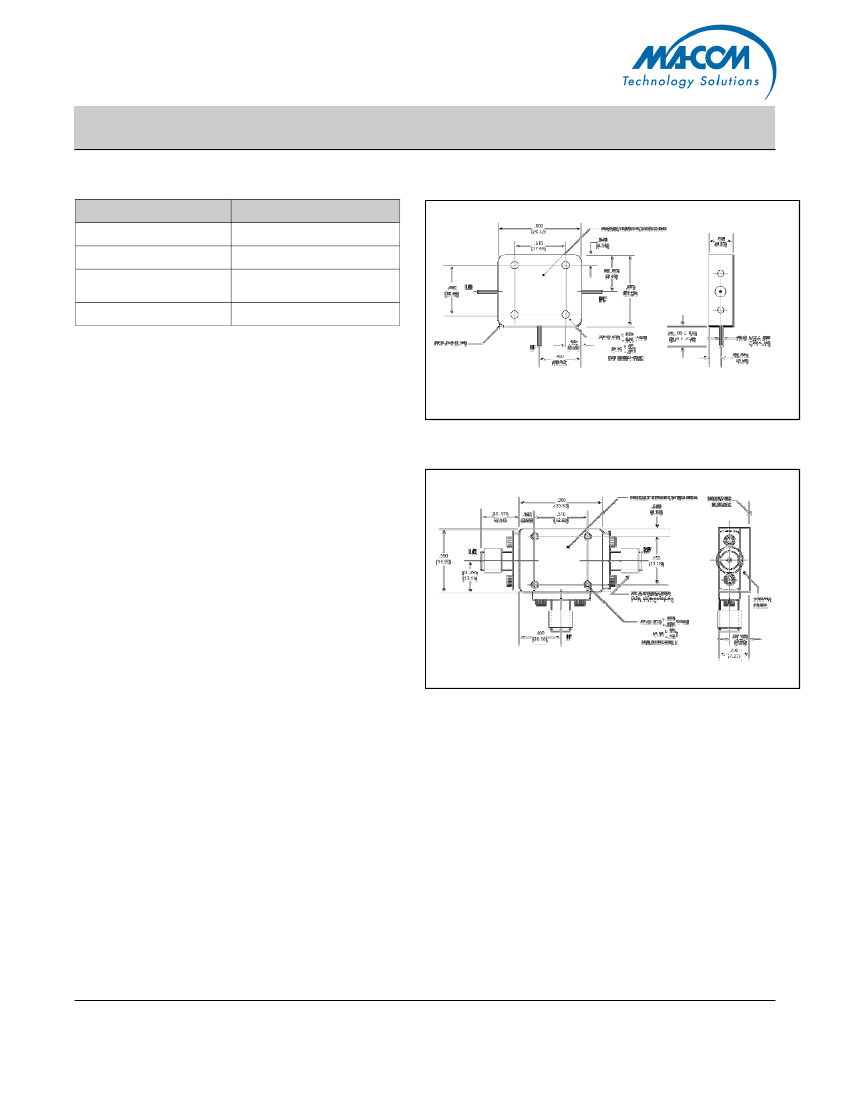

Outline Drawing: Versapac
*
Absolute Maximum
-54ºC to +100ºC
-65ºC to +100ºC
+26 dBm max @ +25ºC
+23 dBm max @ +100ºC
100 mA DC
Weight: 6 grams (0.21 oz.) max
Outline Drawing: SMA Connectorized
*
Weight: 12 grams (0.42 oz.) max
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
2
