MRF137_15

Description
UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET
Categorysemiconductor    Discrete semiconductor
File Size400KB,11 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric View All

MRF137_15 Overview

UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET

MRF137_15 Parametric

Parameter NameAttribute value
Number of terminals4
Minimum breakdown voltage65 V
Processing package descriptionCASE 211-07, 4 PIN
Lead-freeYes
stateACTIVE
packaging shaperound
Package SizeFlange mounting
Terminal formFLAT
terminal coatingNOT SPECIFIED
Terminal locationRADIAL
Packaging MaterialsCeramic, Metal-SEALED COFIRED
structuresingle
Number of components1
transistor applicationsamplifier
Transistor component materialssilicon
Channel typeN channel
field effect transistor technologyMetal-OXIDE SEMICONDUCTOR
operating modeENHANCEMENT
Transistor typeRF power
Maximum leakage current5 A
highest frequency bandULTRA high frequency band
MRF137
The RF MOSFET Line
30W, to 400MHz, 28V
Designed for wideband large signal output and drive stages
up to 400 MHz range.
N–Channel enhancement mode
M/A-COM Products
Released - Rev. 01302012
Product Image

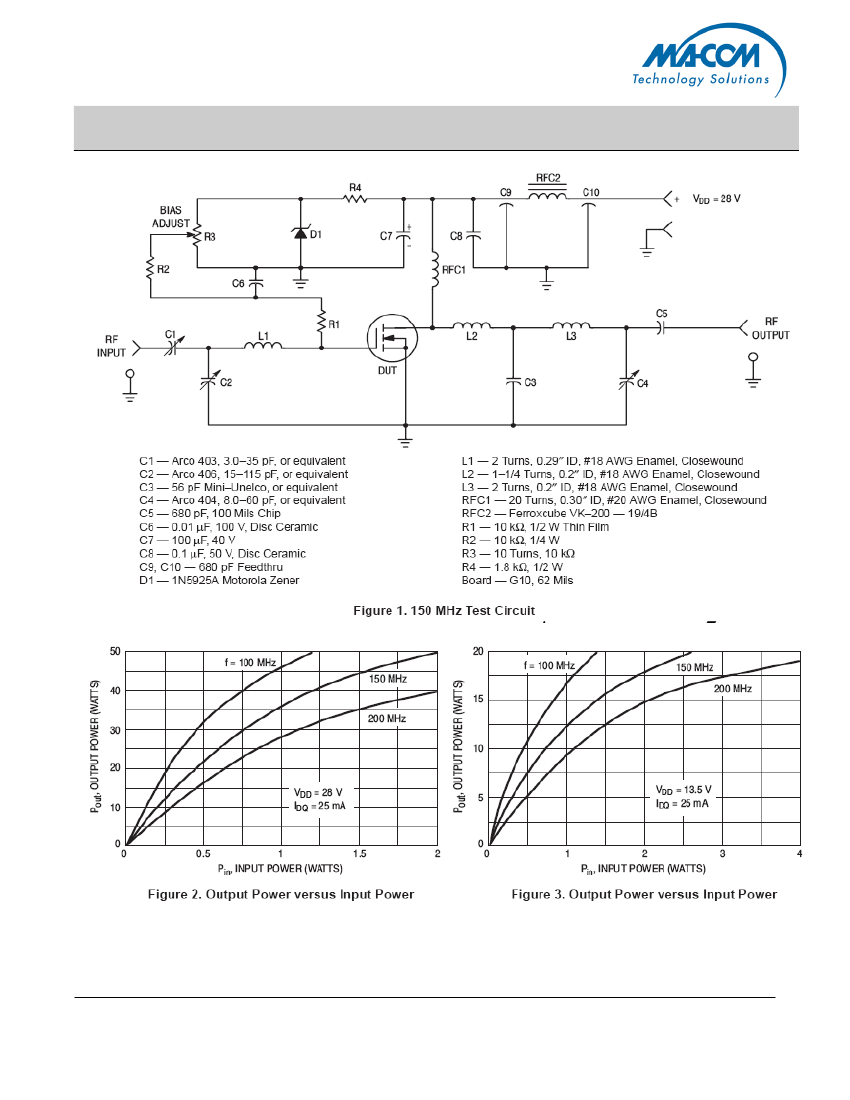

Guaranteed 28 V, 150 MHz performance
Output power = 30 W
Minimum gain = 13 dB
Efficiency — 60% (Typical)

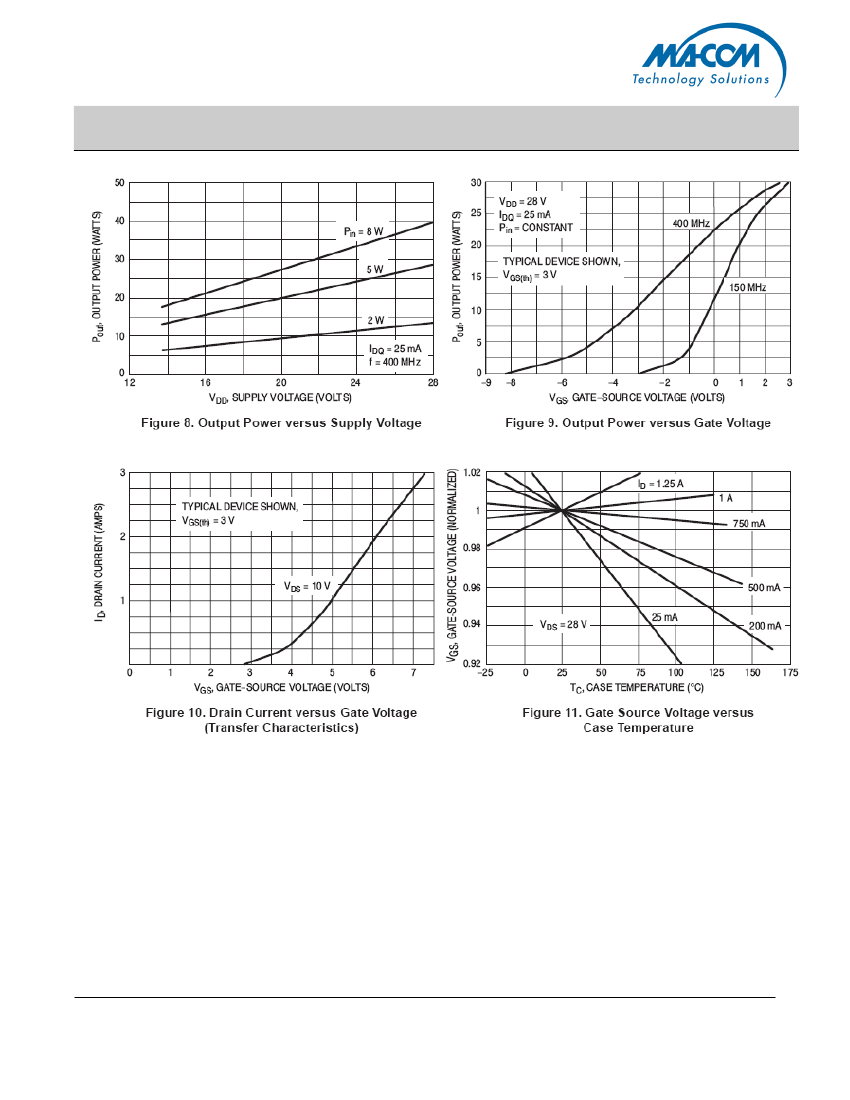

Small– and large–signal characterization

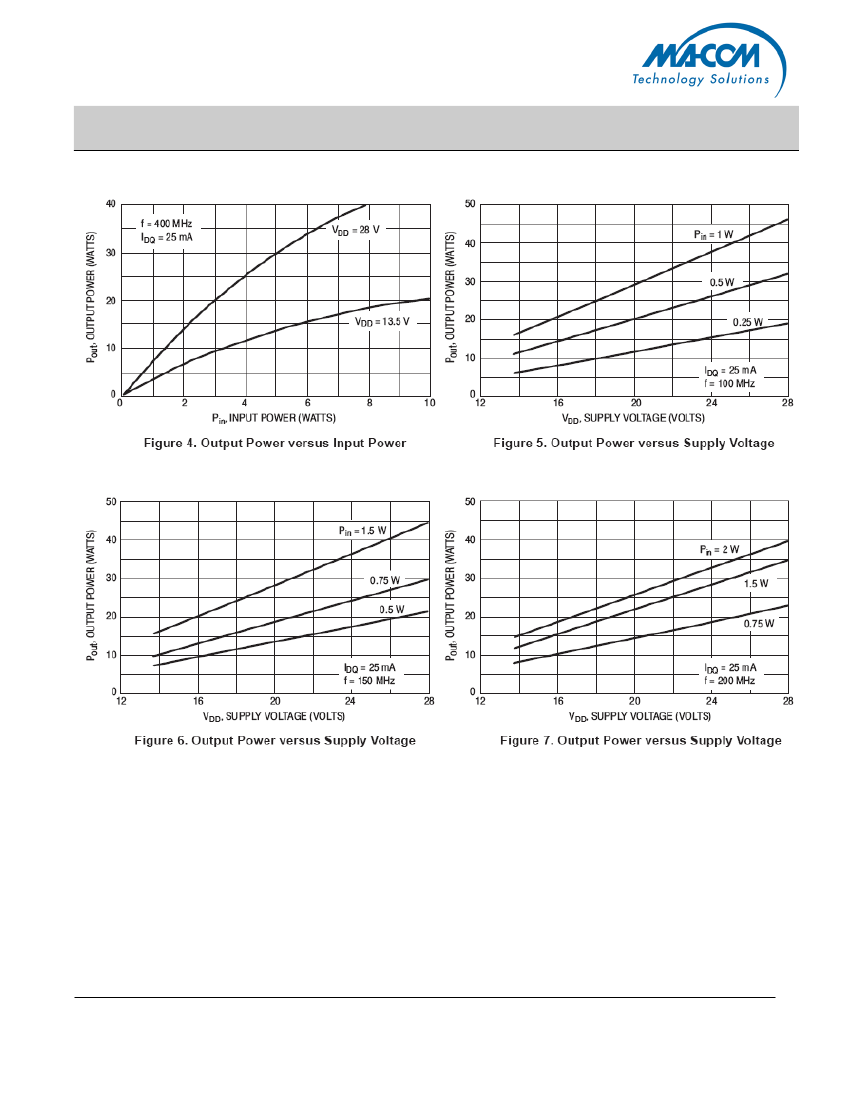

Typical performance at 400 MHz, 28 Vdc, 30 W output = 7.7 dB gain
100% tested for load mismatch at all phase angles with 30:1 VSWR
Low noise figure — 1.5 dB (typ.) at 1.0 A, 150 MHz
Excellent thermal stability, ideally suited for Class A operation
Facilitates manual gain control, ALC and modulation techniques

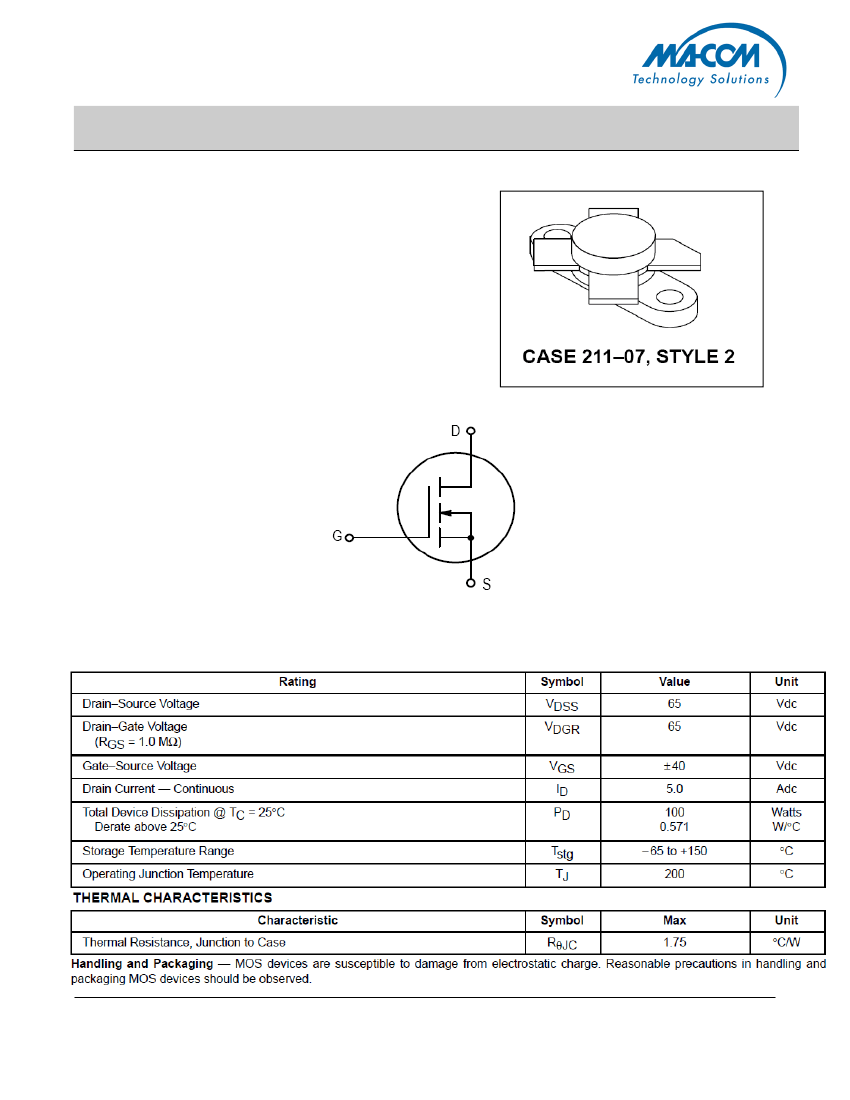

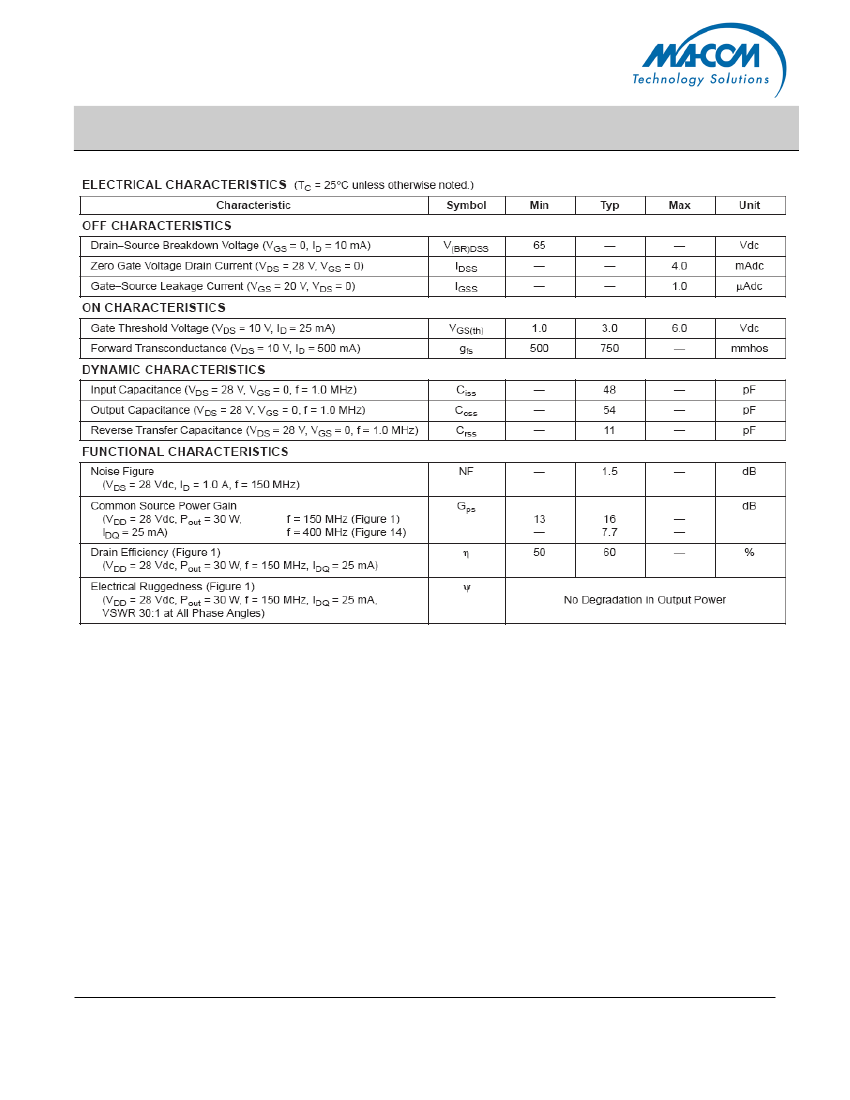

Maximum Ratings
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
