MRF448_15

Description
16 A, 50 V, NPN, Si, POWER TRANSISTOR
Categorysemiconductor    Discrete semiconductor
File Size194KB,7 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric View All

MRF448_15 Overview

16 A, 50 V, NPN, Si, POWER TRANSISTOR

MRF448_15 Parametric

Parameter NameAttribute value
Number of terminals4
Transistor polarityNPN
Maximum collector current16 A
Maximum Collector-Emitter Voltage50 V
Processing package descriptionCASE 211-11, 4 PIN
Lead-freeYes
stateACTIVE
packaging shaperound
Package SizeFlange mounting
Terminal formFLAT
terminal coatingNOT SPECIFIED
Terminal locationRADIAL
Packaging MaterialsCeramic, Metal-SEALED COFIRED
structuresingle
Number of components1
transistor applicationsamplifier
Transistor component materialssilicon
Transistor typeuniversal power supply
Minimum DC amplification factor10

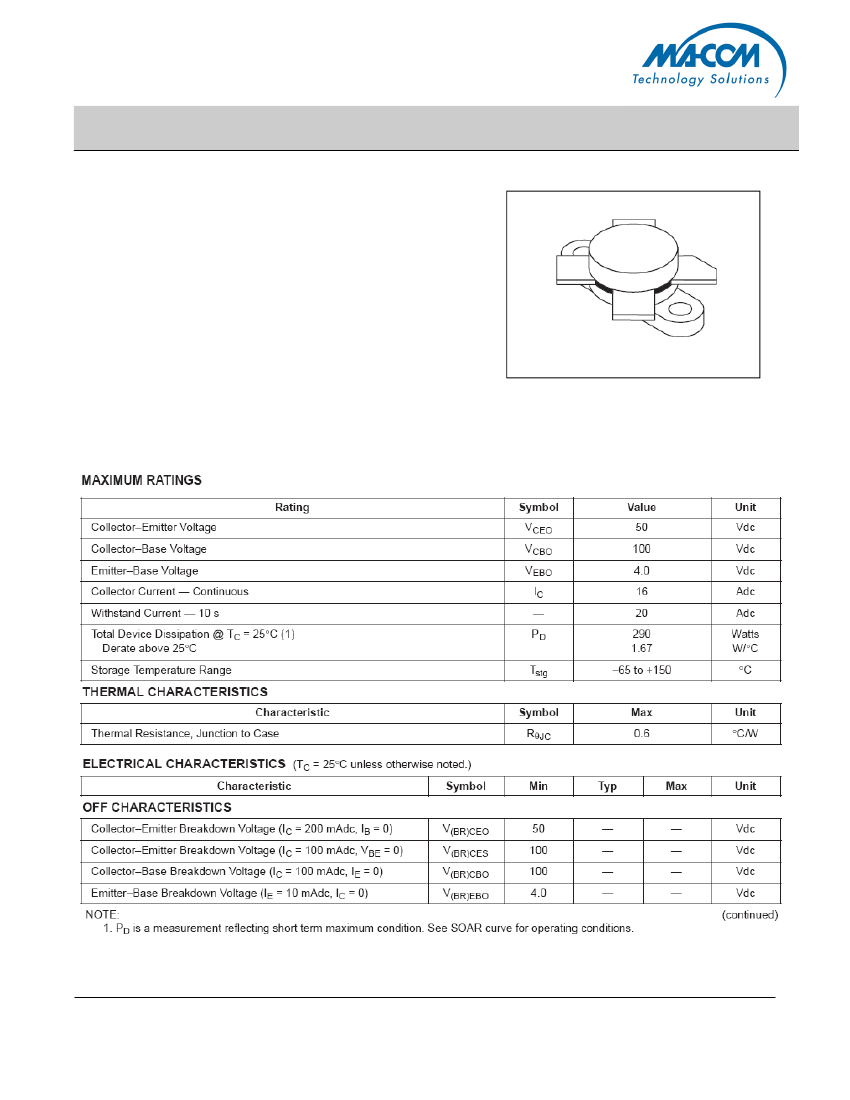

MRF448
The RF Line NPN Silicon Power Transistor
250W, 30MHz, 50V
Designed primarily for high–voltage applications as a high–power
linear amplifiers from 2.0 to 30 MHz. Ideal for marine and base station
equipment.
M/A-COM Products
Released - Rev. 07.07
Product Image

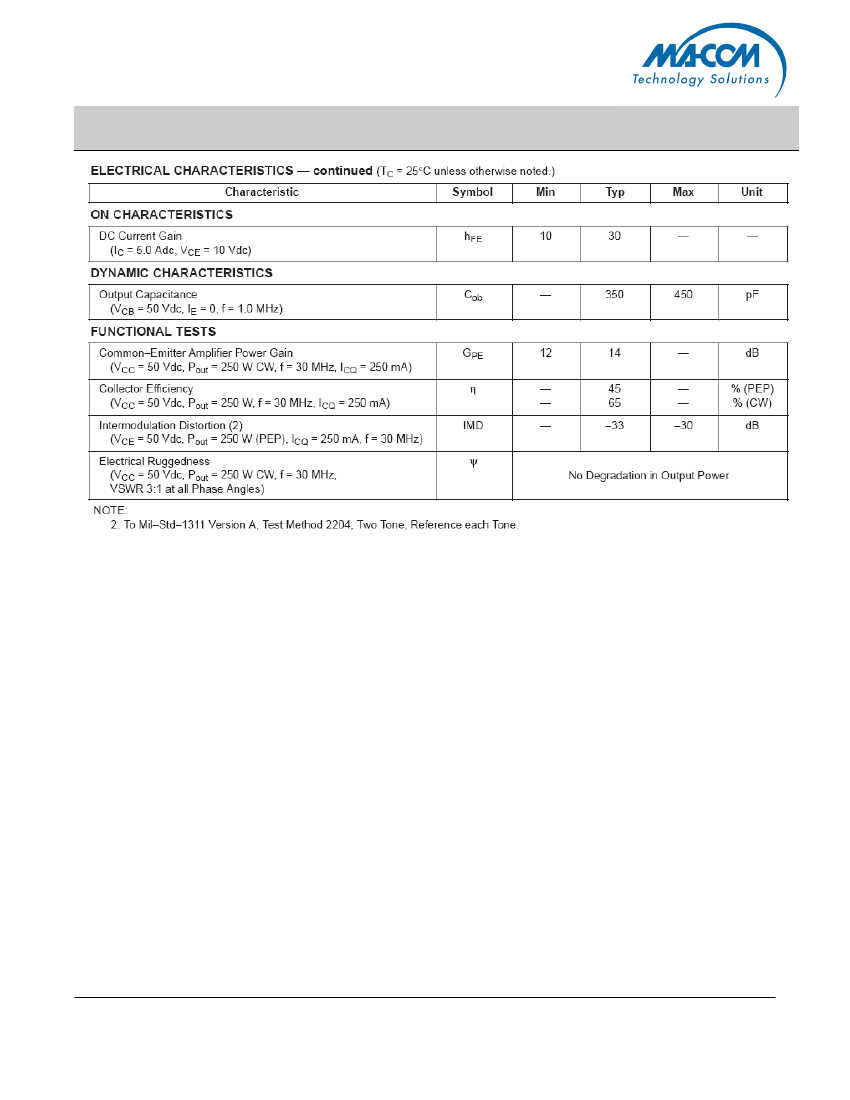

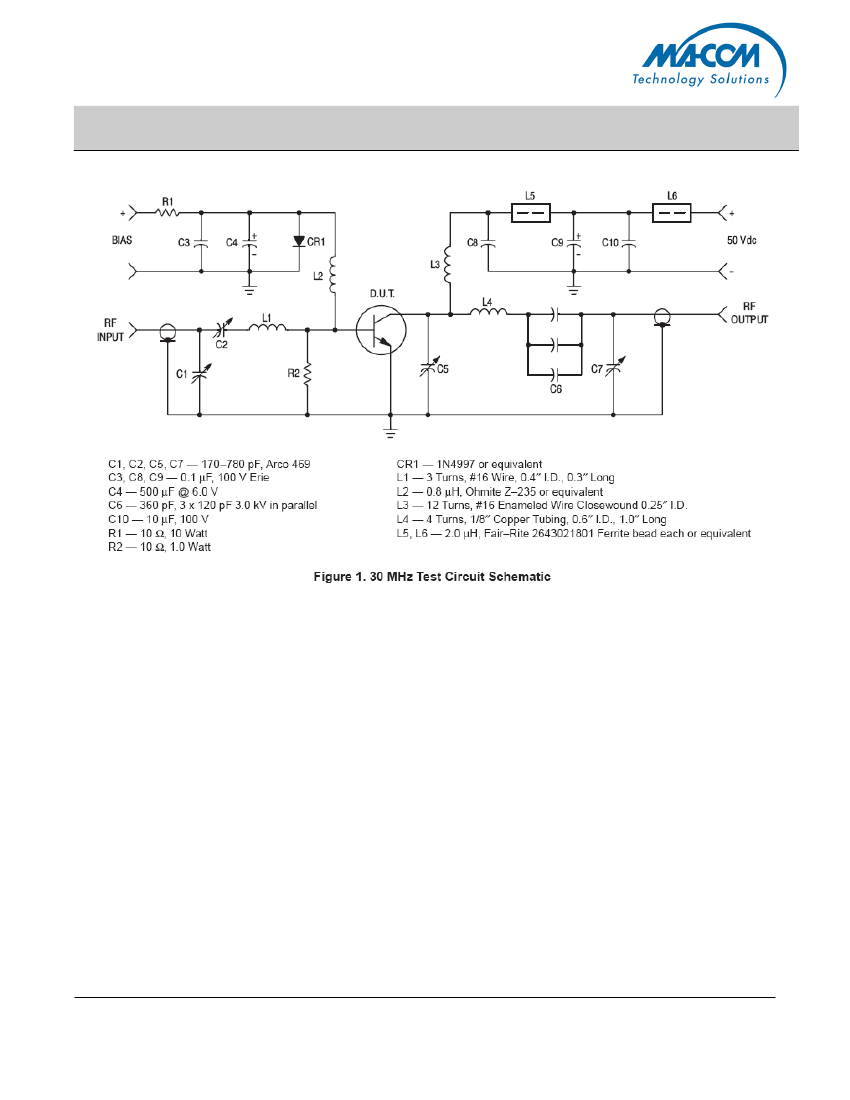

Specified 50 V, 30 MHz characteristics

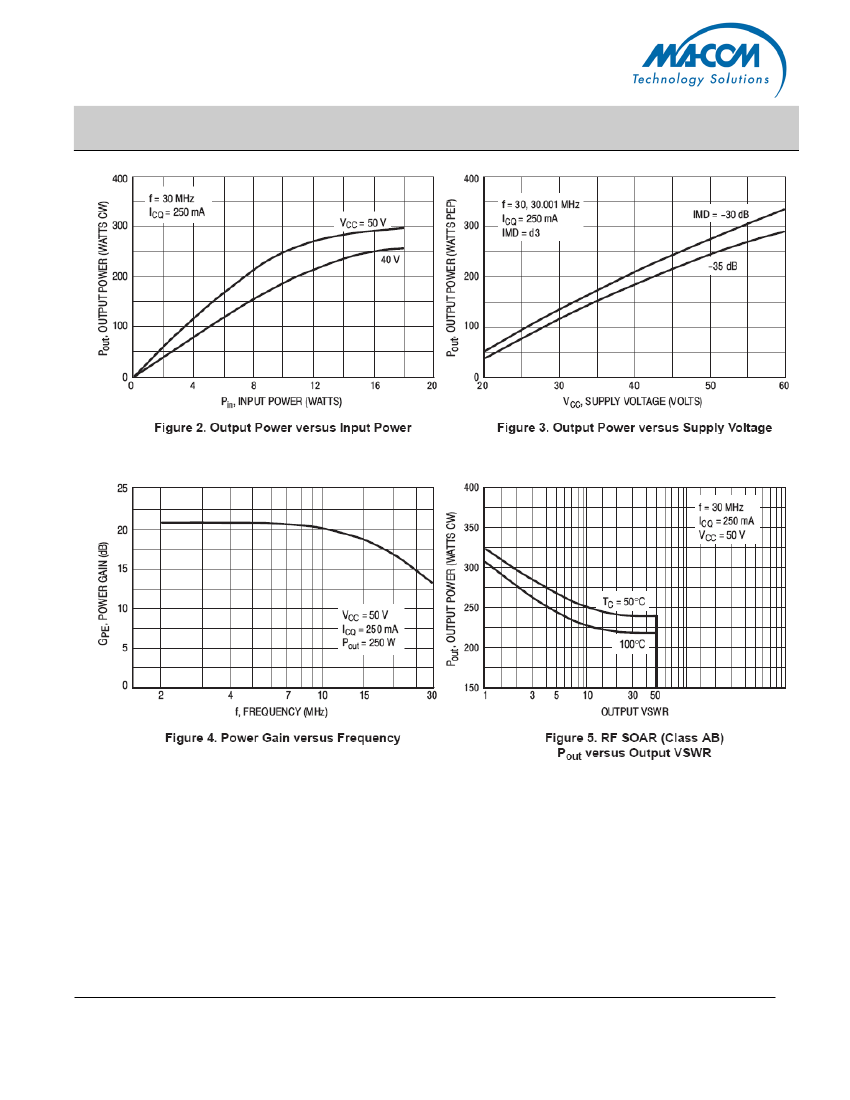

Output power = 250 W
Minimum gain = 12 dB
Efficiency = 45%

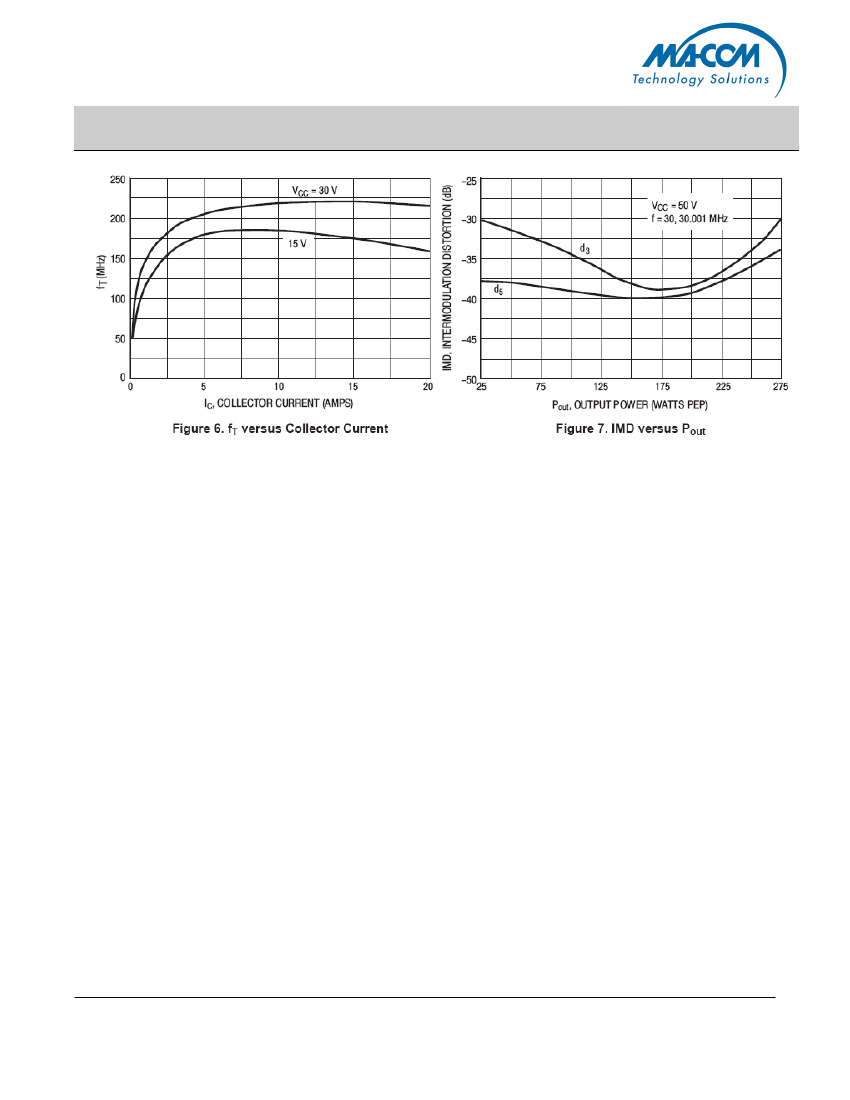

Intermodulation distortion @ 250 W (PEP) —
IMD = –30 dB (max)
100% tested for load mismatch at all phase angles with 3:1 VSWR
CASE 211–11, STYLE 1
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
