Preliminary
Data Sheet
PS9506,PS9506L1,PS9506L2,PS9506L3
0.6 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN DIP PHOTOCOUPLER
R08DS0018EJ0100
Rev.1.00
Nov 10, 2011
DESCRIPTION
The PS9506, PS9506L1, PS9506L2 and PS9506L3 are optically coupled isolators containing a GaAlAs LED on the
input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip.
The PS9506 Series is designed specifically for high common mode transient immunity (CMR) and high switching
speed.
The PS9506 Series is suitable for driving IGBTs and MOS FETs.
The PS9506 Series is in a plastic DIP (Dual In-line Package).
The PS9506L1 is lead bending type for long creepage distance.
The PS9506L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.
The PS9506L3 is lead bending type (Gull-wing) for surface mounting.
FEATURES
•
•
•
•
•
•
•
Long creepage distance (8 mm MIN.: PS9506L1, PS9506L2)
Peak output current (0.6 A MAX., 0.4 A MIN.)
High speed switching (t
PLH
,
t
PHL
= 0.4
μ
s MAX.)
High common mode transient immunity (CM
H
, CM
L
=
±25
kV/
μ
s MIN.)
Embossed tape product : PS9506L2-E3, PS9506L3-E3: 1 000 pcs/reel
Pb-Free product
Safety standards
•
UL approved: No. E72422
•
CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
•
SEMKO approved: No. 1115598
•
DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40024069 (Option)
PIN CONNECTION
(Top View)
8
7
6
5
<R>
1
2
3
4
1. NC
2. Anode
3. Cathode
4. NC
5. V
EE
6. V
O
7. NC
8. V
CC
APPLICATIONS
•
IGBT, Power MOS FET Gate Driver
•
Industrial inverter
•
IH (Induction Heating)
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
R08DS0018EJ0100 Rev.1.00
Nov 10, 2011
SHIELD
Page 1 of 20
Preliminary document

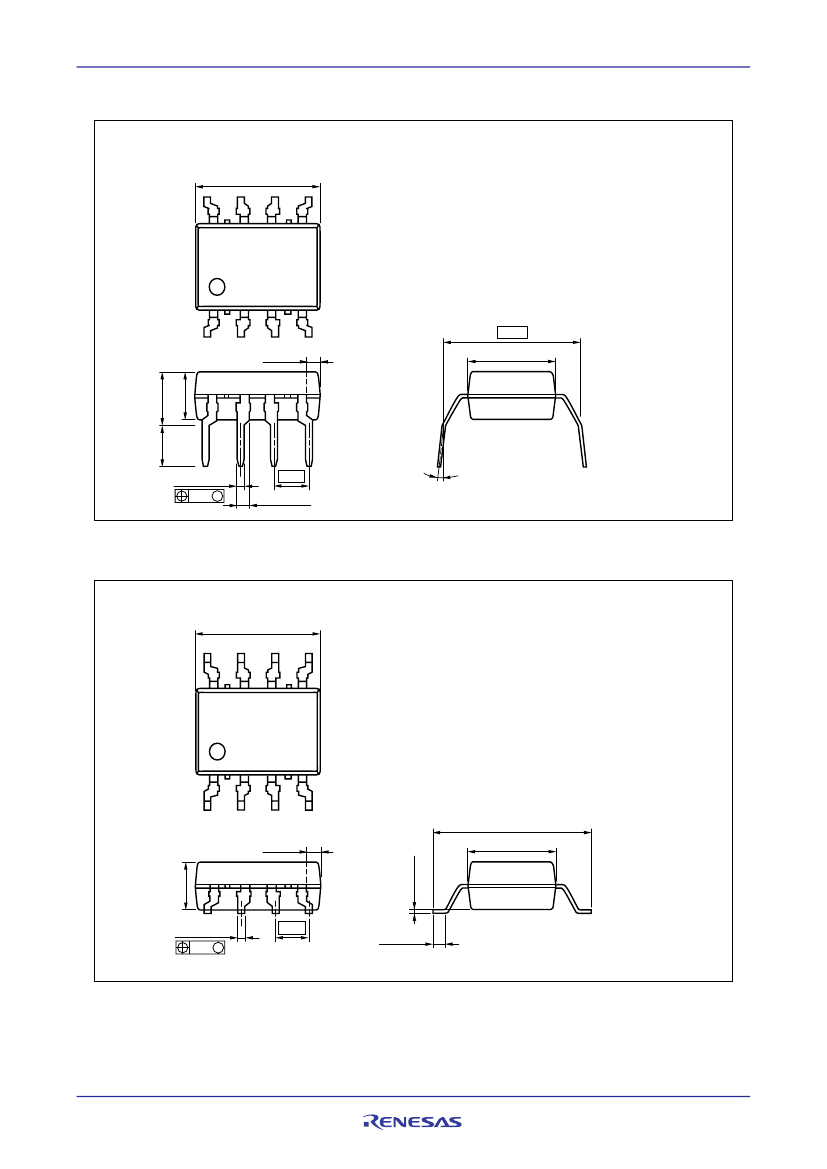

PS9506,PS9506L1,PS9506L2,PS9506L3
Chapter Title

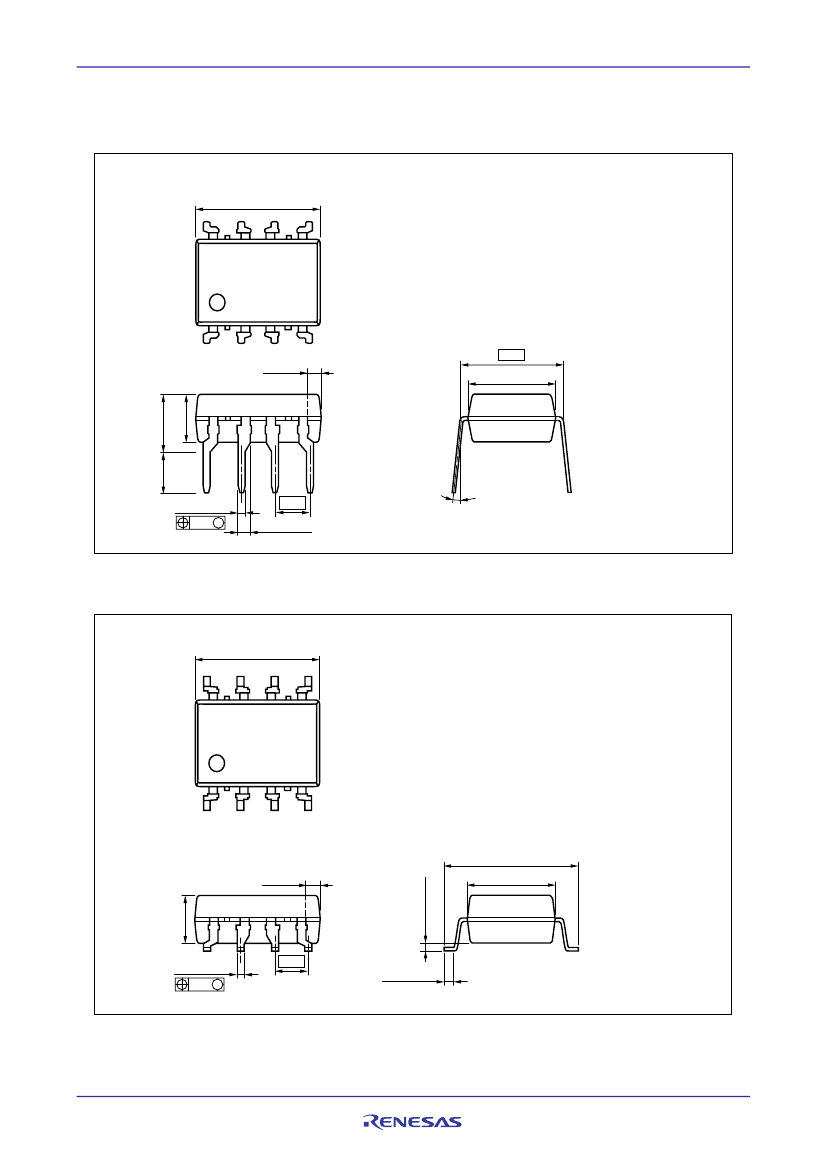

PACKAGE DIMENSIONS (UNIT: mm)
DIP Type
PS9506
9.25
–0.25
+0.5
1.01
–0.2
+0.4
7.62
6.5
–0.1
+0.5
2.8 MIN. 4.15±0.3
3.5±0.2
0.5±0.15
0.25
M
2.54
0 to 15°
0.84±0.15
Lead Bending Type (Gull-wing) For Surface Mount
PS9506L3
5
9.25
8
+0.5
–0.25
1
4
9.65±0.4
0.635±0.15
1.01
3.5±0.2
+0.4
–0.2
6.5
–0.1
+0.5
0.5±0.15
0.25
M
2.54
0.74±0.25
R08DS0018EJ0100 Rev.1.00
Nov 10, 2011
Page 2 of 20
Preliminary document
PS9506,PS9506L1,PS9506L2,PS9506L3
Chapter Title
Lead Bending Type For Long Creepage Distance
PS9506L1
9.25
–0.25
+0.5
10.16
1.01
+0.4
–0.2
6.5
–0.1
+0.5
2.8 MIN. 3.87±0.4
3.5±0.2
0.5±0.15
0.25
M
2.54
0 to 15°
0.84±0.15
Lead Bending Type (Gull-wing) For Long Creepage Distance (Surface Mount)
PS9506L2
9.25
8
+0.5
–0.25
5
1
1.01
–0.2
+0.4
4
11.8±0.4
6.5
–0.1
+0.5
3.5±0.2
0.5±0.15
0.25
M
2.54
0.9±0.25
R08DS0018EJ0100 Rev.1.00
Nov 10, 2011
0.25±0.2
Page 3 of 20
Preliminary document
PS9506,PS9506L1,PS9506L2,PS9506L3
Chapter Title
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance (MIN.)
Outer Creepage Distance (MIN.)
Isolation Distance (MIN.)
PS9506 ,PS9506L3
7 mm
7 mm
0.4 mm
PS9506L1, PS9506L2
8 mm
8 mm
0.4 mm
FUNCTIONAL DIAGRAM
8
(Tr. 1)
2
6
(Tr. 2)
3
5
SHIELD
Input
H
L
LED
ON
OFF
Tr. 1
ON
OFF
Tr. 2
OFF
ON
Output
H
L
<R>
MARKING EXAMPLE
No. 1 pin
Mark
R
9506
NT131
Company Initial
Type Number
Assembly Lot
N T 1 31
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
Rank Code
R08DS0018EJ0100 Rev.1.00
Nov 10, 2011
Page 4 of 20
