M2B / M2BC

Double-Balanced Mixer

Rev. V5

Features

•

LO & RF: 10 TO 1600 MHz

IF: DC TO 800 MHz

LO DRIVE: +13 dBm (NOMINAL)

HIGH ISOLATION: 40 dB (TYP.)

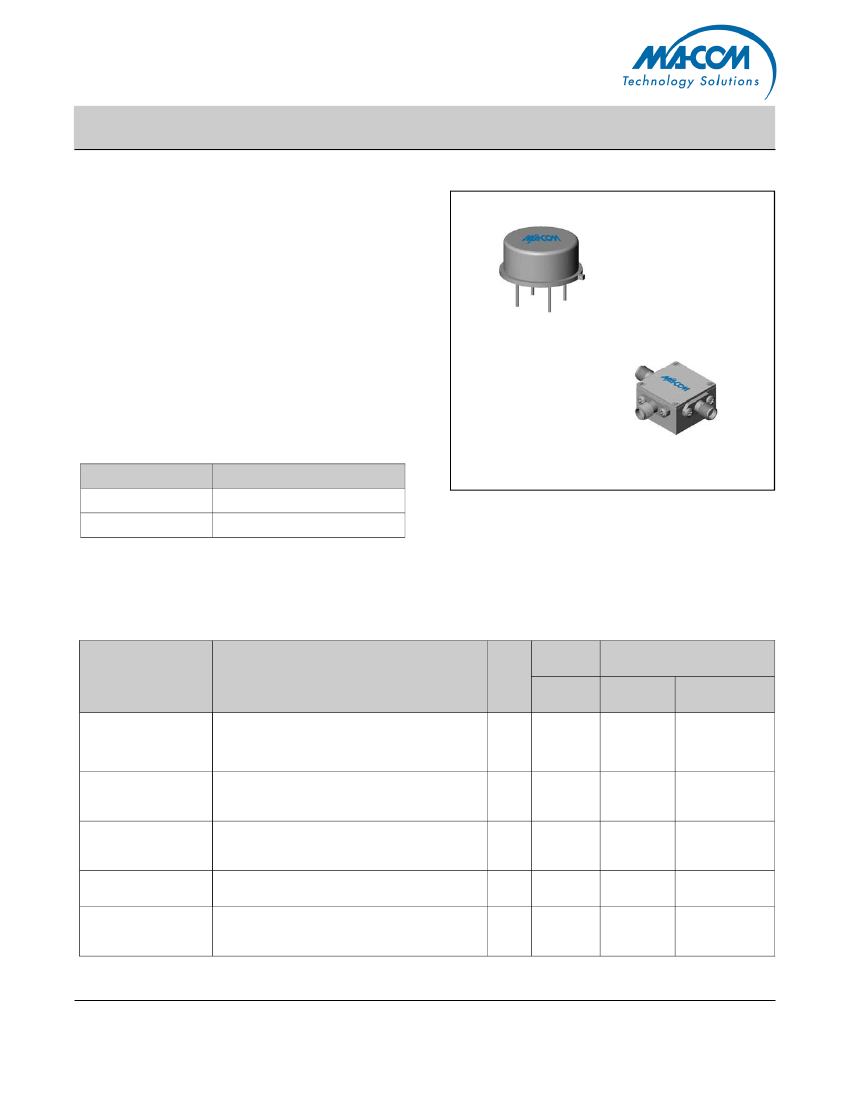

Product Image

Description

The M2B is a double balanced mixer, designed for use in military,

commercial, and test equipment applications. The design utilizes

Schottky ring quad diodes and broadband ferrite baluns to attain

excellent performance. This mixer can also be used as a phase

detector and/or bi-phase modulator since the IF port is DC cou-

pled to the diodes. Environmental screening is available to MIL-

STD-883, MIL-STD-202, or MIL-DTL-28837, consult factory.

Ordering Information

Part Number

M2B

M2BC

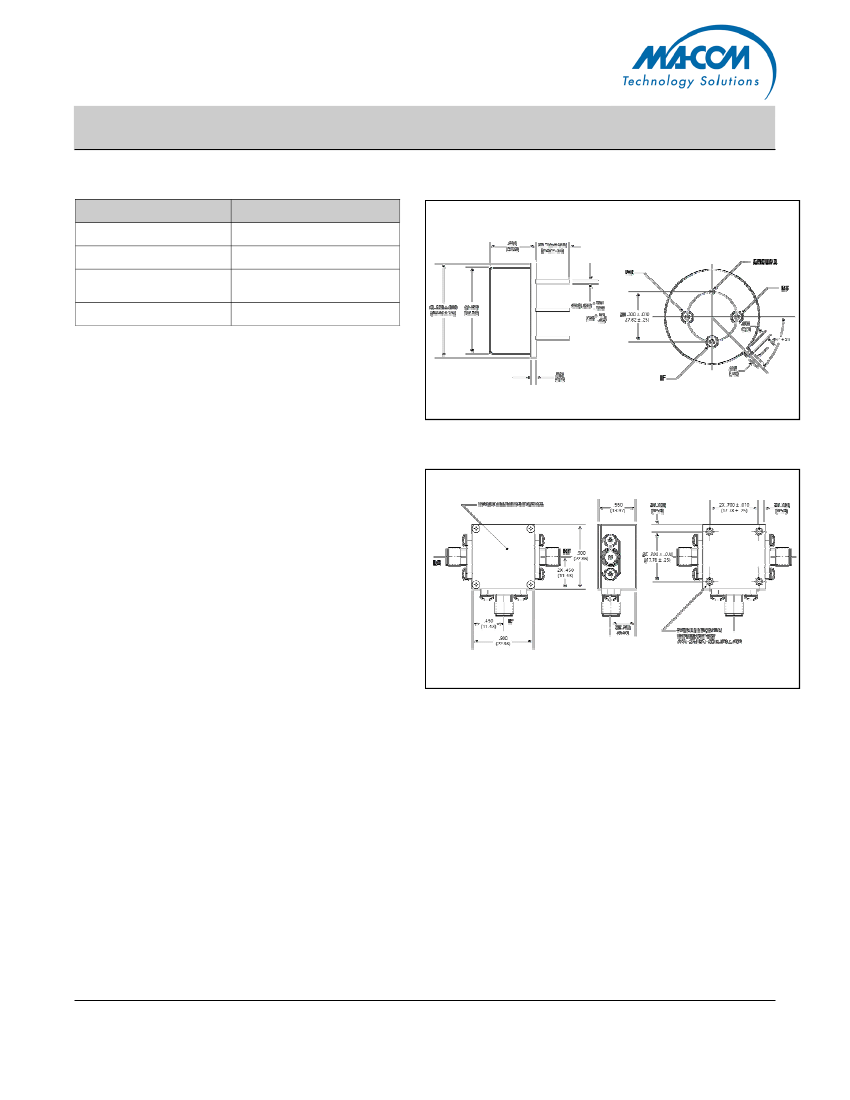

Package

TO-8

SMA Connectorized

Electrical Specifications: Z

= 50Ω Lo = +13 dBm (Downconverter application only)

Typical

Parameter

Test Conditions

Units

+25ºC

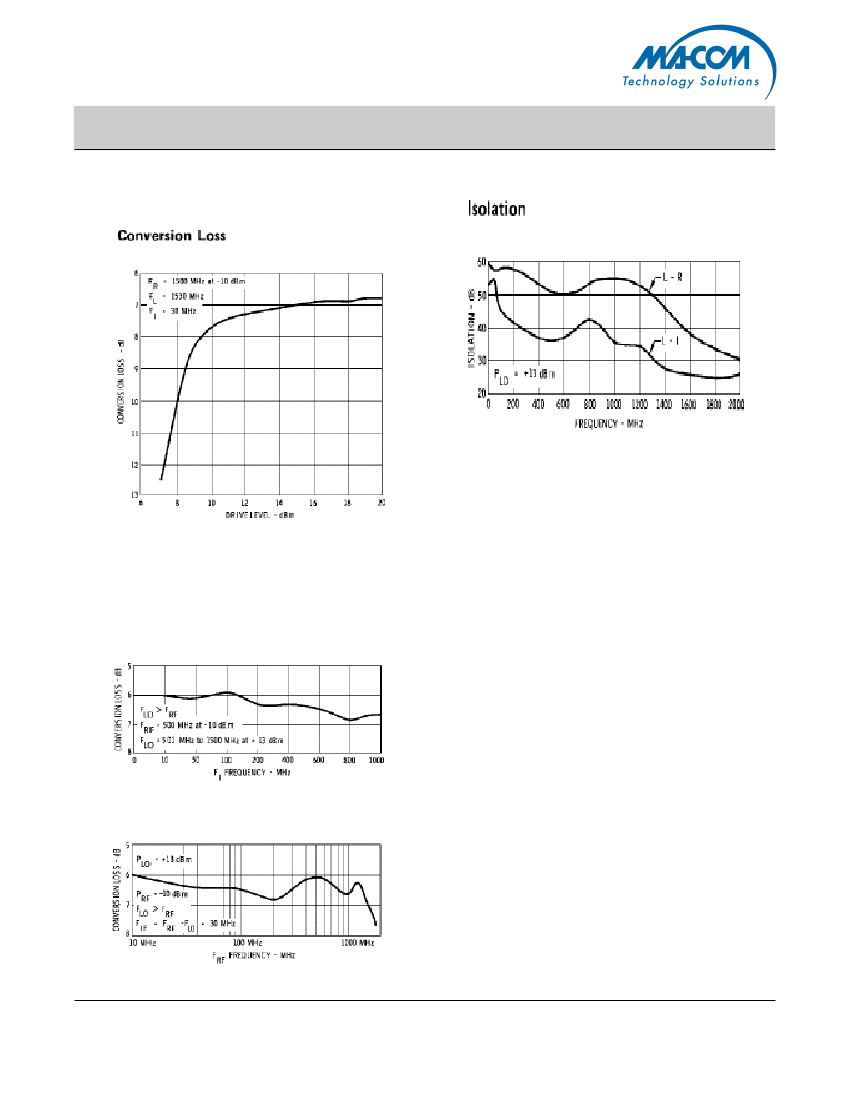

SSB Conversion Loss

(max) & SSB Noise

Figure (max)

fR = 0.02 to 0.6 GHz, fL = 0.01 to 0.8 GHz, fI = 0.0004 to 0.2 GHz

fR = 0.01 to 1.6 GHz, fL = 0.01 to 1.6 GHz , fI =0.0004 to 0.8 GHz

fL = 0.01 to 0.7 GHz

fL = 0.7 to 1.2 GHz

fL = 1.2 to 1.6 GHz

fL = 0.01 to 0.7 GHz

fL = 0.7 to 1.2 GHz

fL = 1.2 to 1.6 GHz

fL = +13 dBm

dBm

7.0

8.0

9.0

Guaranteed

-54º to +85ºC *

8.5

9.5

Isolation, L to R (min)

Isolation, L to I (min)

1 dB Conversion Comp.

Input IP3

dBm

+22

* The M2BC specification limits apply at 0ºC to +50ºC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
