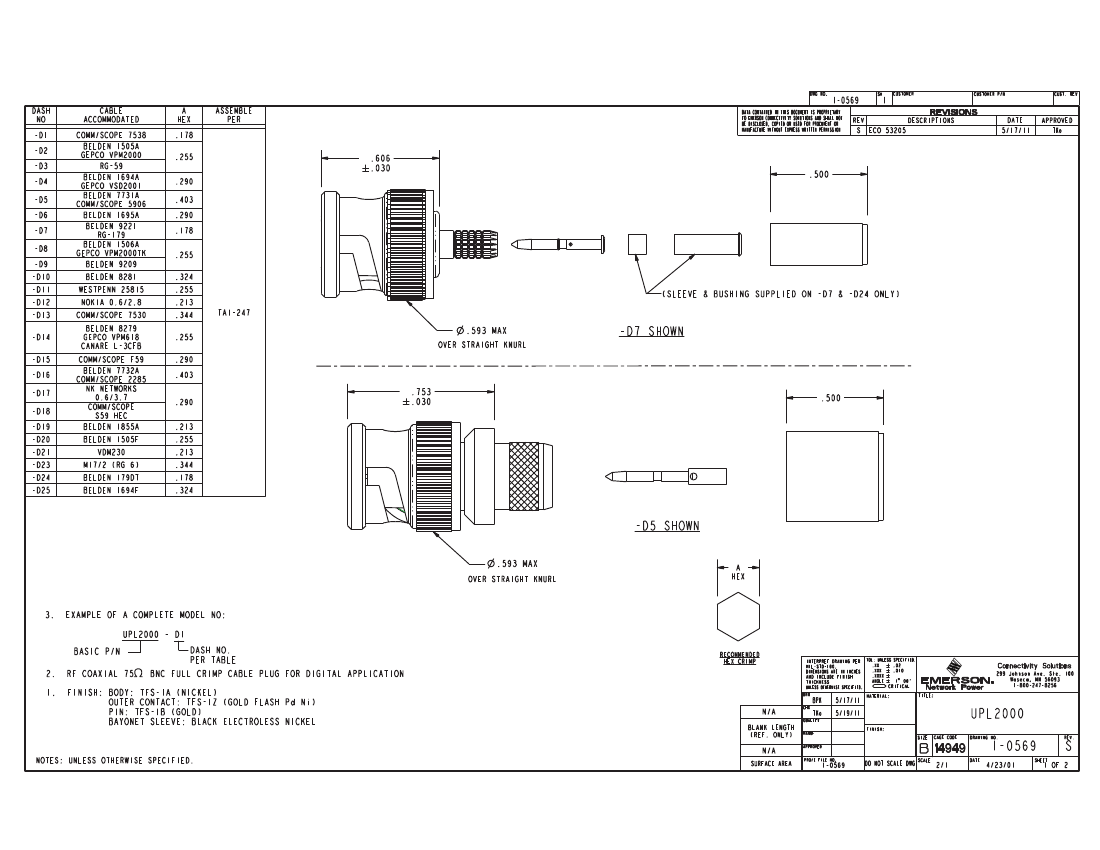

Preview

UPL2000-D8/B: DescriptionCABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

UPL2000-D8/B Overview

CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG

UPL2000-D8/B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLE: BELDEN 1826A, CAPTIVE CENTER CONTACT, VSWR MAX AT 3 GHZ
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	UPL2000
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

UPL2000-D8/B Related Products

	UPL2000-D8/B	UPL2000-D6/B	UPL2000-D3/B	UPL2000-D12/B
Description	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG
Reach Compliance Code	unknow	unknown	unknown	unknown
Other features	APPLICABLE CABLE: BELDEN 1826A, CAPTIVE CENTER CONTACT, VSWR MAX AT 3 GHZ	APPLICABLE CABLE: BELDEN 82248, CAPTIVE CENTER CONTACT, VSWR MAX AT 3 GHZ	APPLICABLE CABLE: BELDEN 8221, CAPTIVE CENTER CONTACT, VSWR MAX AT 3 GHZ	CAPTIVE CENTER CONTACT, INSERTION LOSS MAX AT 3 GHZ, VSWR MAX AT 3 GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.2 dB	0.2 dB	0.2 dB	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	UPL2000	UPL2000	UPL2000	UPL2000
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.2	1.2	1.2	1.2
Base Number Matches	1	1	1	-
ECCN code	-	EAR99	EAR99	EAR99
