I322-7P5-1.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> I322-7P5-1.000MHZ

I322-7P5-1.000MHZ: DescriptionHCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size57KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

I322-7P5-1.000MHZ Overview

HCMOS Output Clock Oscillator,

I322-7P5-1.000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ILSI
Reach Compliance Code	compliant
Oscillator type	HCMOS
Terminal surface	Tin/Copper/Silver - with Nickel barrier

Preview

Download Datasheet

View All

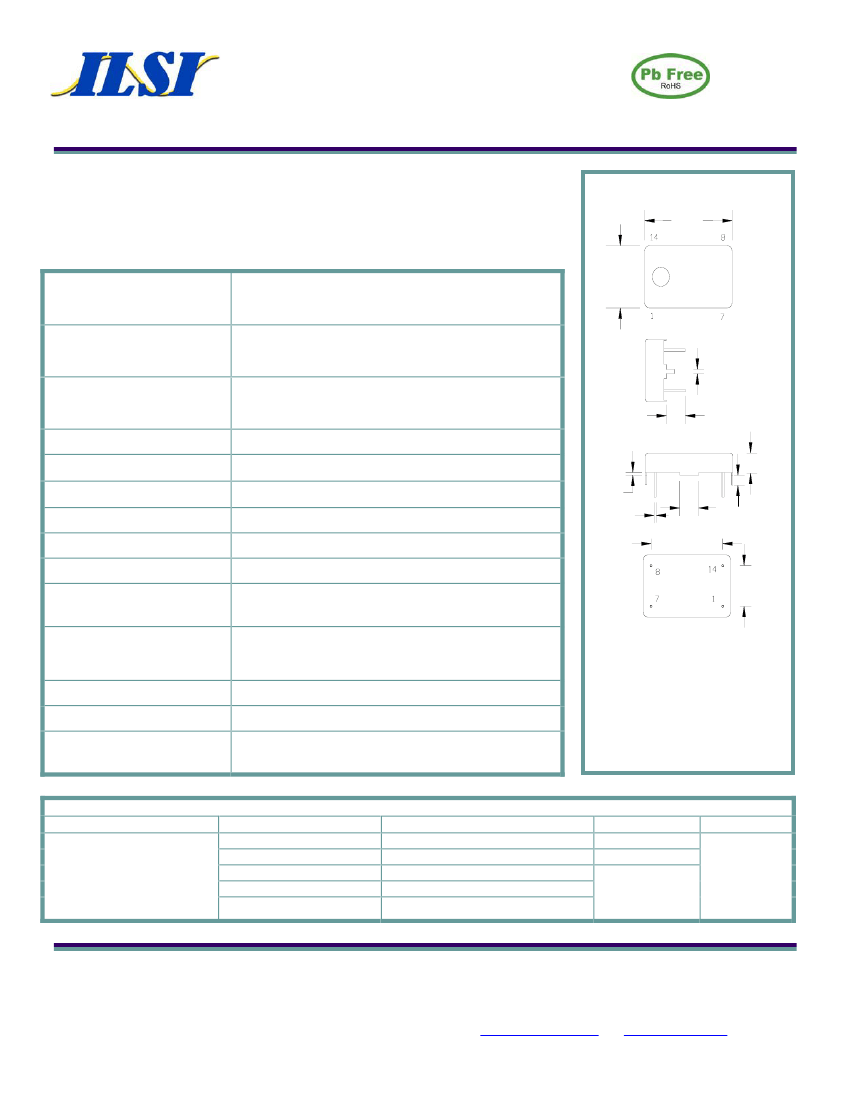

Leaded Oscillator, TCXO, TCVCXO

Metal Package, Full Size DIP

I121/I122/I321/I322 Series

Product Features:

Available in Both Clipped Sinewave and

HCMOS Output Levels

Compatible with Leadfree Processing

Applications:

Base Station

WiMax / Wlan

General Purpose

11.7

18.3

Frequency

I121/I321

I122/I322

Output Level

Clipped Sinewave

HCMOS

Output Load

Clipped Sinewave

HCMOS

Duty Cycle (HCMOS)

Rise / Fall Time

(HCMOS)

Frequency Stability

Frequency Tolerance @ 25 C

Aging

Supply Voltage

Current

9.600 Mhz to 40 Mhz

1.000 Mhz to 40 Mhz

1.0

1.0 V p-p Min.

‘0’=0.1 VCC Max., ‘1’=0.9Vcc Min.

20K Ohms / 10 pF

15pF

50% ±10%

10 nS Max.

See Frequency Stability Table

Included in Stability Tolerance

1 ppm / Year Max.

See Supply Voltage Table , tolerance

3.0 mA Max. (Clipped Sinewave)

20.0 mA Max. (HCMOS)

0.50

0.45

4.0

4.0 Min.

5.8 Max.

2.5

15.00

7.60

Voltage Control

(I321/ I322)

1.65 VDC 1.5 VDC, 5.0 ppm Min. for Vcc = 3.3 VDC

2.5 VDC 2.0 VDC, 5.0 ppm Min. for Vcc = 5.0 VDC

Positive

See Operating Temperature Table

-40 C to +85 C

Slope

Operating

Storage

Connection

Vcontrol / N.C.

GND

Output

Vcc

Dimension Units: mm

Package

I121 (Clipped Sinewave TCXO)

I122 (HCMOS TCXO)

I321 (Clipped Sinewave TCVCXO)

I322 (HCMOS TCVCXO)

Part Number Guide

Operating Temperature

7 = 0 C to +50 C

1 = 0 C to +70 C

3 = -20 C to +70 C

2 = -40 C to +85 C

Sample Part Number: I121-1Q3-20.000 Mhz

FrequencyStability vs Temperature

Supply Voltage

**O = 1.5 ppm

**P =

2.0 ppm

Q = 2.5 ppm

R = 3.0 ppm

J = 5.0 ppm

3 = 3.3 V

5 = 5.0 V

Frequency

- 20.000 MHz

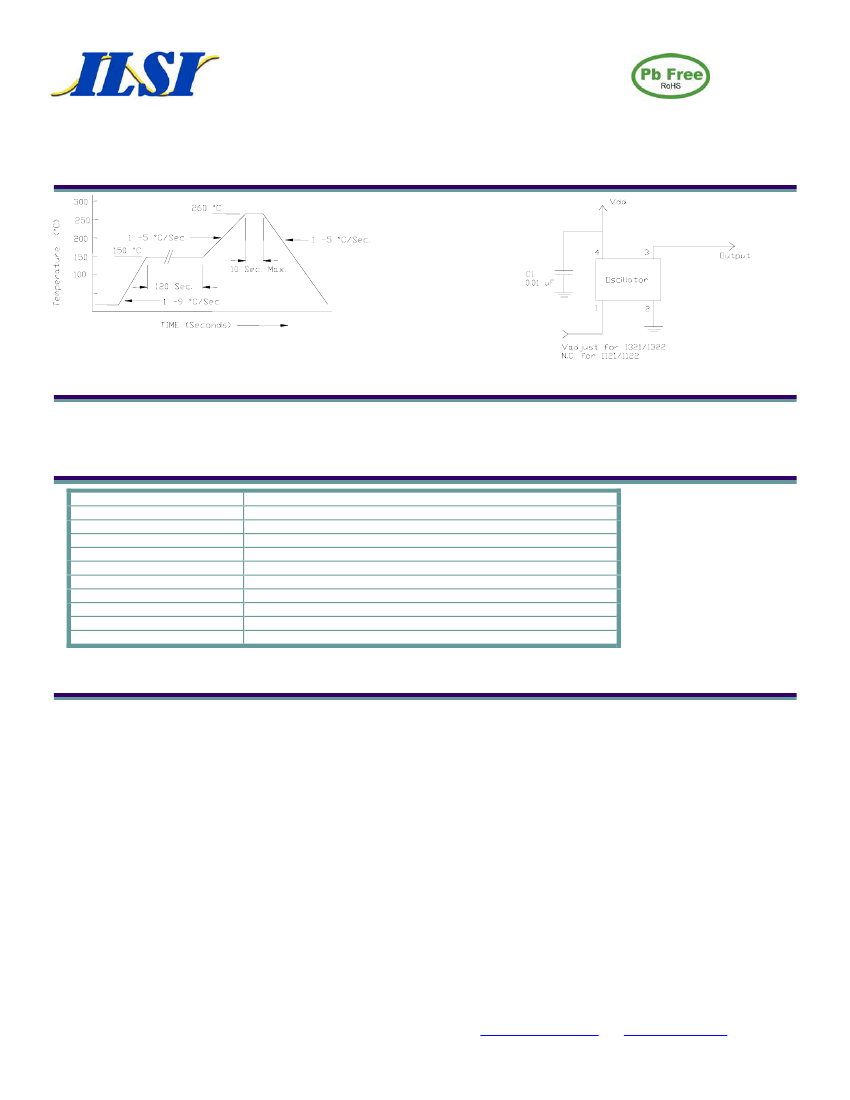

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and GND (pin 2) to minimize power supply noise.

** Not available for all temperature ranges.

e-mail@ilsiamerica.com

•

www.ilsiamerica.com

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

1/10_A

Specifications subject to change without notice

Page 1
