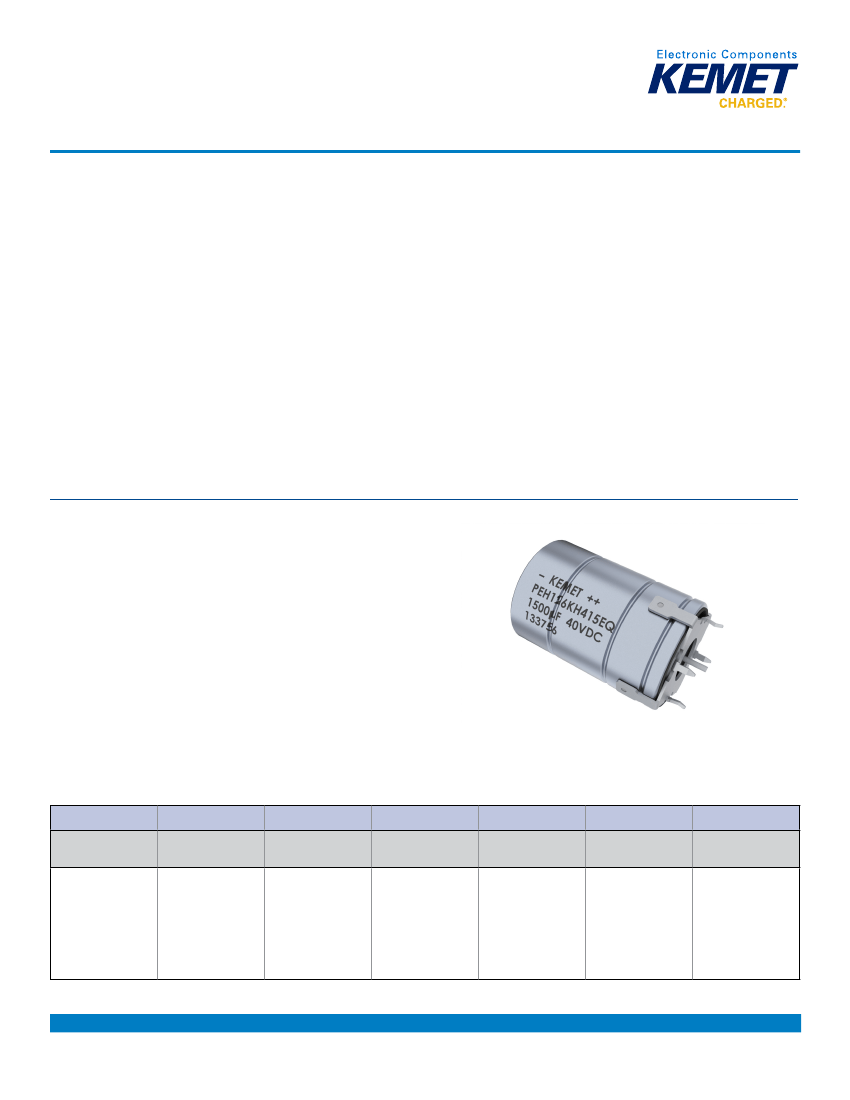

Radial Crown Aluminum Electrolytic Capacitors

PEH126, +150°C, PEH220, +150°C,

PEH225, +125°C & +150°C, and PEH226, +150°C

Overview

These electrolytic capacitors contain a radial crown which

allows them to be mounted in a standing position. They

feature outstanding electrical performance, a polarized,

all-welded design, tinned copper wire leads and a negative

pole connected to the case. The winding is housed in a

cylindrical aluminium can with a high purity aluminium

lid and a high quality rubber gasket. Low ESR is a result

of a low resistive electrolyte/paper system and an all-

welded design. Thanks to its mechanical robustness,

these capacitors are suitable for use in mobile and

aircraft installations, with operation up to +150°C.

KEMET automotive grade capacitors meet the demanding

Automotive Electronics Council's AEC–Q200 qualification

requirements.

Applications

The KEMET PEH126, PEH220, PEH225, and PEH226 are high

performance electrolytic capacitors. They are designed for

automotive applications with high demands for resistance

to vibrations and high ambient temperature.

Benefits

• AEC–Q200 automotive qualified

• Up to 2,000 hours at +150°C

• Resistance to vibrations

• Resistance to high ambient temperature

• High ripple current

• Low ESR

• Polarized all-welded design

• Outstanding electrical performance

• Radial crown which allows mounting in a standing position

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Part Number System

PEH126

Series

Radial Crown

Aluminum

Electrolytic with

Soldering Star

Termination

Rated Voltage (VDC)

H = 25

K = 40

M = 63

Size Code

See Dimension

Table

368

Capacitance Code

(µF)

The last two

digits represent

significant

figures. The first

digit indicates

the total number

digits.

Version

E = Standard

(without shrink

tape)

Capacitance

Tolerance

Q = −10 +30%

Packaging

E4 = Tray

One world. One KEMET

A4017_PEH126_220_225_226 • 6/5/2018

Radial Crown Aluminum Electrolytic Capacitors

PEH126, +150°C, PEH220, +150°C, PEH225, +125°C & +150°C, and PEH226, +150°C

Part Number System cont'd

PEH220

Series

Radial Crown

Aluminum

Electrolytic with

Soldering Star

Termination

Rated Voltage (VDC)

H = 25

K = 40

M = 63

Size Code

See Dimension

Table

415

Capacitance Code

(pF)

The last two

digits represent

significant figures.

The first digit

indicates the total

number digits.

Version

0 = Standard

(without shrink

tape)

Capacitance

Tolerance

Q = −10 +30%

M = ±20%

Packaging

E4 = Tray

PEH225

Series

Radial Crown

Aluminum

Electrolytic with

Soldering Star

Termination

Rated Voltage (VDC)

H = 25

K = 40

M = 63

Size Code

See Dimension

Table

422

Capacitance Code

(pF)

The last two

digits represent

significant figures.

The first digit

indicates the total

number digits.

Version

0 = Standard

(without shrink

tape)

Capacitance

Tolerance

Q = −10 +30%

M = ±20%

Packaging

E4 = Tray

PEH226

Series

Radial Crown

Aluminum

Electrolytic with

Soldering Star

Termination

Rated Voltage (VDC)

H = 25

K = 40

M = 63

Size Code

See Dimension

Table

415

Capacitance Code

(pF)

The last two

digits represent

significant figures.

The first digit

indicates the total

number digits.

Version

0 = Standard

(without shrink

tape)

Capacitance

Tolerance

Q = −10 +30%

M = ±20%

Packaging

E4 = Tray

A4017_PEH126_220_225_226 • 6/5/2018

Radial Crown Aluminum Electrolytic Capacitors

PEH126, +150°C, PEH220, +150°C, PEH225, +125°C & +150°C, and PEH226, +150°C

Performance Characteristics – PEH126

Item

Capacitance Range

Rated Voltage

Operating Temperature

Capacitance Tolerance

250 – 4,000 µF

25 – 63 VDC

−40 to +150°C

−10/+30% at 100 Hz/+20°C

D (mm)

Operational Lifetime

Shelf Life

Leakage Current

Rated voltage, +125°C (hours)

6,300

8,400

Rated voltage, +150°C (hours)

1,500

2,000

Performance Characteristics

5,000 hours at +105°C or 10 years at +40°C 0 VDC

I = 0.003 CV + 4.0 (µA)

C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.

Procedure

Requirements

No leakage of electrolyte or other visible

damage. Deviations in capacitance from

initial measurements must not exceed:

Δ C/C < 5%

Vibration Test Specifications

1.5 mm displacement amplitude or 20 g maximum acceleration.

Vibration applied for three 2-hour sessions at 10 – 2,000 Hz

(capacitor clamped by body).

IEC 60384–4 long life grade 40/125/56, AEC–Q200

Standards

Performance Characteristics – PEH220

Item

Capacitance Range

Rated Voltage

Operating Temperature

Capacitance Tolerance

250 – 4,700 µF

25 – 63 VDC

−40 to +150°C

–10/+30%, (±20% select values) at 100 Hz/+20°C

D (mm)

Operational Lifetime

18 and 20

Shelf Life

Leakage Current

Rated voltage, +125°C (hours)

6,300

8,400

Rated voltage, +150°C (hours)

1,500

2,000

Performance Characteristics

5,000 hours at +105°C or 10 years at +40°C 0 VDC

I = 0.003 CV + 4.0 (µA)

C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.

Procedure

Requirements

No leakage of electrolyte or other visible

damage. Deviations in capacitance from

initial measurements must not exceed:

Δ C/C < 5%

Vibration Test Specifications

1.5 mm displacement amplitude or 20 g maximum acceleration.

Vibration applied for three 2-hour sessions at 10 – 2,000 Hz

(capacitor clamped by body).

IEC 60384–4 long life grade 40/125/56, AEC–Q200

Standards

A4017_PEH126_220_225_226 • 6/5/2018

Radial Crown Aluminum Electrolytic Capacitors

PEH126, +150°C, PEH220, +150°C, PEH225, +125°C & +150°C, and PEH226, +150°C

Performance Characteristics – PEH225

Item

Capacitance Range

Rated Voltage

Operating Temperature

Capacitance Tolerance

470 – 6,300 µF

25 – 63 VDC

–40 to +125°C (–40 to +150°C at derated voltage)

–10/+30%, (±20% select values) at 100 Hz/+20°C

D (mm)

Operational Lifetime

18 and 20

Shelf Life

Leakage Current

Rated voltage, +125°C (hours)

6,300

8,400

Rated voltage, +150°C (hours)

1,500

2,000

Performance Characteristics

5,000 hours at +105°C or 10 years at +40°C 0 VDC

I = 0.003 CV + 4.0 (µA)

C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.

Procedure

Requirements

No leakage of electrolyte or other visible

damage. Deviations in capacitance from

initial measurements must not exceed:

Δ C/C < 5%

Vibration Test Specifications

1.5 mm displacement amplitude or 20 g maximum acceleration.

Vibration applied for three 2-hour sessions at 10 – 2,000 Hz

(capacitor clamped by body).

IEC 60384–4 long life grade 40/125/56, AEC–Q200

Standards

Performance Characteristics – PEH226

Item

Capacitance Range

Rated Voltage

Operating Temperature

Capacitance Tolerance

250 – 4,700 µF

25 – 63 VDC

−40 to +150°C

–10/+30%, (±20% select values) at 100 Hz/+20°C

D (mm)

Operational Lifetime

18 and 20

Shelf Life

Leakage Current

Rated voltage, +125°C (hours)

6,300

8,400

Rated voltage, +150°C (hours)

1,500

2,000

Performance Characteristics

5,000 hours at +105°C or 10 years at +40°C 0 VDC

I = 0.003 CV + 4.0 (µA)

C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.

Procedure

Requirements

No leakage of electrolyte or other visible

damage. Deviations in capacitance from

initial measurements must not exceed:

Δ C/C < 5%

Vibration Test Specifications

1.5 mm displacement amplitude or 20 g maximum acceleration.

Vibration applied for three 2-hour sessions at 10 – 2,000 Hz

(capacitor clamped by body).

IEC 60384–4 long life grade 40/125/56, AEC–Q200

Standards

A4017_PEH126_220_225_226 • 6/5/2018

Radial Crown Aluminum Electrolytic Capacitors

PEH126, +150°C, PEH220, +150°C, PEH225, +125°C & +150°C, and PEH226, +150°C

Compensation Factor of Ripple Current (RC) vs. Frequency

Frequency

Coefficient

100 Hz

0.35

300 Hz

0.57

1 kHz

0.80

5 kHz

1.00

100 kHz

1.04

Test Method & Performance

Endurance Life Test

Conditions

Temperature

Test Duration

Ripple Current

Voltage

+150°C

1,500 hours (D = 16 mm)

2,000 hours (D = 18 and 20 mm)

Maximum ripple current specified in table

The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor

Performance

Capacitance Change

Equivalent Series Resistance

Leakage Current

The following specifications will be satisfied when the capacitor is tested at +20°C:

Within 15% of the initial value

Does not exceed 200% of the initial value

Does not exceed leakage current limit

Ordering Options Table

Packaging Kind

Lead Length (mm)

Standard Packaging Option

Tray

3.3 ±0.5

Lead and

Packaging Code

A4017_PEH126_220_225_226 • 6/5/2018

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
