PT722BTE80C1K00 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PT722BTE80C1K00

PT722BTE80C1K00: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC, 1000ohm, SURFACE MOUNT, CHIP; CategoryPassive components The resistor; File Size73KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric Compare View All

PT722BTE80C1K00 Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC, 1000ohm, SURFACE MOUNT, CHIP

PT722BTE80C1K00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KOA Speer
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	PT72
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated (AC) voltage (URac)	16 V
resistance	1000 Ω
Resistor type	PTC THERMISTOR
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL
Terminal shape	WRAPAROUND
Thermistor Applications	TEMPERATURE SENSING
Tolerance	50%

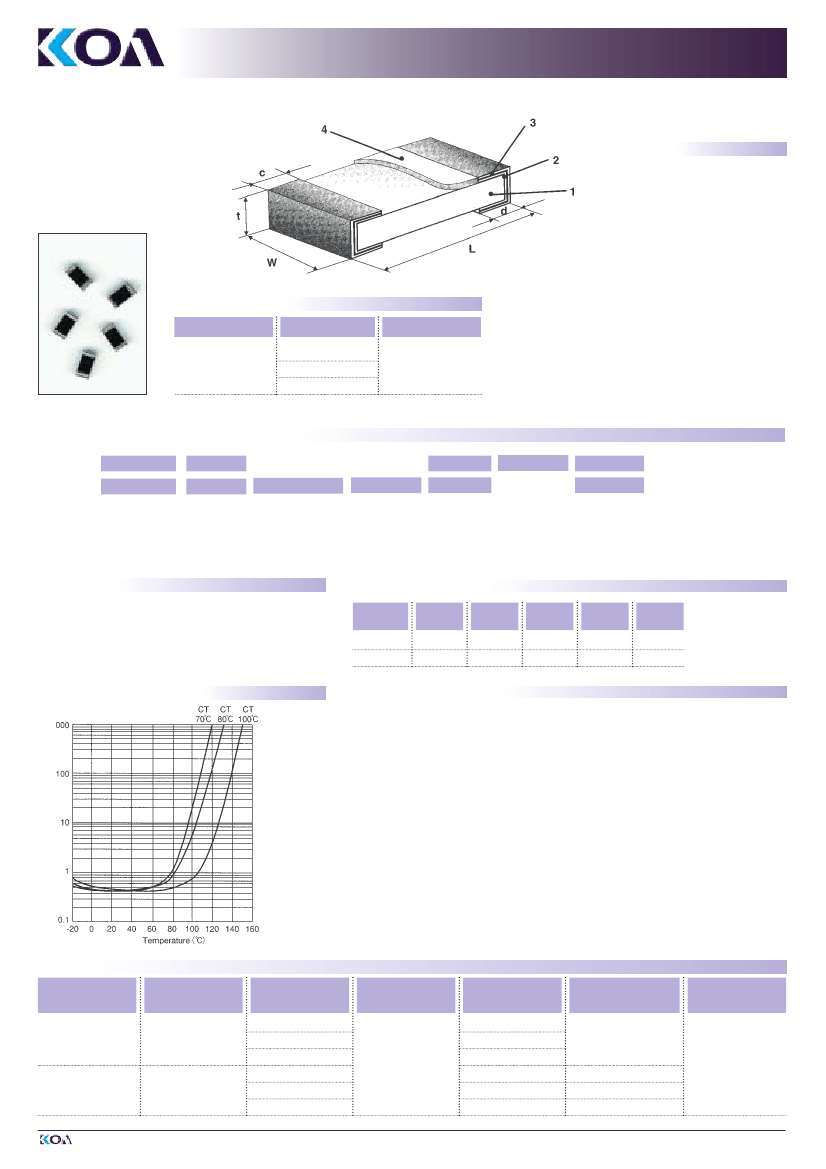

PT722BTE80C1K00 Preview

THERMAL SENSORS / CIRCUIT PROTECTORS

TECHNOLOGY OF TOMORROW

THERMAL SENSORS

PTC THERMISTOR

PT 72

STRUCTURE

Thermistor (BaTiO

)

Inner Electrode (Ni)

Sn / Pb soldering

Protective coat

IDENTIFICATION

PRODUCT CODE

COATING COLOR

Black (CT: 70° C)

Brown (CT: 80° C)

Blue (CT: 100° C)

MARKING

PT 72

None

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

PT72

PRODUCT

CODE

STYLE

70C

TAPING*

*Please see “PACKAGING”

70C

470R

471

TERMINATION

CURIE

SURFACE MATERIAL TEMPERATURE

T: Sn

L: Sn/Pb

70C: 70°C

80C: 80°C

100C: 100°C

CURIE

TEMPERATURE

70C: 70°C

80C: 80°C

100C: 100°C

NOMINAL

RESISTANCE

3 digits

FEATURES

■

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

DIMENSIONS (mm)

SIZE

0805

1206

TYPE

PT72 2A

PT72 2B

L ± 0.2

2.0

3.2

W ± 0.2

1.25

1.60

c/d

0.4 ± 0.2

0.5 ± 0.3

t ± 0.2

1.0

Surface mount PTC thermistor

Miniaturized, light weight and small mounting area

Quick thermal response

Curie temperature: 70° C, 80° C, 100° C

Operating temperature range: - 55° C ... + 125° C

Suitable for reflow soldering

R-T CHARACTERISTICS

APPLICATION NOTES

■

Utilization under unusual environment (reduction-gas and corrosion-gas and others) is

strictly prohibited.

■

Twisting boards may cause direct damage to the parts. The boards must be handled in

minimum stress.

■

Only reflow soldering is applicable.

■

Do not touch the parts by soldering iron to avoid chipping problem.

RATING

SIZE

TYPE

CURIE

TEMPERATURE

70° C

80° C

100° C

70° C

80° C

100° C

MAX. WORKING

VOLTAGE

TEMP. AT R

x 7

85° C ± 10° C

95° C ± 10° C

115° C ± 10° C

85° C ± 10° C

95° C ± 10° C

115° C ± 10° C

RESISTANCE

AT 25° C

470

Ω

120

Ω,

470

Ω,

1 kΩ

Ω,

470

Ω,

1 kΩ

470

Ω,

1 kΩ

± 50%

RESISTANCE

TOLERANCE

Resistance (kΩ)

0805

PT72 2A

16 V

1206

PT72 2B

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PT722BTE80C1K00 Related Products

	PT722BTE80C1K00	PT722BTE70C1K00	PT722BTE80C50R0	PT722BTE100C1K00
Description	RESISTOR, TEMPERATURE DEPENDENT, PTC, 1000ohm, SURFACE MOUNT, CHIP	RESISTOR, TEMPERATURE DEPENDENT, PTC, 1000ohm, SURFACE MOUNT, CHIP	RESISTOR, TEMPERATURE DEPENDENT, PTC, 50ohm, SURFACE MOUNT, CHIP	RESISTOR, TEMPERATURE DEPENDENT, PTC, 1000ohm, SURFACE MOUNT, CHIP
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	KOA Speer	KOA Speer	KOA Speer	KOA Speer
package instruction	CHIP	CHIP	CHIP	CHIP
Reach Compliance Code	compliant	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e0	e0	e0	e0
Manufacturer's serial number	PT72	PT72	PT72	PT72
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Rated (AC) voltage (URac)	16 V	16 V	16 V	16 V
resistance	1000 Ω	1000 Ω	50 Ω	1000 Ω
Resistor type	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal location	DUAL	DUAL	DUAL	DUAL
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Thermistor Applications	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING
Tolerance	50%	50%	50%	50%
