Micro-military circular connectors
Eaton’s micro-military circular connectors incorporate latest-
generation designs that deliver uncompromised performance
in harsh environment applications ranging from C4ISR to
space flight. Additional features include:
• Significantly smaller sizes, lower weights, and higher
contact densities than MIL
--DTL
--38999
connectors.
• Coupling mechanisms that stay engaged in high shock and
vibration environments and redundant insert retention.
• A comprehensive range of solutions; dual start: shell sizes
6 – 10 and triple start: shell sizes 8 – 12.
• Mating compatibility with micro-miniature connectors from
other manufacturers.
Micro-Military Circular Connectors Overview
Solutions
Coupling Threads
Coupling Mechanisms
Mating
Shell Sizes
Contact Configurations
Custom Capabilities
M1 Series (Dual Start)
ACME Threads
M5 Series (Triple Start)
ACME Threads
All Products Feature Ruggedized, Anti-Decoupling Ratchet Mechanisms
1.5 Turns to Full Mate
6,7,9, & 10
1 Turn to Full Mate
8,9,11, & 12
#23 AWG: 7 – 26 Contacts per Connector, #16 AWG: 1 – 4 Contacts per Connector
Contacts Meet MIL-C-39029 and Utilize Crimped Terminations
Application-Specific Inserts, Materials, Platings, Cable Assemblies, and Space-Rated Solutions

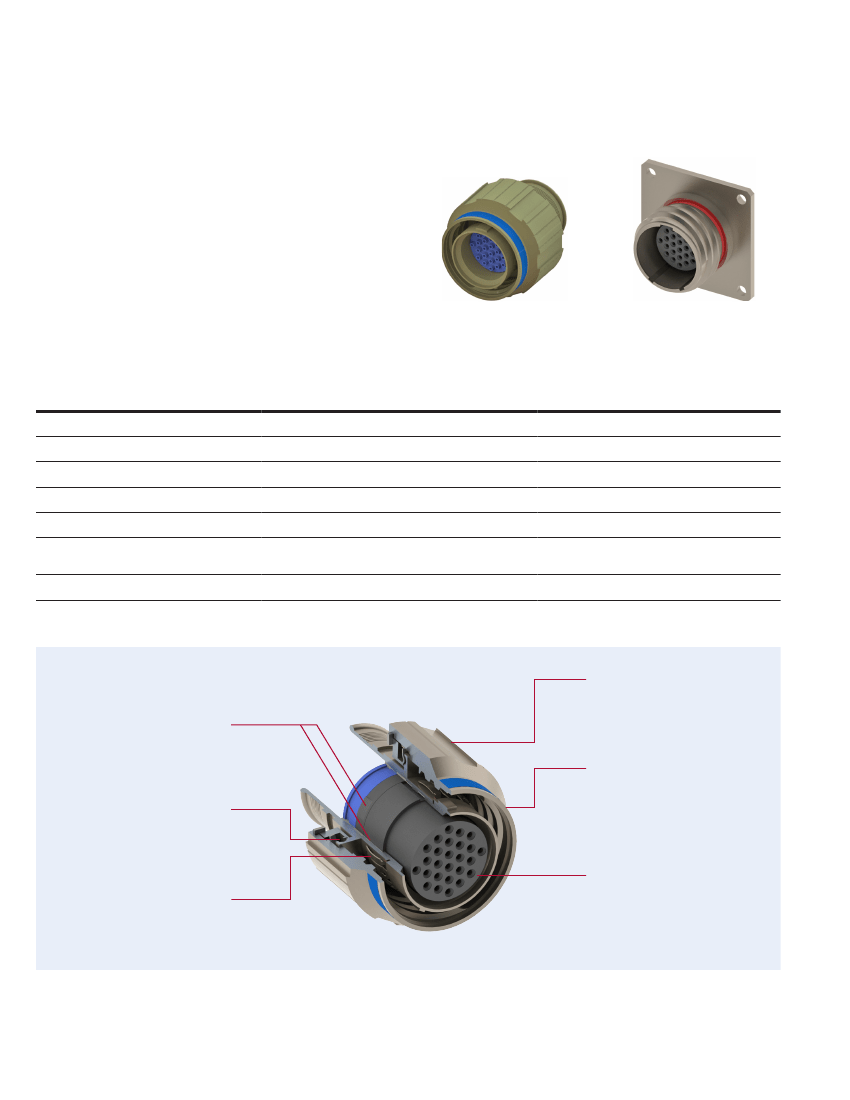

Latest generation designs deliver uncompromised performance
in mission-critical applications
Extremely robust, insert-
retention design includes
epoxy bonds and redundant
mechanical retainers
Anti-decoupling ratcheting
mechanisms maintain
engagement in high shock
and vibration environments
360° grounding fingers
(M5 plugs) provide 85
dB EMI protection from
100MHz to 1000MHz
Finish options include
cadmium/olive drab rated
to survive 500 hours of salt
spray and RoHS compliant,
electroless nickel
Application specific
performance modifications
include compliance to NASA
low volatile condensable
materials per ASTM E595
High-contact-density designs
provide significant weight and
size savings compared to
MIL
--DTL
--38999
connectors.
2
EATON
Micro-Military Circular Connectors

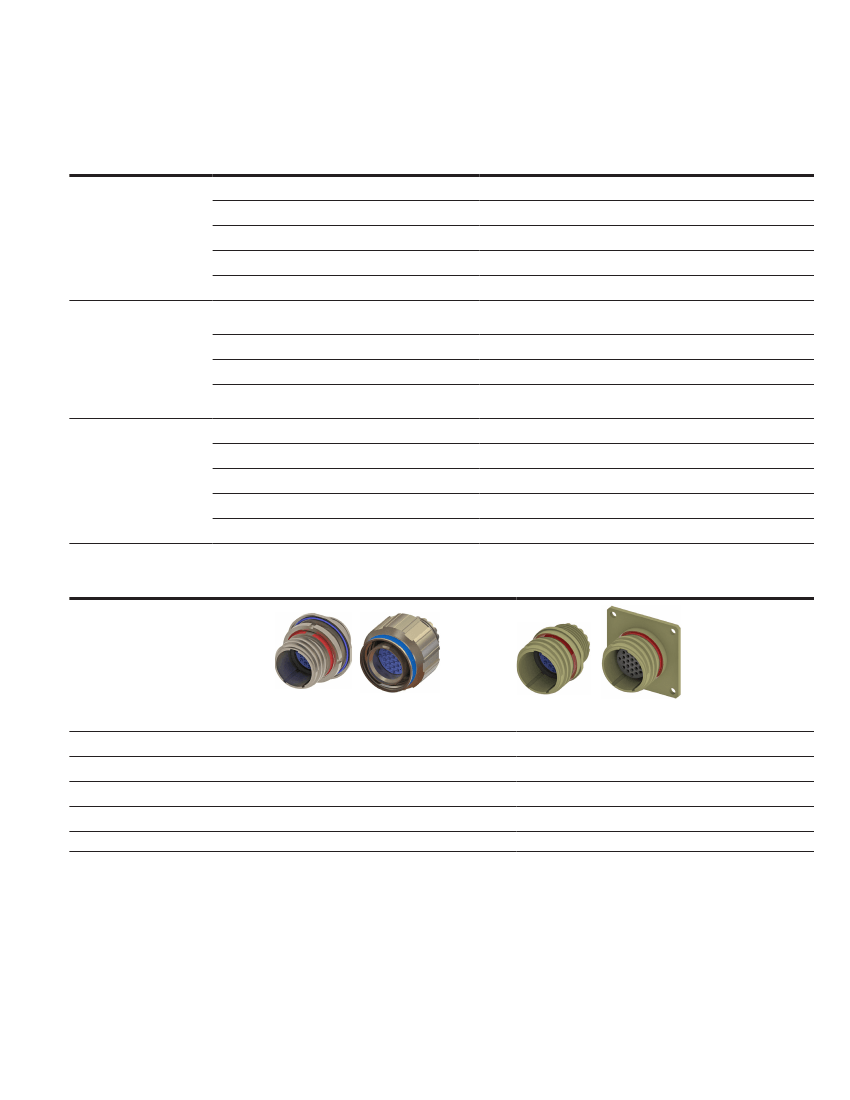

General Specifications
Shell and Coupling Ring
Contacts
Materials and Finishes
Inserts
Grommet and Seal
Contact Retaining Springs
Dielectric Withstand Voltage (DWV)
Electrical
Insulation Resistance (IR)
Contact Current Ratings
EMI/RFI Shielding
Contact Retention
Shock and Vibration
Mechanical and
Environmental
Insert Retention
Water Immersion
Mate/Unmate Durability
6061 Aluminum
Copper Alloy, Gold Plated
LPS (Liquid Crystal Polymer) 30% Glass Filled
Fluorosilicone
Beryllium Copper
23 AWG Contact Inserts: 500 VAC
16 AWG Contact Inserts: 1800 VAC
5000 Megaohms Minimum
#23 Contacts – 5 Amps, #16 Contacts – 13 Amps
M1 Series: 55 dB Minimum from 100MHz to 1000MHz
M5 Series: 85 dB Minimum from 100MHz to 1000MHz
#23 Contacts: 15 pounds, #16 Contacts: 25 pounds
300 g’s Shock, 37 g’s Random Vibration
Epoxy Bonds and Redundant Mechanical Retainers
MIL-STD-810, Method 512, One Meter Immersion for One Hour
M1 Series: 2000 Cycles, M5 Series: 500 Cycles
Finish Classes
Class F
Plating Type
Compliances
Operating Temperatures
Corrosion Resistance
Shell-to-Shell Conductivity
Electroless Nickel
ASTM B733 & RoHS
-65°C to 200°C (-85°F to 392°F)
Withstands 48 Hours Salt Spray
1.0 Millivolt Maximum Drop
Class W
Cadmium/Olive Drab
QQ-P-416
-65°C to 175°C (-85°F to 347°F)
Withstands 500 Hours Salt Spray
2.5 Millivolts Maximum Drop
EATON
Micro-Military Circular Connectors
3

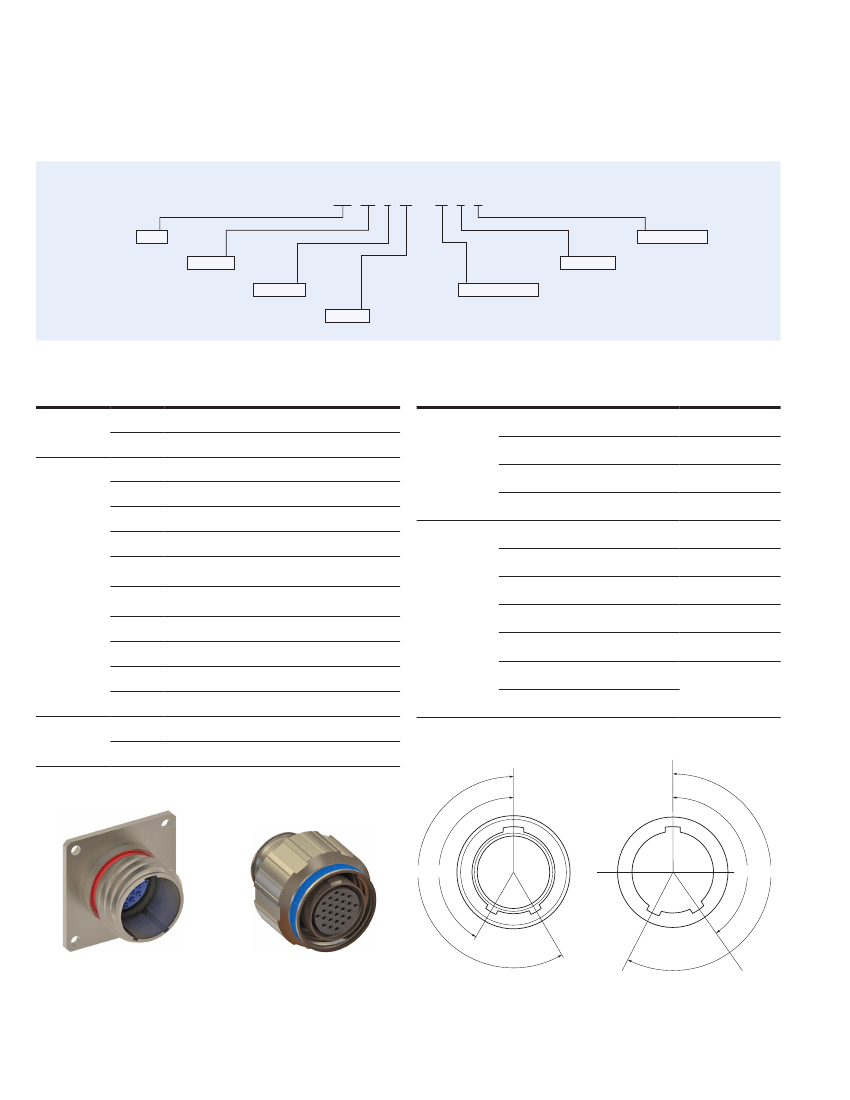

Micro-military connector ordering information
M1 G6 F 06 - 07 P A
Series
Shell Type
Finish Class
Shell Size
Insert Arrangement
Contact Type
Keying Positions
Type/Designation
Description
Type/Designation
Description
Series
M1
M5
06
16
G6
H6
00
Double Start ACME Threads
Triple Start ACME Threads
M1 In-Line Plug, Accessory Thread (no EMI)
M1 In-Line Plug, Banding Platform (no EMI)
M5 In-Line Plug, Accessory Thread (EMI)
M5 In-Line Plug, Banding Platform (EMI)
Square-Flange Receptacle, Accessory
Thread
Square-Flange Receptacle, Banding
Platform
In-Line Receptacle, Accessory Thread
In-Line Receptacle, Banding Platform
Jam-Nut Receptacle, Accessory Thread
Jam-Nut Receptacle, Banding Platform
Electroless Nickel per ASTM B733
CAD/OD per QQ P-416
Contact Type
P
S
A
B
Pin
Socket
Pin compatible insert shipped without contacts
Socket compatible insert shipped without contacts
X°
Y°
210°
210°
230°
275°
275°
210°
M1 Series Only
Notes
Normal
A
B
Keying Positions
C
D
E
F
150°
75°
95°
140°
75°
95°
Shell Type
10
03
13
07
17
Finish Classes
F
W
Keying
Positions
Y°
X°
X°
Y°
Contact Eaton to discuss application specific finish classes, including
space-rated solutions.
Plug View
Receptacle View
4
EATON
Micro-Military Circular Connectors
1
2
7
3
4
7
3
2
1
4

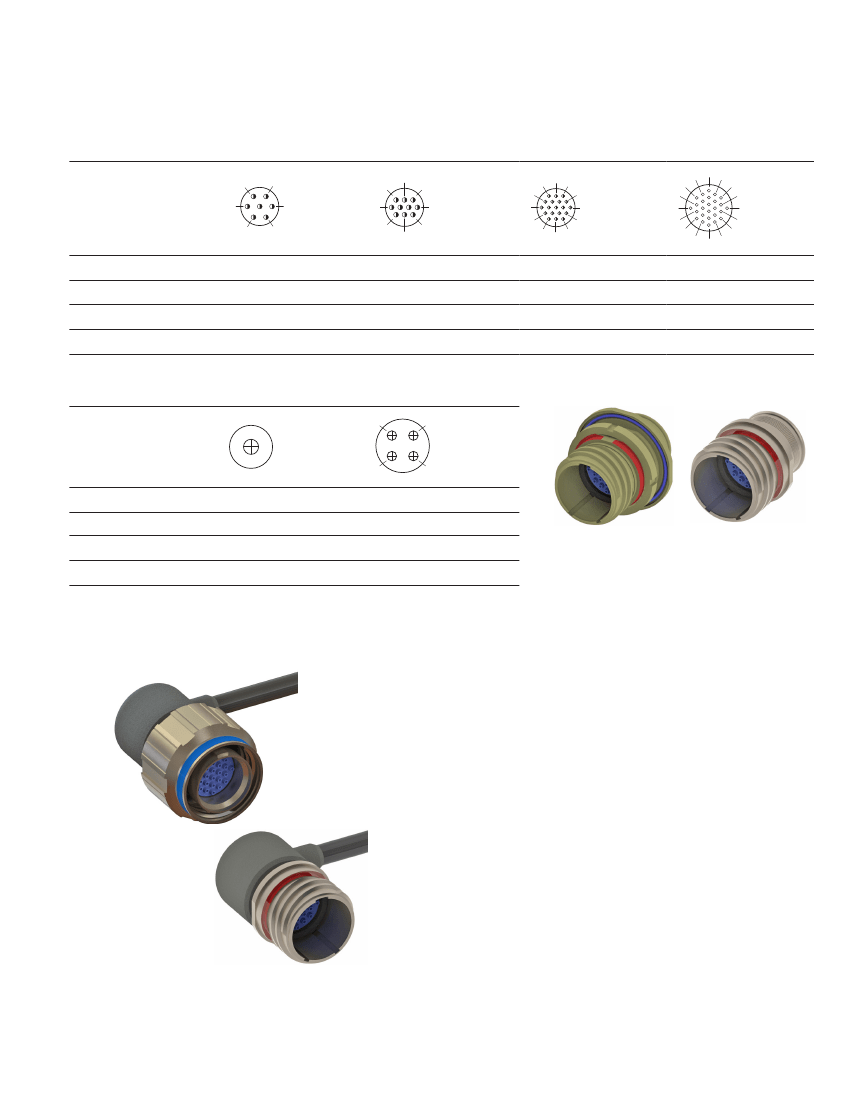

23AWG Contact
Insert Arrangements
7
12
16
3 2 1
4
8
13
6
5
10
9
8
19 18 17
11
15
18
23
6
3 1 2
25 26 24
9
12
16
21
4
M1 Series Shell - Insert #
M5 Series Shell - Insert #
Number of Contacts
Current Rating per Contact
06-07
08-07
7
5 Amps
07-10
09-10
10
5 Amps
09-19
11-19
19
5 Amps
10-26
12-26
26
5 Amps
1
2
16AWG Contact
Insert Arrangements
4
3
M1 Series Shell - Insert #
M5 Series Shell - Insert #
Number of Contacts
Current Rating per Contact
06-01
08-01
1
13 Amps
09-04
11-04
4
13 Amps
Contact Eaton to discuss quick turn, application specific
contacts and insert arrangements.
End-to-End Connectivity Solutions Include Custom
Cable Assemblies
Cable assembly and wiring harness design and manufacturing
capabilities include: overmolded; RF coaxial; flat ribbon; fiber
optic; and voice, data, and hybrid communications.
Our engineers are experts at providing protection against
harsh-environmental conditions including:
• Extreme high and low temperatures
• Shock and vibration
• Radiation
• Corrosive contaminants
• EMI and RFI
• Vacuum and pressures to 20,000 PSI
In addition to turnkey design and manufacturing for new
projects, quick-turn capabilities include shielded; build-to-print
services for production-ready designs.
