SMD Type
NPN Transistors
2SC3645-HF
Transistors
■
Features
●
High breakdown voltage
●
Excellent linearity of hFE and small C
ob
.
●
Fast switching speed.
●
Small Package For Mounting
●
Complementary to 2SA1415-HF
0.42 0.1
1.70
0.1
0.46 0.1
●
Pb−Free Package May be Available. The G−Suffix Denotes a
Pb−Free Lead Finish
1.Base
2.Collector
3.Emitter
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Collector - Base Voltage
Collector - Emitter Voltage
Emitter - Base Voltage
Collector Current - Continuous
Peak Collector Current
Collector Power Dissipation
Junction Temperature
Storage Temperature Range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
C
T
J
T
stg
Rating
180
160
5
140
200
500
150
-55 to 150
mA
mW
℃
V
Unit
■
Electrical Characteristics Ta = 25℃
Parameter
Collector- base breakdown voltage
Collector- emitter breakdown voltage
Emitter - base breakdown voltage
Collector-base cut-off current
Emitter cut-off current
Collector-emitter saturation voltage
Base - emitter saturation voltage
DC current gain
Turn-ON Time
Storage Time
Fall Time
Collector output capacitance
Transition frequency
Symbol
V
CBO
V
CEO
V
EBO
I
CBO
I
EBO
V
CE(sat)
V
BE(sat)
h
FE
t
on
t
stg
t
f
C
ob
f
T
V
CB
= 10V,f=1MHz
V
CE
= 10V, I
C
= 10mA
See sepcified Test Circuit.
Test Conditions
Ic= 100 μA， I
E
= 0
Ic= 1 mA，I
B
= 0
I
E
= 100μA， I
C
= 0
V
CB
= 80 V , I
E
= 0
V
EB
= 4V , I
C
=0
I
C
=50 mA, I
B
=5mA
I
C
=50 mA, I
B
=5mA
V
CE
= 5V, I
C
= 10mA
100
0.1
1.5
0.1
3
150
pF
MHz
us
0.07
Min
180
160
5
0.1
0.1
0.3
1.2
400
uA
V
V
Typ
Max
Unit
■
Classification of h
fe
Type
Range
Marking
2SC3645-R-HF
100-200
CAR
F
2SC3645-S-HF
140-280
CAS
F
2SC3645-T-HF
200-400
CAT
F
www.kexin.com.cn
1
SMD Type
NPN Transistors
2SC3645-HF
Switching Time Test Circuit
Transistors
(For PNP, the polarity is reversed)
Unit (resistance :
Ω,
capacitance : F)
■

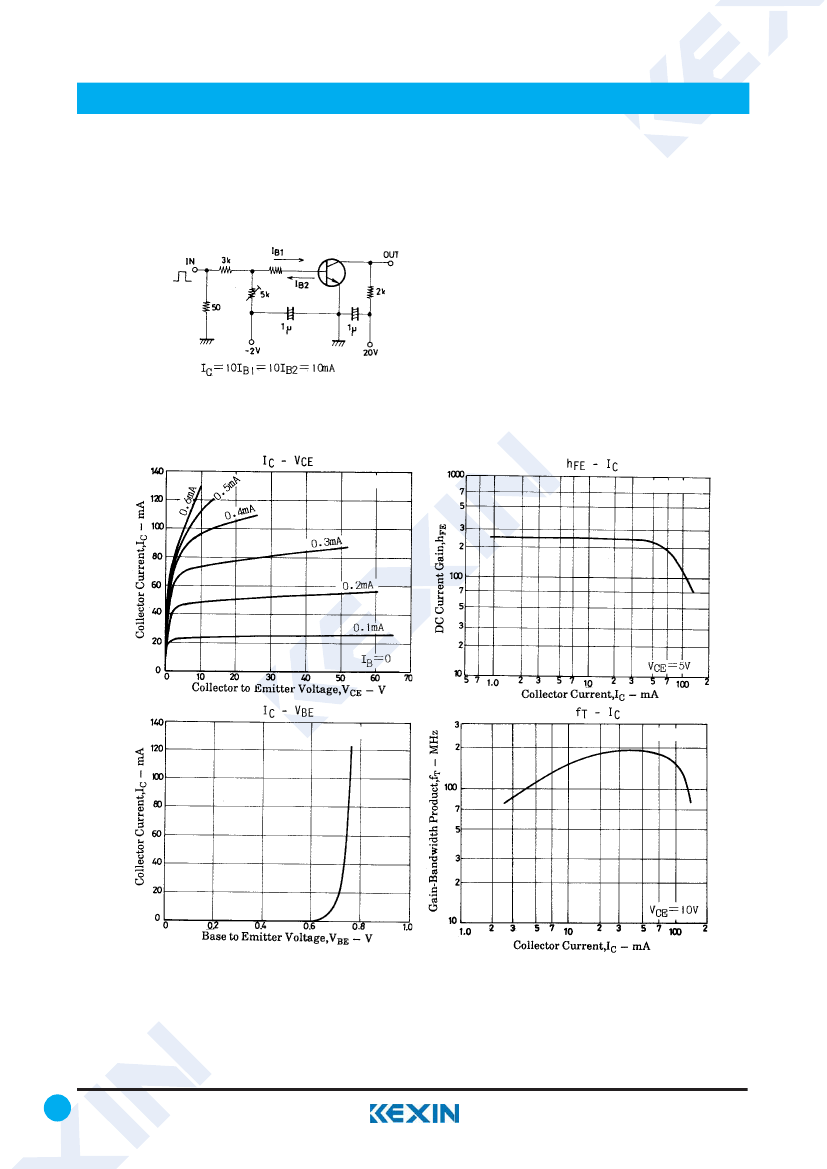

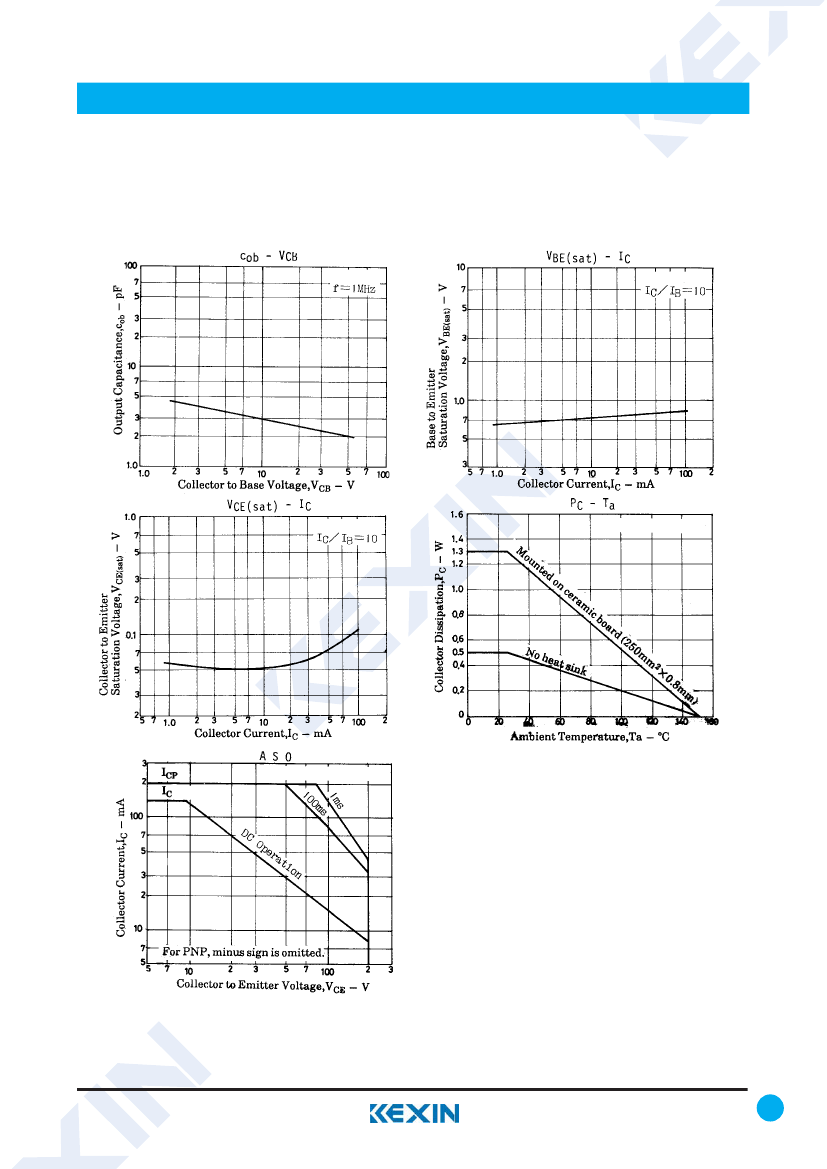

Typical Characterisitics
2
www.kexin.com.cn
