852-085-02F Overview

Connector Accessory

852-085-02F Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompliant
Connector bracket typeCONNECTOR ACCESSORY
Manufacturer's serial number852-085
SERIES 28
HiPer-D
®
Contacts and Tools
50 ohm coaxial contacts for RG316 and RG178 cable
50 OHM COAX CONTACTS FOR COMBO HIPER-D CONNECTORS
These coax contacts snap into Glenair combo HiPer-D® size #8 cavities and can
be removed with a plastic extraction tool. Crimp termination. 50 ohm nominal
impedance, DC - 3GHz frequency range. Gold plated copper alloy, Teflon® dielectric.
1000 VAC DWV rating, 5 Amp current rating. Optional sealing boot prevents
moisture ingress.
Intermateable with standard D-Subminiature size #8 socket
coaxial contacts.

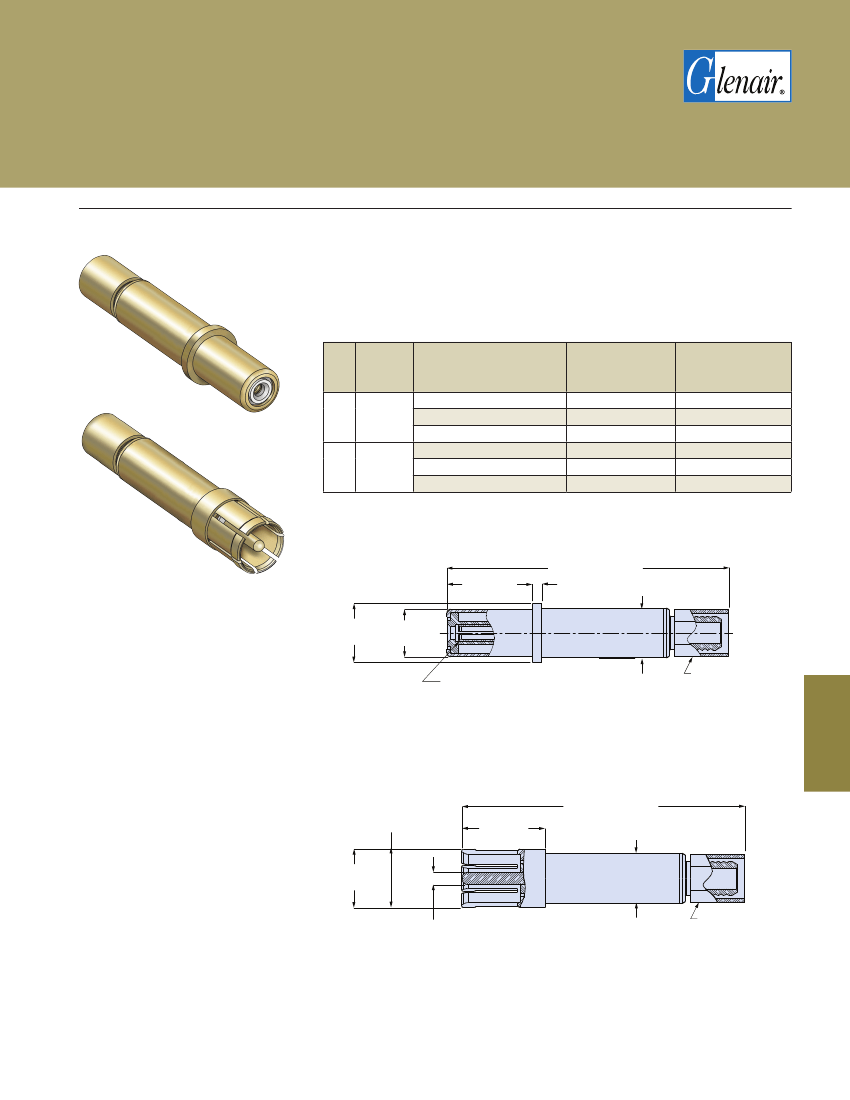

Fig. 1
Pin Contact
852-084
Fig.
Contact
Type
Pin
Cable
Accommodation
M17/113-RG316
M17/93-RG178
M17/152-00001 (RG316DS)
M17/113-RG316
M17/93-RG178
M17/152-00001 (RG316DS)
Part Number
Contact Only
852-084-01
852-084-02
852-084-03
852-085-01
852-085-02
852-085-03
Part Number
Contact and
Sealing Boot
852-084-01F
852-084-02F
852-084-03F
852-085-01F
852-085-02F
852-085-03F
1
2
Socket
Fig. 2
Socket Contact
852-085
.276/.272
(7.01/6.91)
.940 (23.88) MAX.
.033/.029
(0.84/0.74)
Contact and Crimp Sleeve:
Copper alloy,
50 microinches gold over nickel.
Dielectric:
Teflon®
Sealing Boot:
Thermoplastic and
Fluorosilicone
Impedance:
50 ohms
Frequency:
DC – 3GHz
Current Rating:
5 Amps maximum
Contact Resistance:
10 milliohms
Temperature Range:
-65° to + 200° C.
Dielectric Withstanding Voltage:
1000 VAC
Insulation Resistance:
5 gigohms
Crimp Tool for Inner Contact:
809-015
(M22520/2-01, Daniels AFM8)
Inner Contact Positioner:
859-099
(Daniels K264)
Hex Crimp Tool for Cable Shield:
809-129
(M22520/5-01, Daniels HX4)
Hex Die Set:
809-130 (M22520/5-03)
Insertion/Extraction Tool:
809-132
(M81969/14-04)
Material and Finish
Ø.188/.186 Ø.153/.151
(4.78/4.72) (3.89/3.84)
SOCKET TO MATE WITH Ø
.041/.039 (1.02/0.99) PIN
Ø .162/.158
(4.11/4.01)
CRIMP SLEEVE
.128 (3.25) HEX
AFTER CRIMPING
Specifications
Pin Contact
852-084
E
MATES WITH .153/.151
(3.89/3.84) PIN
.940 (23.88) MAX.
.268/.264
(6.81/6.71)
Tools
Ø.188/.186
(4.78/4.72)
Ø.041/.039
(1.02/0.99)
Ø .162/.158
(4.11/4.01)
CRIMP SLEEVE
.128 (3.25) HEX
AFTER CRIMPING
Socket Contact
852-085
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
Rev. 12.17.15
E-5
