2432-2-16-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2432-2-16-1

2432-2-16-1: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2432-2-16-1 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking

2432-2-16-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.228 inch
subject depth	0.522 inch
body length	1.575 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	2432
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

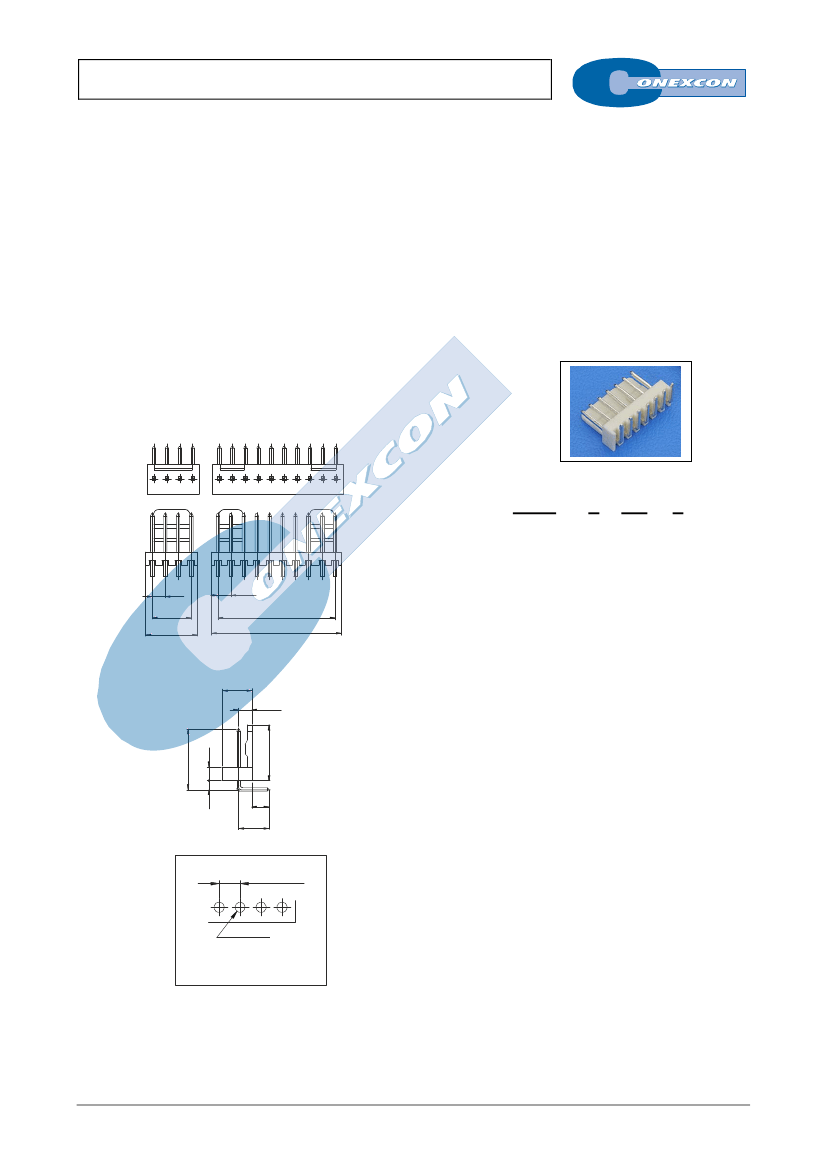

SINGLE ROW SIDE ENTRY HEADER

2432 SERIES.

2.50 mm. (0.098”) Pitch.

General Features

Electrical Features



Available in 2 through 20 circuits

Mates with 2.50 mm. pitch crimp housing 2430 series

Tin plated 0.64 mm. square pin

Polarised with locking ramp



Voltage Rating: < 250 V

Current Rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 1.00 Kgf

Durability: 25 cycles



Insulator: Nylon 6/6 UL 94 V-0

Terminal: Tin plated brass

Operating temperature -40ºC to +85ºC

RoHS compliant

Dimensional Information

2432 -

2- XX- 1

1. Connector Serie

2.50

.098

2.50

.098

6 to 20 Circ.

3. (XX) Number of circuits





Available in 2 through 20 circuits

2 to 5 Circ.

5.8

.228

2.60

.102

Dimensions:

(in mm.)

= 2.50 x (XX*-1)

= 2.50 x (XX*)

*XX (Number of circuits)

12.15

.478

1.75

.069

3.3

.130

3.40

.134

6.00

.236

2.50±0.05

.098±.002

1.20±0.10

.047±.004

RECOMMENDED HOLE PATTERN

0000

D-XX

11.5

.453
