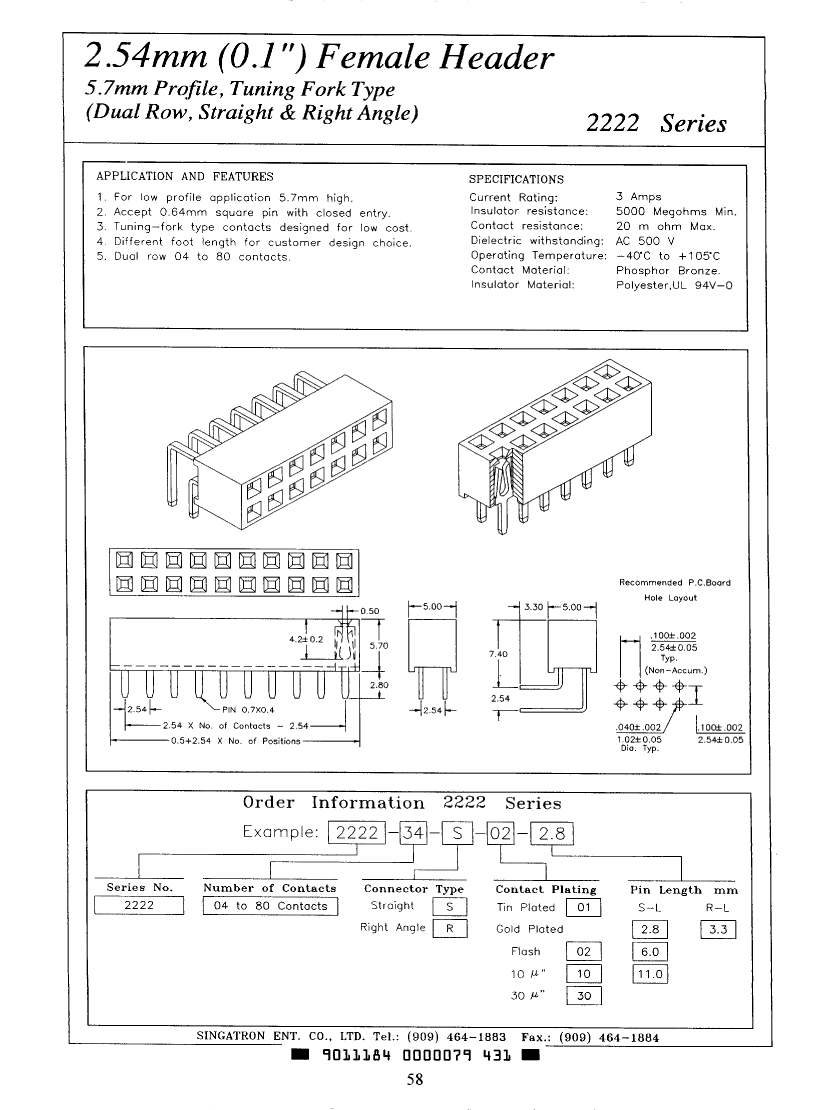

2222-26-R-30-3.3 datasheet, PDF

2222-26-R-30-3.3: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2222-26-R-30-3.3 Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.197 inch
subject depth	0.391 inch
body length	1.32 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	2222
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
