Low Noise Oscillator series
LNO 100
Specific request can be addressed to RAKON
info@rakon.fr
OCXO LNO 100
Product Description
This Low Noise Oven Controlled Crystal Oscillator available in different formats
from 51x51x25 mm (2”x2”x1”) till 25x25x12 mm (1”x1”x0.5”), is specially
designed to meet the request of the most demanding phase noise applications in
the instrumentation and defence industries.
The LNO 100 @ 100 MHz can be provided with a guaranteed phase noise level of
up to -165 dBc/Hz @ 1KHz and a G-sensitivity of up to 0.5 ppb/G (Gamma).
Features
Low Noise Oscillator (LNO), Oven Controlled
Crystal Oscillator (OCXO)
Frequency: 80 to 125 MHz
Guaranteed low phase noise @ 100 MHz:
-165 dBc/Hz @ 1kHz
-178 dBc/Hz @ 10kHz
Supply Voltage: +12V
Pin through hole, SMD package or with connectors
Frequency Stability vs. Temperature: ± 0.1ppm
Ageing: from ± 2ppm over 10 years

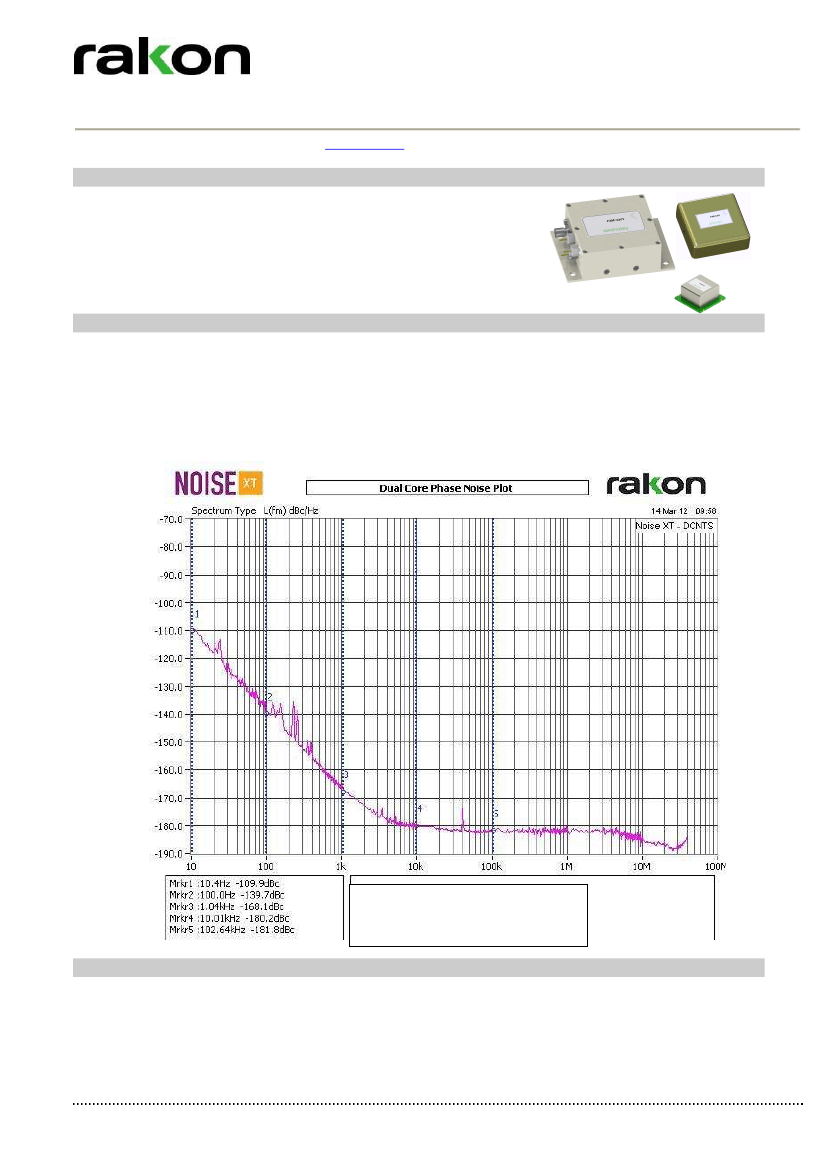

Typical phase noise curve @ 100 MHz
Courtesy Noise XT
Applications
Reference for phase noise measurement
Test equipments
Military communication
Synthesizers
Radars
June 1st, 2012
Shortform, 51001185.110, Issue A1
1/9
Specifications subject to change without notice
www.rakon.com
Low Noise Oscillator series
LNO 100
Specifications
1. Environmental conditions
Parameters
Operating Temperature
Switch-on Temperature
Non-Operating Temperature
Sine Vibration
Shock
OCXO LNO 100
Conditions/remarks
Min Nom Max Unit
Option A
0
25
70
°C
Option B
-20
25
70
°C
Option C
-40
25
85
°C
TSo
-40
85
°C
TNOp
-55
125
°C
Level as per MIL-PRF-28800F, Class 3, test equipment
Level as per MIL-PRF-28800F, Class 3, test equipment
2. Electrical interface
Parameters
Power supply
Load Impedance
Control voltage
Input impedance
Conditions/remarks
Option 12
Min
11.40
45
0
10
Min
80
±2
Typical @ 25°C
Frequency achievement
5mn after start up @ 25°C
@ 25°C ; Vc = Vcnom
Option A
Option B
Option C
Vcc ±5% @25°C
For ±10% variation of load
1st year
10 years
1s
After 10s
Option SG: total Gamma
Option LG: total Gamma
11
Sine
13
2.2
3.7
± 0.5
± 0.1
± 0.2
± 0.5
± 0.01
± 0.02
± 0.5
±2
± 5E-12
± 0.5
5
±2
± 0.5
15
-25
-90
Nom
12
50
Max
12.60
55
10
Unit
V
V
κΩ
Unit
MHz
ppm
W
W
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppb
mn
ppb/G
ppb/G
dBm
dBc
dBc
3. Performances
Parameters
Nominal Frequency
Relative pulling frequency range
(negative slope)
Steady state supply current
Warm up supply current
Initial frequency accuracy
Frequency stability vs temperature
Frequency variation vs. supply voltage
Frequency variation vs. load
Frequency ageing
after 30 days of continuous operation
Allan Variance
Frequency warm up
G-sensitivity
Output waveform
Output level
Harmonics level
Spurious level
Conditions/Remarks
Typ
Max
125
June 1st, 2012
Shortform, 51001185.110, Issue A1
2/9
Specifications subject to change without notice
www.rakon.com
Low Noise Oscillator series
LNO 100
4. Minimum Guaranteed Phase Noise level
Parameters
@ 100 MHz, 12 V
-20°C to +70°C
Performance level
58
62
65
OCXO LNO 100
100 Hz 1 KHz 10 KHz 100 KHz
Unit
-130
-158
-172
-172 dBc/Hz
-130
-162
-175
-175 dBc/Hz
-135
-165
-178
-178 dBc/Hz
For performance levels at other frequencies or temperature ranges, please consult your sales office.
5. Mechanical features
Package
name
Description
Dimensions
PTH1
Pin Through Hole
1.5”x1.5”x0.5”
38x38x13 mm
PTH2
Pin Through Hole
“Europack”
1.5”x1”x0.5”
38x25x13 mm
PTH3
Pin Through Hole
1”x1”x0.5”
25x25x13 mm
2”x2”x1”
51x51x25 mm
1”x1”x0.5”
25x25x13 mm
PSS1
Pin Side+SMA
SMD1
SMD
June 1st, 2012
Shortform, 51001185.110, Issue A1
3/9
Specifications subject to change without notice
www.rakon.com
Low Noise Oscillator series
LNO 100

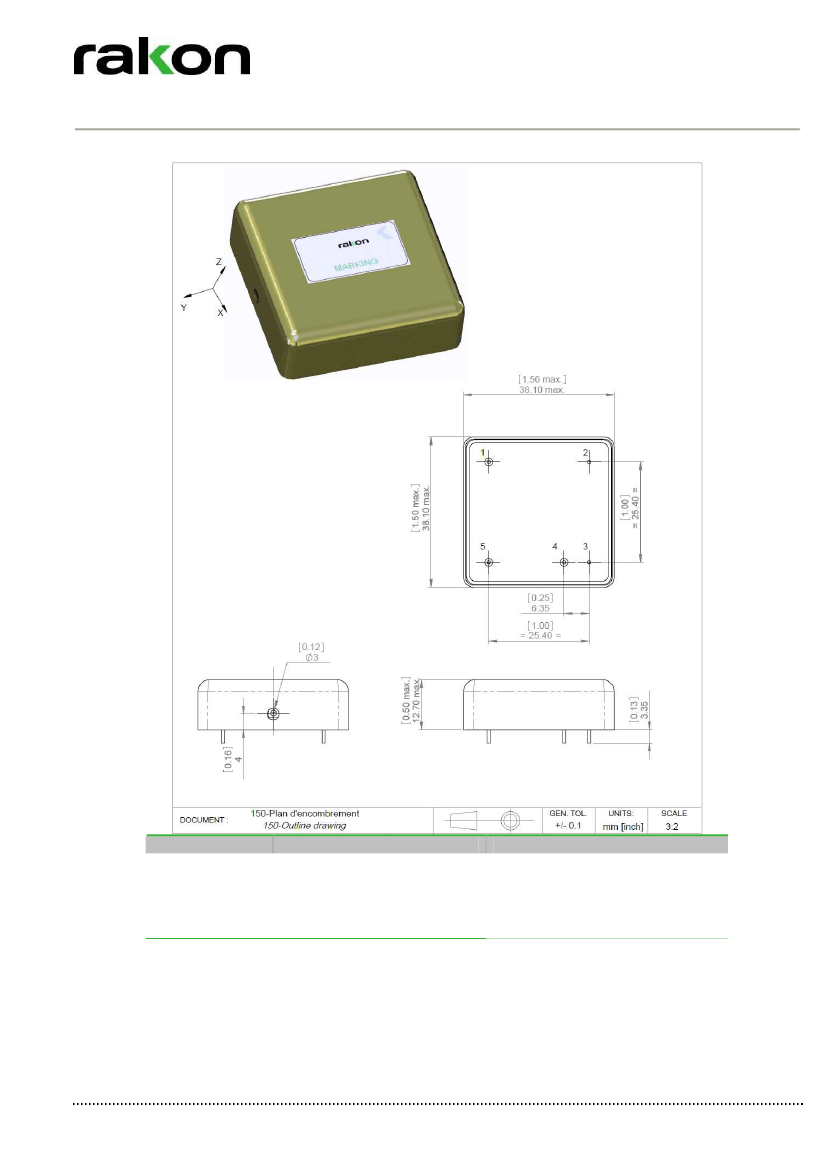

5.1. Package PTH1 (Pin Through Hole)
OCXO LNO 100
Pin number
1
2
3
4
5
Name
Vcc
GND
GND
Fout
Vc
Description
Supply voltage
Electrical & mechanical ground
Electrical & mechanical ground
Frequency output
Voltage control for electrical tuning
June 1st, 2012
Shortform, 51001185.110, Issue A1
4/9
Specifications subject to change without notice
www.rakon.com
Low Noise Oscillator series
LNO 100

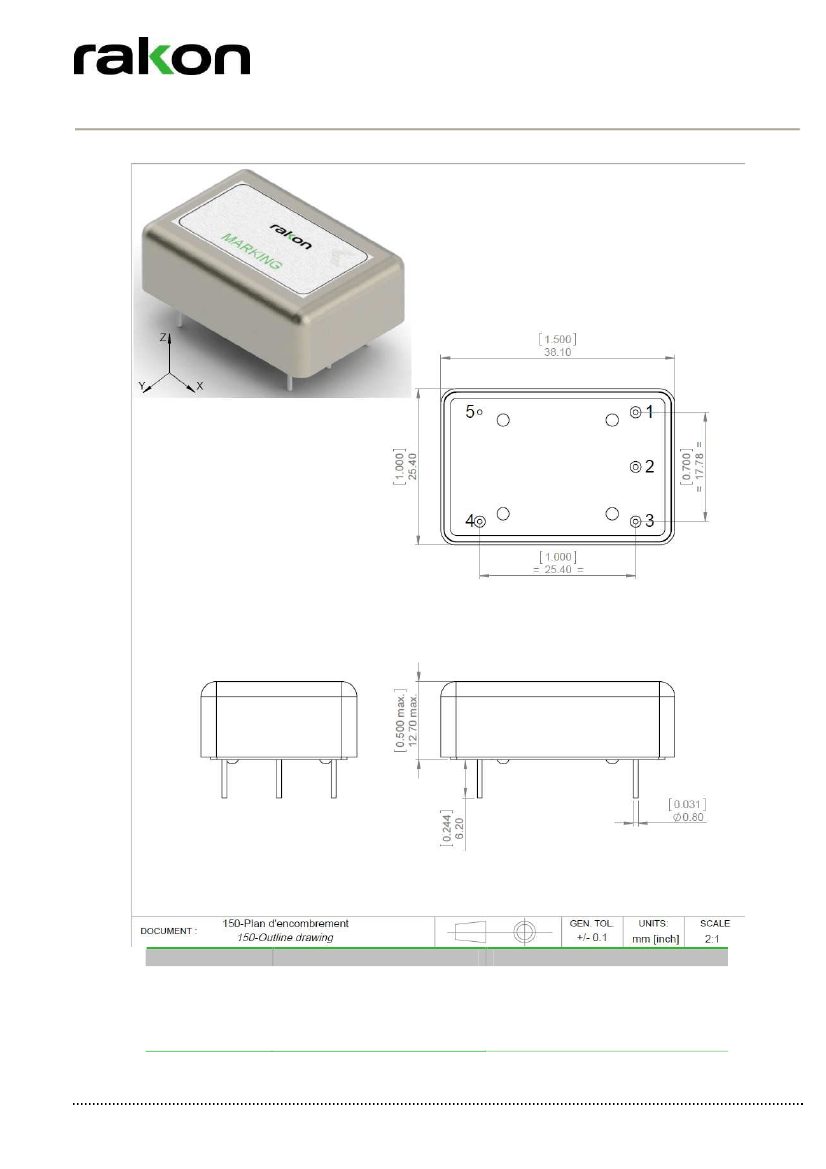

5.2. Package PTH2 (Pin Through Hole)
OCXO LNO 100
Pin number
1
2
3
4
5
Name
Vc
Vref
Vcc
Fout
GND
Description
Voltage control for electrical tuning
Voltage reference
Supply voltage
Frequency output
Electrical & mechanical ground
June 1st, 2012
Shortform, 51001185.110, Issue A1
5/9
Specifications subject to change without notice
www.rakon.com
