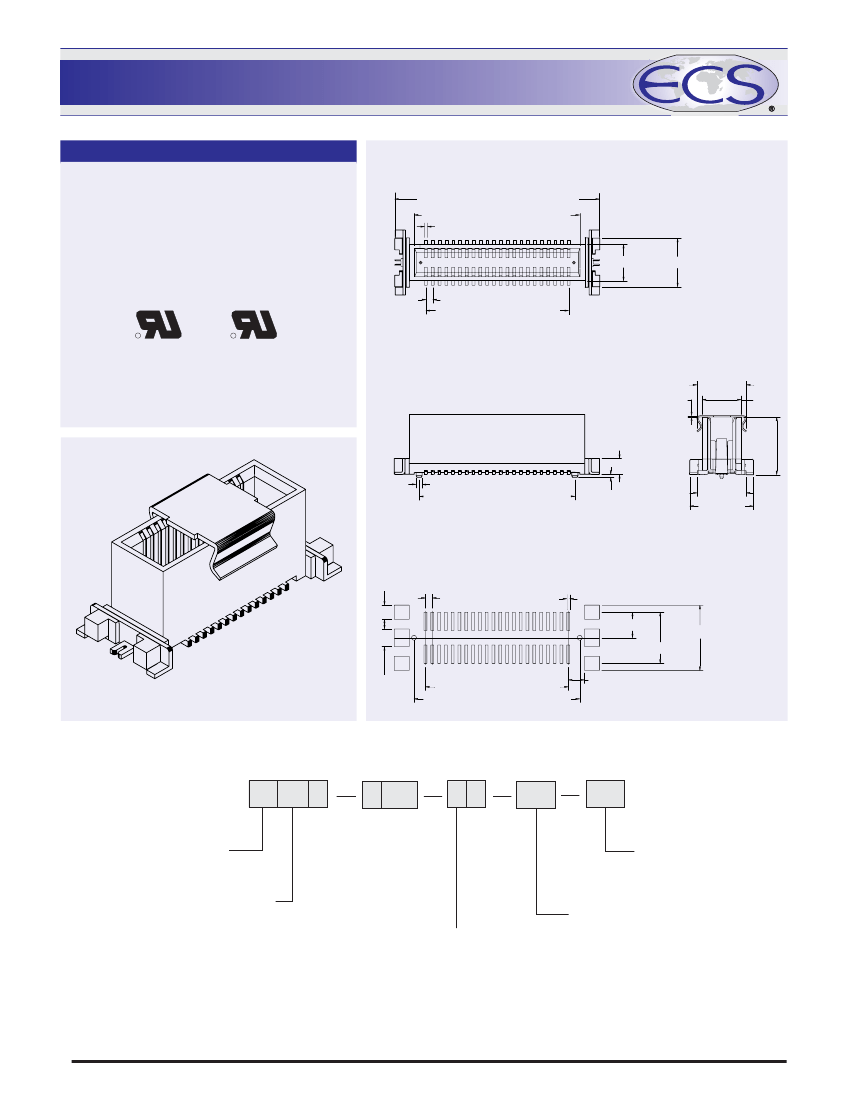

.020
[0.50] BOARD TO BOARD SOCKET
Specifications
Current Rating:
0.3 Amps
Insulator Resistance: 100 Megohms min
Contact Resistance:
60m ohm max
Dielectric Withstanding: AC 250V
Operating Temperature: -40° ~± 85° C
Max Processing Temp: 230° C to 60 seconds
Contact Material:
Phosphor Bronze
Insulator Material:
High Temperature
Thermoplastic. UL 94V-0
Finish:
See Contact Plating
.209 [5.3]+.0197[.50] X (No of Positions)
.059 [1.5]+.0197 [.50] X (No of Positions)
.0079 [.20]
.097 [2.45]
.185 [4.7]
.0197 [.50]
.0197 [.50] X (No of Contacts/2-1)
R
C
R
Recognized under the recognized component
Program of Underwriters Laboratories, Inc.
Products specifications are subject to be changed
without notice.
.205 [5.2]
.0039
[.10]
.165
[4.2]
.055
[1.4]
.0197 [.50] DIA.
.024 [.60]+.0197[.50] X (No of Positions)
.018
[.45]
.197 [5.0]
.248 [6.3]
.059
[1.5]
.0197 [.50]
.0118 [.30]
.079 [2.0]
.236 [6.0]
.287 [7.30]
.079
[2.0]
.0197 [.50] X (No of Contacts/2-1)
.024 [.60]+.0197[.50] X (No of Positions)
Recommended P.C.B Layout
.063 [1.6]
Dimensions are in inches [mm]
PART NUMBERING
99 XX S
SERIES CODE
NO. OF CONTACTS
10
to
98
100 Contacts =
A0
120 Contacts =
C0
V 07
X1
XX
XX
PACKAGING
MT
= Metal Pad + Tube
MR
= Metal Pad + Reel
CONTACT PLATING
LOCATING PEG OPTIONS
0
= w/o Locating Peg
1
= with Locating Peg
Lead Free & RoHS Compliant
.000050” Nickel underplate
CONTACT
03
= Gold Flash
85
= 15µ” Gold
90
= 30µ” Gold
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN
WWW.ECSCONN.COM
.236 [6.0]
