MTH Series
11.7mm x 9.6mm SMD
• Compact Package
• 5.0 or 3.3 Volt
• Clipped Sinewave Output
• 10.000MHz to 27.000MHz
• Stability Down to ±1.5ppm
Electrical Specifications
Frequency Range
Frequency Stability (Inclusive of Temperature, Load, Voltage and Aging)
Internal Trim (Top of Can)
Operating Temperature Range
Storage Temperature Range
Supply Voltage (Vdd)
Control Voltage
Vdd = 5V
Vdd = 3.3V
Output
Vdd = 5V
Vdd = 3.3V
Output Load
Supply Current
Vdd = 5V
Vdd = 3.3V
Start-up Time
Pad 5 Connection
Blank Option
V Option
9.600MHz to 26.000MHz
±1.5ppm to ±5ppm
±3ppm min.
0°C - 50°C to -30°C - 75°C
-40°C - 85°C
5.0Vdc ±5% or 3.3Vdc ±5%
2.5Vdc ± 2.0Vdc(Positive Slope)
1.65Vdc ± 1.5Vdc(Positive Slope)
1.0Vp-p min.
0.8Vp-p min.
10K Ohms // 10pF
2.0mA max.
2.0mA max.
10mS max.
No Connect
±10ppm min.
www.mmdcomp.com
Toll Free 1-877-663-2667 / Fax: 949-753-5889
OS20
Specifications subject to change without notice
Revision: 9/20/02 B
Part Numbering Guide
MTH
Supply Voltage
Blank = 5 Volt
3 = 3.3 Volt
Frequency Stability *
15 = ±1.5ppm
20 = ±2ppm
25 = ±2.5ppm
30 = ±3ppm
35 = ±3.5ppm
50 = ±5ppm
S
Operating Temp. Range *
A = 0°C to +50°C
B = -10°C to +60°C
C = -20°C to +70°C
D = -30°C to +70°C
E = -30°C to +80°C
F = -40°C to +85°C
G = 0°C to +70°C
Output Type
S = Clipped Sinewave
Frequency
Pad 5 Connection
Blank = No Connect
V = Voltage Control
* Check with factory for additional stability vs. temperature options

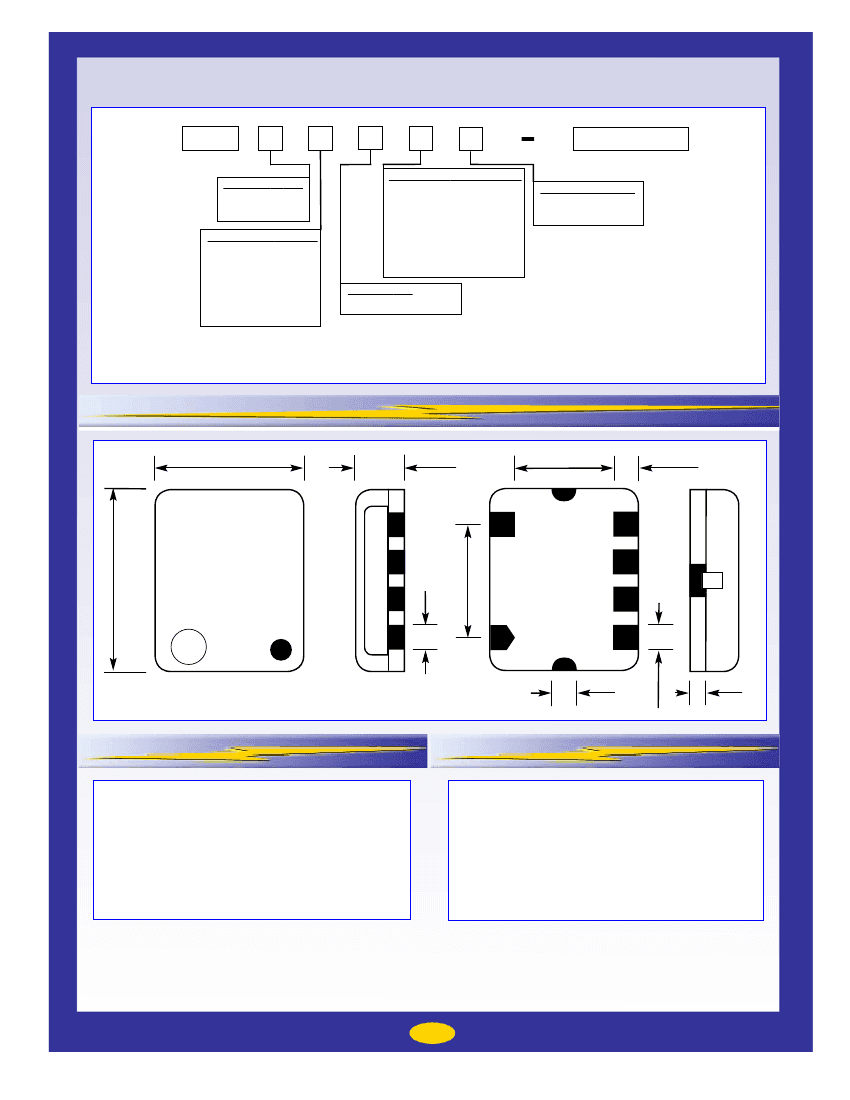

Mechanical Dimensions
9.612 max
.3784 max
2.7 max
.106 max
7.0
.276
1.5max
.059 max
#3
11.7 max
.461 max
#2
#2
#3
#4
#5
#6
#1
0.7
.028
#5
7.82 max
.308 max
#4
#1
#6
1.2 max
.047 max
1.4
.055
0.6
.024
Pin Connections
Markings
Pin 1, 2, and 4: Ground
Pin 3: Output(Frequency)
P i n 5 : C o n t r o l Vo l t a g e o r N / C
P i n 6 : S u p p l y Vo l t a g e
Line 1: MMD
Line 2: Part Number
Line 3: Frequency
Line 4: Date Code
www.mmdcomp.com
Toll Free 1-877-663-2667 / Fax: 949-753-5889
OS20
Specifications subject to change without notice
Revision: 9/20/02 B
