Lighting Capacitors
Film CapaCitors For HigH
intensity DisCHarge (HiD)
anD sign Ballast ligHting
RoHS COMPLIANT
Intelligent Capacitor Solutions
High quality and long life characterize Aerovox film capacitors for
HID and sign ballast lighting applications. Like all Aerovox products,
our rugged, reliable capacitors are constructed using high quality
materials and Lean Six Sigma manufacturing practices. These
capacitors undergo 100% outgoing electrical and visual testing, and
representative UL fault current, environmental and accelerated life
testing (ALT)* as part of our quality assurance process.
Aerovox maintains manufacturing facilities in China and India to
enable quick turn-around for shipping and delivery worldwide. If
you have specialized needs, our flexible manufacturing processes
allow us to quickly provide custom configurations. For emergency
lighting applications, please see our axial wrap and fill capacitor line.
*Accelerated life testing (ALT) is performed for 2000 hours at 125% voltage rating
and temperature at 105°C.
Aerovox provides intelligent capacitor solutions.
2

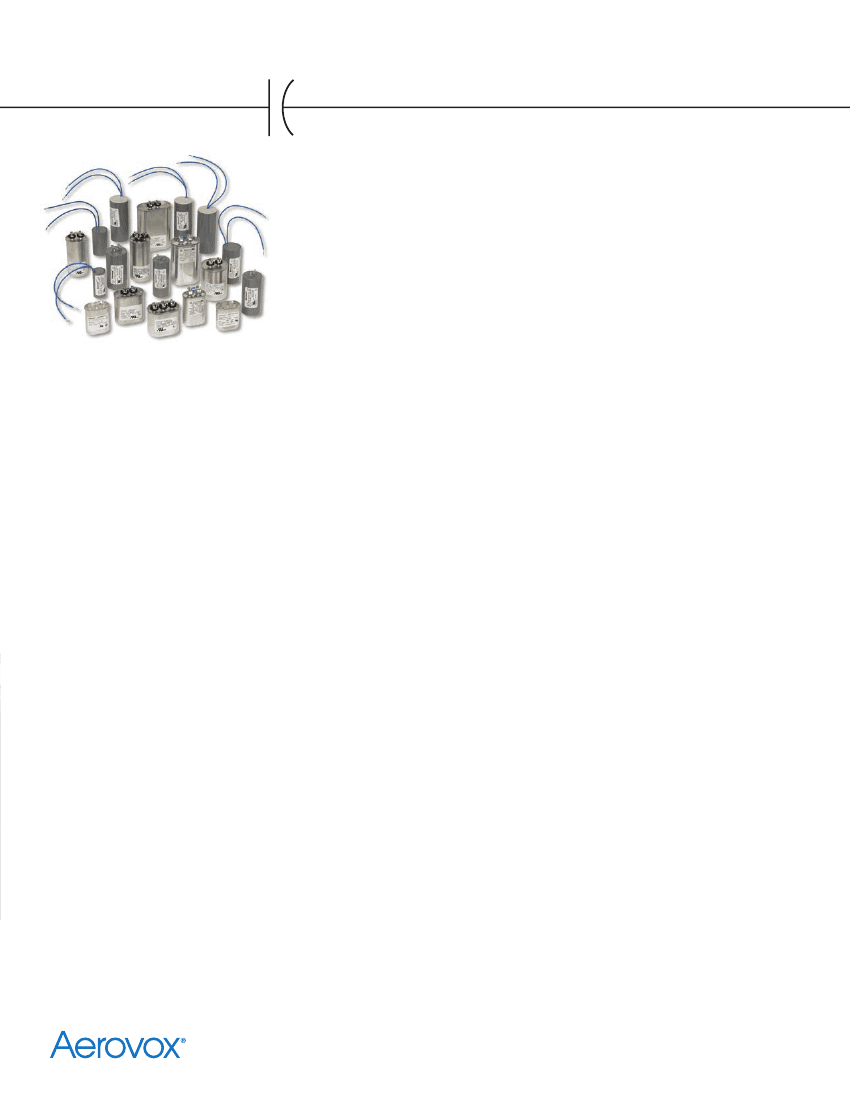

Lighting Capacitors
roHs Compliant
Film CapaCitors For HigH intensity DisCHarge (HiD)
anD sign Ballast ligHting
Aerovox produces both oil-filled and dry capacitors for the HID and sign
ballast lighting markets. Constructed with film designed to withstand the
rigors of the application, these units are built to operate up to 105°C.
HID lighting capacitors are built with a ±3% tolerance on capacitance,
and are designed to operate for a minimum of 60,000 hours. Sign ballast
capacitors are constructed with film/foil technology and have tolerances
based on application requirements.
Highlights
• Made to EIA-456-A standards
Applications
• Area Lighting
• HID Magnetic Ballast Kits for
Greenhouses or Hydroponics
• High / Low Bay / Warehousing
• Horticultural Lighting
• Parking Lot Installations
• Sign Ballast Kits
• Sports Lighting
• Street Lamp Fixtures
• Street Lighting
• Metal or plastic case
• Wet or dry construction
• Life test temperature to 105°C
• 18 AWG wire lead termination
• RoHS compliant
• Dual rated HID
• Dual or triple value caps for sign ballasts
• UL-810 fault current protection
Specifications
Capacitance range:
HiD Capacitance tolerance:
aC Voltage range:
temperature range:
approval Certification:
1 to 75 µF for HID; 1.4 to 2.6 µF with
dual or triple rating for sign ballasts
±3%
120 VAC to 660 VAC for HID; 550 VAC
to 1,200 VAC for sign ballasts
-40°C to +105°C for HID; 0°C to +85°C
for sign ballasts
UL, cUL
UL construction only for dry HID
167 John Vertente Blvd.
New Bedford, MA 02745
Tel: +1-508-994-9661
Fax: +1-508-995-3000
sales1@aerovox.com
www.aerovox.com
3
Lighting Capacitors
Film CapaCitors For HigH intensity DisCHarge (HiD)
anD sign Ballast ligHting

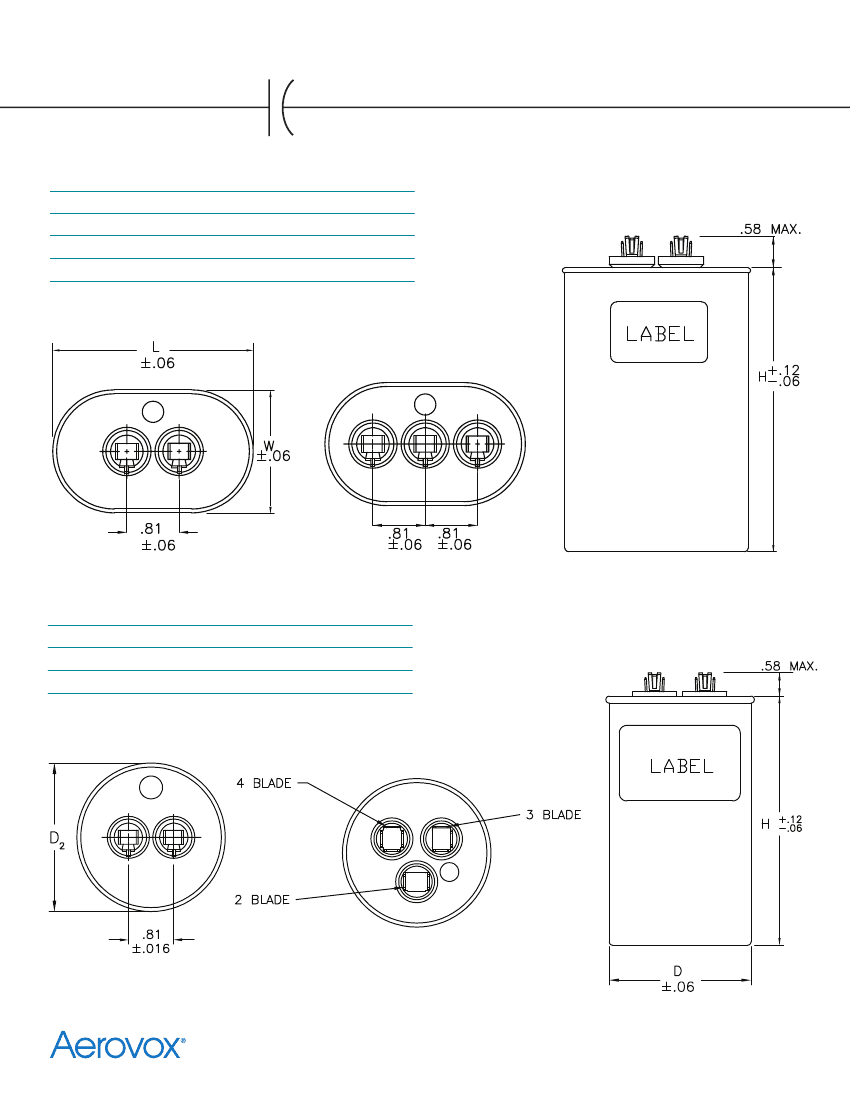

Oval Oil-Filled Case Sizes
Base size
A
B
C
D
Description
1¼" Oval
1½” Oval
1¾" Oval
2" Oval
l inches
2.16
2.69
2.91
3.66
W inches
1.31
1.56
1.91
1.97
Oval Single Cover Configuration
Oval Dual Cover Configuration
Round Oil-Filled Case Sizes
Base size
P
S
T
Description
1¾" Round
2" Round
2½" Round
D inches
1.75
2.00
2.50
D
2
inches
1.87
2.12
2.62
Round Single Cover Configuration
Round Dual Cover Configuration
167 John Vertente Blvd.
New Bedford, MA 02745
4
Tel: +1-508-994-9661
Fax: +1-508-995-3000
sales1@aerovox.com
www.aerovox.com
Lighting Capacitors
Film CapaCitors For HigH intensity DisCHarge (HiD)
anD sign Ballast ligHting
Dry Plastic Case Sizes
Base
size
AA
BB
CC
DD
Diameter
inches (mm)
1.18 (30)
1.58 (40)
1.77 (45)
1.97 (50)
Quick Connect
Wire Lead
Part Numbering
System
Aerovox’s part
numbering system is a
descriptive part number
made of several different
components such as
can size, voltage rating,
etc. The descriptors
are explained below
using Z73S4026MN as
a representative part
number:
Z
type
Z = Wet metal
case
D = Dry plastic
case
73
s
impregnant
S = Epoxidized Soy
Bean Oil
W = Dry w/ wire
A = Dry w/ QC
40
26
m
n
Can siZe
73 = 1.75” Rd
74 = 2” Rd
76 = 2.50” Rd
91 = 1.25” Oval
92 = 1.50” Oval
93 = 1.75” Oval
94 = 2.00” Oval
81 = 30 mm Rd
83 = 40 mm Rd
84 = 45 mm Rd
85 = 50 mm Rd
Voltage / CapaCity
DesCriptor
90°C Full life
M = As indicated
N = Odd rating
W = Dual rating
100°C Full life
B = Rating as
indicated
J = Odd Voltage/Cap
F = Dual Capacitor
100°C reduced life
P = Rating as
indicated
H = Odd Voltage/Cap
T = Dual Capacitor
Voltage
rating
33 = 330 VAC
40 = 400 VAC
CapaCitanCe
CoDe
26 = 26 µF
40 = 40 µF
aeroVox
FaCtory
H = India
N = China
"XX" = US
167 John Vertente Blvd.
New Bedford, MA 02745
Tel: +1-508-994-9661
Fax: +1-508-995-3000
sales1@aerovox.com
www.aerovox.com
5
