1GB - 128Mx72 DDR SDRAM REGISTERED w/PLL

FEATURES

Double-data-rate architecture

Clock speeds of 100MHz, 133MHz, 166MHz and

200MHz

Bi-directional data strobes (DQS)

Differential clock inputs (CK & CK#)

Programmable Read Latency 2,2,5 (clock)

Programmable Burst Length (2,4,8)

Programmable Burst type (sequential & interleave)

Edge aligned data output, center aligned data input

Auto and self refresh

Serial presence detect

Power Supply:

• V

= V

CCQ

= +2.5V (100, 133 and 166MHz)

• V

= V

CCQ

= +2.6V (200MHz)

JEDEC standard 184 pin DIMM package

PCB height: 30.48 (1.20") MAX

• JD3: 30.48mm (1.20")

• AJD3: 28.70mm (1.13")

* This product is under development, is not qualiﬁed or characterized and is subject to

change without notice.

DESCRIPTION

The W3EG72129S is a 128Mx72 Double Data Rate

SDRAM memory module based on 512Mb DDR SDRAM

component. The module consists of eighteen 64Mx8 DDR

SDRAMs in 66 pin TSOP package mounted on a 184 Pin

FR4 substrate.

Synchronous design allows precise cycle control with the

use of system clock. Data I/O transactions are possible on

both edges and Burst Lenths allow the same device to be

useful for a variety of high bandwidth, high performance

memory system applications.

OPERATING FREQUENCIES

DDR400 @CL=3

Clock Speed

CL-t

RCD

-t

200MHz

3-3-3

DDR333 @CL=2.5

166MHz

2.5-3-3

DDR266 @CL=2

133MHz

2-2-2

DDR266 @CL=2

133MHz

2-3-3

DDR266 @CL=2.5

133MHz

2.5-3-3

DDR200 @CL=2

100MHz

2-2-2

October 2004

Rev. 2

White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com

White Electronic Designs

W3EG72129S-JD3

-AJD3

PRELIMINARY

PIN CONFIGURATION

SYMBOL

REF

DQ0

DQ1

DQS0

DQ2

DQ3

RESET#

DQ8

DQ9

DQS1

CCQ

DQ10

DQ11

CKE0

CCQ

DQ16

DQ17

DQS2

DQ18

CCQ

DQ19

DQ24

DQ25

DQS3

DQ26

DQ27

CB0

CB1

SYMBOL

DQS8

CB2

CB3

BA1

DQ32

CCQ

DQ33

DQS4

DQ34

BA0

DQ35

DQ40

CCQ

WE#

DQ41

CAS#

DQS5

DQ42

DQ43

DQ48

DQ49

CCQ

DQS6

DQ50

DQ51

CCID

DQ56

DQ57

DQS7

DQ58

DQ59

SDA

SCL

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

SYMBOL

DQ4

DQ5

CCQ

DQM0

DQ6

DQ7

CCQ

DQ12

DQ13

DQM1

DQ14

DQ15

CKE1

CCQ

DQ20

A12

DQ21

A11

DQM2

DQ22

DQ23

DQ28

DQ29

CCQ

DQM3

DQ30

DQ31

CB4

CB5

CCQ

CK0

CK0#

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

SYMBOL

DQM8

A10

CB6

CCQ

CB7

DQ36

DQ37

DQM4

DQ38

DQ39

DQ44

RAS#

DQ45

CCQ

CS0#

CS1#

DQM5

DQ46

DQ47

CCQ

DQ52

DQ53

DQS15

DQ54

DQ55

CCQ

DQ60

DQ61

DQS16

DQ62

DQ63

CCQ

SA0

SA1

SA2

CCSPD

A0-A12

BA0-BA1

DQ0-DQ63

CB0-CB7

DQS0-DQS8

CK0

CK0#

CKE0, CKE1

CS0#, CS1#

RAS#

CAS#

DQM0-DQM8

WE#

CCQ

REF

CCSPD

SDA

SCL

SA0-SA2

CCID

RESET#

PIN NAMES

Address input (Multiplexed)

Bank Select Address

Data Input/Output

Check bits

Data Strobe Input/Output

Clock Input

Clock Enable input

Chip Select Input

Row Address Strobe

Column Address Strobe

Data-in Mask

Write Enable

Power Supply (2.5V)

Power Supply for DQS (2.5V)

Ground

Power Supply for Reference

Serial EEPROM Power Supply

(2.3V to 3.6V)

Serial data I/O

Serial clock

Address in EEPROM

Indentiﬁcation Flag

No Connect

Reset Enable

October 2004

Rev. 2

White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com

White Electronic Designs

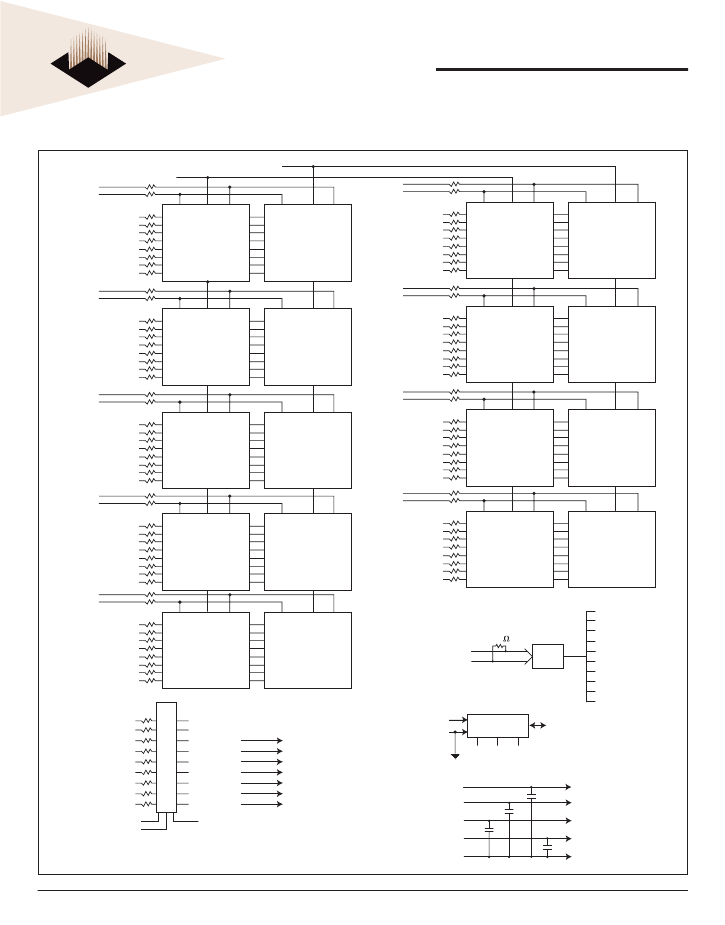

FUNCTIONAL BLOCK DIAGRAM
