524D1C824M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 524D1C824M

524D1C824M: DescriptionFilm Capacitor, 200V, 20% +Tol, 20% -Tol, 0.82uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size828KB，4 Pages; ManufacturerElectrocube Inc; Websitehttps://www.electrocube.com/

Download Datasheet Parametric View All

524D1C824M Overview

Film Capacitor, 200V, 20% +Tol, 20% -Tol, 0.82uF, Through Hole Mount, AXIAL LEADED

524D1C824M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Electrocube Inc
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.82 µF
Capacitor type	FILM CAPACITOR
JESD-609 code	e0
Manufacturer's serial number	524D
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

HERMETICALLY SEALED

MYLAR, KRAFT AND FOIL CAPACITORS

524 SERIES

Units are available in axial-lead

hermetic seal configurations in voltages

of 200, 300, 400 and 600 VDC.

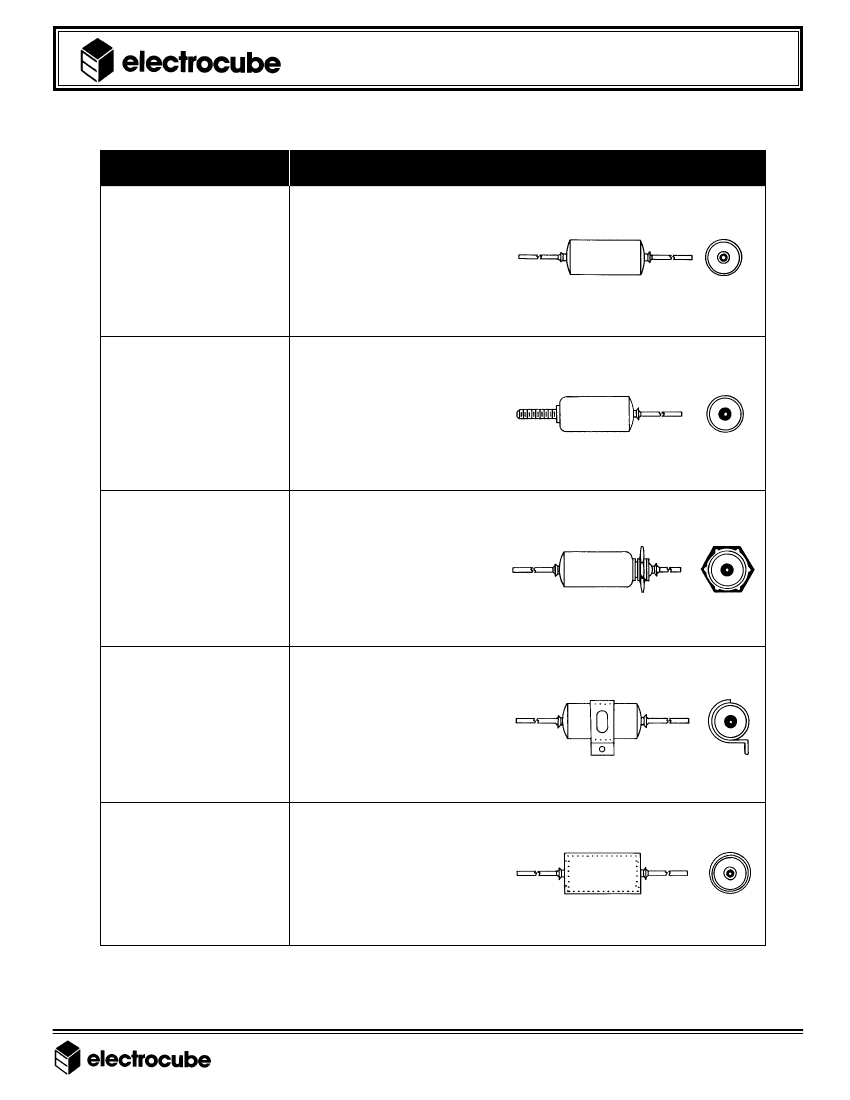

Five different case styles are offered.

All capacitors feature extended foil

construction and standard tin-coated

copper leads.

Dimensional variations for all MFD values

are available with the same volume to

meet your design requirements.

These unique high performance

capacitors offer long life characteristics

of kraft - mylar combined with an

environment protecting hermetically

sealed case.

Utilizing the newest and most modern

equipment and processes, these

capacitors are carefully manufactured

resulting in an extremely small size

with superior quality.

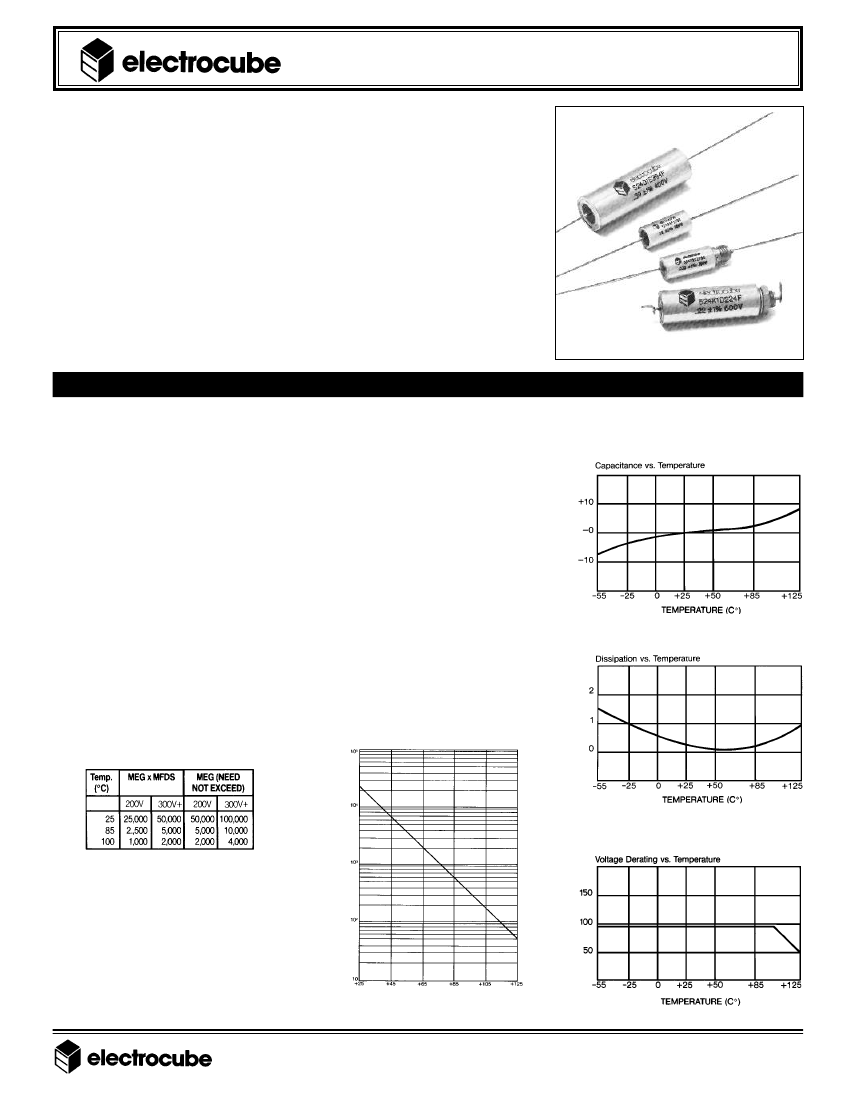

SPECIFICATIONS

Temperature:

-55°C to +100°C at rated voltage; to +125°C

with 50% voltage derating.

TYPICAL DIELECTRIC CHARACTERISTIC CURVES

Capacitance Stability:

Maximum change in capacity from nominal

values at 25°C ±6% over a temperature range of -55°C to +125°C.

Dielectric Strength:

Will withstand the application of twice rated

voltage at 25°C for a period of time to exceed two minutes. Current

should be limited to a maximum of 5 mA.

Life Test:

Capacitors shall withstand a test of 250 hours at 125°C and

140% of DC voltage with current limited to 1 ampere maximum per

MIL-C-14157B.

Dissipation Factor:

Measurement frequency for capacitance and

dissipation factor shall be 1000 Hz for values to 1 mfd; 120 Hz

for values over 1 mfd.

Acceptance Criteria:

Shall not exceed1% at 25°C.

Insulation Resistance:

At DC rated voltage

or 500V, whichever is less, units shall meet

the minimum values below:

Insulation Resistance vs. Temperature

NOTES:

For styles and ratings not shown, or for

unusual requirements necessitated by

special circuit applications (including

higher IR or lower DF), consult the

factory direct.

INSULATION RESISTA N C E

(MEGOHMS TIMES MICROFARADS)

T E M P E R ATURE (C°

)

1307 S. Myrtle Ave. • Monrovia, CA 91016 • TEL: (626) 301-0122 • FAX: (626) 357-8099

e-mail: sales@electrocube.com • Internet: www.electrocube.com • (IR: 10/00)

% DERATING

% DISSIPATION FACTO R
