DM8W28A-13

Description
Trans Voltage Suppressor Diode,
CategoryDiscrete semiconductor    diode
File Size447KB，5 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

DM8W28A-13 Online Shopping

Suppliers Part Number Price MOQ In stock
DM8W28A-13 - - View Buy Now

DM8W28A-13 Overview

Trans Voltage Suppressor Diode,

DM8W28A-13 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerDiodes
package instructionR-PSSO-C1
Reach Compliance Codenot_compliant
Factory Lead Time22 weeks
Other featuresHIGH RELIABILITY
Maximum breakdown voltage34.4 V
Minimum breakdown voltage31.1 V
Breakdown voltage nominal value32.75 V
Shell connectionANODE
Maximum clamping voltage45.4 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-218
JESD-30 codeR-PSSO-C1
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak reverse power dissipation6600 W
Number of components1
Number of terminals1
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
polarityUNIDIRECTIONAL
Maximum power dissipation8 W
GuidelineISO 7637-2; ISO 16750-2
Maximum repetitive peak reverse voltage28 V
Maximum reverse current10 µA
Reverse test voltage28 V
surface mountYES
technologyAVALANCHE
Terminal surfaceMatte Tin (Sn)
Terminal formC BEND
Terminal locationSINGLE

DM8W28A-13 Preview

Pb
DM8W10A-DM8W43A
6600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Product Summary
(@T
A
= +25°C)
P
PK
6600W
I
FSM
(A)
700
V
RWM
(V)
10 to 43
PM
(AV)
8W
Features and Benefits
6600W Peak Pulse Power Dissipation
T
J
= +175°C Capability Suitable for High Reliability and
Automotive Requirement
Available in Uni-Directional Polarity Only
High Current Capability
Glass Passivated Die Construction
Excellent High-temperature Stability
Meets ISO7637-2 Surge Capability
Meets ISO16750-2 Surge Specification
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (DM8W10AQ-DM8W43AQ)
NEW PRODUCT
ADVANCED INFORMATION
NEW PRODUCT
Description and Applications
Suitable to protect sensitive automotive circuits against surges
defined in ISO7637-2 and against load dump surge according to
ISO16750-2.
Compliance with following standards:
ISO 10605, Pulse A and Pulse B
ISO 7637-2 (Note 4)
Pulse 1, Pulse 2a, Pulse 3a, Pulse 3b
Mechanical Data
Case: DO-218
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead-Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity Indicator: Heatsink Is Anode
Weight: 2.74 grams (Approximate)
DO-218 (Type E)
Top View
Pin Information
Ordering Information
(Note 3)
Part Number
DM8WxxA-13
Qualification
AEC-Q101
Case
DO-218 (Type E)
Packaging
750/Tape & Reel
*x = Device Voltage, e.g., DM8W10A-13
Notes:
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
4. Not applicable to parts with stand-off voltage lower than the average battery voltage (13.5V).
Marking Information
Pin1
M8WxxA = Product Type Marking Code (i.e. M8W10A for DM8W10A-13)
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 8 for 2018)
WW = Week Code (01 to 53)
Bar Denotes Cathode Pin, Circle Denotes Anode
1 of 5
www.diodes.com
December 2018
© Diodes Incorporated
M8WxxA
DM8W10A-DM8W43A
Document number: DS40428 Rev. 3 - 2
DM8W10A-DM8W43A
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Pulse Power Dissipation
10/1000µs Waveform
(Non Repetitive Current Pulse Derated above T
A
= +25°C)
10/10000µs Waveform
(Note 5)
Peak Forward Surge Current,
8.3ms Single Half Sine-Wave Superimposed on Rated Load (Notes 5 & 6)
Steady State Power Dissipation @ T
C
= +25°C
Symbol
P
PK
I
FSM
PM
(AV)
Value
6,600
5,200
700
8.0
Unit
W
A
W
NEW PRODUCT
ADVANCED INFORMATION
NEW PRODUCT
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Case
Operating Temperature Range
Storage Temperature Range
Notes:
Symbol
R
θJC
T
J
T
STG
Value
0.9
-55 to +175
-55 to +175
Unit
°C/W
°C
°C
5. Valid provided that terminals are kept at ambient temperature.
6. Measured on 8.3ms single half sine-wave or equivalent square wave. Duty cycle = 4 pulses per minute maximum.
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Reverse
Standoff
Voltage
V
RWM
(V)
DM8W10A
DM8W11A
DM8W12A
DM8W13A
DM8W14A
DM8W15A
DM8W16A
DM8W17A
DM8W18A
DM8W20A
DM8W22A
DM8W24A
DM8W26A
DM8W28A
DM8W30A
DM8W33A
DM8W36A
DM8W40A
DM8W43A
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
Breakdown
Voltage
V
BR
@ I
T
(Note 7)
Min (V)
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
Max (V)
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
Test
Current
Max. Reverse
Leakage @
V
RWM
I
R
(A)
15
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Max. Clamping
Voltage @ I
pp
V
C
(V)
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
Max. Peak Pulse
Current I
pp
at
10/1000µs
(Note 8)
(A)
388
363
332
307
284
270
254
239
226
204
186
170
157
145
136
124
114
102
95.1
Maximum
Leakage
at V
WM
T
J
= +175℃
I
D
(µA)
250
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
Part Number
I
T
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Notes: 7. V
BR
measured with I
T
current pulse = 10ms to 15ms.
8. Refer to figure 3 for the waveform.
DM8W10A-DM8W43A
Document number: DS40428 Rev. 3 - 2
2 of 5
www.diodes.com
December 2018
© Diodes Incorporated
DM8W10A-DM8W43A
5500
5000
P
D
, POWER DISSIPATION (W)
10.00
LOAD DUMP POWER (W)
8.00
6.00
4.00
2.00
0.00
25
50
75
100
125
150
175
T
C
, CASE TEMPERATURE (°C)

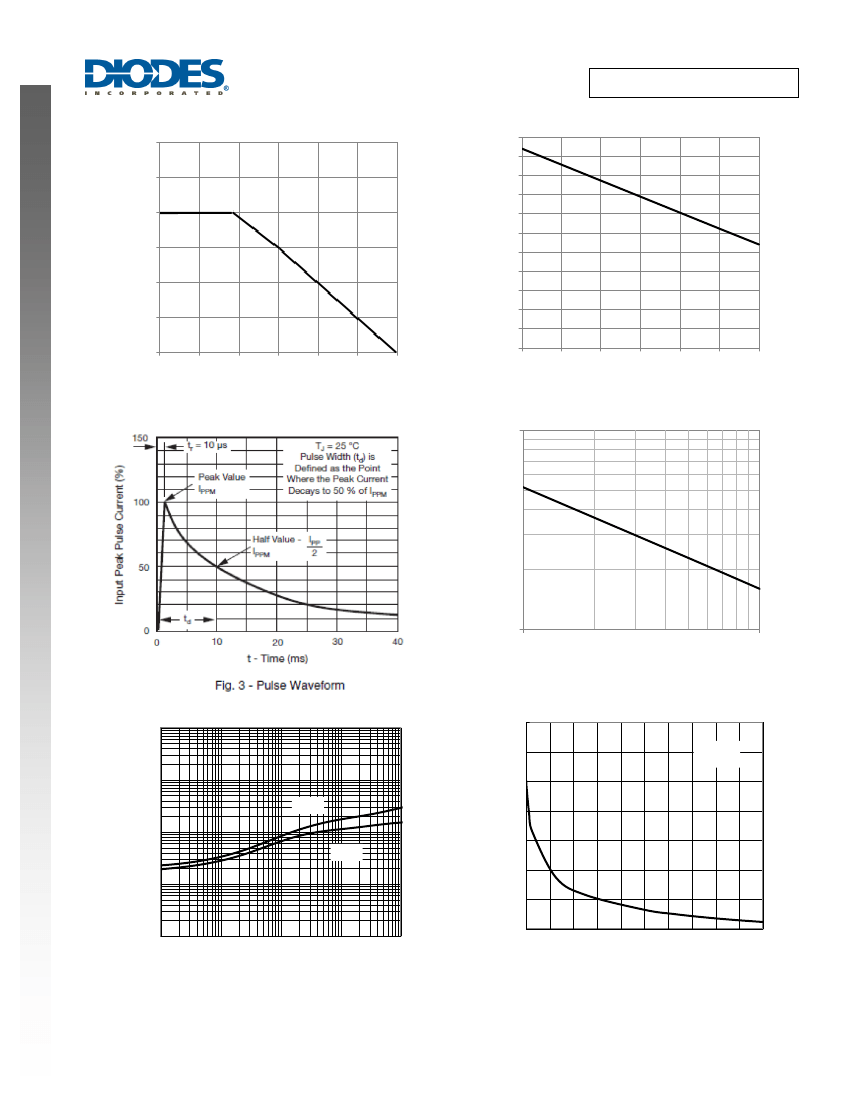

Fig. 1 Power Derating Curve
10000
REVERSE SURGE POWER (W)
4500
4000
3500
3000
2500
2000
1500
1000
500
0
25
50
75
100
125
150
175
T
C
, CASE TEMPERATURE (°C)
Fig. 2 Load Dump Power Characteristics
(10ms Exponential Waveform)
12.00
NEW PRODUCT
ADVANCED INFORMATION
NEW PRODUCT
1000
10
100
PULSE WIDTH (ms) - 1/2 I
PP
EXPONENTIAL
WAVEFORM
Fig. 4 Reverse Power Capability
TRANSIENT THERMAL IMPEDANCE (℃/W)
C
T
, TYPICAL TOTAL CAPACITANCE (pF)
8000
7000
6000
5000
4000
3000
2000
1000
0
4
8
12
16
20
24
28
32
36
40
V
R
, REVERSE VOLTAGE (V)
Fig. 6 Typical Total Capacitance
f =1MHz
T
A
=25°C
100
10
R
θJA
1
R
θJC
0.1
0.01
0.01
0.1
1
10
100
t1, PULSE DURATION TIME (sec)
Fig. 5 Typical Transient Thermal Impedance
DM8W10A-DM8W43A
Document number: DS40428 Rev. 3 - 2
3 of 5
www.diodes.com
December 2018
© Diodes Incorporated
DM8W10A-DM8W43A
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
DO-218 (Type E)
NEW PRODUCT
ADVANCED INFORMATION
NEW PRODUCT
D1
H
D
D2
c
L
b
E
A
A1
A2
A4
E1
A3
DO-218
(Type E)
Dim
Min
Max
Typ
A
4.70
5.70
--
A1
4.70
5.25 5.00
A2
3.45
4.25 3.95
A3
1.70
2.50 2.00
A4
2.65
3.55 3.10
b
2.30
3.00
--
c
0.45
0.90
--
D
13.20 13.80 13.50
D1
8.70
9.30 9.00
D2
9.70 10.30 10.00
E
8.20
8.80 8.50
E1
9.50 10.00
--
H
15.00 16.00 15.50
L
1.50
2.50 2.00
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
DO-218 (Type E)
X1
Y1
Dimensions
G
X
X1
Y
Y1
Y2
Y2
G
Value
(in mm)
3.30
3.50
11.00
3.00
9.50
15.80
Y
X
DM8W10A-DM8W43A
Document number: DS40428 Rev. 3 - 2
4 of 5
www.diodes.com
December 2018
© Diodes Incorporated
DM8W10A-DM8W43A
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
NEW PRODUCT
ADVANCED INFORMATION
NEW PRODUCT
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2018, Diodes Incorporated
www.diodes.com
DM8W10A-DM8W43A
Document number: DS40428 Rev. 3 - 2
5 of 5
www.diodes.com
December 2018
© Diodes Incorporated
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DM8W28A-13 Related Products

DM8W28A-13
Description Trans Voltage Suppressor Diode,
Is it Rohs certified? conform to
Maker Diodes
package instruction R-PSSO-C1
Reach Compliance Code not_compliant
Factory Lead Time 22 weeks
Other features HIGH RELIABILITY
Maximum breakdown voltage 34.4 V
Minimum breakdown voltage 31.1 V
Breakdown voltage nominal value 32.75 V
Shell connection ANODE
Maximum clamping voltage 45.4 V
Configuration SINGLE
Diode component materials SILICON
Diode type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code DO-218
JESD-30 code R-PSSO-C1
JESD-609 code e3
Humidity sensitivity level 1
Maximum non-repetitive peak reverse power dissipation 6600 W
Number of components 1
Number of terminals 1
Maximum operating temperature 175 °C
Minimum operating temperature -55 °C
Package body material PLASTIC/EPOXY
Package shape RECTANGULAR
Package form SMALL OUTLINE
polarity UNIDIRECTIONAL
Maximum power dissipation 8 W
Guideline ISO 7637-2; ISO 16750-2
Maximum repetitive peak reverse voltage 28 V
Maximum reverse current 10 µA
Reverse test voltage 28 V
surface mount YES
technology AVALANCHE
Terminal surface Matte Tin (Sn)
Terminal form C BEND
Terminal location SINGLE

Recommended Resources

LAS16U, LAS19U typical application circuit diagram

Crystal diode-capacitor double boost circuit (1)

Single key switch circuit 2

Flash circuit powered by AC mains

Zener diode threshold NOT gate circuit

120db frequency sweep alarm sound circuit

I'm at work, I'm sleepy (⊙o⊙) Post a message
We finally reached the age we had longed for, but found that some people have married, some have gone abroad, some have persisted in their dreams, and some have been doing nothing. The blue sky when w...
499362154 Talking
How to configure the clock of the whole system in a program of F5529
Now I want to configure the system clock, which is MCLK SMCLK ACLK, but I failed after trying~~~~~~~~ Can someone tell me how to configure the clock system when programming? ??? ???...
Ben讨厌苦咖啡 Microcontroller MCU
[Awards awarded] Grab the post! Download the TWS headset white paper, write a wonderful review, and win a JD card!
Award Post: Grab the post! Download the TWS headset white paper, write a wonderful review, and win a JD card!Event time: From now until October 26True Wireless Stereo (TWS) earphones have finally beco...
EEWORLD社区 Integrated technical exchanges
What can C2000 do?
[color=#333333][font=Verdana, Arial, Helvetica, sans-serif][size=4]Although the C2000 family is used for industrial applications, TI has come up with a unique way of naming the three series in a music...
fish001 Microcontroller MCU
About the operation of the optical drive
How to implement the right-click eject operation of the CD-ROM drive through a program. Specifically: if a device is a CD-ROM drive after being plugged in, how to write an application to eject this CD...
lottery009 Embedded System
How to intercept USB signals through MCU
I want to intercept the information of a PC host and a card reader through an MCU. Is there any good way? Our host cannot be installed with software such as Bushound, and the normal communication betw...
xinqrs Embedded System
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. TBJE477M006LBLB0024
  2. PCF0805-02-12R1CA
  3. EL240A30R-24N
  4. 67010-3031
  5. 63K256-090T
  6. 7201P3Y3Z3QIS2
  7. OC20C-10M000-B20BV
  8. FP20216131211ADEC
  9. 1N5235B-35T/R
  10. 1N5259BC-35B
  11. A2541HWV-33P-H71
  12. C4201WVS-2x2P

Popular Articles

  1. Analysis of Freescale MCU PWM module (3)
  2. Ballard Launches Heavy Duty Power Module FCmove-HD+ with Smaller Size and Higher Efficiency
  3. ‌iOS 15 ‌Beta 6 update details revealed: Safari has been modified again
  4. Can sodium-ion batteries become the next generation of future batteries?
  5. Talk about the working principle of single-phase capacitor motor
  6. How long is the protocol decoding time supported by the ZDS2022 oscilloscope?
  7. What are the reasons for using a UV ozone detector?
  8. Testing method for integrated circuits using only a multimeter as a testing tool
  9. WiTricity and ABT e-Line launch wireless EV charging in Europe
  10. Mouser Now Stocking Silicon Labs EFR32FG25 Flex Gecko Wireless SoC

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1504  1277  1796  1533  374  31  26  37  8  56
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
