2365-3-13-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

2365-3-13-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking

2365-3-13-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.201 inch
subject depth	0.713 inch
body length	1.231 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	IDC
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2365
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	13
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

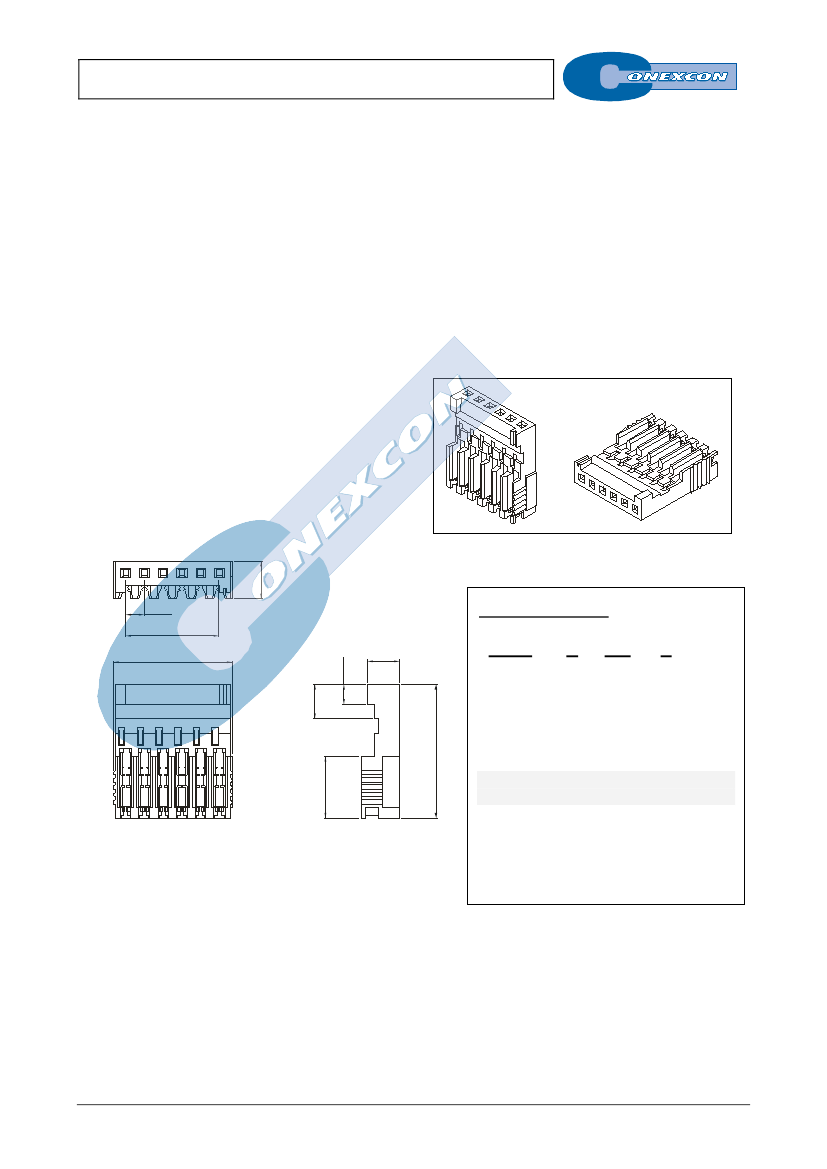

SINGLE ROW IN LINE IDC ENTRY CONNECTOR

2365 SERIES.

2.54 mm. (0.100”) pitch.

General Features

Electrical Features

Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ



Mates with 2.54mm pin headers 2345, 2346 & 2367 series



Wires range : 24 AWG to 28 AWG O.D max. 1.20 mm



Twin insulation displacement slot



In line entry wires



Available in 2 through 18 circuits

Materials

Mechanical Features



Insulator: Nylon 66. UL 94 V-0

Contact: Brass

Operating temperature: -25ºC to +85ºC

RoHS compliant



Durability: 25 cycles

Dimension Information

.201

5.1

2.54

.100

A

B

4.4

.173

Ordering Information:

2365 -

1

T-

2

XX-

3

1

4

.181

4.6

2.50

.098

1. Connector Series

18.12

.713

2. (T) Contact Plating

.331

8.4



T =

2.

Tin plated



T =

3.

Gold flash over nickel

Recommended Finish



T =

5.

15µ” gold over nickel



T =

6.

30µ” gold over nickel

3. (XX) Number of circuits



Available in 2 through 18 circuits

Dimensions:

(In mm.)

A

= 2.54 x (XX)

B

= 2.54 x (XX*-1)+0.8

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE

2365-3-13-1 Related Products

	2365-3-13-1	2365-2-09-1	2365-5-10-1	2365-2-07-1	2365-2-17-1
Description	Board Connector, 13 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking	Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking	Board Connector, 17 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
body width	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch
subject depth	0.713 inch	0.713 inch	0.713 inch	0.713 inch	0.713 inch
body length	1.231 inch	0.831 inch	0.931 inch	0.631 inch	1.631 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	SN	AU ON NI	SN	SN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	IDC	IDC	IDC	IDC	IDC
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	2365	2365	2365	2365	2365
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	13	9	10	7	17
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Contact completed and terminated	-	TIN	-	TIN	TIN
Base Number Matches	-	1	1	1	1
