THD4344 Overview

THD & TDD SERIES - LCC-RESONANCE TRANSFORMERS

Preview

Download Datasheet

View All

THD & TDD SERIES - LCC-RESONANCE TRANSFORMERS

A. Features:

Low Profile to achieve Low Core Loss and High Efficiency.

RoHS Compliant and Halogen Free.

Constructed with UL Approved Class B Insulation.

AV equipment, digital consumer electronics, and many

other applications.

Rev. A

B. Application:

C. Electrical Specifications:

Model No

THD4344HXXXXS

THD4549HXXXXS

TDD4549HXXXXS

TDD3528HXXXXS

Input Voltage

(VDC)

390

Frequency

(KHz) Min.

120

Maximum Output

Power (W)

200

180

83.2

63.2

Mount Method

THROUGH HOLE

DROP-IN

Height

(mm) Max.

15.0

12.5

11.0

12.5

Number of Pins

Primary(Pin) Secondary(Pin)

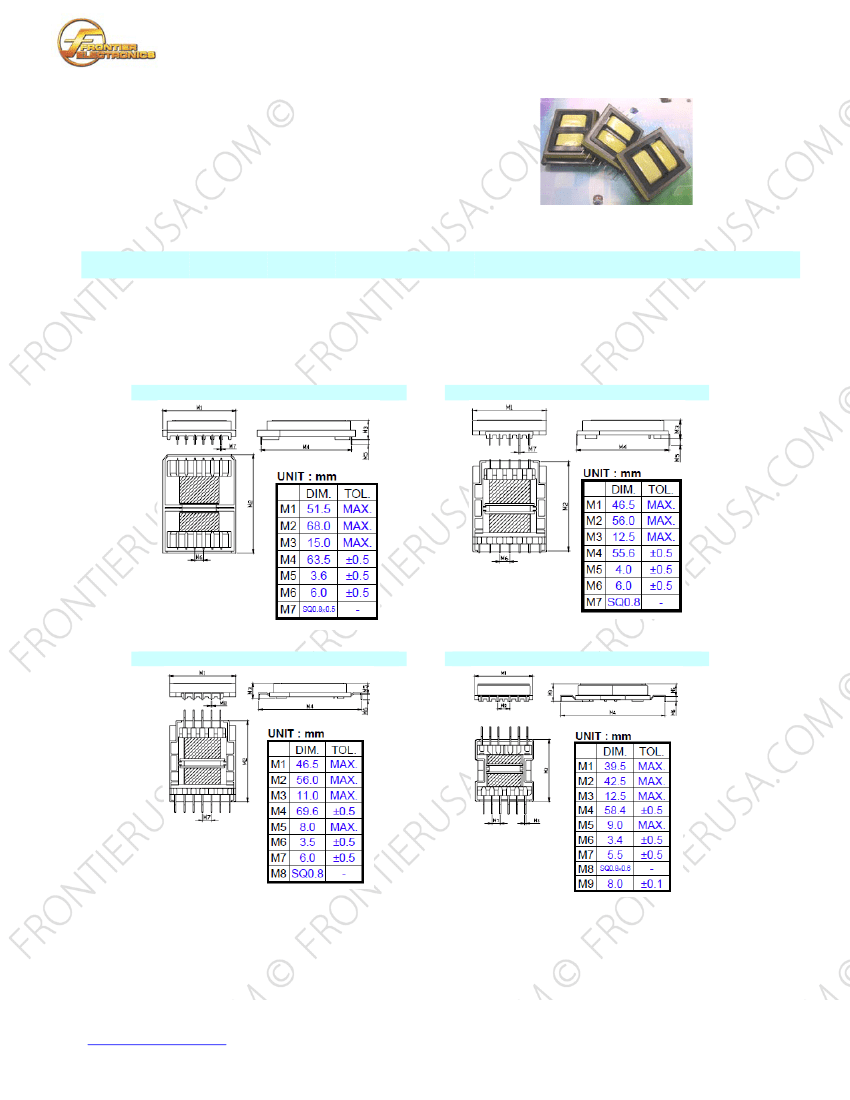

Drawings

THD4344HXXXXS

THD4549HXXXXS

TDD4549HXXXXS

TDD3528HXXXXS

Frontier Electronics Corp.

http://www.frontierusa.com

Page

667 E. Cochran St., Simi Valley, CA 93065

Phone: 1-805-522-9998, Fax: 1-805-522-9989
