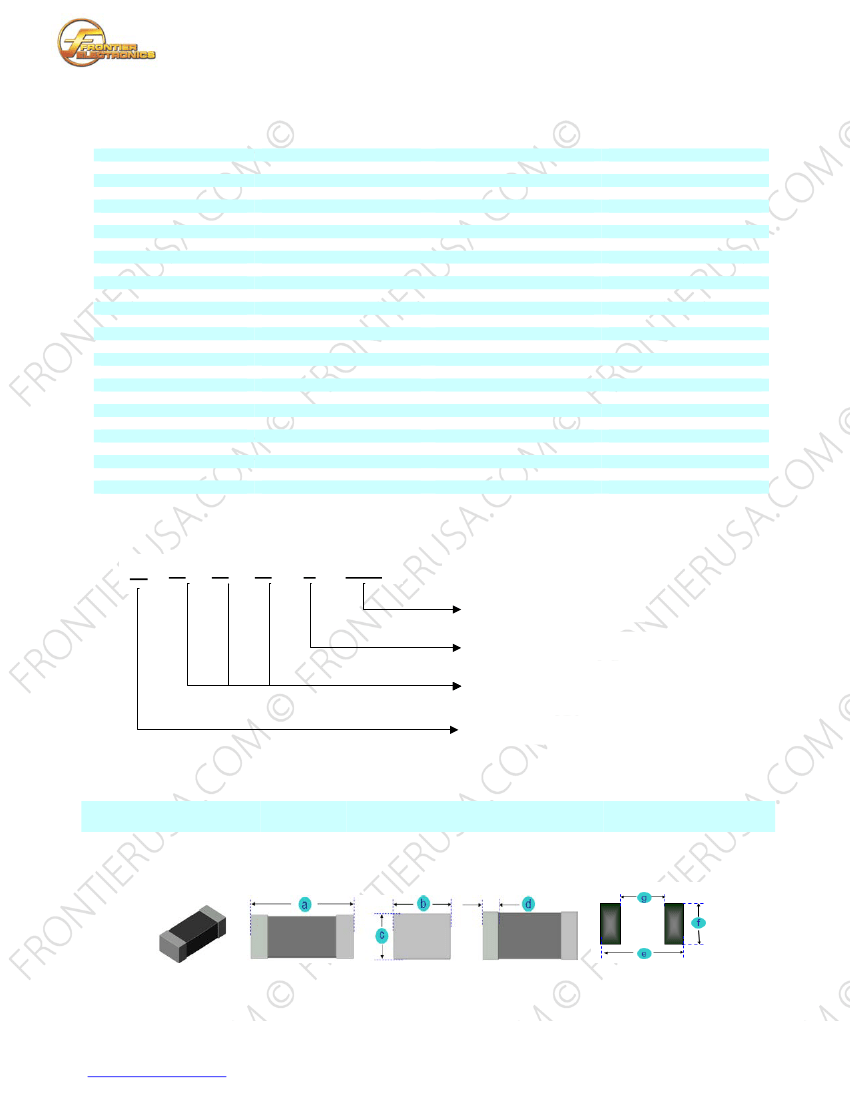

TI321611 (1206) Series
SMD MULTILAYER FERRITE CHIP BEADS (HIGH CURRENT)
Rev. A
A. Electrical Specifications:
P/N
I rms. Max. (A)
Impedance (Ω) ±25% @100MHz
DCR Max.(Ω)
19
0.015
6.0
TI321611B190
31
0.030
4.0
TI321611G310
60
0.030
4.0
TI321611G600
80
0.030
4.0
TI321611G800
100
0.030
3.0
TI321611G101
600
0.200
2.0
TI321611G601
26
0.010
6.0
TI321611U260
31
0.010
6.0
TI321611U310
50
0.025
3.0
TI321611U500
60
0.040
3.0
TI321611U600
75
0.040
3.0
TI321611U750
80
0.040
3.0
TI321611U800
100
0.040
3.0
TI321611U101
120
0.040
3.0
TI321611U121
150
0.050
3.0
TI321611U151
220
0.050
3.0
TI321611U221
300
0.050
3.0
TI321611U301
390
0.070
2.5
TI321611U391
500
0.060
3.0
TI321611U501
600
0.060
3.0
TI321611U601
1000
0.200
2.0
TI321611U102
26
0.010
6.0
TI321611Z260
50
0.030
3.0
TI321611Z500
60
0.030
3.0
TI321611Z600
120
0.050
3.0
TI321611Z121
300
0.050
3.0
TI321611Z301
500
0.060
3.0
TI321611Z501
600
0.080
3.0
TI321611Z601
Note: TI321611yxxx, “TI” = Type, “32” = Length, “16” = Width, “11” = Thickness, “y” = Material, “xxx” = Impedance.
B. Part Number Key:
TI
32
16
11
Y
XXX
IMPEDANCE VALUE
MATERIAL CODE: L, U, Z, B or G
DIMENSIONS:
LENGTH (a) x WIDTH (b) x THICKNESS (c)
FAMILY: TI
C. Dimensions: mm (Inch)
Series
TI321611(1206)
Tol.
a
3.2
(0.126)
± 0.2
(0.008 )
b
1.6
(0.063)
± 0.2
(0.008 )
c
1.1
(0.043)
± 0.2
(0.008 )
d
0.5
(0.020)
± 0.3
(0.012 )
e
4.40
(0.173)
Typ.
f
1.80
(0.071)
Typ.
g
1.20
(0.047)
Typ.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
TI321611 (1206) Series
SMD MULTILAYER FERRITE CHIP BEADS (HIGH CURRENT)
Rev. A
D. Materials:
ITEM
Initial Permeability (µiac):
Maximum Permeability (µm):
Saturation Flux Density at 10 Oe:
Curie Temperature(Tc):
Volume Resistivity (ρ):
Temperature Coefficient:
Density:
a.
b.
c.
d.
e.
f.
UNIT
----
----
Gauss
°C
Ω-m
1/10000°C
g/cm³
L
25
125
2000
>200
100000
10
4.8
B
45
125
2000
>200
100000
10
4.8
Material Code
G
110
250
1700
>130
100000
13
4.8
U
200
450
1400
>100
100000
5
4.8
Z
500
900
1500
>130
100000
12
4.8

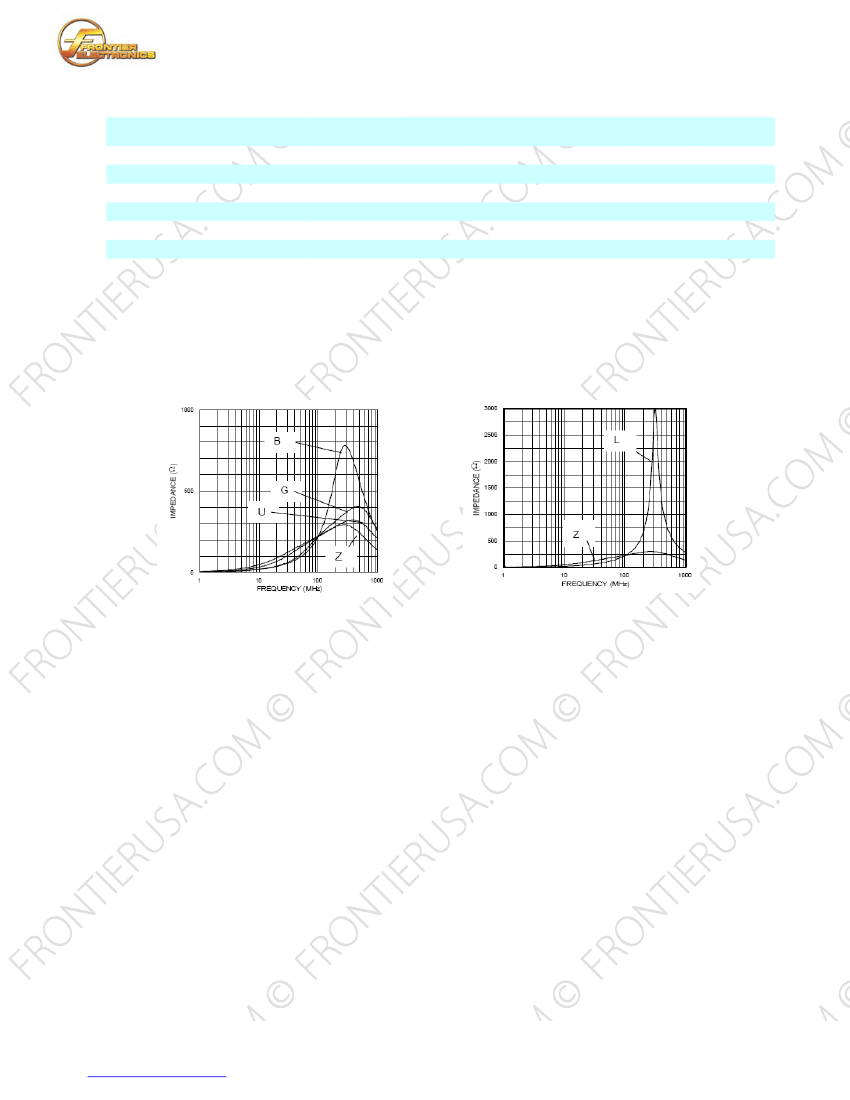

E. Impedance Characteristics of Materials:
Z Material is for applications whose blocking regions are near 100 MHz.
L Material, an improvement of B Material has sharp impedance characteristic at high frequency.
G Material is for application whose signal frequency is far from the cut off region. Suitable for application requires low
insertion loss at high frequency.
Different materials are available for different application range.
With one material, higher impedance has sharper characteristics.
Please confirm the signal wave form to choose suitable products.
F. General Information:
TI321611-yxxx, “TI” = Type, “32” = Length, “16” = Width, “11” = Thickness, “y” = Material, “xxx” =
Impedance.
2. Tolerance: ±25%
3. Small and lightweight surface mounting type
4. High-density packaging with a pitch of 2.54 mm (0.1 inch) max.is possible. This series requires less space and
have greater EMI suppression effects.
5. Excellent in physical properties, such as terminal strength, flexure strength, soldering resistance and solder-ability.
6. Applicable to both flow and IR reflow soldering.
7. High impedance covers wide frequency ranges.
8. TI series can be used in high current circuits due to its low DC resistance.
9. Operating temperature: -40°C to +125ºC
10. Impedance and Current range: From 19
Ω
(6000 mA) to 1000
Ω
(2000 mA)
11. Unspecified values available on request.
12. MSL: Level 1.
1.
G. Applications
1.
2.
3.
4.
5.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
