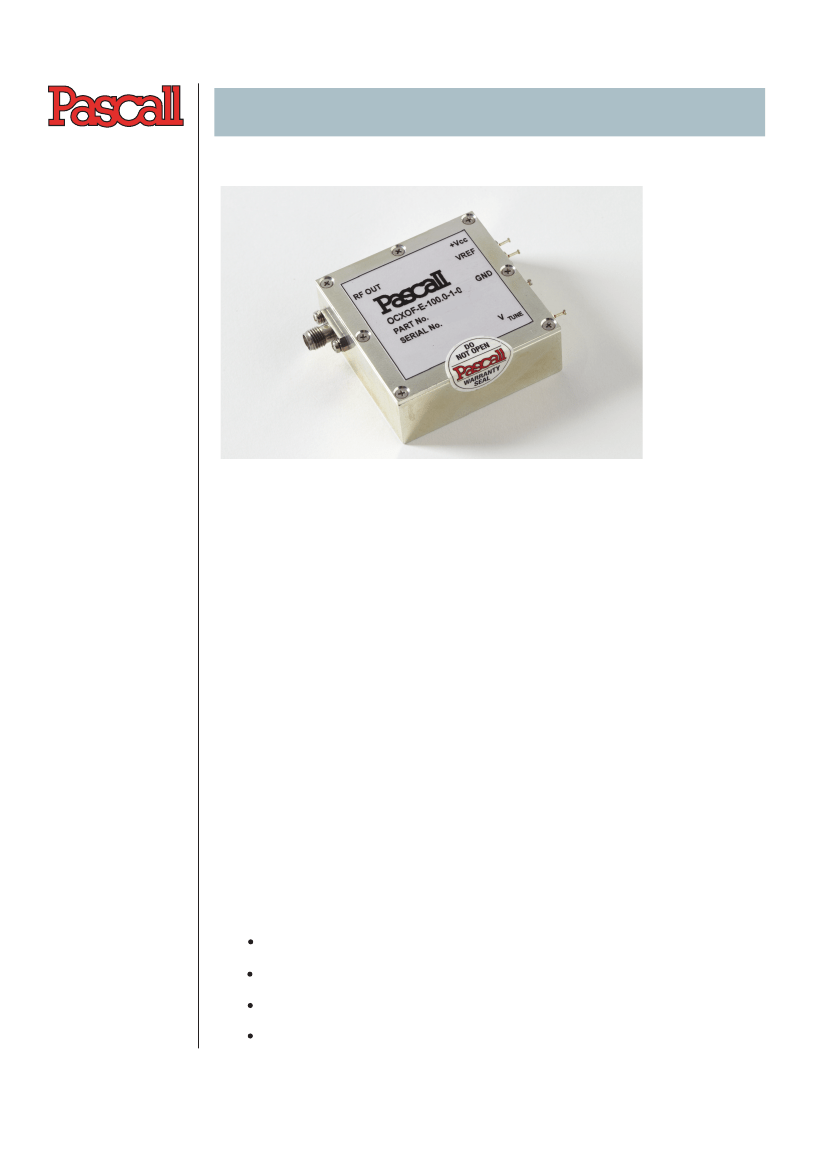

For performance levels at other frequencies, please consult the sales office.
Supply voltage
Power consumption at 25ºC
RF output connector
Dimensions
Options
+12V +/-5%
steady state 2.5W, warm-up 5W (<5 mins)
SMA jack
51.0 x 51.0 x 19.0mm
Reference voltage output - 10.5V nominal (source impedance 10kΩ in parallel with 10μF)
Mechanical tuning +/-6 x 10
Supply voltage +15V
±5%
-6
Errors and omissions excepted
100MHz level E OCXO
Page 2 of 4
OCXOF SERIES - EXTRA LOW NOISE FLOOR CRYSTAL OSCILLATORS
ELECTRONICS LIMITED
Frequency range
Tuning range
Tune voltage
Temperature stability
Aging/ year
Output power
Harmonics

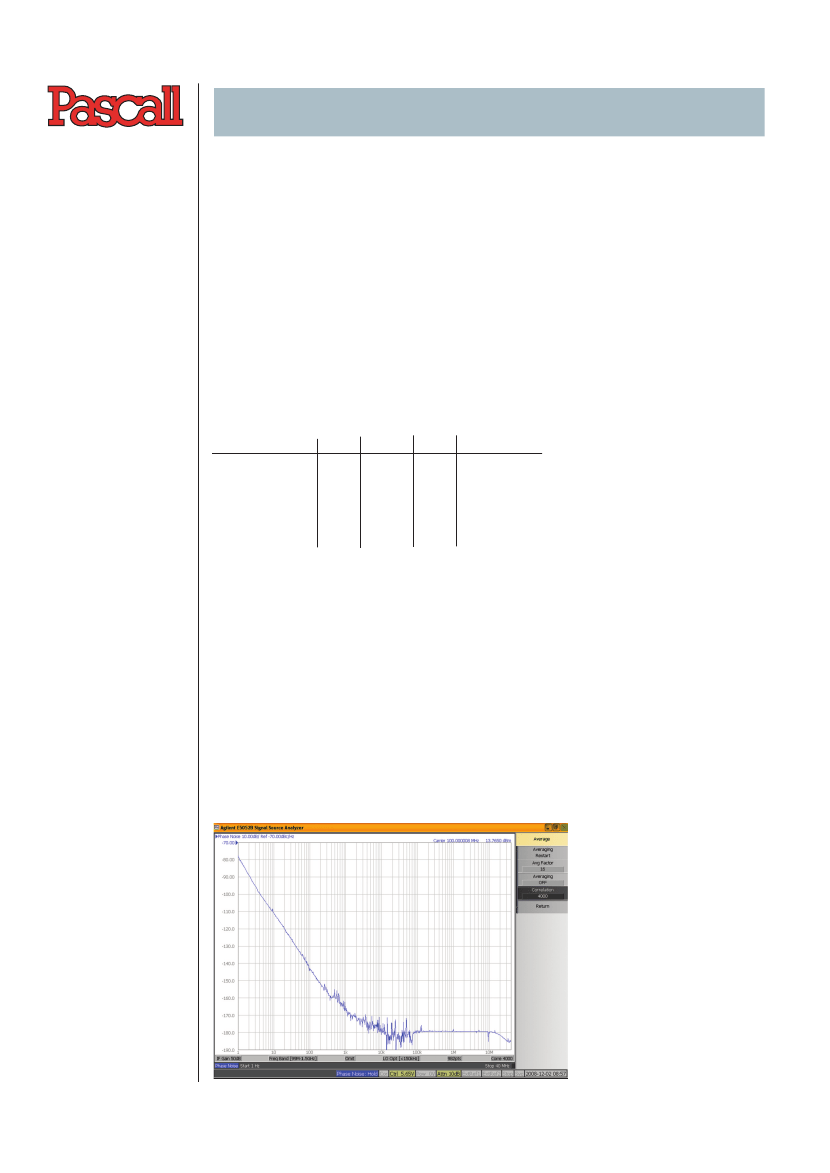

Phase noise
for 100MHz unit
40 - 160MHz
+/- 6 x 10
-6
0 to +10V, positive slope
-30 to 70ºC:
-6
+/- 2 x 10
-7
0.5 x 10 after 30 days
18dBm
±
2dB, 50Ω
-20dBc
Minimum guaranteed
performance
10Hz
level E
-102
level 1
-100
100Hz
-137
-135
1kHz
-164
-162
10kHz
-178
-176
100kHz offsets
-182 dBc/Hz
-182 dBc/Hz
For performance levels at other frequencies, please consult the sales office.
Supply voltage
Power consumption at 25ºC
RF output connector
Dimensions
Options
+12V +/-5%
steady state 3.5W, warm-up 6W (<5 mins)
SMA jack
51.0 x 51.0 x 19.0mm
Reference voltage output - 10.5V nominal (source impedance 10kΩ in parallel with 10μF)
Negative tune slope
Mechanical tuning +/-6 x 10
Supply voltage +15V
±5%
-6
Errors and omissions excepted
100MHz OCXOF level E
Page 3 of 4
ULTRA LOW NOISE VHF CRYSTAL OSCILLATORS
ELECTRONICS LIMITED

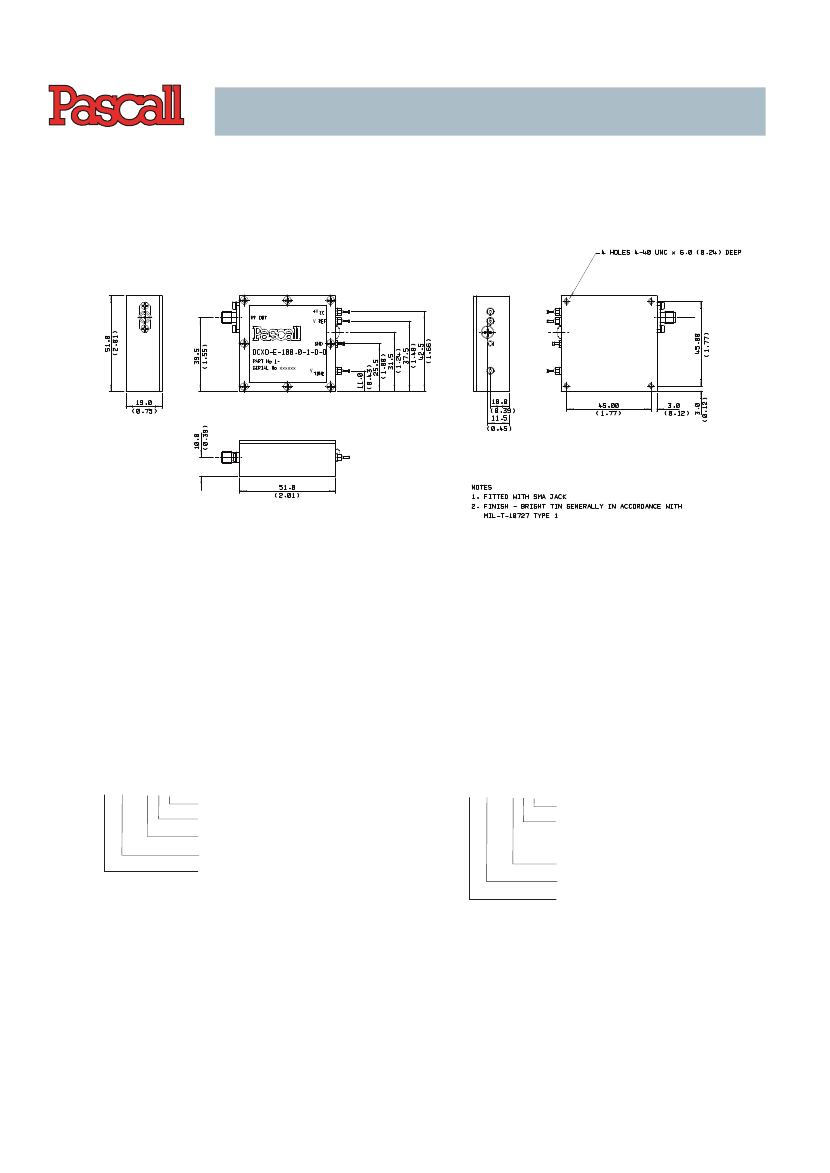

Outline Drawing
Dimensions and connections are the same for OCXO & OCXOF series
Ordering Information
OCXO
OCXO-A-XXX.X-B-C-D
OCXOF
OCXOF-A-XXX.X-B-C-D
OCXO-A-XXX.X-B-C-D
Supply voltage, 0= 12V and 1=15V
Tuning 0 = electrical 1 = mechanical
Reference voltage output 0 = no 1 = yes
Output frequency to 1 decimal place
Performance level
OCXOF-A-XXX.X-B-C-D
Supply voltage, 0= 12V and 1=15V
Tuning 0 = electrical (positive slope)
N = electrical (negative slope)
1 = mechanical
Reference voltage output 0 = no 1 = yes
Output frequency to 1 decimal place
To summarise:
a part number depicted as follows: OCXO-1-097.5-1-0-0
This shows an OCXO with level 1 performance, 97.5MHz frequency,
with reference voltage output, positive slope, electrical tuning and
12V operation.
Performance level
Errors and omissions excepted
General - Information in this document is believed to be accurate and reliable. However, Pascall Electronics Ltd. does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such
information and shall have no liability for the consequences of use of such information.
Right to make changes - Pascall Electronics Ltd. reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice.
This document supersedes and replaces all information supplied prior to the publication hereof
