884003484/30 Overview

Wire And Cable,

884003484/30 Parametric

Parameter NameAttribute value
MakerCommScope Inc
Reach Compliance Codeunknown
Connector bracket typeWIRE AND CABLE

884003484/30 Preview

884003484/30 | 10GNS4 GREEN REEL 3K
Ultra 10® 10GNS4 ETL Verified Category 6A F/UTP Cable, non-plenum,
green jacket, 4 pair count, 3000 ft (914 m) length reel
OBSOLETE
Replaced By
UN884029384/30
CS44R ETL Verified Category 6A F/UTP Cable, non-plenum, green jacket, 4 pair count, 3000
non-
CS44R GRN C6A 4/23 F/UTP RL 3KFT ft (914 m) length reel
Product Classification
Portfolio
Brand
Product Type
Regional Availability

Uniprise®
Ultra 10®
Twisted pair cable
North America

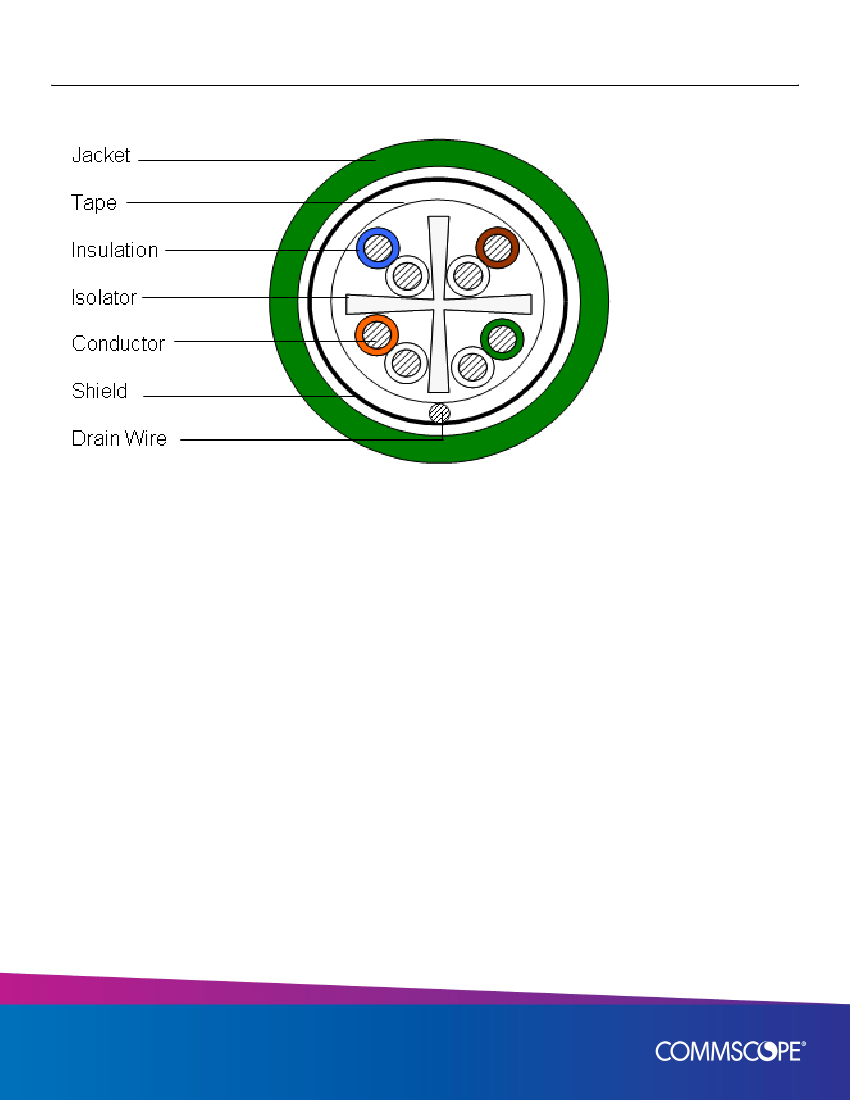

Cross Section Drawing
page 1 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
884003484/30 | 10GNS4 GREEN REEL 3K


Construction Materials
Jacket Material
Conductor Material
Drain Wire Material
Insulation Material
Separator Material

PVC
Bare copper
Tinned copper
Polyolefin
Polyolefin
Dimensions
Cable Length
Cable Weight
Diameter Over Jacket, nominal
Jacket Thickness

914 m   |   3000 ft
38.65 lb/kft
7.518 mm   |   0.296 in
0.508 mm   |   0.020 in
Electrical Specifications
ANSI/TIA Category
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
6A
4%
8.00 ohms/100 m
45 ns
5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)
68 %
page 2 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
884003484/30 | 10GNS4 GREEN REEL 3K
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum

500 MHz
ANSI/TIA-568-C.2
300 V
1500 Vac   |   2500 Vdc
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Operating Temperature

Non-plenum
CMR
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Drain Wire Gauge
Drain Wire Type
Separator Type

F/UTP (shielded)
Reel
4
Horizontal
Green
10GNS4
23 AWG
Solid
8
24 AWG
Solid
Isolator
Mechanical Specifications
Pulling Tension, maximum
11 kg   |   25 lb
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
page 3 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
884003484/30 | 10GNS4 GREEN REEL 3K
Electrical Performance
Std
IL
NEXT
ACR
PSNEXT
PSACR
ACRF
PSACRF
RL
TCL
ELTCTL
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Insertion Loss (dB/100m)
Near End Crosstalk (dB/100m)
Attenuation to Crosstalk Ratio (dB/100m)
Power Sum Near End Crosstalk (db/100m)
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
Attenuation to Crosstalk Ratio - Far End (dB/100m)
Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
Return Loss (dB)
Transverse Conversion Loss (dB/100m)
Equal Level Transverse Conversion Transfer Loss (dB/100m)
Freq.
MHz
1
4
8
10
16
20
25
31.25
62.5
100
155
200
250
300
350
400
500
IL
Std
2.1
3.8
5.3
5.9
7.5
8.4
9.4
10.5
15.0
19.1
24.1
27.6
31.1
34.3
37.2
40.1
45.3
NEXT
Std
74.3
65.3
60.8
59.3
56.2
54.8
53.3
51.9
47.4
44.3
41.4
39.8
38.3
37.1
36.1
35.3
33.8
ACR
Std
72.2
61.5
55.4
53.4
48.8
46.4
44.0
41.4
32.4
25.2
17.4
12.2
7.3
2.9
-1.1
-4.8
-11.4
PSNEXT
Std
72.3
63.3
58.8
57.3
54.2
52.8
51.3
49.9
45.4
42.3
39.4
37.8
36.3
35.1
34.1
33.3
31.8
PSACR
Std
70.2
59.5
53.4
51.4
46.8
44.4
42.0
39.4
30.4
23.2
15.4
10.2
5.3
0.9
-3.1
-6.8
-13.4
ACRF
Std
67.8
55.8
49.7
47.8
43.7
41.8
39.8
37.9
31.9
27.8
24.0
21.8
19.8
18.3
16.9
15.8
13.8
PSACRF
Std
64.8
52.8
46.7
44.8
40.7
38.8
36.8
34.9
28.9
24.8
21.0
18.8
16.8
15.3
13.9
12.8
10.8
RL
Std
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
18.8
18.0
17.3
16.8
16.3
15.9
15.2
TCL
Std
40.0
40.0
40.0
40.0
38.0
37.0
36.0
35.1
32.0
30.0
28.1
27.0
26.0
25.2
24.6
24.0
23.0
ELTCTL
Std
35.0
23.0
16.9
15.0
10.9
9.0
7.0
page 4 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
