REP Series
High Reliability Rectangular
Plastic Connector
The REP connector is a multi pole sealed rectangular plastic connector which provides a quick, reliable and easy
connection in all electronic applications: Railway, Industrial, Test & Measurement, Automotive and Defense markets.
The REP connector series uses the proven Hypertac® Hyperboloid contact technology which guarantees excellent
reliability, even under high levels of shock and vibration. The REP connector is available in 2, 6 and 12 ways and uses
one contact for 24-12AWG wire gauge. The REP can also be delivered as a pre-cabled solution according to custo-
mers’ specifications.
Other benefits of the REP series:
Compliance with standards
>>
UL94V0, EN 61-373, EN 50-124, NFF 61-030, NFF 16-101,
NFF 16-102 (fire & smoke), materials in polycarbonate and
back shell in silicone
Only one contact for cables from size 0.50mm² to
2.5mm² (24-12AWG) according to EN 50306-2
Polarised guides & 4 different configurations (cable to
cable,
clips, front and back panel mount)
Plug finger proof IP2- and high withstanding voltage up to 2725V
500 mating/unmating cycles: just push to mate, press & relase
to unmate
IP66 protection according to IEC/DIN EN 60529
Hyperboloid contact, high current rating supporting up to 13A,
high level of vibrations resistance (40G, 5 hours)
Cost saving
Ease of use
Safety
Long life cycle
Sealing
Reliability
>>
>>
>>
>>
>>
>>
October
2010
REP Series
Technical Characteristics
ELECTRICAL
Contacts
Withstanding
voltage
Insulation resistance
Contact resistance
Voltage rating
Current rating
Contact plating
Ø 1.5mm (size 16)
2725V (EN-50124-1)
≥ 5 x 10
3
M
Ω
≤ 2.50 m
Ω
230V (EN-50124-1) pollution degree 3
> 400V with plastic dummy contact
13A (compliant 18A acc. to NFF 61-030)
gold plating
MECHANICAL & MATERIAL
Contact retention force
Mating cycles
Coding
Polarisation
Weight (equipped with contacts)
Insulator
Seal & grommet
> 70 N
> 500 cycles
3 configurations
180°
2 ways: 17.3g
6 ways: 35.5g
12 ways: 62.8g
Thermoplastic
Silicone
ENVIRONMENTAL
Temperature range
Fire & smoke standards
Vibration resistance
-40° +100°C
NFF 16-101 & NFF 16-102
EN 61-373 cat. 2 (on boggie)
Salt spray
Environmental level
> 96 hours
IP66 , IP67
Ordering Information
REP
Series Name
---
--
--
--
Accessories
Without accessory
00
Number of Contacts
102 2 socket contacts
106 6 socket contacts
112 12 socket contacts
202 2 pin contacts
206 6 pin contacts
212 12 pin contacts
Polarity
Plug without contact 03
Receptacle without contact 04
Female plug with contacts 12
Male receptacle with contacts 23
With filler plug
01
With plastic dummy contact
02
Termination Style
Without contact 00
Crimp contact 24-12AWG 20
Main Applications
Railway
Truck
Test & Measurement
REP series is covering
Industry
Marine
Automotive
Civil Avionics
Public Work Equipment

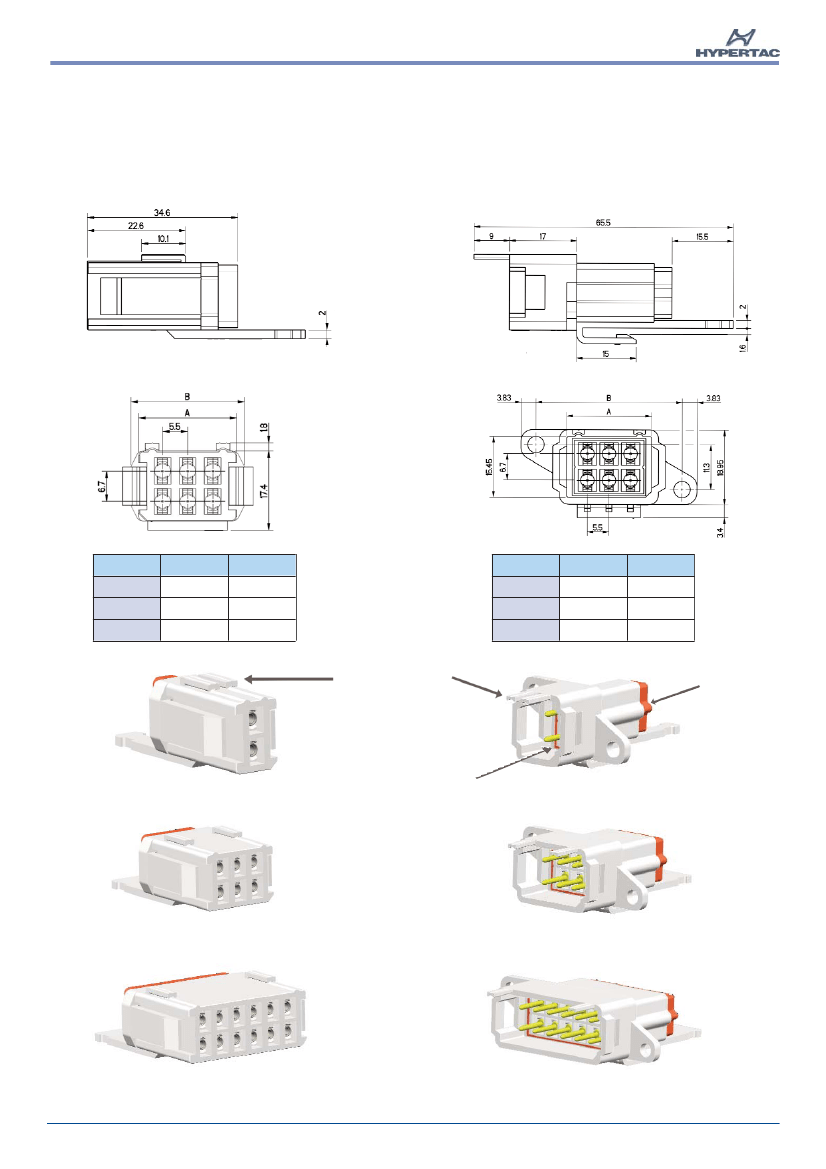

REP Series
Contacts
Contacts
P/N
0151071-20-OG
Crimping Tool
PIN dia.
(size)
Crimping tool Tool Turret
Astro-tool
TGV 101
or
Daniels
FT8
TGV 202
red
or
SH 463
red
Extraction
Tool
P/N
Type
Pin
Position & Wire section
1.5mm (16)
0151832-20-N1
Socket
4 - 0.50mm² to 0.60mm² (20AWG)
5 - 0.50mm² to 1mm² (18AWG)
SD-0150000012
6 - 1.34mm² to 1.50mm² (16AWG)
7 - 1.82mm² to 2.61mm² (24-12AWG)

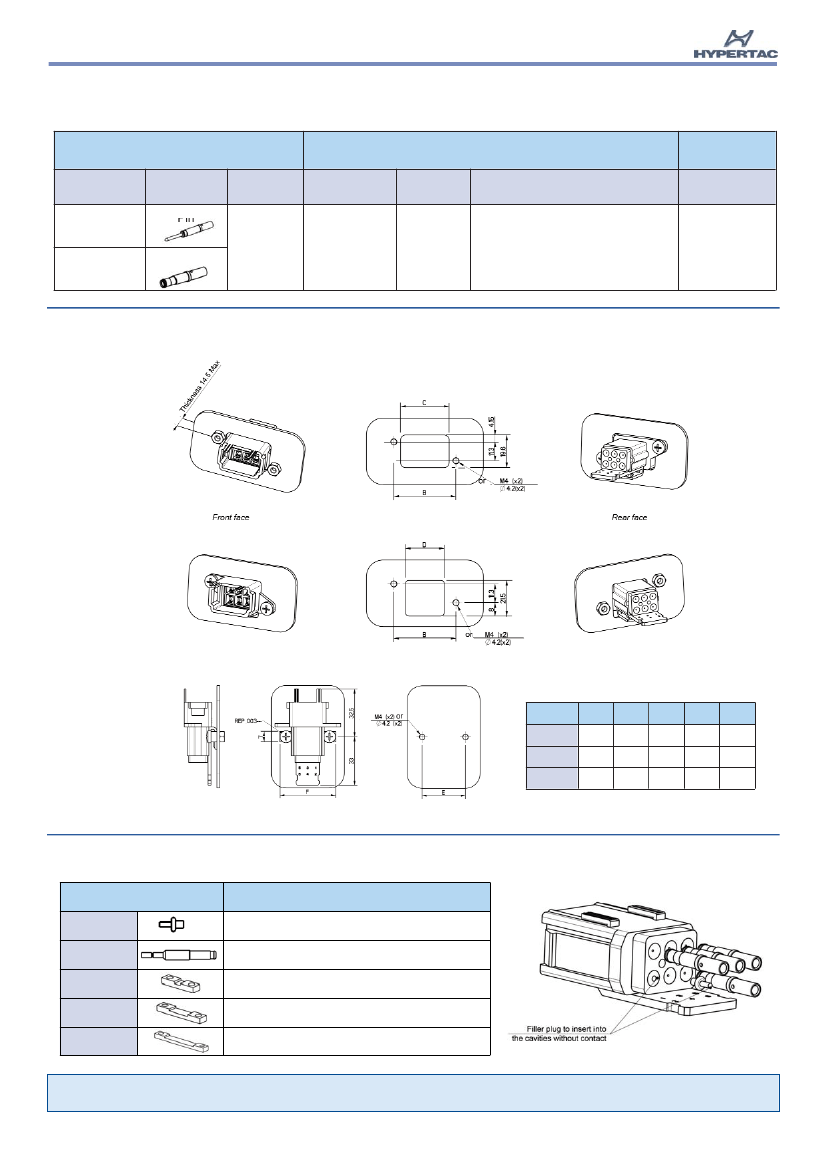

Panel Mounting
Back Panel Mount
Front Panel Mount
Panel Preparation detail
with REP-003-xx accessory
REP 2--
REP 202
REP 206
REP 212
B
26.1
37.1
53.6
C
18
29
45.5
D
12
23
39.5
E
18.7
29.7
46.2
F
27.2
38.2
54.7
Accessories
P/N
REP_001
REP_002
REP_003-02
REP_003-06
REP_003-12
Filler plug
Plastic dummy contact to use > 400V
Bracket for panel mounting, 2 way connector
Bracket for panel mounting, 6 way connector
Bracket for panel mounting, 12 way connector
Description
More information on our website
www.hypertac.com
© Copyright 2010. Hypertac SA - All rights reserved. Hypertac is a registered trademark of Smiths and/or its subsidiaries and affiliates. All other names and marks are property of their respective owners.
