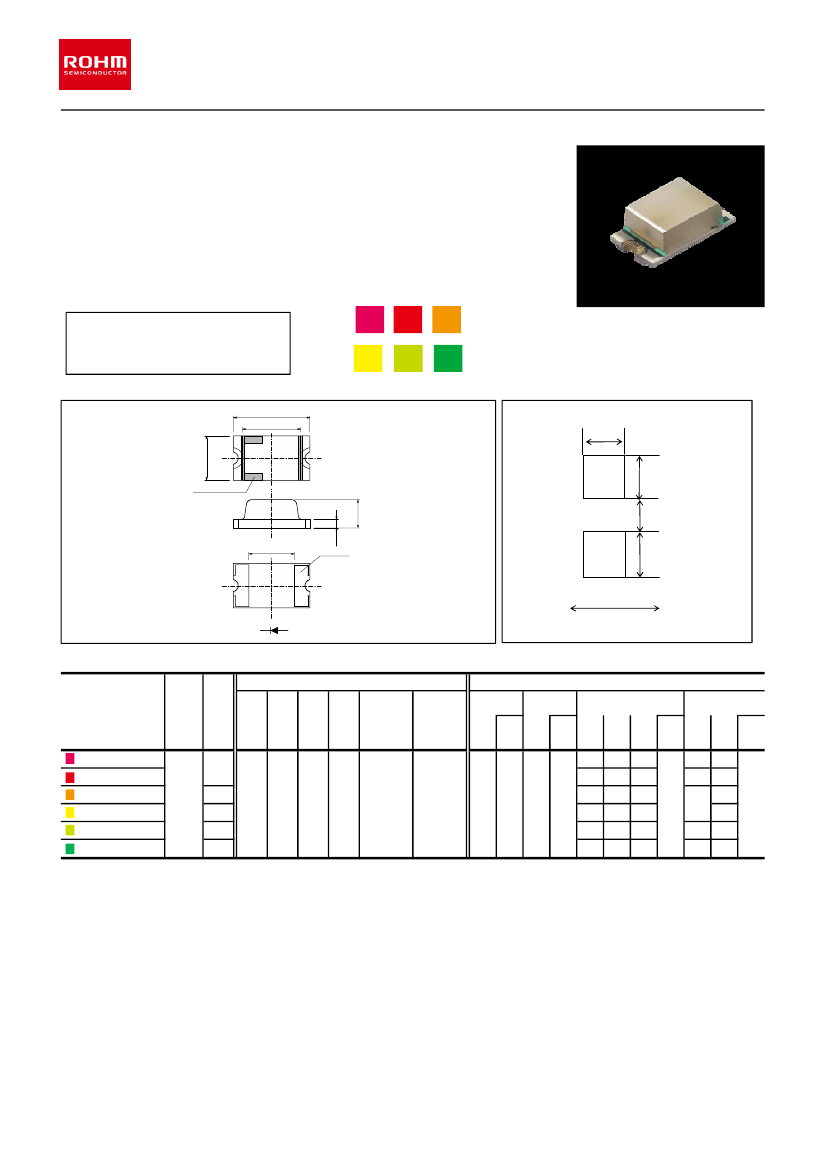

SML-H12x Series
■Features
• Abundant color variations with diverse luminous intensity types.
■Outline
Data Sheet
■Size
2012（0805）
2.0×1.25mm（t=0.8mm）
■Dimensions
2.0
1.52
Color
Type
V
Y
U
M
D
P
■Recommended Solder Pattern
1.1mm
1.25
Cathode mark∗
1.25mm
0.8
1.1mm
1.2
0.25
Terminal
1.25mm
PCB Bonding Direction
Tolerance : ±0.1
(unit : mm)
(unit : mm)
■Specifications
Absolute Maximum Ratings (Ta=25ºC)
Emitting
Electrical and Optical Characteristics (Ta=25ºC)
Forward Voltage V
F
Power
Forward
Dissipation
Peak Forward
Reverse
Operating Temp.
Storage Temp.
Reverse Current I
R
Dominant Wavelength
λ
D
Luminous Intensity I
V
Min.*2
Typ.
Max.*2
Part No.
Chip Structure
Color
Current
Current
Voltage
Typ.
T
opr
(ºC)
T
stg
(ºC)
(V)
I
F
(mA)
Max.
(µA)
V
R
(V)
I
F
Min.
Typ.
I
F
P
D
(mW)
I
F
(mA)
I
FP
(mA)
V
R
(V)
(nm)
(nm)
(nm)
(mA) (mcd) (mcd) (mA)
SML-H12V8T
SML-H12U8T
SML-H12D8T
AlGaInP
Red
Orange
625
615
54
20
100*
1
630
620
605
590
572
560
635
625
608
593
575
563
20
16
25
40
10
2.5
25
40
63
63
25
4
20
SML-H12Y8T
SML-H12M8T
SML-H12P8T
Yellow
Yellowish Green
5
-40
½
+85
-40
½
+100
2.2
20
10
5
602
587
569
557
Green
*1 : Duty 1/10, 1KHz *2 : Measurement tolerance:±1nm
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
1/9
©2018 ROHM Co., Ltd. All rights reserved
2018.3 - Rev.007
[SML-H12x series]

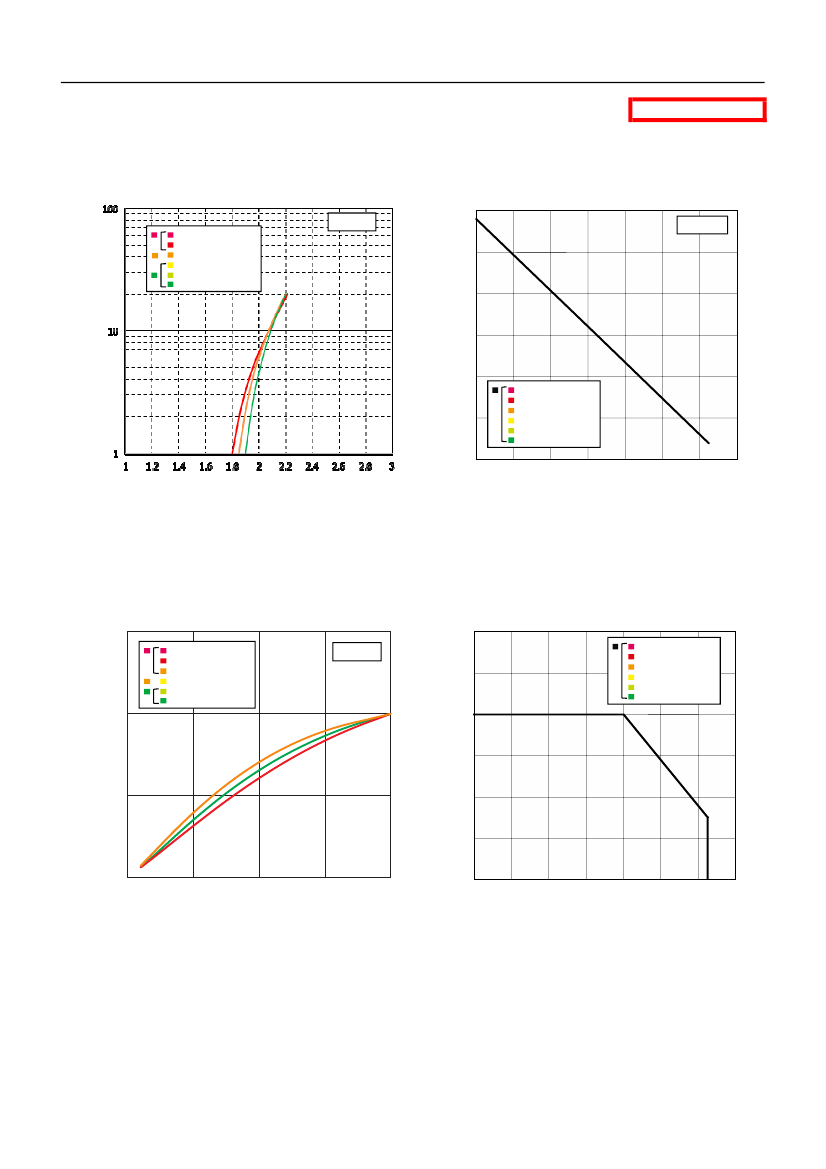

■Electrical Characteristics Curves
Fig.1 Forward Current
- Forward Voltages
[Data Sheet]
Reference
Fig.2 Luminous Intensity -
Atmosphere Temperature
RELATIVE LUMINOUS INTENSITY [a.u.]
1.6
I
F
=20mA
Ta=25ºC
FORWARD CURRENT : I
F
[mA]
SML-H12V8T
SML-H12U8T
SML-H12D8T
SML-H12Y8T
SML-H12M8T
SML-H12P8T
1.4
1.2
1.0
0.8
0.6
SML-H12V8T
SML-H12U8T
SML-H12D8T
SML-H12Y8T
SML-H12M8T
SML-H12P8T
0.4
-40
-20
0
20
40
60
80
100
FORWARD VOLTAGE : V
F
[V]
ATMOSPHERE TEMPERATURE : Ta [ºC]
Fig.3 Luminous Intensity - Forward Current
1.5
Fig.4 Derating
MAXIMUM FORWARD CURRENT : [mA]
30
RELATIVE LUMINOUS INTENSITY
SML-H12V8T
SML-H12U8T
SML-H12D8T
SML-H12Y8T
SML-H12M8T
SML-H12P8T
Ta=25ºC
SML-H12V8T
SML-H12U8T
SML-H12D8T
SML-H12Y8T
SML-H12M8T
SML-H12P8T
1.0
20
0.5
10
0
0
5
10
15
20
0
-40
-20
0
20
40
60
80
100
FORWARD CURRENT : I
F
[mA]
AMBIENT TEMPERATURE : Ta [ºC]
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
2/9
©2018 ROHM Co., Ltd. All rights reserved
2018.3 - Rev.007
[SML-H12x series]

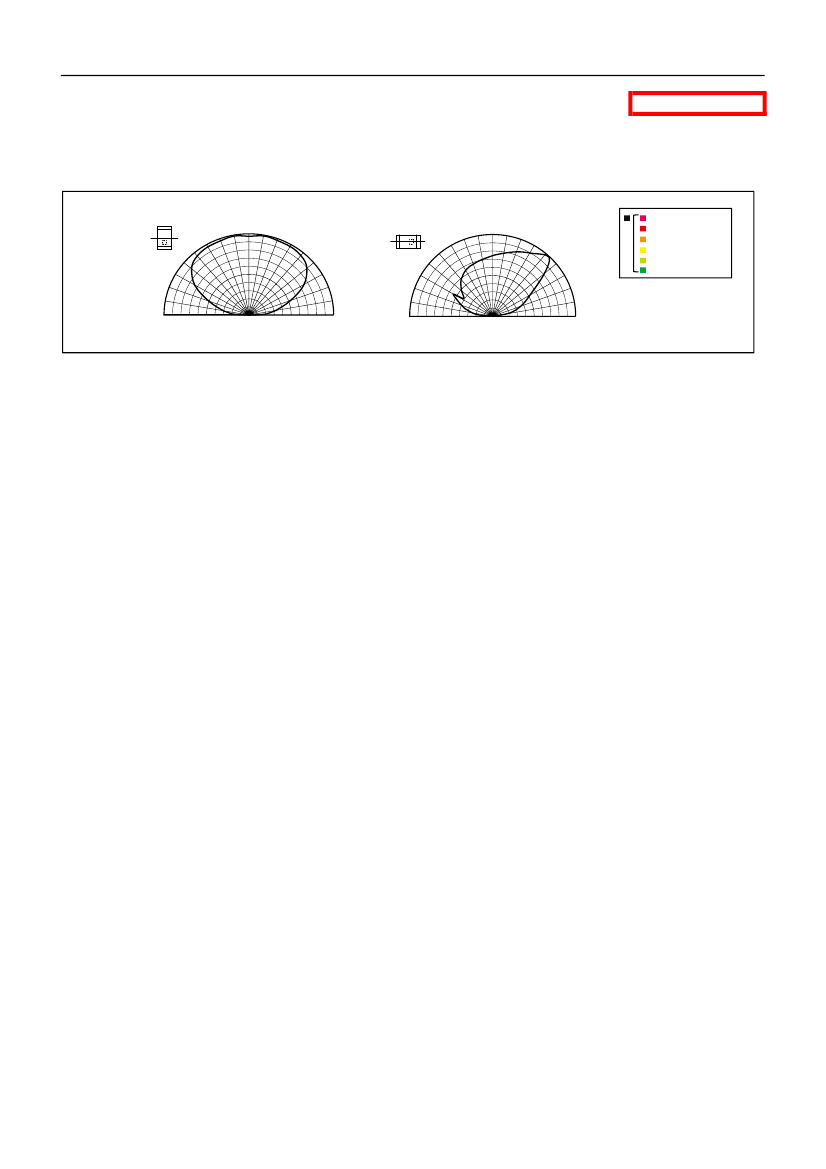

■Viewing Angle
[Data Sheet]
Reference
SCANNING ANGLE (deg)
X
Y
SCANNING ANGLE (deg)
X’
Y’
20°
30°
40°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
20°
30°
40°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
50°
60°
70°
80°
90°
100
50
0
50
50°
60°
70°
80°
90°
100
50
0
50
SML-H12V8T
SML-H12U8T
SML-H12D8T
SML-H12Y8T
SML-H12M8T
SML-H12P8T
90°
100
90°
100
RELATIVE INTENSITY (%)
RELATIVE INTENSITY (%)
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
3/9
©2018 ROHM Co., Ltd. All rights reserved
2018.3 - Rev.007
[SML-H12x series]
■Rank Reference of Brightness*
[Data Sheet]
*Measurement tolerance:±10%
(Ta=25ºC, I
F
＝20mA)
Red(V,U)
Rank
Iv (mcd)
SML-H12V8T
SML-H12U8T
1.0〜1.6 1.6〜2.5 2.5〜4.0 4.0〜6.3
6.3〜10
10〜16 16〜25 25〜40 40〜63
63〜100
100〜160 160〜250 250〜400 400〜630
G
H
J
K
L
M
N
P
Q
R
S
T
U
V
W
X
Y
Z
630〜1000
1000〜1600 1600〜2500 2500〜4000
Orange(D)
Rank
Iv (mcd)
SML-H12D8T
(Ta=25ºC, I
F
＝20mA)
1.0〜1.6 1.6〜2.5 2.5〜4.0 4.0〜6.3
6.3〜10
10〜16 16〜25 25〜40 40〜63
63〜100
100〜160 160〜250 250〜400 400〜630
G
H
J
K
L
M
N
P
Q
R
S
T
U
V
W
X
Y
630〜1000
1000〜1600 1600〜2500
Yellow(Y)
Rank
Iv (mcd)
SML-H12Y8T
(Ta=25ºC, I
F
＝20mA)
1.0〜1.6 1.6〜2.5 2.5〜4.0 4.0〜6.3
6.3〜10
10〜16 16〜25 25〜40 40〜63
63〜100
100〜160 160〜250 250〜400 400〜630
G
H
J
K
L
M
N
P
Q
R
S
T
U
V
W
X
Y
630〜1000
1000〜1600 1600〜2500
Yellowish Green/Green(M, P)
Rank
Iv (mcd)
SML-H12M8T
SML-H12P8T
F
G
H
J
(Ta=25ºC, I
F
＝20mA)
0.63〜1.0
1.0〜1.6 1.6〜2.5 2.5〜4.0 4.0〜6.3
K
6.3〜10
10〜16 16〜25 25〜40 40〜63
63〜100
100〜160 160〜250 250〜400 400〜630
L
M
N
P
Q
R
S
T
U
V
W
X
Y
630〜1000
1000〜1600 1600〜2500
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
4/9
©2018 ROHM Co., Ltd. All rights reserved
2018.3 - Rev.007
[SML-H12x series]
■Taping（T86)
4
±0.1
2
±0.05
φ1.5
+0.1
0
[Data Sheet]
1.75
±0.1
3.5
2.5
1.7
0½0.5
5.5
8.0
1.0
±0.1
11.4
±1
+1
0
φ13
φ60
φ180
0
-3
Unit:½½
Packing quantity
3,000pcs/reel
Note)Tolerance is within ±0.2mm unless
Pull
direction
otherwise specified.
■Part No. Construction
*"-"will be taken out for emitting color
WB/B/E series.
Special Code will be applied for
Emitting color WB/B/E series.
Chromaticity rank
(for white LED）
Rank sign
(Brightness Rank)*
S
Series name
M
L
－
H
Package Type
1
2
Chip type
Y
Emitting Color
8
T
Resin Color
T
8
6
P
Taping Specification
SML
Chip LED
P1
1.0x0.6 t=0.2mm
E1
1.6x0.8 t=0.36mm
D1
1.6x0.8 t=0.55mm
H1
M1
2.0x1.25 t=0.8mm
0
1
2
3
4
5
6
7
8
Standard Type
Low Current Type
V
U
U2
D
Y3
Y2
Y
W
M
F
P
E
B
WB
Red
Red
Red
Orange
Yellow
Yellow
Yellow
Yellow
Yellowish green
Green
Green
Green
Blue
White
Red/Green/Blue
T
B
Transparent Colorless
T86
T87
1
3
Cathode at sprocket hole side(the top)
W
Milkey White
Black
Anode at sprocket hole side(the top)
High Brightness type
For white LED,
csthode at sprocket hole side
01
3.0x2.0 t=1.3mm
Z1/ZN
3.5x2.8 t=1.9mm
3.4x1.25 t=1.1mm
Ultra High Brightness type
notice）S1 series、81 seires
T86
T68
Cathode at sprocket hole side(the back)
A1
1.6x1.15 t=0.55mm
81/82
Cathode at sprocket hole side(the top)
M2
Yellowish green
K1
4.5x2.0 t=0.6mm
S1
3.2x1.6 t=1.85mm
P2
1.0x1.0 t=0.2mm
52
1.3x1.5 t=0.6mm
P34
P36
*Concerning the Brightness rank.
*Please refer to the rank chart above for
luminous intensity classification.
*Part name is individual for each rank.
*When shipped as sample,the part name will
be a representative part name.
General products are free of ranks.
Please contact sales if rank appointment
is needed.
1.0x1.0 t=0.2mm
1.5x1.0 t=0.2mm
VN
3.5x2.8 t=0.6mm
SCM
T Phototransistors
RGB
Chip LED
01
3.0x1.5 t=2.2mm
ROHM LED products are being shipped with desiccant (silica gel) included in moisture-proof bags.
Pasting the moisture sensitive label on the outer surface of the moisture-proof bags
or enclosing the humidity indication card inside the bag is available upon request.
Please contact the nearest sales office or distributer if necessary.
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
5/9
©2018 ROHM Co., Ltd. All rights reserved
2018.3 - Rev.007
■Packing Specification
